Model Whirlpool RC8300XKH – Common Parts & Diagrams
02 - SURFACE UNIT MODULE
04 - RCK882(261949)

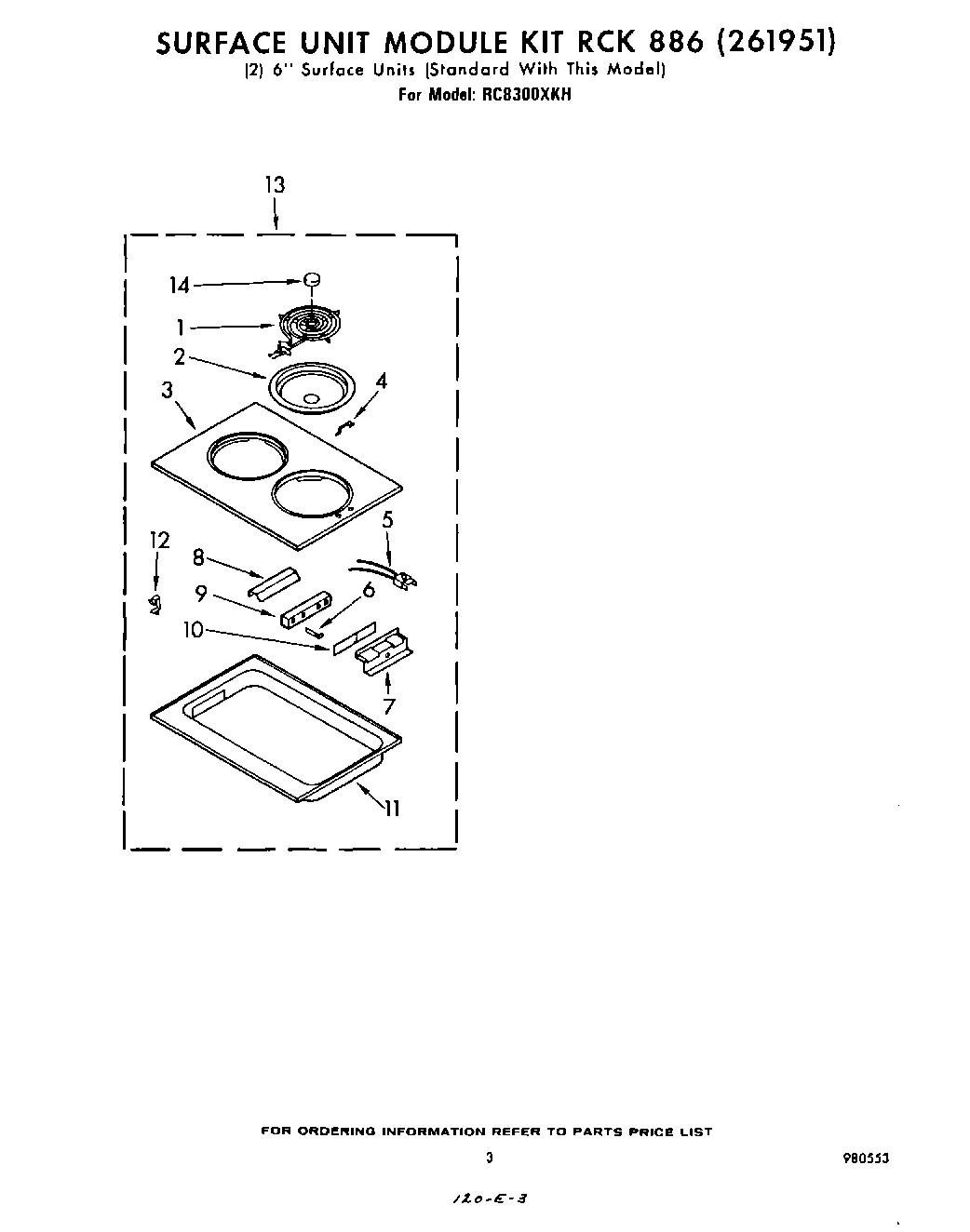

03 - RCK866(261951)

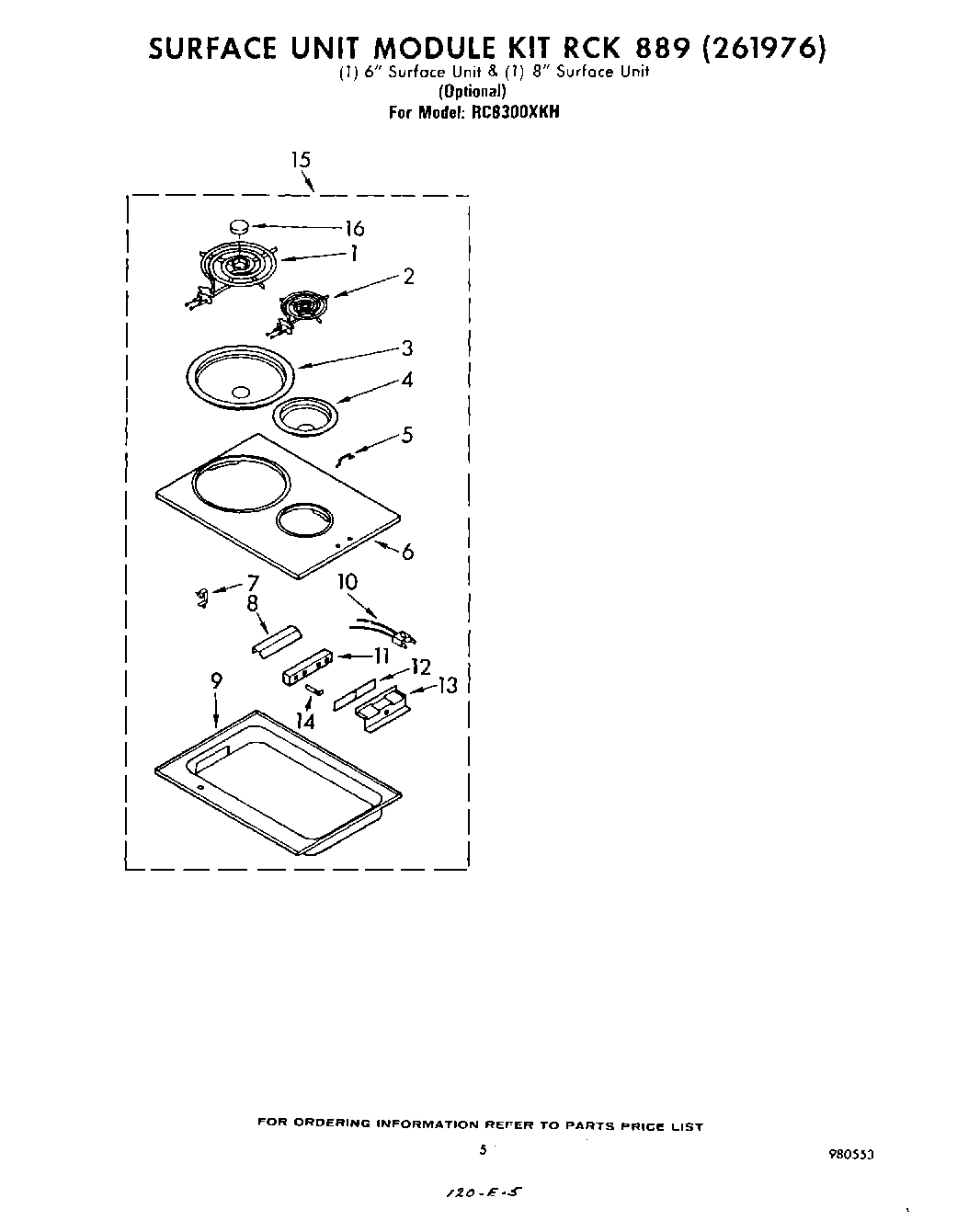

05 - RCK889(261976)

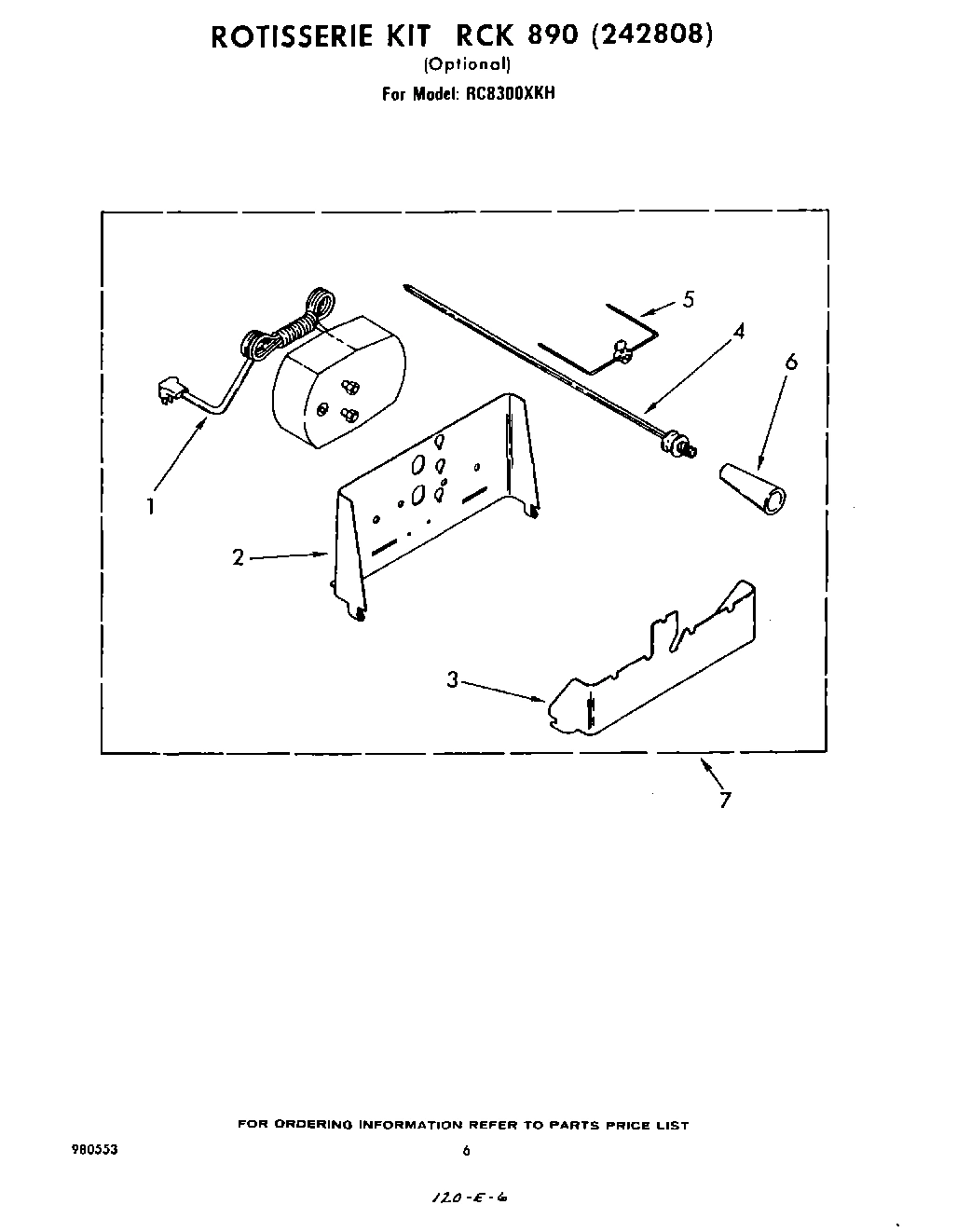

06 - RCK890(242808)

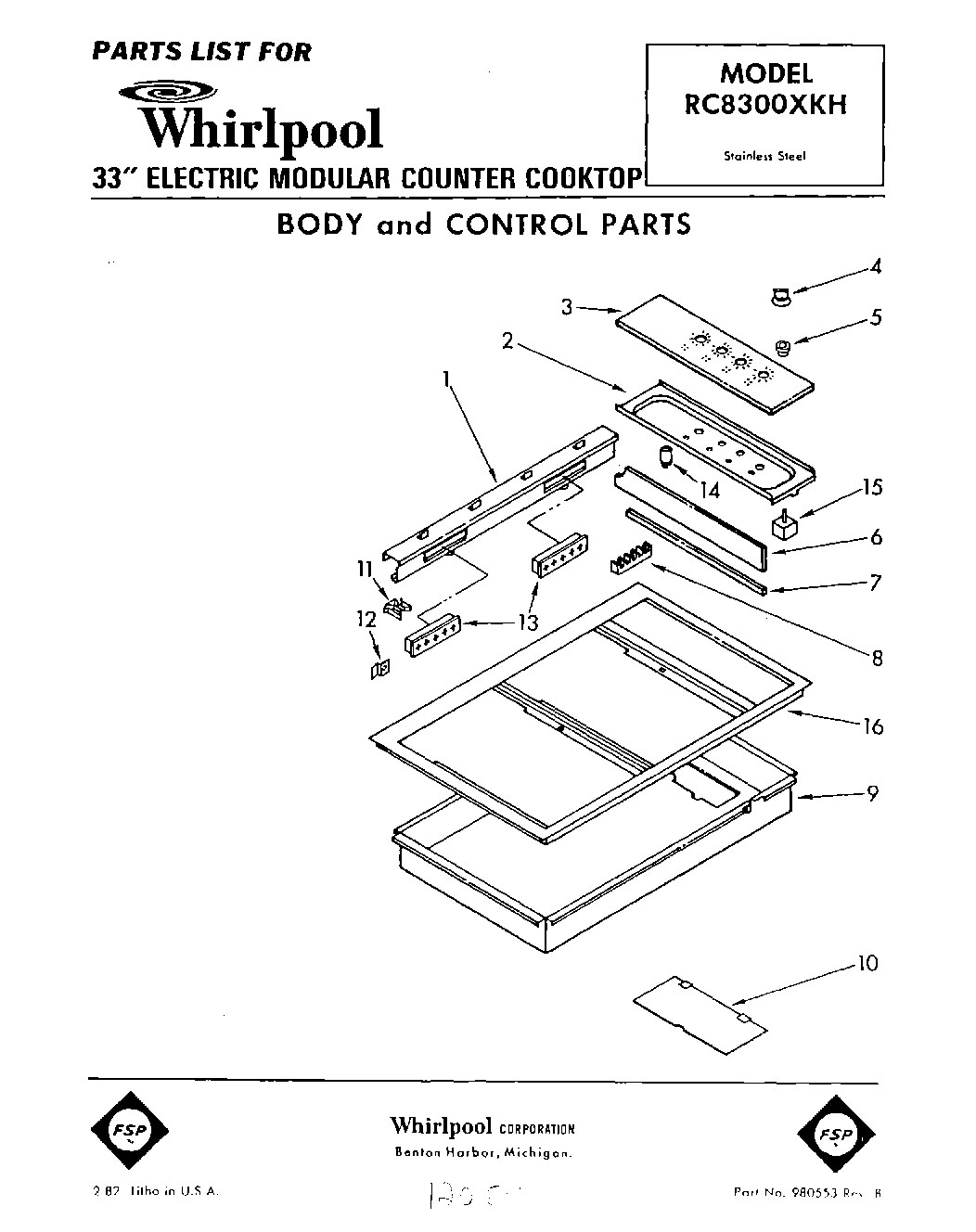

01 - BODY AND CONTROL , LIT/OPTIONAL

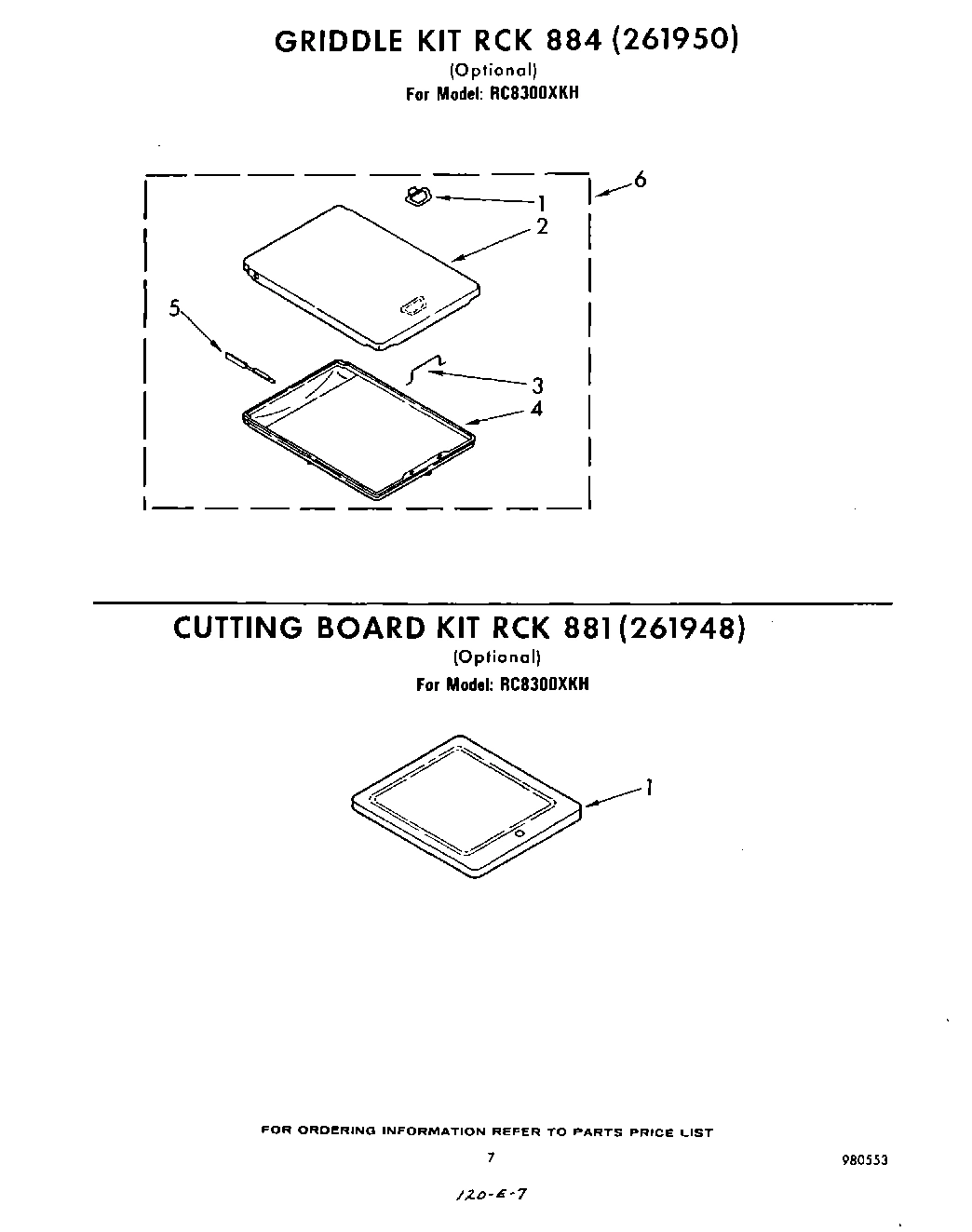

07 - RCK844(261950) , RCK881(261948)
Common parts from model Whirlpool RC8300XKH
1
Grate, Grille WPL 868870 Contact Us For Availability
1
Motor, Rotisserie WPL 868455 Contact Us For Availability
1
Shield, Wire WPL 868418 Contact Us For Availability
1
Kit, Cutting Board WPL 261948 Contact Us For Availability
1
Handle, Griddle Cover WPL 866222 Contact Us For Availability
2
Unit, Surface (4``) (1) WPL 868448 Contact Us For Availability
2
Element, Grille (Includes Illus. 10) WPL 868453 Contact Us For Availability
2
Plate, Rear WPL 868929 Contact Us For Availability
2
Bracket, Control WPL 868425 Contact Us For Availability
2
Cover, Griddle (Chrome) WPL 868435 Contact Us For Availability
3
Screw, 8-32 x 3/8 (4) WPL 868382 Contact Us For Availability
3
Pushnut (3/16``) (2) WPL 241547 Contact Us For Availability
3
End Cap, Basket WPL 868458 Contact Us For Availability
3
Lifter, Griddle WPL 248568 Contact Us For Availability
3
Cooktop, 6/6 WPL 868462 Contact Us For Availability
3
Plate, Front WPL 868879 Contact Us For Availability
3
Tape, Foam (3/4`` Wide) WPL 866454 Contact Us For Availability
3
Glass, Control Panel WPL 868956 Contact Us For Availability
4
Bowl, Surface Unit (4``) (1) WPL 868446 Contact Us For Availability
4
Handle, Cooktop WPL 868450 Contact Us For Availability
4
Basket, Rack WPL 868457 Contact Us For Availability
4
Bowl, Surface Unit (6``) (1) WPL 868444 Contact Us For Availability
4
Rod, Skewer WPL 868930 Contact Us For Availability
4
Knob, Control (4) WPL 868431 Contact Us For Availability
4
Griddle WPL 868432 Contact Us For Availability
4
Screw, 10-24 x 1/2 WPL 868876 Contact Us For Availability
5
Handle, Cooktop WPL 868866 Contact Us For Availability
5
Holder, Meat (2) WPL 241209 Contact Us For Availability
5
Bushing, Switch (4) WPL 868465 Contact Us For Availability
5
terminal, ground WPL 868434 Contact Us For Availability
6
Cooktop (4/8) WPL 868463 Contact Us For Availability
6
Pan, Grille WPL 868853 Contact Us For Availability
6
Cooktop (6``/8``) WPL 868865 Contact Us For Availability
6
Handle, Skewer Rod WPL 241210 Contact Us For Availability
6
Divider, Box WPL 868417 Contact Us For Availability
6
Kit, Griddle (Complete) WPL 261950 Contact Us For Availability
7
Clamp, Wire (2) WPL 868466 Contact Us For Availability
7
Handle, Rock Basket WPL 868459 Contact Us For Availability
7
Kit, Rotisserie (Complete) WPL 242808 Contact Us For Availability
7
Pad, Foam WPL 868461 Contact Us For Availability
8
Shield, Wire WPL 868686 Contact Us For Availability
8
Rocks, Lava (1 Lb.) WPL 868460 Contact Us For Availability
8
Nut, Hex (10-32) (3) WPL 487836 Contact Us For Availability
8
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
9
Pan, Surface Unit WPL 868813 Contact Us For Availability
9
Kit, Grille Module (Complete) WPL 261949 Contact Us For Availability
9
Box, Outer WPL 868415 Contact Us For Availability
10
Pushnut WPL 868878 Contact Us For Availability
10
Cover, Access WPL 868423 Contact Us For Availability
11
Receptacle, Male WPL 868437 Contact Us For Availability
11
Terminal, Female (10) WPL 868422 Contact Us For Availability
12
Insulator, Receptacle WPL 868814 Contact Us For Availability
12
Screw, 10-24 x 1/4 WPL 868959 Contact Us For Availability
12
Clip, Receptacle (4) WPL 868421 Contact Us For Availability
13
Pushnut, 1/8 WPL 866272 Contact Us For Availability
13
Bracket, Ground WPL 868440 Contact Us For Availability
13
Kit, Surface Unit Module (6/6) (Complete) WPL 261951 Contact Us For Availability
13
Receptacle, Female (2) WPL 868420 Contact Us For Availability
14
Terminal, Male (4) WPL 868438 Contact Us For Availability
14
Light, Signal (4) WPL 868433 Contact Us For Availability
15
Screw, 8-32 x 3/16 (8) WPL 486525 Contact Us For Availability
15
Kit, Surface Unit Module (6``/8``) WPL 261976 Contact Us For Availability
15
Switch, Infinite (4) WPL 868955 Contact Us For Availability
16
Medallion (For 8`` & 6`` Surface Units) WPL 868522 Contact Us For Availability
16
Screw, 10-24 x 1 (4) WPL 865751 Contact Us For Availability
16
Instructions, Installation WPL 868414 Contact Us For Availability
16
Screw, 10-24 x 1/2 (6) WPL 868430 Contact Us For Availability
16
Clip, Frame (4) WPL 868467 Contact Us For Availability
16
Guide, Use & Care WPL 868939 Contact Us For Availability
16
Frame, Cooktop WPL 868957 Contact Us For Availability
16
List, Repair Parts WPL 980553 Contact Us For Availability
18
Medallion (For 4`` Unit) WPL 868911 Contact Us For Availability
19
Surface Unit Module (Complete) WPL 261952 Contact Us For Availability
× ![]()
