Model Maytag RC20CA-2A REFRIGERATOR – Common Parts & Diagrams

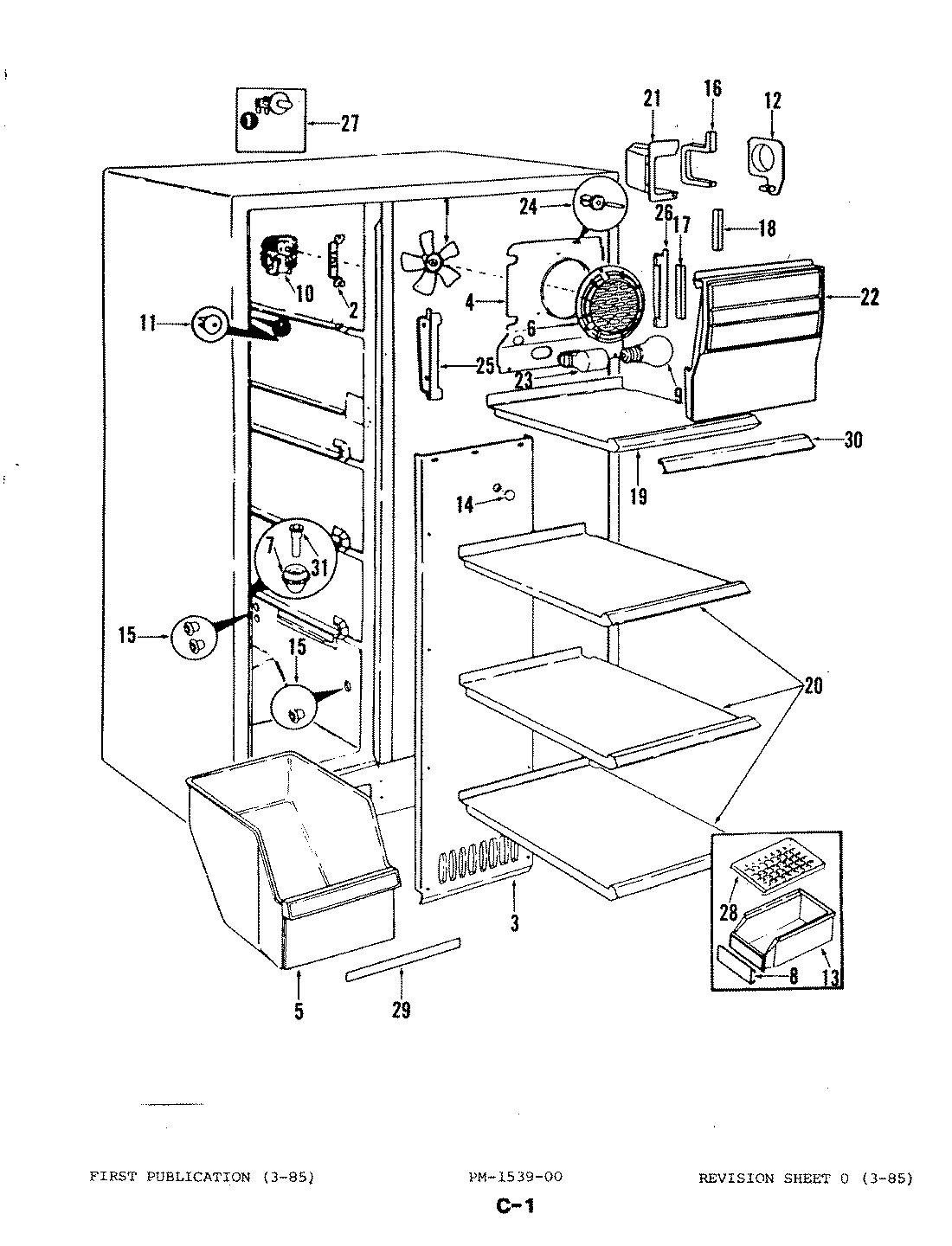

01 - FREEZER COMPARTMENT

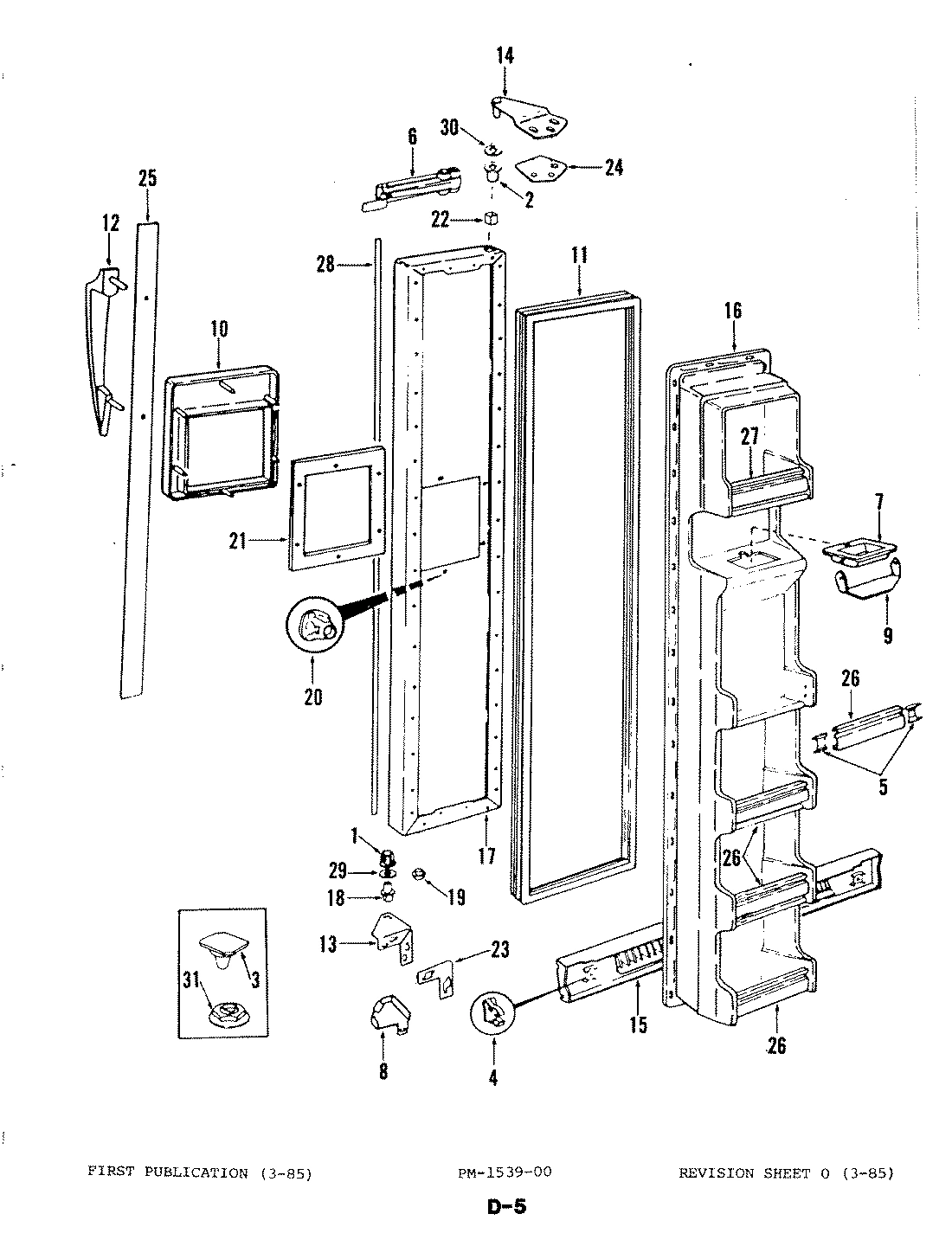

02 - FREEZER DOOR

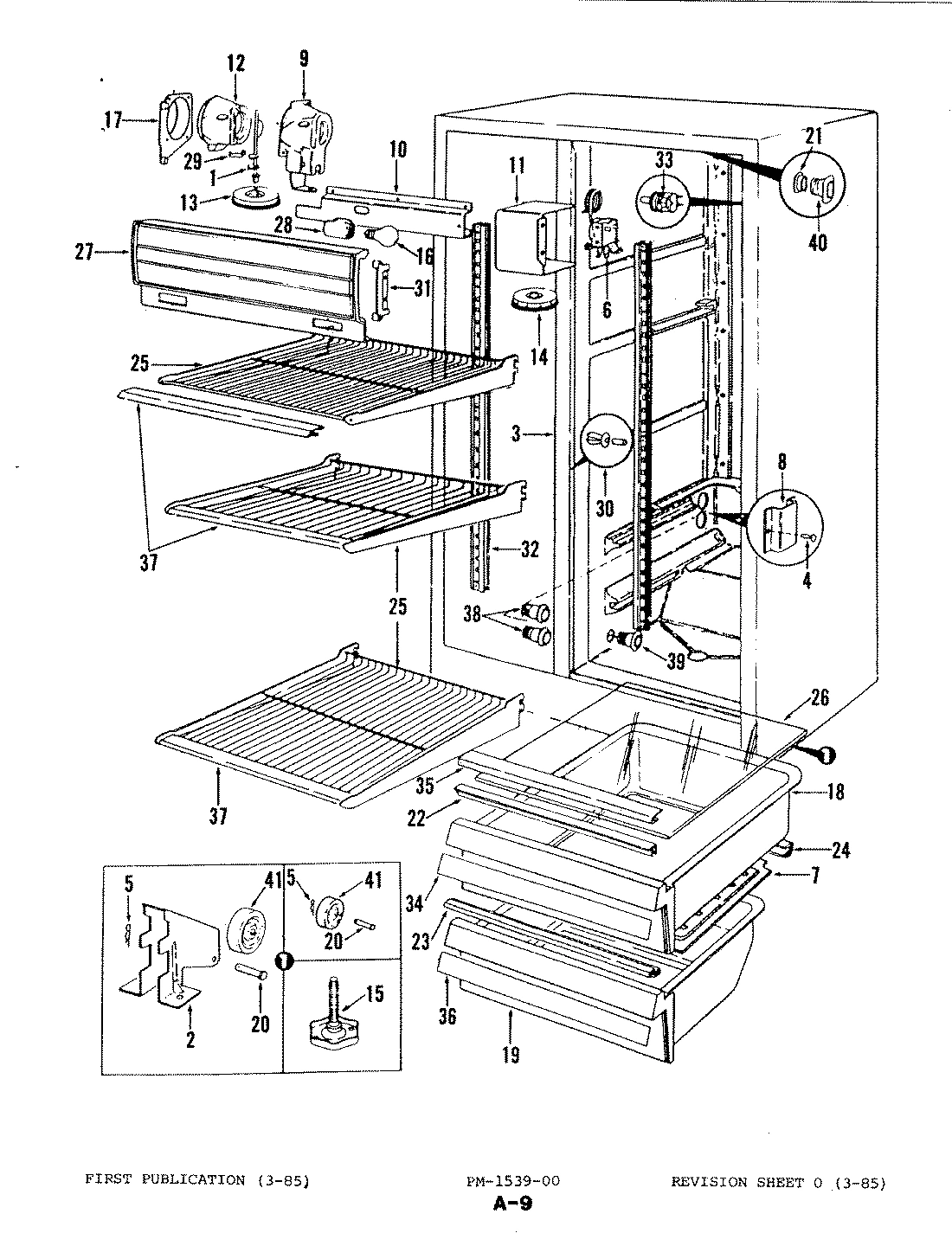

03 - FRESH FOOD COMPARTMENT

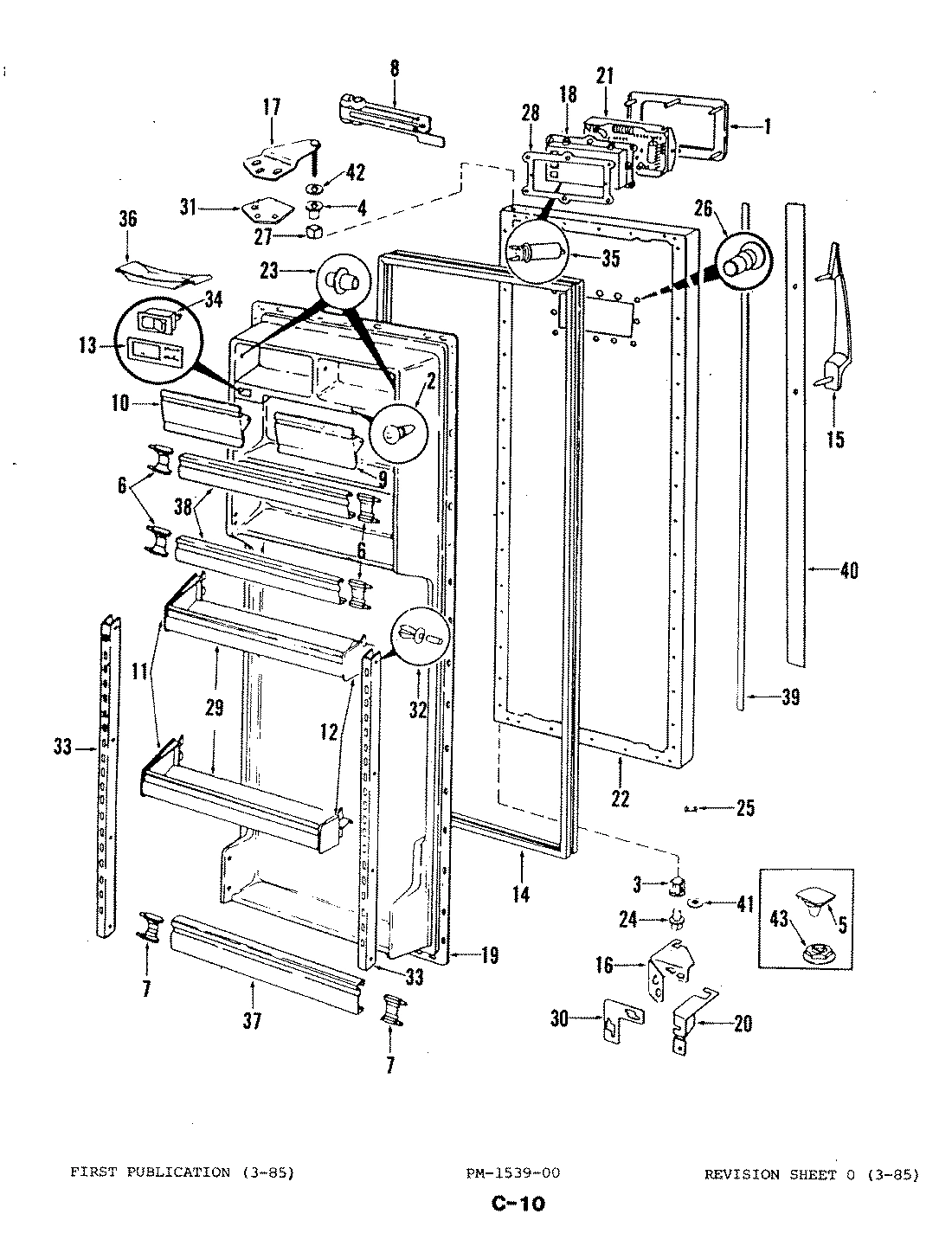

04 - FRESH FOOD DOOR

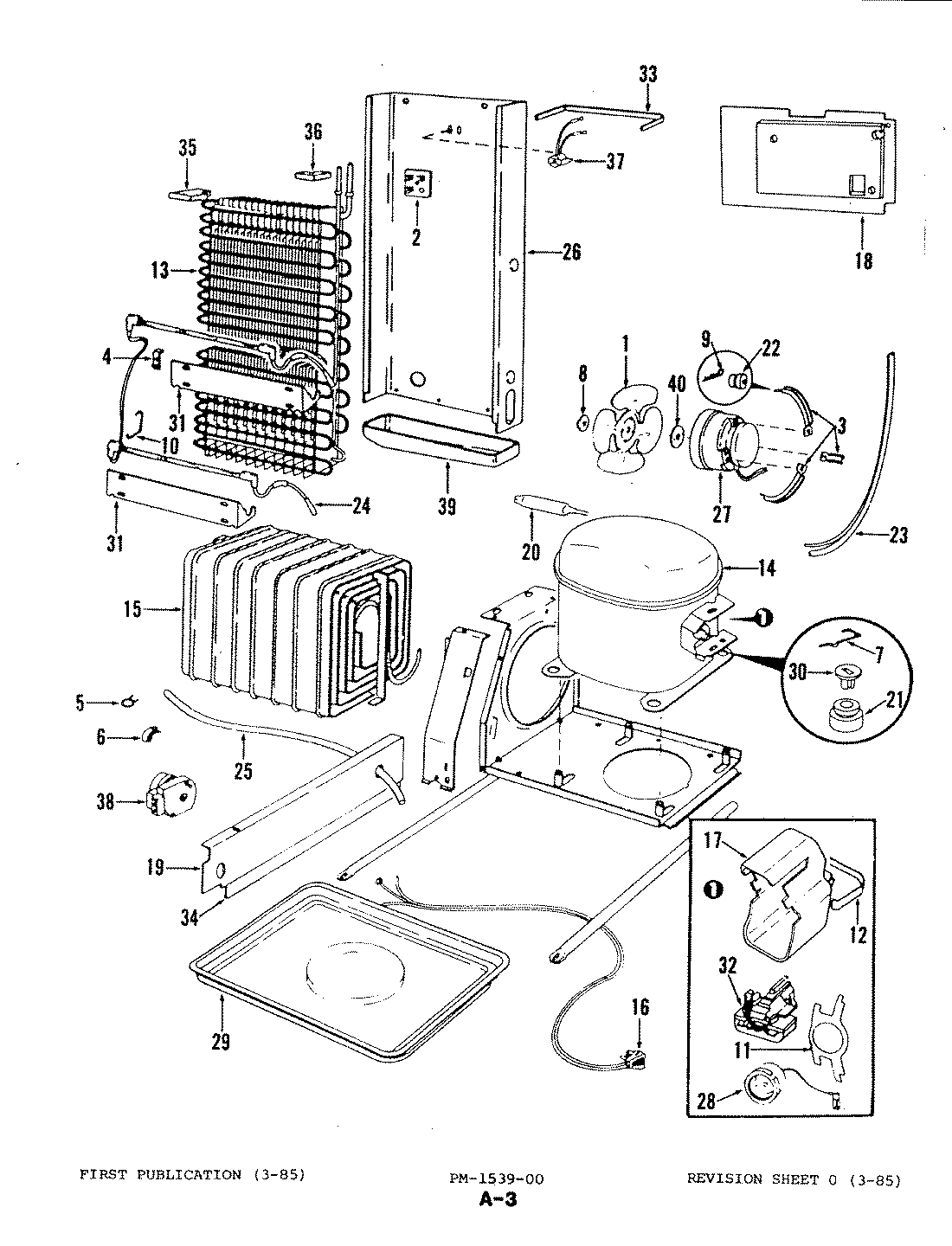

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Maytag RC20CA-2A REFRIGERATOR
1
MAY 52587-2 MAY 52587-2 Contact Us For Availability
1
MAY 62934-2 MAY 62934-2 Contact Us For Availability
2
MAY 55781-1 MAY 55781-1 Contact Us For Availability
2
MAY 52846-1 MAY 52846-1 Contact Us For Availability
2
MAY 55878-1 MAY 55878-1 Contact Us For Availability
3
MAY 55424-1 MAY 55424-1 Contact Us For Availability
3
MAY 59026-1-AM MAY 59026-1-AM Contact Us For Availability
3
MAY 56936-1 MAY 56936-1 Contact Us For Availability
4
MAY 52854-3 MAY 52854-3 Contact Us For Availability
4
MAY 28013-2 MAY 28013-2 Contact Us For Availability
4
MAY 56438-1 MAY 56438-1 Contact Us For Availability
4
MAY 57418-1 MAY 57418-1 Contact Us For Availability
4
MAY 55781-2 MAY 55781-2 Contact Us For Availability
4
MAY 29282-2 MAY 29282-2 Contact Us For Availability
4
MAY 52561-1 MAY 52561-1 Contact Us For Availability
5
MAY 59330-11 MAY 59330-11 Contact Us For Availability
5
MAY 62703-2 MAY 62703-2 Contact Us For Availability
5
MAY 62581-1 MAY 62581-1 Contact Us For Availability
5
MAY 53516-5 MAY 53516-5 Contact Us For Availability
6
MAY 62689-1 MAY 62689-1 Contact Us For Availability
7
MAY 52526-1 MAY 52526-1 Contact Us For Availability
7
MAY 53934-7 MAY 53934-7 Contact Us For Availability
7
MAY 52778-1 MAY 52778-1 Contact Us For Availability
8
MAY 60132-43 MAY 60132-43 Contact Us For Availability
8
MAY 62128-1 MAY 62128-1 Contact Us For Availability
9
MAY 58760-2 MAY 58760-2 Contact Us For Availability
9
MAY 59234-38 MAY 59234-38 Contact Us For Availability
9
MAY 57051-1 MAY 57051-1 Contact Us For Availability
10
MAY 56488-3 MAY 56488-3 Contact Us For Availability
10
MAY 59740-1 MAY 59740-1 Contact Us For Availability
10
MAY 59234-39 MAY 59234-39 Contact Us For Availability
10
MAY 52067-1 MAY 52067-1 Contact Us For Availability
11
MAY 53821-1 MAY 53821-1 Contact Us For Availability
11
MAY 53712-23 MAY 53712-23 Contact Us For Availability
11
MAY 65268-2 MAY 65268-2 Contact Us For Availability
11
MAY 65190-1 MAY 65190-1 Contact Us For Availability
12
MAY 54423-1 MAY 54423-1 Contact Us For Availability
12
MAY 63649-5 MAY 63649-5 Contact Us For Availability
12
MAY 58767-1 MAY 58767-1 Contact Us For Availability
12
MAY 65191-1 MAY 65191-1 Contact Us For Availability
13
MAY 60579-1 MAY 60579-1 Contact Us For Availability
13
MAY 53671-11 MAY 53671-11 Contact Us For Availability
13
MAY 29893-6 MAY 29893-6 Contact Us For Availability
13
MAY RA43643-4 MAY RA43643-4 Contact Us For Availability
14
MAY 495015-900 MAY 495015-900 Contact Us For Availability
14
MAY 52613-1 MAY 52613-1 Contact Us For Availability
14
MAY 29893-5 MAY 29893-5 Contact Us For Availability
14
MAY 53712-7 MAY 53712-7 Contact Us For Availability
14
MAY RA990 MAY RA990 Contact Us For Availability
15
MAY 400015-12 MAY 400015-12 Contact Us For Availability
15
MAY 53727-1 MAY 53727-1 Contact Us For Availability
15
MAY 58437-50 MAY 58437-50 Contact Us For Availability
15
MAY 6012-8 MAY 6012-8 Contact Us For Availability
15
MAY 63649-4 MAY 63649-4 Contact Us For Availability
15
MAY RA43644-4 MAY RA43644-4 Contact Us For Availability
16
MAY 52077-10 MAY 52077-10 Contact Us For Availability
16
MAY 59433-16 MAY 59433-16 Contact Us For Availability
16
MAY 55771 MAY 55771 Contact Us For Availability
16
MAY 53671-10 MAY 53671-10 Contact Us For Availability
16
MAY 52890-2 MAY 52890-2 Contact Us For Availability
17
MAY 52077-19 MAY 52077-19 Contact Us For Availability
17
MAY 53709-18 MAY 53709-18 Contact Us For Availability
17
MAY 62391-18-AM MAY 62391-18-AM Contact Us For Availability
17
MAY 53835-2 MAY 53835-2 Contact Us For Availability
17
MAY 26088-11 MAY 26088-11 Contact Us For Availability
17
MAY 65189-1 MAY 65189-1 Contact Us For Availability
18
MAY 52824-6 MAY 52824-6 Contact Us For Availability
18
MAY 59395-15 MAY 59395-15 Contact Us For Availability
18
MAY 65492-1 MAY 65492-1 Contact Us For Availability
19
MAY 59314-1 MAY 59314-1 Contact Us For Availability
19
MAY 59592-34 MAY 59592-34 Contact Us For Availability
19
MAY 59433-136 MAY 59433-136 Contact Us For Availability
19
MAY 29838-4 MAY 29838-4 Contact Us For Availability
20
MAY 57706-2 MAY 57706-2 Contact Us For Availability
20
MAY 53060-4 MAY 53060-4 Contact Us For Availability
20
MAY 62580-1 MAY 62580-1 Contact Us For Availability
20
MAY 13900 MAY 13900 Contact Us For Availability
21
MAY 53837-1 MAY 53837-1 Contact Us For Availability
21
MAY 400027-1 MAY 400027-1 Contact Us For Availability
21
MAY 400037-1 MAY 400037-1 Contact Us For Availability
21
MAY 400062-1 MAY 400062-1 Contact Us For Availability
21
MAY 402005-103 MAY 402005-103 Contact Us For Availability
21
MAY 57411-1 MAY 57411-1 Contact Us For Availability
21
MAY 58368-20 MAY 58368-20 Contact Us For Availability
21
MAY 17245-3 MAY 17245-3 Contact Us For Availability
22
MAY 55664-38 MAY 55664-38 Contact Us For Availability
22
MAY 55706-8 MAY 55706-8 Contact Us For Availability
22
MAY 62391-21-AM MAY 62391-21-AM Contact Us For Availability
22
MAY 56933-1 MAY 56933-1 Contact Us For Availability
23
MAY 53688-2 MAY 53688-2 Contact Us For Availability
23
MAY 54102-1 MAY 54102-1 Contact Us For Availability
23
MAY 59325-1 MAY 59325-1 Contact Us For Availability
23
MAY RA43645-4 MAY RA43645-4 Contact Us For Availability
24
MAY 59920-1 MAY 59920-1 Contact Us For Availability
24
MAY 53672-1 MAY 53672-1 Contact Us For Availability
24
MAY 54103-1 MAY 54103-1 Contact Us For Availability
24
MAY 52764-14 MAY 52764-14 Contact Us For Availability
25
MAY 53687-2 MAY 53687-2 Contact Us For Availability
25
MAY 495034-900 MAY 495034-900 Contact Us For Availability
25
MAY 64991-1 MAY 64991-1 Contact Us For Availability
25
MAY 26911-18 MAY 26911-18 Contact Us For Availability
26
MAY 54424-2 MAY 54424-2 Contact Us For Availability
26
MAY 403062-5 MAY 403062-5 Contact Us For Availability
26
MAY 9986-12 MAY 9986-12 Contact Us For Availability
26
MAY 9986-87 MAY 9986-87 Contact Us For Availability
26
MAY 65254-3 MAY 65254-3 Contact Us For Availability
26
MAY 65033-1 MAY 65033-1 Contact Us For Availability
27
MAY 65151-1 MAY 65151-1 Contact Us For Availability
27
MAY 59333-33 MAY 59333-33 Contact Us For Availability
27
MAY 28056-9 MAY 28056-9 Contact Us For Availability
27
MAY 60408-1 MAY 60408-1 Contact Us For Availability
28
MAY 29814-2 MAY 29814-2 Contact Us For Availability
28
MAY 45004-20 MAY 45004-20 Contact Us For Availability
28
MAY 53067-72 MAY 53067-72 Contact Us For Availability
29
MAY 65297-5 MAY 65297-5 Contact Us For Availability
29
MAY 52648-1 MAY 52648-1 Contact Us For Availability
29
MAY 29839-4 MAY 29839-4 Contact Us For Availability
30
MAY 53752-32 MAY 53752-32 Contact Us For Availability
30
MAY 59920-6 MAY 59920-6 Contact Us For Availability
30
MAY 53688-3 MAY 53688-3 Contact Us For Availability
30
MAY 52656-2 MAY 52656-2 Contact Us For Availability
31
MAY 26527-5 MAY 26527-5 Contact Us For Availability
31
MAY 65031-1 MAY 65031-1 Contact Us For Availability
31
MAY 53686-2 MAY 53686-2 Contact Us For Availability
31
MAY 29915-12 MAY 29915-12 Contact Us For Availability
32
MAY 58381-1 MAY 58381-1 Contact Us For Availability
32
MAY 405007-1 MAY 405007-1 Contact Us For Availability
32
MAY 64139-1 MAY 64139-1 Contact Us For Availability
32
MAY 9286-106 MAY 9286-106 Contact Us For Availability
33
MAY 56432-2 MAY 56432-2 Contact Us For Availability
33
MAY 52077-9 MAY 52077-9 Contact Us For Availability
34
MAY 65297-65 MAY 65297-65 Contact Us For Availability
34
MAY 65493-1 MAY 65493-1 Contact Us For Availability
35
MAY 65255-10 MAY 65255-10 Contact Us For Availability
35
MAY 65063-1 MAY 65063-1 Contact Us For Availability
36
MAY 65297-66 MAY 65297-66 Contact Us For Availability
36
MAY 29936-2 MAY 29936-2 Contact Us For Availability
36
MAY 65064-1 MAY 65064-1 Contact Us For Availability
37
MAY 62733-52 MAY 62733-52 Contact Us For Availability
37
MAY 65151-49 MAY 65151-49 Contact Us For Availability
37
MAY 52085-13 MAY 52085-13 Contact Us For Availability
38
MAY 53726-1 MAY 53726-1 Contact Us For Availability
38
MAY 65151-68 MAY 65151-68 Contact Us For Availability
38
MAY 54113-4 MAY 54113-4 Contact Us For Availability
39
MAY 53726-2 MAY 53726-2 Contact Us For Availability
39
MAY 59309-50 MAY 59309-50 Contact Us For Availability
39
MAY 53523-1 MAY 53523-1 Contact Us For Availability
40
MAY 63650-1 MAY 63650-1 Contact Us For Availability
40
MAY 57410-1 MAY 57410-1 Contact Us For Availability
40
MAY 19913-2 MAY 19913-2 Contact Us For Availability
40
MAY 59940-1 MAY 59940-1 Contact Us For Availability
40
MAY RA43684-1 MAY RA43684-1 Contact Us For Availability
41
MAY 54233-1 MAY 54233-1 Contact Us For Availability
41
MAY 29834-2 MAY 29834-2 Contact Us For Availability
43
MAY 434003-506 MAY 434003-506 Contact Us For Availability
× ![]()
