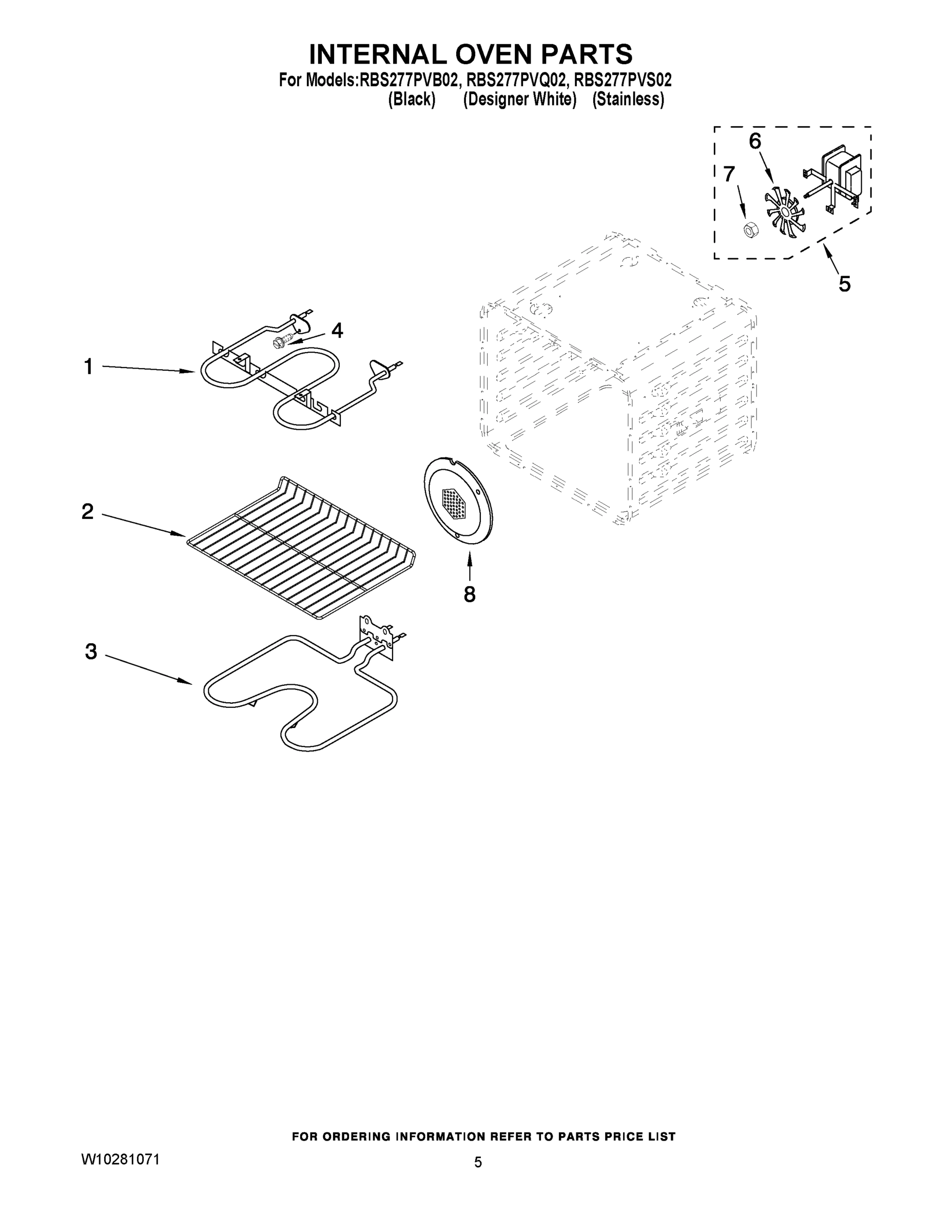

04 - INTERNAL OVEN PARTS

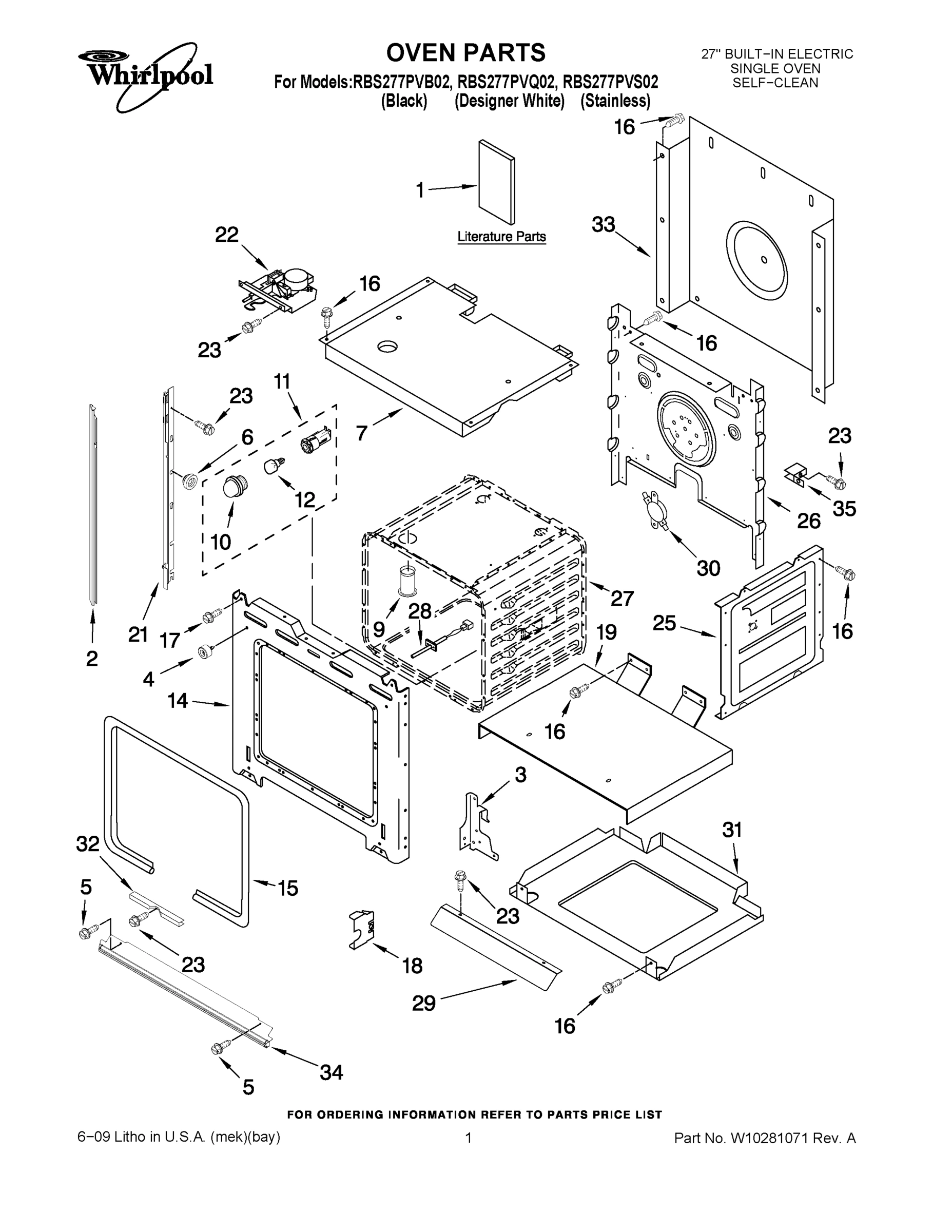

01 - OVEN PARTS
06 - OPTIONAL PARTS

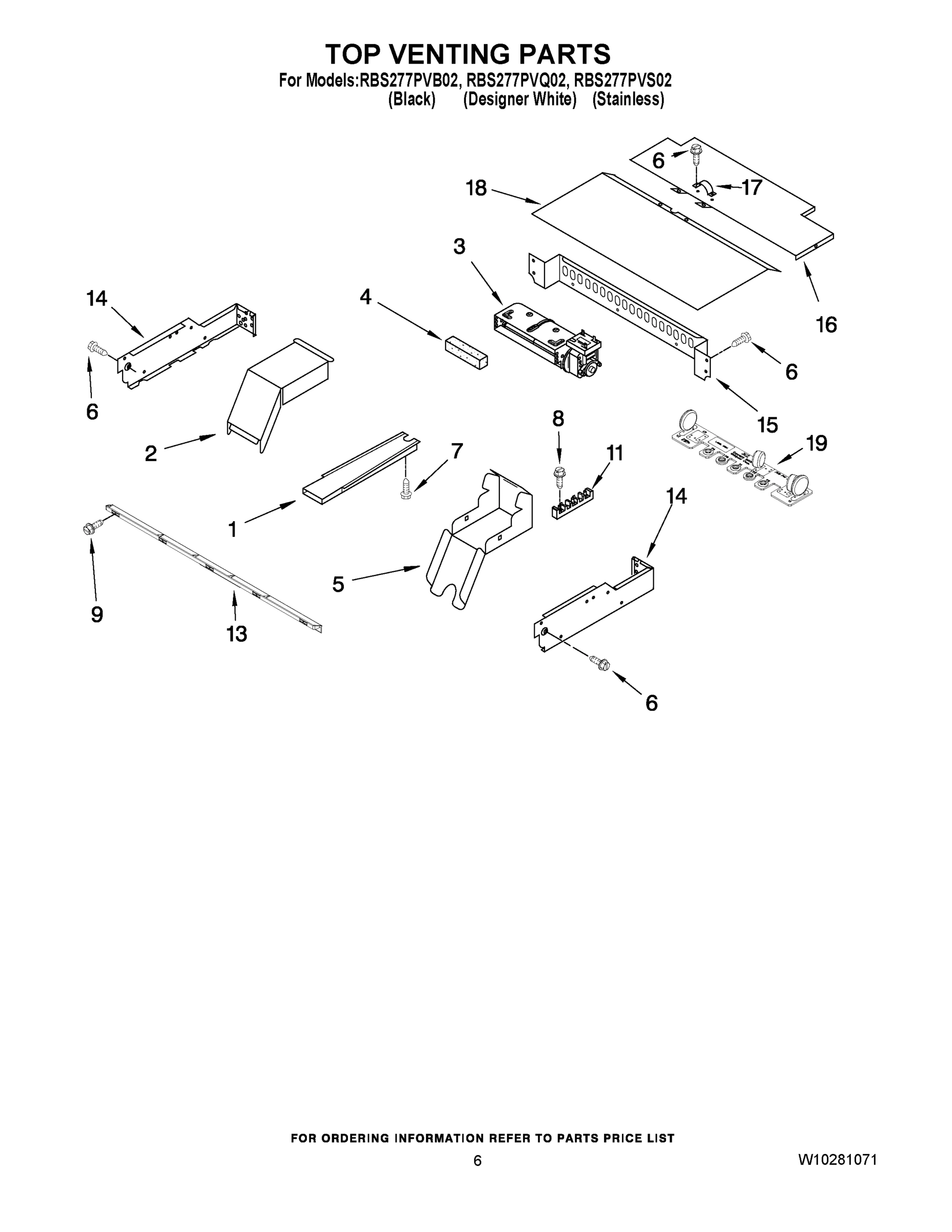

05 - TOP VENTING PARTS
Common parts from model Whirlpool RBS277PVB02 27`` BUILT-IN ELECTRIC SINGLE OVEN SELF-CLEAN
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel (Black/Stainless) WPL 8302844 Contact Us For Availability
1
Panel, Door WPL 8303699 Contact Us For Availability
1
Control Panel (White) WPL 8302845 Contact Us For Availability
2
Rack, Oven WPL 4448715 Contact Us For Availability
2
Trim, Side Right (Stainless) WPL W10145004 Contact Us For Availability
2
Trim, Side Left (Stainless) WPL W10145005 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Membrane Switch (Black) WPL W10172137 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Bumper, Door WPL W10105790 Contact Us For Availability
5
Retainer, Glass WPL 4457131 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
7
Glass, Inner WPL 9759224 Contact Us For Availability
7
Screw WPL 4449040 Contact Us For Availability
8
Screw WPL 3400080 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
11
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
12
Assembly, Door Glass (Black) WPL W10200757 Contact Us For Availability
13
VENT, CONTROL PANEL WPL 8303498 Contact Us For Availability
14
Bracket, Handle (Right) WPL 4455803 Contact Us For Availability
14
Bracket, Handle (Left) WPL 4455804 Contact Us For Availability
15
Back, Control WPL 9759135 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
17
NAMEPLATE WPL W10175320 Contact Us For Availability
18
BRACKET, MOUNTING BOTTOM VENT WPL 4452152 Contact Us For Availability
18
Cover, Top Front WPL 4452366 Contact Us For Availability
31
Base, Chassis WPL 4455529 Contact Us For Availability
34
Assembly, Bottom Vent (Black) WPL W10207684 Contact Us For Availability
34
Assembly, Bottom Vent (White) WPL W10207687 Contact Us For Availability
35
Support, Bracket WPL 4449845 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
NI
Lead, Ground Strap WPL 4452400 Contact Us For Availability
NI
Harness, (Main) WPL 8301399 Contact Us For Availability
NI
Insulation, Wrap WPL 4449315 Contact Us For Availability
NI
Insulation, Back WPL 4450364 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 150 WPL 242820 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 150 WPL 242821 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 150 WPL 242822 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 150 WPL 242823 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 150 WPL 242824 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 150 WPL 242825 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 150 WPL 242827 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (12 GA.150 WPL 242828 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 200 WPL 242830 Contact Us For Availability
NI
SPLICING WIRES-25FT. LENGTH (WIRE (14 GA. 200 WPL 242831 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
NI
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
× ![]()
