Model Whirlpool RBS277PDQ4 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

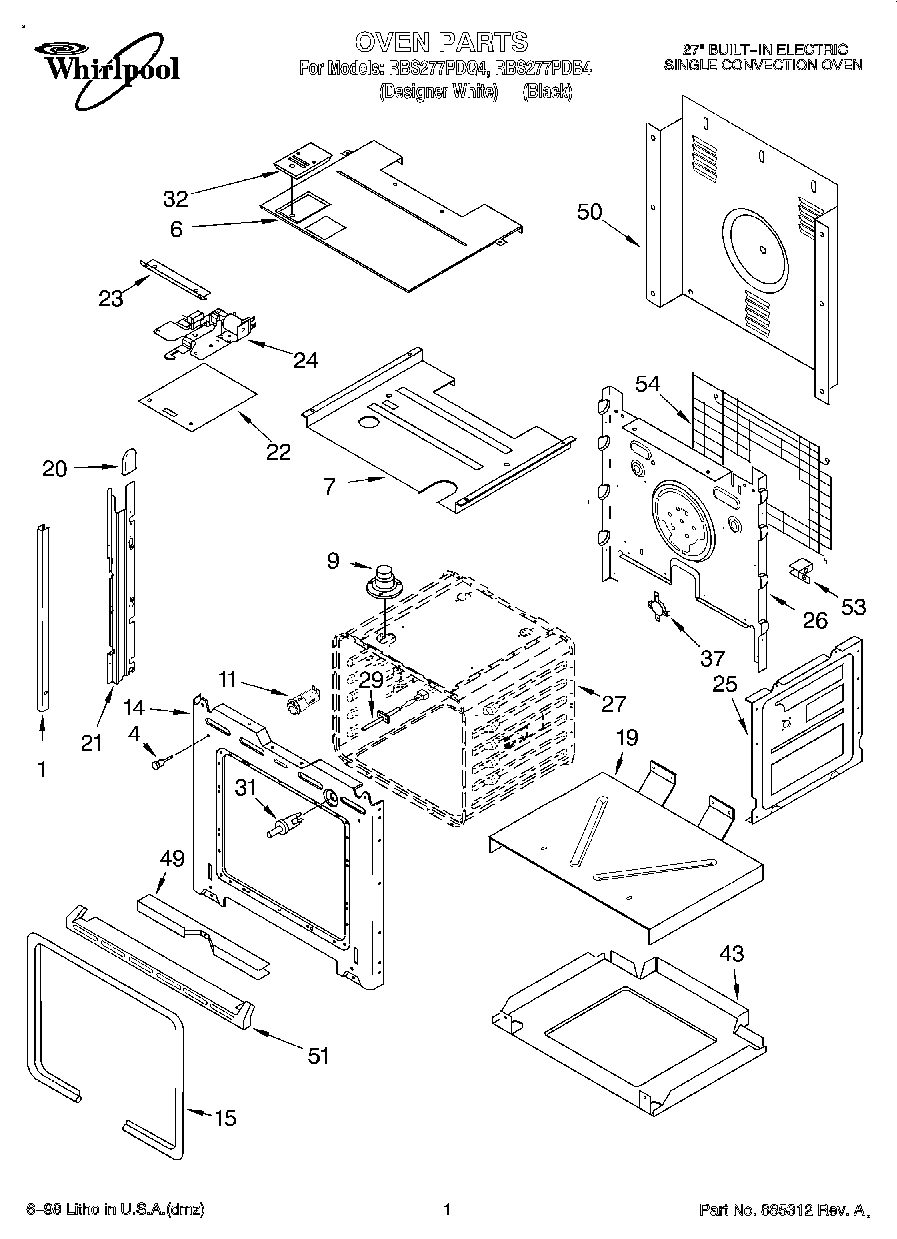

01 - OVEN

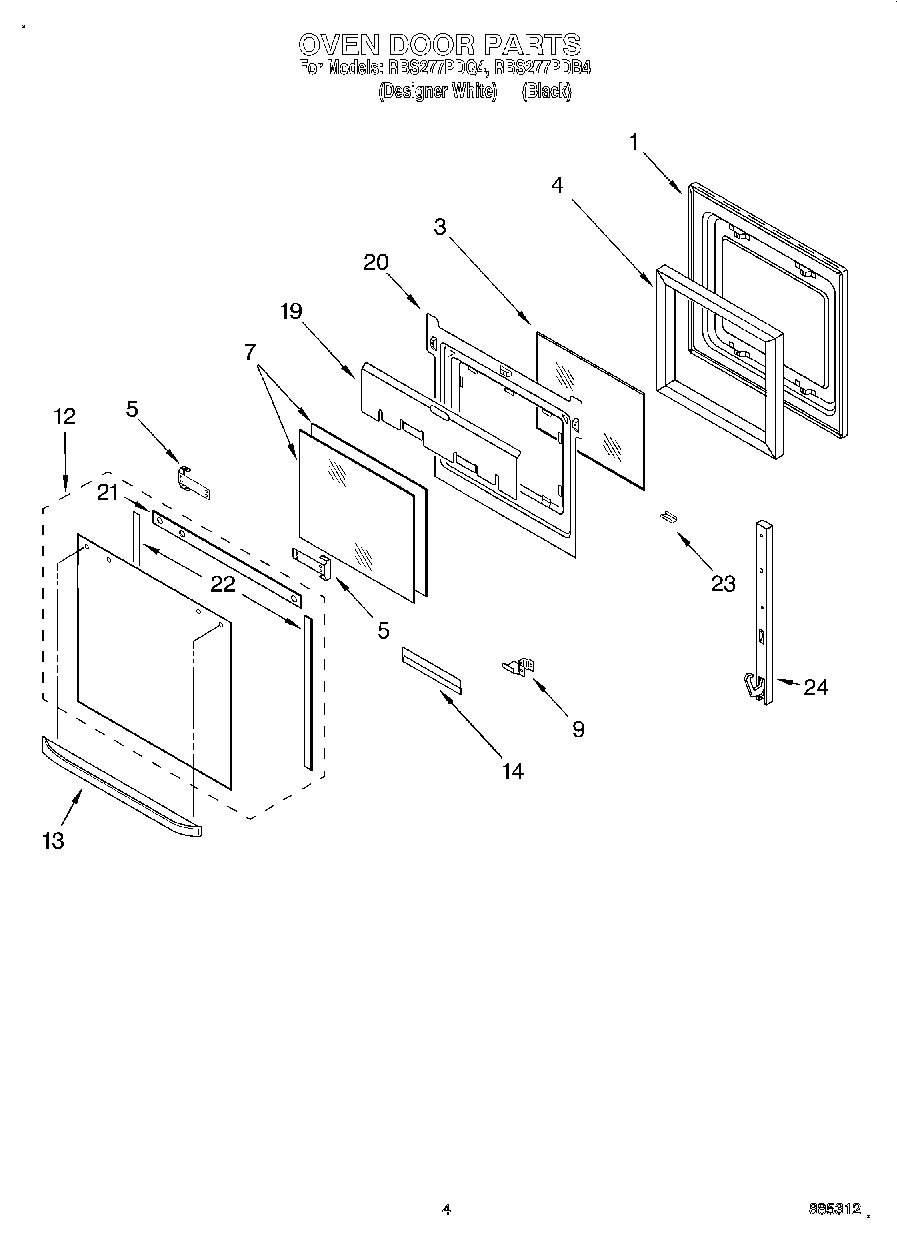

03 - OVEN DOOR

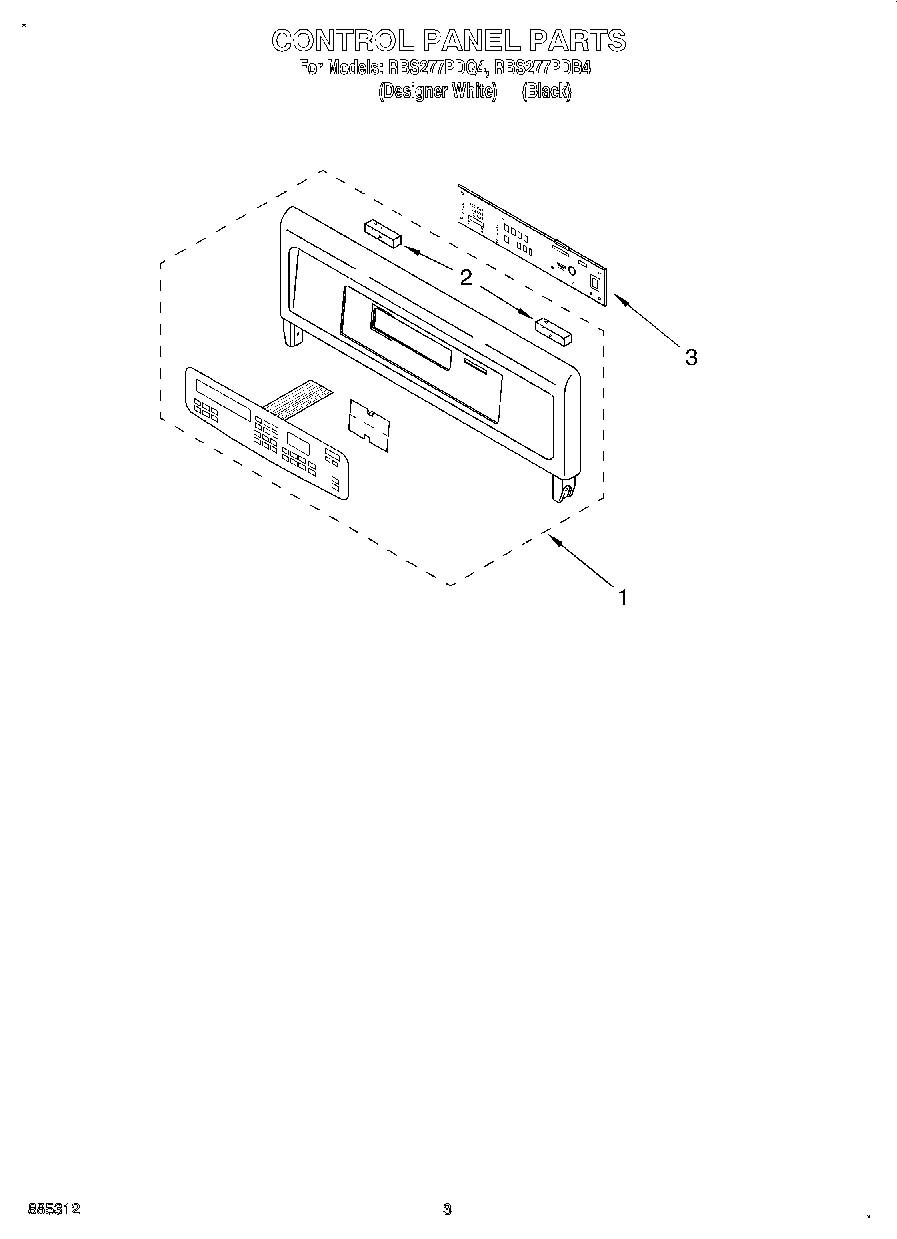

02 - CONTROL PANEL, LITERATURE

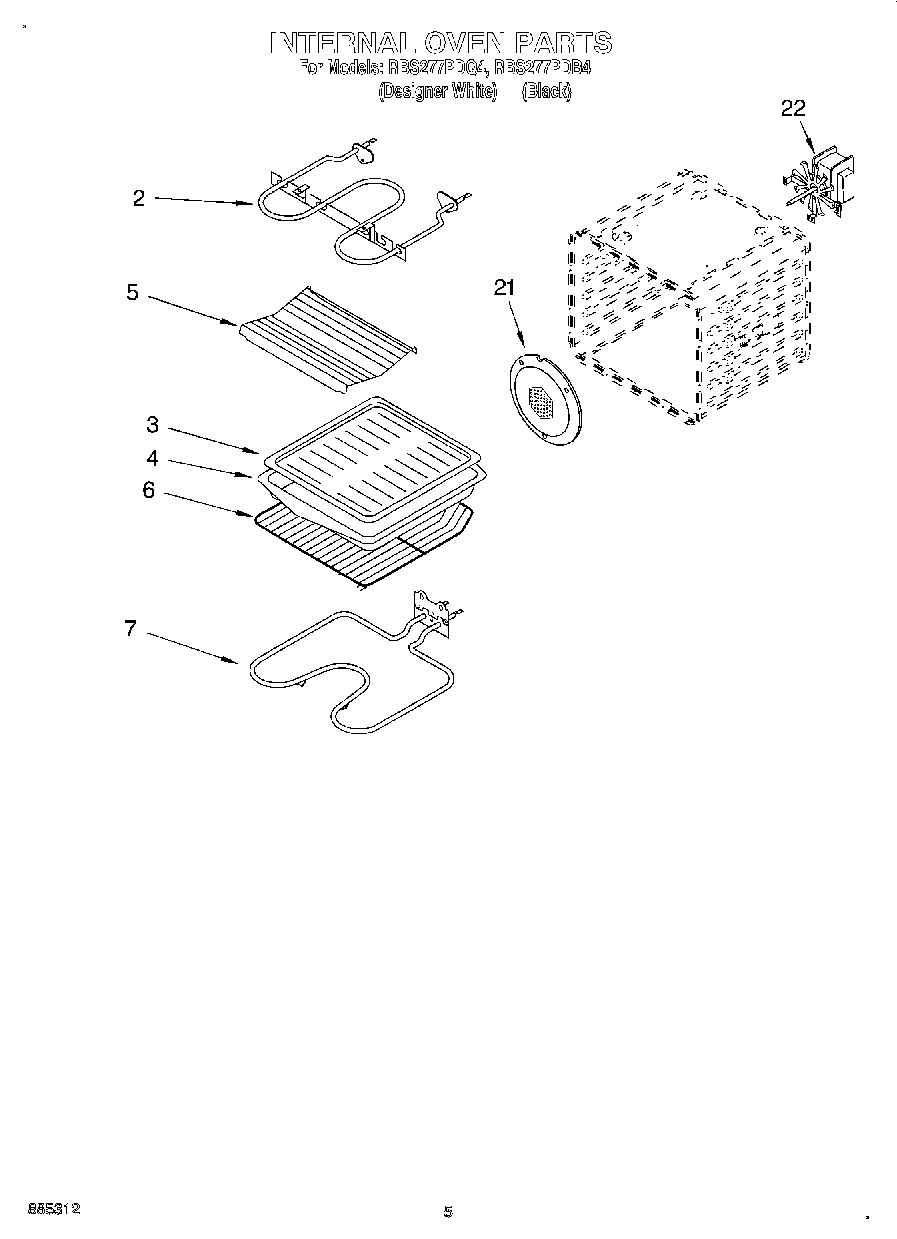

04 - INTERNAL OVEN

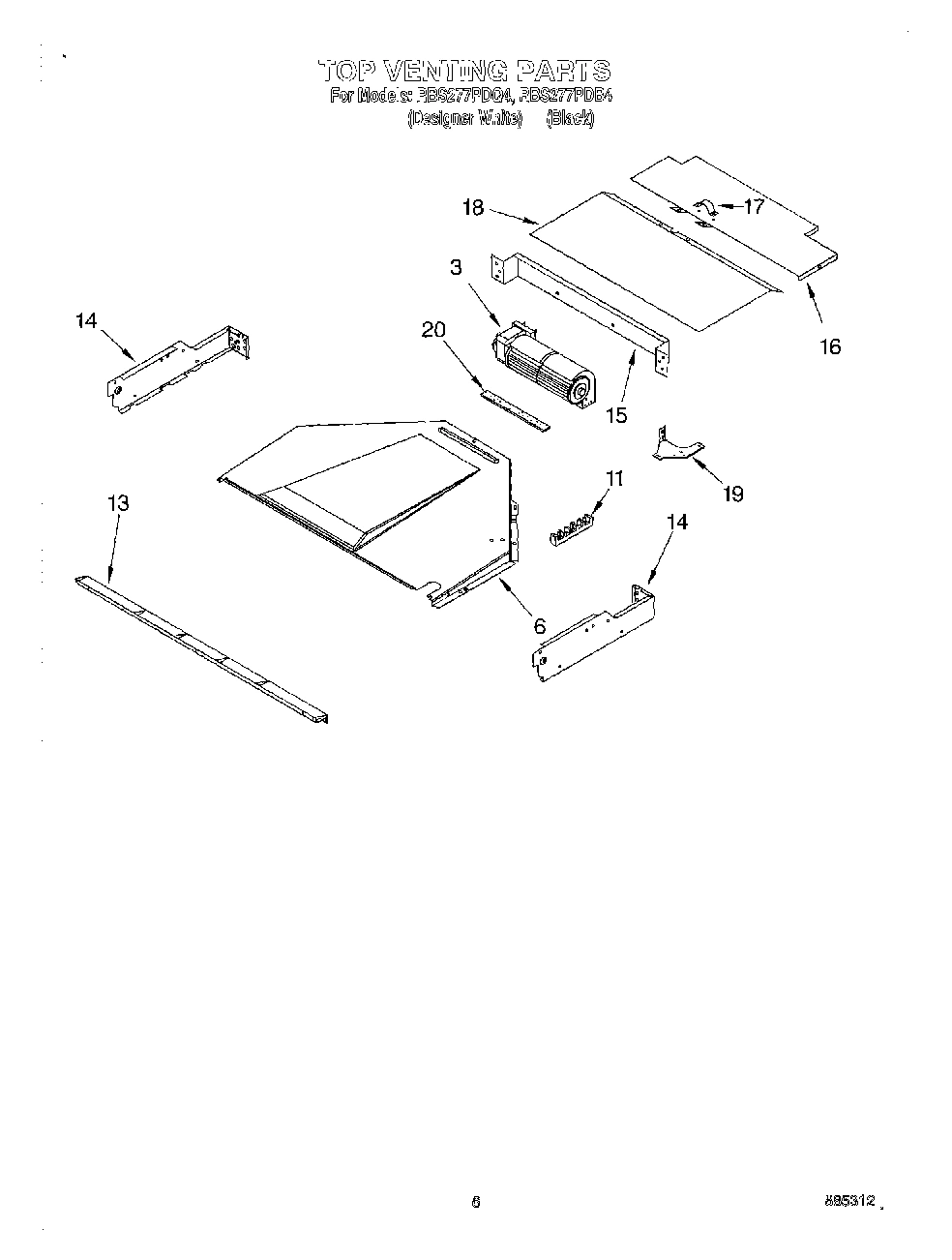

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool RBS277PDQ4 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Ovens WPL LIT4449237 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Use & Care Guide WPL LIT4452004 Contact Us For Availability
Tech Sheet WPL LIT4454766 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451336 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451337 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448875 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
5
Screw WPL 4451040 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
12
Door Glass, Outer (Black) WPL 4450689 Contact Us For Availability
12
Door Glass, Outer (White) WPL 4451212 Contact Us For Availability
13
Door Handle (Black) WPL 4448405 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Retainer, Glass WPL 4449031 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
20
Retainer, Glass WPL 4451670 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
20
Seal, Foam WPL 3182384 Contact Us For Availability
20
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
20
Harness, (Main) (Also, order Door Switch Harn WPL 4454857 Contact Us For Availability
20
Harness, Wire (Door Switch) (Also, order Mai WPL 4454871 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
20
Roll WPL 814387 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Motor, Convection Fan WPL 4451583 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White) WPL 4450864 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
