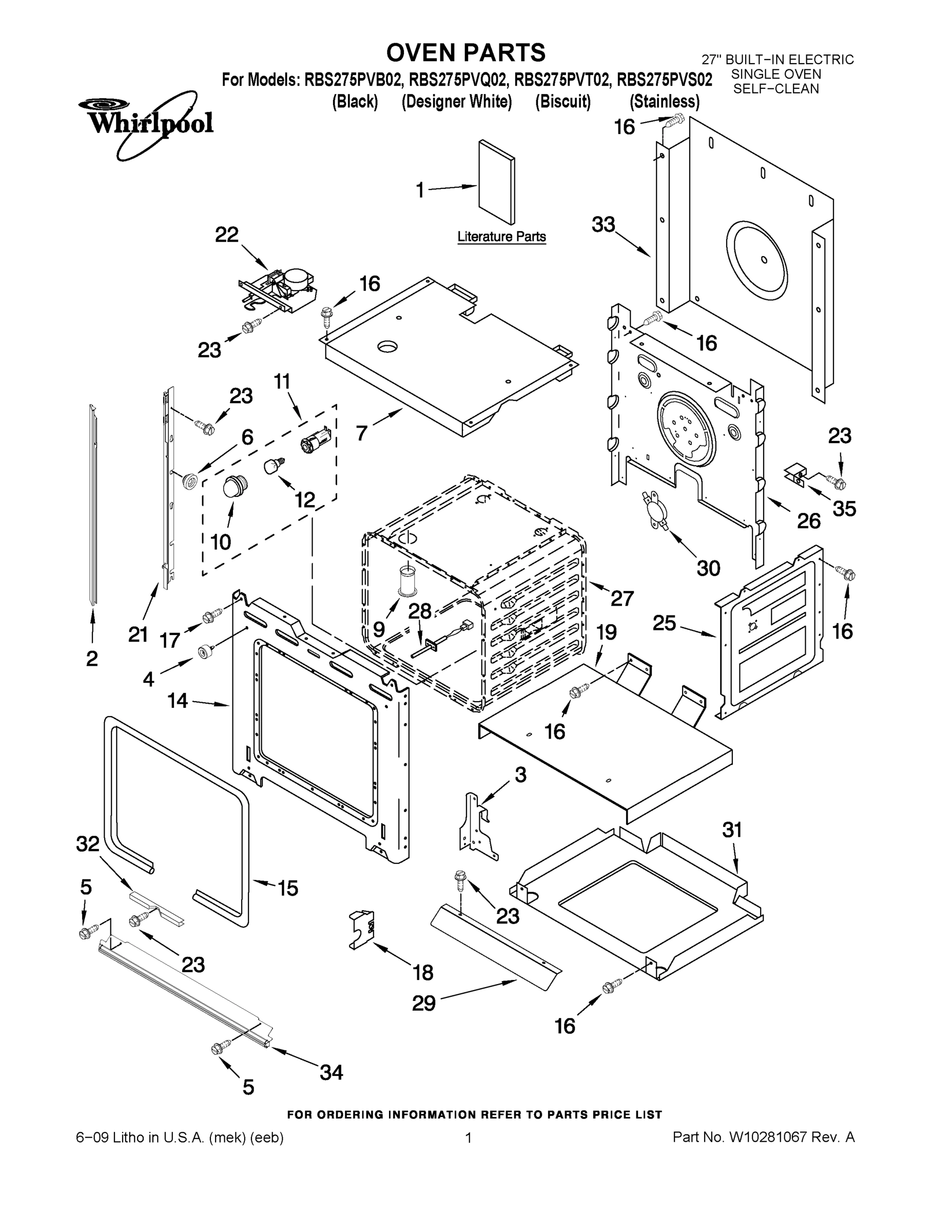

Model Whirlpool RBS275PVB02 27`` BUILT-IN ELECTRIC SINGLE OVEN SELF-CLEAN – Common Parts &amp; Diagrams

1

WP8302844 Whirlpool Control Panel Backorder WPL WP8302844 $156.73

1

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $80.78

1

Door Liner WPL 8303699 Contact Us For Availability

1

Control Panel (White) WPL 8302845 Contact Us For Availability

1

Control Panel (Biscuit) WPL 8302846 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8304269 Whirlpool Membrane Switch Backorder WPL WP8304269 $171.20

2

WP8304270 Whirlpool Membrane Switch In Stock WPL WP8304270 $205.15

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $52.49

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $44.10

2

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $49.61

2

WP9760576 Whirlpool Door Hinge (Left) In Stock WPL WP9760576 $40.22

2

Rack, Oven WPL 4448715 Contact Us For Availability

2

Trim, Side Right (Stainless) WPL W10145004 Contact Us For Availability

2

Trim, Side Left (Stainless) WPL W10145005 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

3

WPW10176670 Whirlpool Blower In Stock WPL WPW10176670 $135.29

3

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

3

Microcomputer WPL 8303885 Contact Us For Availability

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

BACKER, CONTROL PANEL WPL W10222957 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

5

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

5

Retainer, Glass WPL 4457131 Contact Us For Availability

5

Trim, Control Panel (Stainless) WPL W10172170 Contact Us For Availability

5

Trim, Control Panel (Black) WPL W10172172 Contact Us For Availability

5

Trim, Control Panel (White) WPL W10172173 Contact Us For Availability

5

Trim, Control Panel (Biscuit) WPL W10172174 Contact Us For Availability

6

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

7

Glass, Inner WPL 9759224 Contact Us For Availability

8

Screw WPL 3400080 Contact Us For Availability

9

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

10

Lens, Light WPL W10067870 Contact Us For Availability

11

BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability

12

Assembly, Door Glass (Black) WPL W10200757 Contact Us For Availability

WPW10169800 Whirlpool Door Handle Backorder WPL WPW10169800 $82.54

Door Handle (White) WPL W10169804 Contact Us For Availability

Door Handle (Biscuit) WPL W10169806 Contact Us For Availability

VENT, CONTROL PANEL WPL 8303498 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $35.63

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $30.23

Bracket, Handle (Left) WPL 4455804 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $71.22

15

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

15

Back, Control WPL 9759135 Contact Us For Availability

16

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

16

BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

17

Nameplate WPL W10215072 Contact Us For Availability

17

Screw WPL 4449040 Contact Us For Availability

18

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

18

Cover, Top Front WPL 4452366 Contact Us For Availability

19

SUPPRESSOR WPL 8302143 Contact Us For Availability

19

Shield, Heat WPL 4457102 Contact Us For Availability

22

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $150.25

22

Shield, Heat (Bottom) WPL 4457113 Contact Us For Availability

23

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

24

WP9759227 Whirlpool Glass Door Backorder WPL WP9759227 $80.96

28

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

31

Base, Chassis WPL 4455529 Contact Us For Availability

32

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

34

Assembly, Bottom Vent (Black) WPL W10207684 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $28.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89
