Model Whirlpool RBS270PDB4 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
01 - OVEN
02 - CONTROL PANEL, LITERATURE

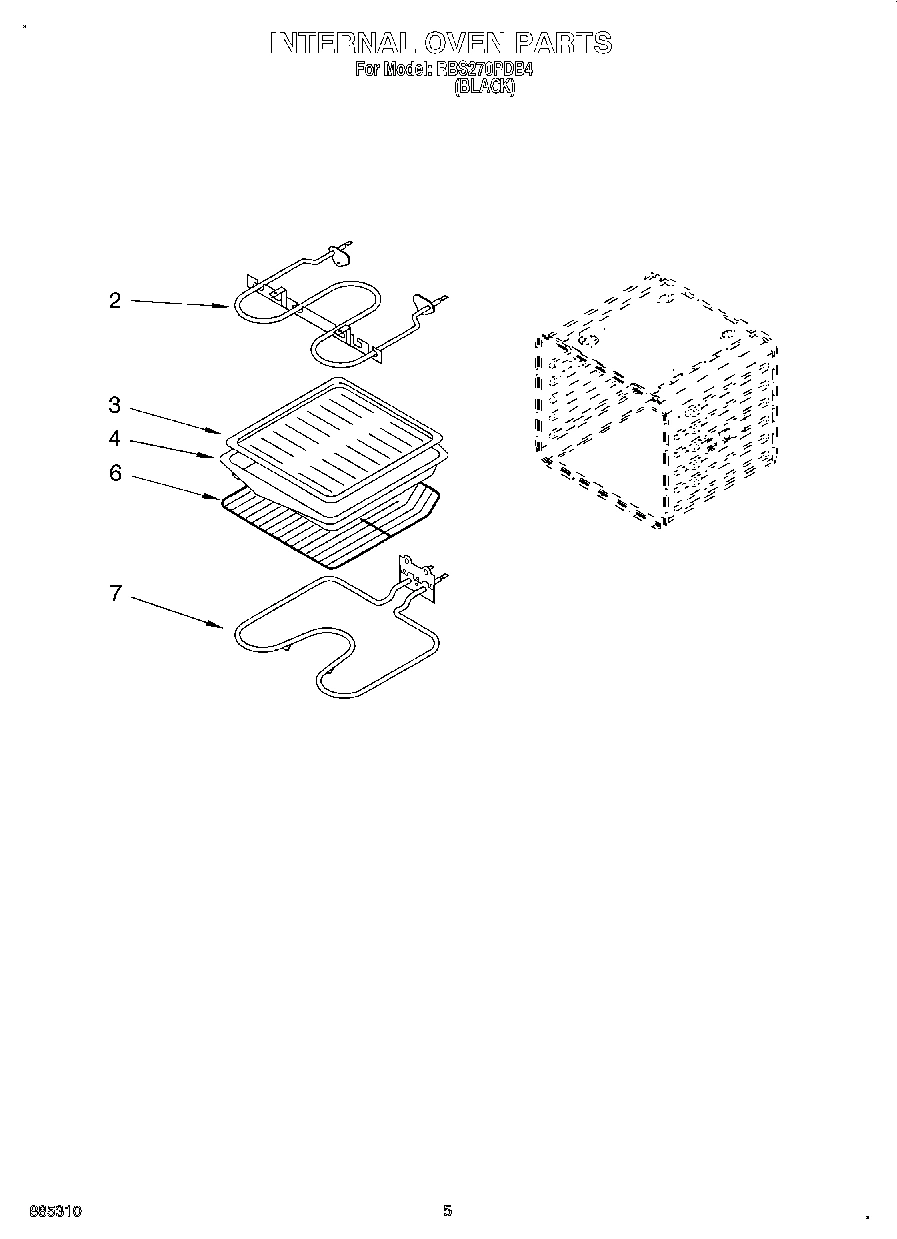

04 - INTERNAL OVEN

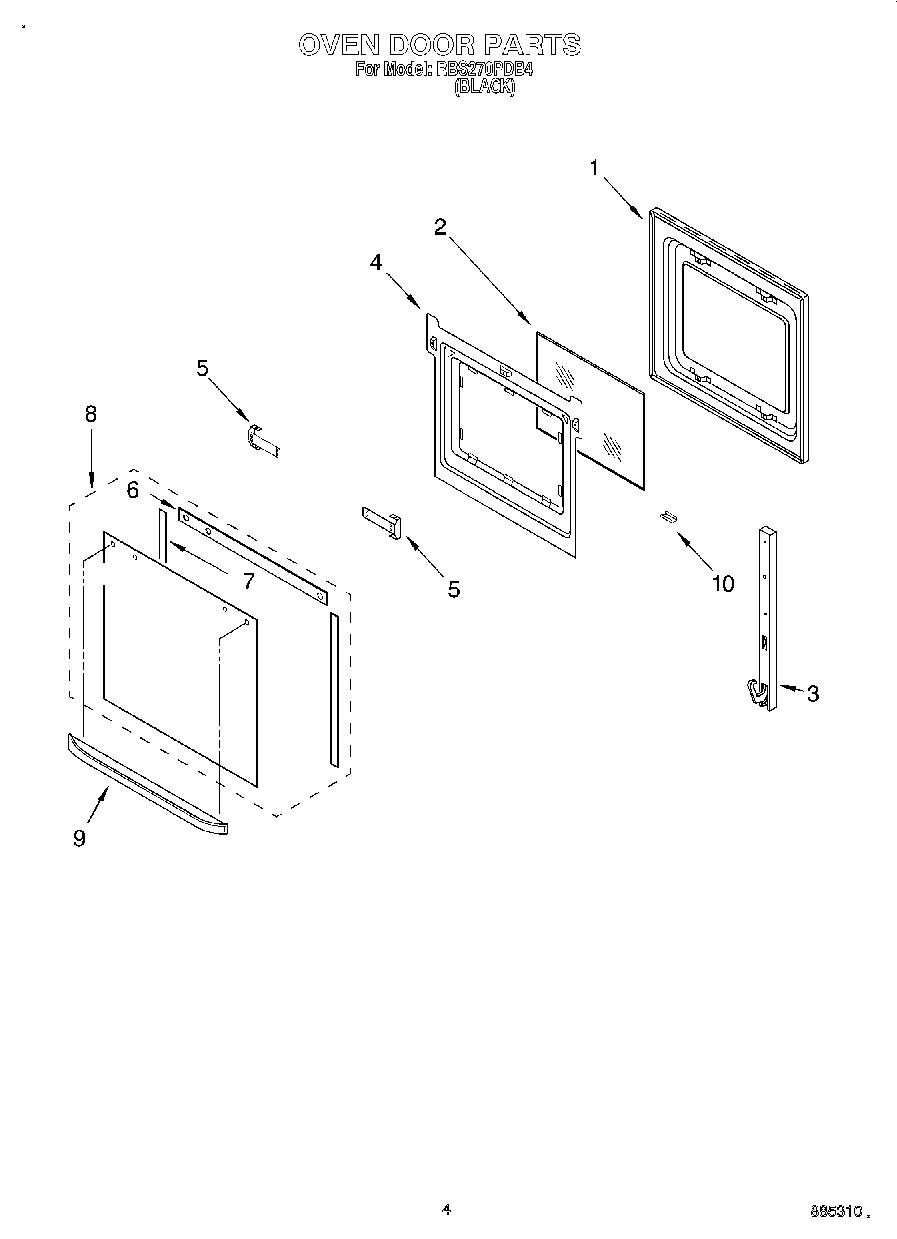

03 - OVEN DOOR

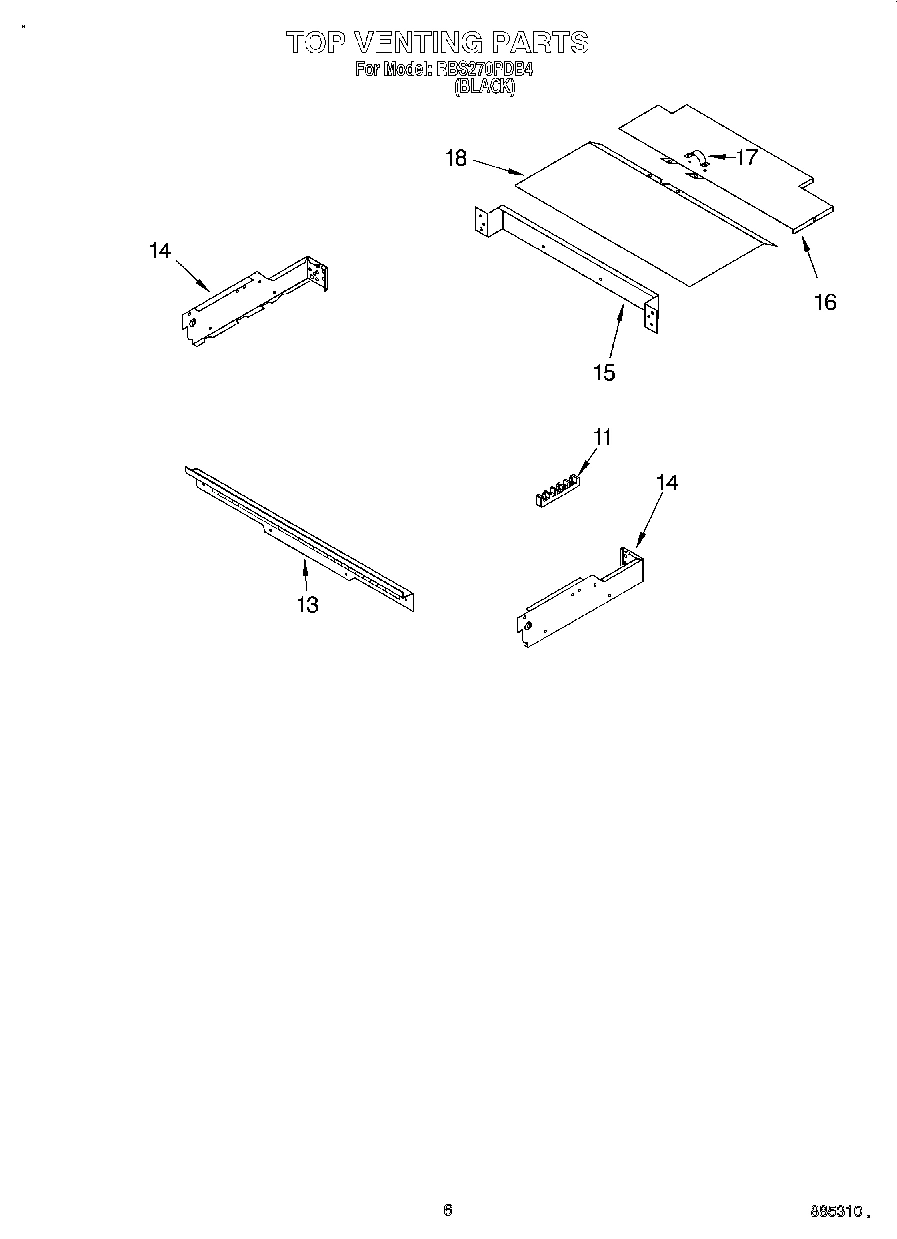

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool RBS270PDB4 BUILT-IN ELECTRIC SINGLE OVEN
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454766 Contact Us For Availability
1
Control Panel Assy. (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. (W/Membrane Switch) WPL 4451330 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448873 Contact Us For Availability
3
Hinge, Door WPL 4451171 Contact Us For Availability
4
Retainer, Glass WPL 4450422 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
5
Screw (4) WPL 4451040 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Seal, Top WPL 4450836 Contact Us For Availability
7
Seal, Side (2) WPL 4450838 Contact Us For Availability
8
Glass, Outer Door WPL 4450689 Contact Us For Availability
9
Handle, Door WPL 4448405 Contact Us For Availability
10
Retainer, Glass WPL 4450863 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Harness, Wire (Door Switch) WPL 4450298 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
18
Harness, Wire (Main) WPL 4451161 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
