  • Whirlpool RBS245PRQ04

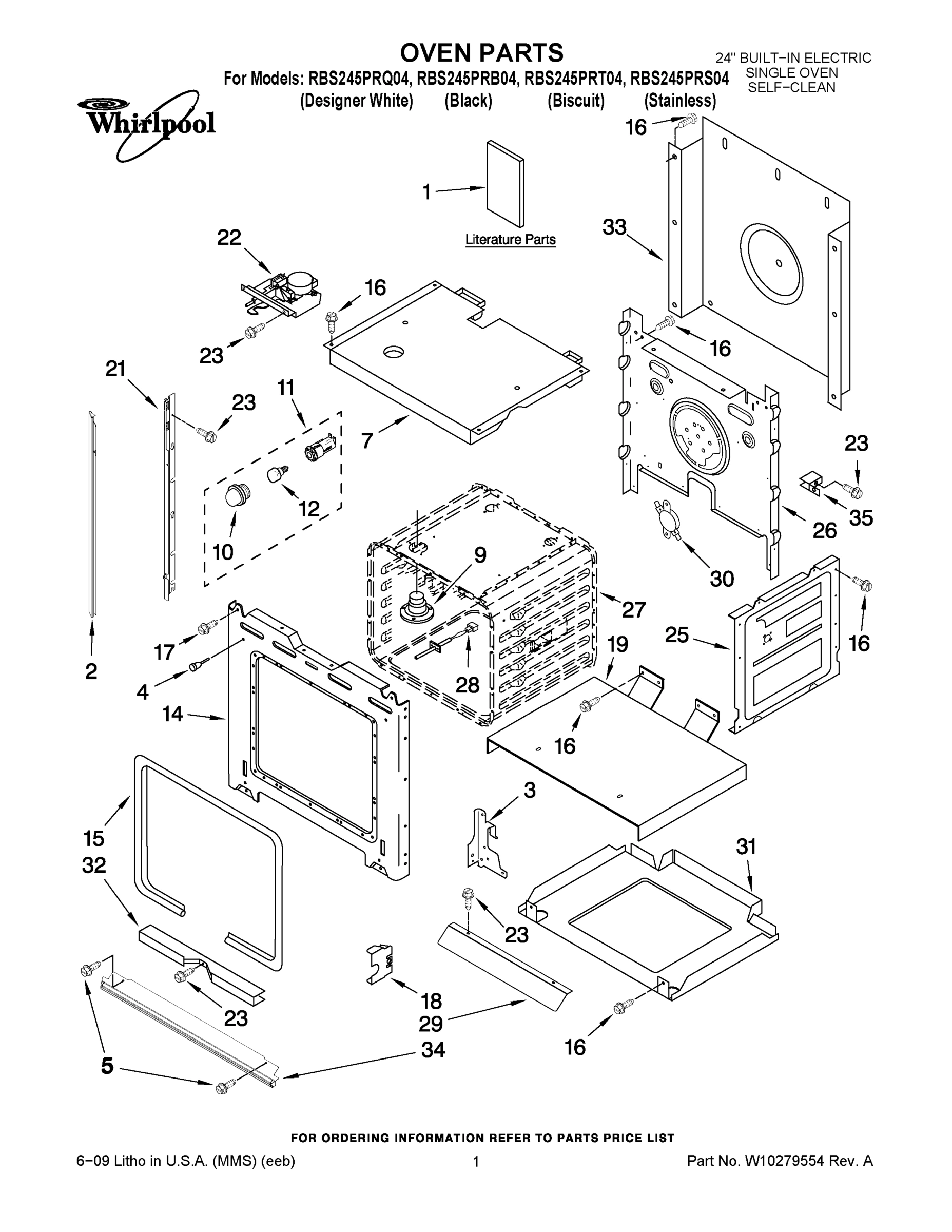

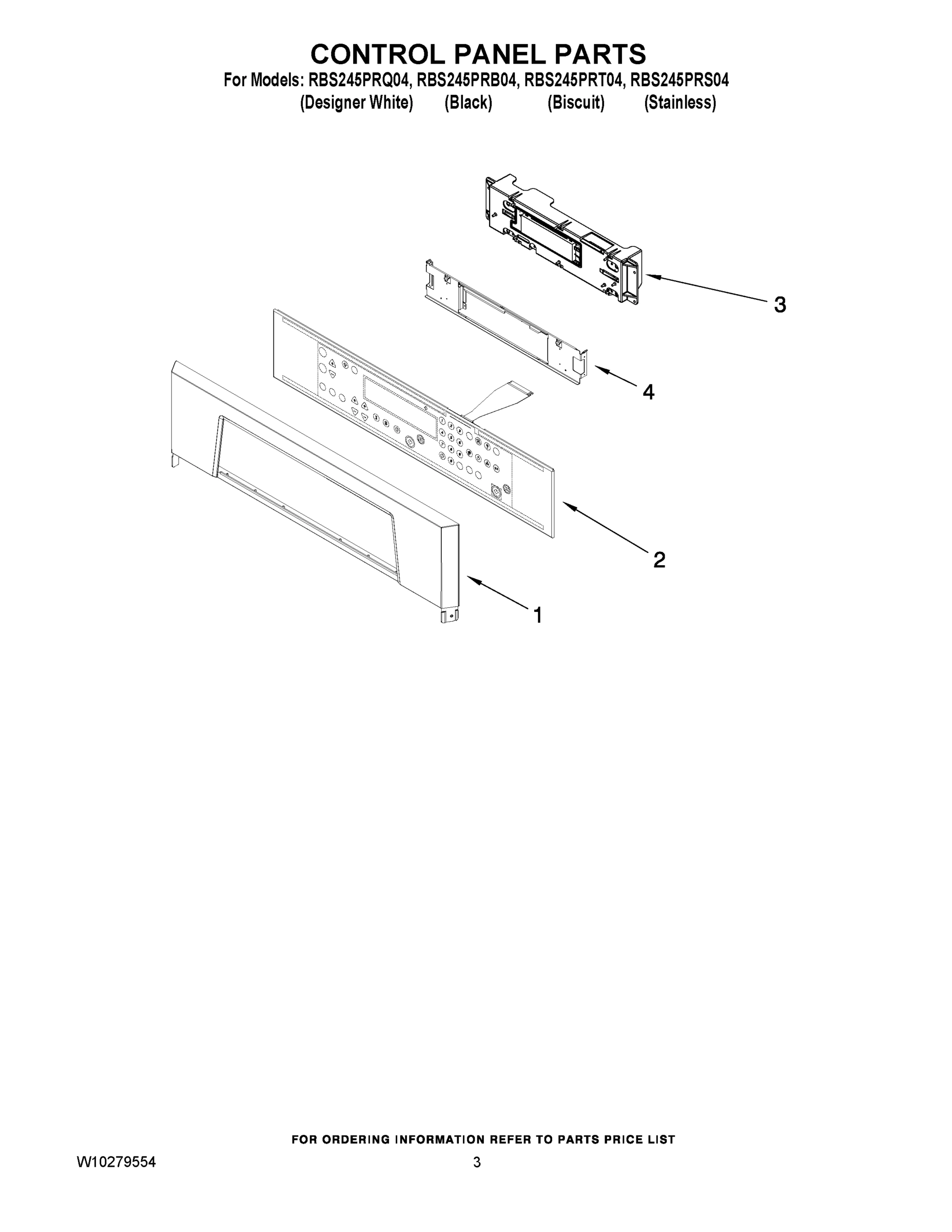

Model Whirlpool RBS245PRQ04 24`` BUILT-IN ELECTRIC SINGLE OVEN SELF-CLEAN – Common Parts & Diagrams

1
Vent, Exhaust
Vent, Exhaust WPL 4451759 Contact Us For Availability
View on Model
1
Panel, Control (Biscuit)
Panel, Control (Biscuit) WPL 8302842 Contact Us For Availability
View on Model
2
FOR STAINLESS MODEL ONLY (RIGHT)
FOR STAINLESS MODEL ONLY (RIGHT) WPL 9760569 Contact Us For Availability
View on Model
2
FOR STAINLESS MODEL ONLY (LEFT)
FOR STAINLESS MODEL ONLY (LEFT) WPL 9760570 Contact Us For Availability
View on Model
2
Hinge, Door (Left)
Hinge, Door (Left) WPL 9760568 Contact Us For Availability
View on Model
2
Hinge, Door (Right)
Hinge, Door (Right) WPL 9760567 Contact Us For Availability
View on Model
2
Membrane Switch (White)
Membrane Switch (White) WPL 8304267 Contact Us For Availability
View on Model
2
Trim, Side Left (White)
Trim, Side Left (White) WPL W10136095 Contact Us For Availability
View on Model
2
ELBOW, VENT TOP
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
View on Model
2
Trim, Side Right (Black)
Trim, Side Right (Black) WPL W10136093 Contact Us For Availability
View on Model
3
Rack, Oven
Rack, Oven WPL 4448716 Contact Us For Availability
View on Model
4
Bumper, Door
Bumper, Door WPL 4448520 Contact Us For Availability
View on Model
5
ELBOW, VENT BOTTOM
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
View on Model
6
SUPPRESSOR
SUPPRESSOR WPL 8302143 Contact Us For Availability
View on Model
7
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
8
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
10
Lens, Light
Lens, Light WPL W10067870 Contact Us For Availability
View on Model
11
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
View on Model
12
Assembly, Door Glass (Stainless)
Assembly, Door Glass (Stainless) WPL 8303312 Contact Us For Availability
View on Model
12
Assembly, Door Glass (Black)
Assembly, Door Glass (Black) WPL 8303328 Contact Us For Availability
View on Model
13
Door Handle (Black)
Door Handle (Black) WPL 8302807 Contact Us For Availability
View on Model
13
Vent, (Control Panel)
Vent, (Control Panel) WPL 8303499 Contact Us For Availability
View on Model
14
Frame, Front
Frame, Front WPL 9760754 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 9759135 Contact Us For Availability
View on Model
16
Cover, Top Rear
Cover, Top Rear WPL 4450549 Contact Us For Availability
View on Model
18
BRACKET, MOUNTING BOTTOM VENT
BRACKET, MOUNTING BOTTOM VENT WPL 4452152 Contact Us For Availability
View on Model
18
Cover, Top Front
Cover, Top Front WPL 4452365 Contact Us For Availability
View on Model
19
Shield, Heat
Shield, Heat WPL 4457101 Contact Us For Availability
View on Model
20
Retainer, Glass
Retainer, Glass WPL 4457130 Contact Us For Availability
View on Model
21
Seal, Door Top
Seal, Door Top WPL 8303876 Contact Us For Availability
View on Model
22
Shield, Heat (Btm)
Shield, Heat (Btm) WPL 4457112 Contact Us For Availability
View on Model
23
Retainer, Clip (Stainless)
Retainer, Clip (Stainless) WPL W10158497 Contact Us For Availability
View on Model
23
Retainer, Clip (White)
Retainer, Clip (White) WPL 4450864 Contact Us For Availability
View on Model
23
Retainer, Clip (Biscuit)
Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability
View on Model
25
Nameplate
Nameplate WPL W10215072 Contact Us For Availability
View on Model
NI
Lead, Ground Strap
Lead, Ground Strap WPL 4452400 Contact Us For Availability
View on Model
NI
Clamp
Clamp WPL 4448664 Contact Us For Availability
View on Model
NI
Screw, Ground
Screw, Ground WPL 4450800 Contact Us For Availability
View on Model
NI
Support, Wiring
Support, Wiring WPL 4451761 Contact Us For Availability
View on Model
NI
Nut, Terminal Block
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
View on Model
NI
Harness, Main
Harness, Main WPL 8301400 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ.)
PAINT, TOUCH-UP (1/2OZ.) WPL NP Contact Us For Availability
