Model Whirlpool RBS245PDT13 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

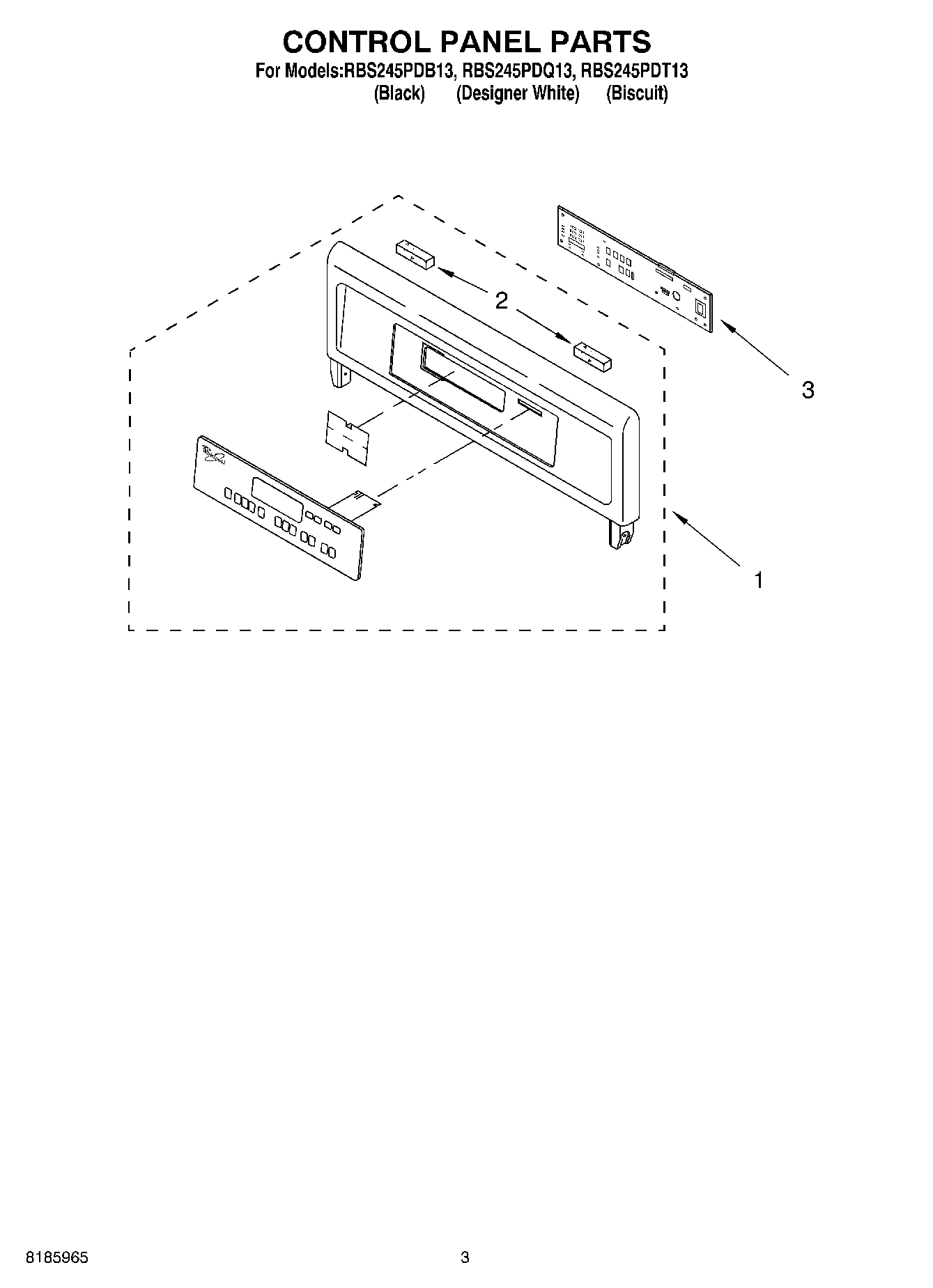

1

Control Panel Assy. W/Membrane Switch (White WPL 8300455 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300456 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation/ Undercounter) WPL LIT3192225 Contact Us For Availability

1

Literature Parts (Installation/ MWO Trim Kit) WPL LIT4450841 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451884 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4455991 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT8300772 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Trim, Side (RH Black) WPL 4450844 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450845 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450848 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4452120 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4452121 Contact Us For Availability

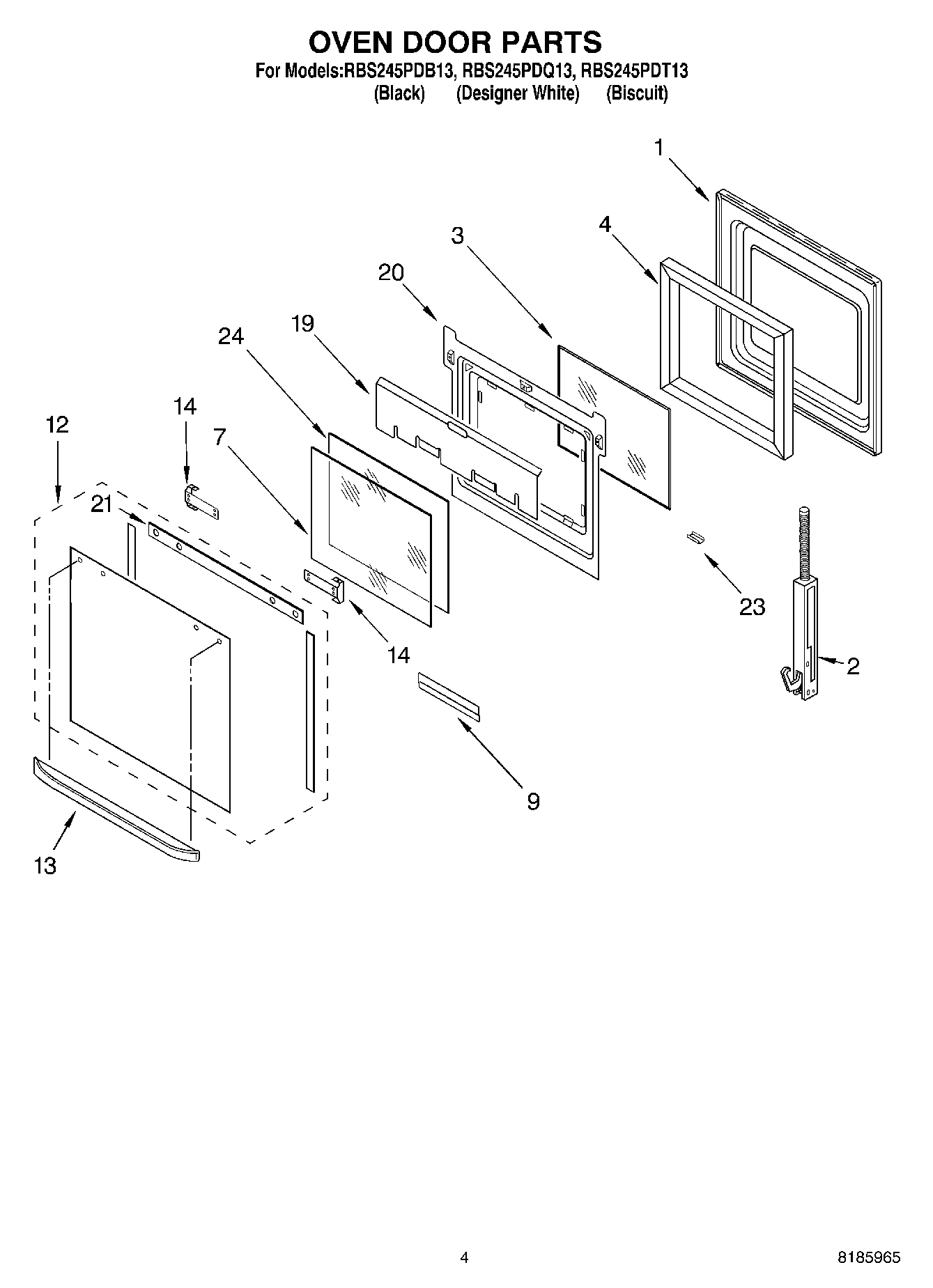

3

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $64.91

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

7

4455863 Whirlpool Oven Top Assembly Backorder WPL 4455863 $40.53

7

Glass, Inner WPL 4449251 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

11

Screw WPL 3400080 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

13

4448547 Whirlpool Oven Vent Control Backorder WPL 4448547 $38.19

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

9760754 Whirlpool Oven Front Frame Backorder WPL 9760754 $39.82

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

15

WP4455380 Whirlpool Door Gasket Backorder WPL WP4455380 $59.75

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $26.21

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Cover, Top Front WPL 4452365 Contact Us For Availability

Harness, Wire (Main) WPL 4455733 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

19

4451476 Whirlpool Support Backorder WPL 4451476 $35.26

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

21

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

22

Latch Assy WPL 4451896 Contact Us For Availability

23

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

23

Solenoid WPL 4452224 Contact Us For Availability

24

Micro Switch N.A. WPL 4452312 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

4452232 Whirlpool Oven Rear Cover Backorder WPL 4452232 $44.03

27

Liner, Oven (Not a Serviceable Part) WPL ARI120680A Contact Us For Availability

28

Switch, Micro WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

4450525 Whirlpool Oven Bottom Assembly Backorder WPL 4450525 $52.25

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

Trim, Bottom (Black Model) WPL 4448473 Contact Us For Availability

Trim, Bo WPL 4448474 Contact Us For Availability

WPL 8300528 WPL 8300528 Contact Us For Availability

WP4449314 Whirlpool Insulation Backorder WPL WP4449314 $66.64

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP4450363 Whirlpool Insulation Backorder WPL WP4450363 $66.64

WPL 4449845 WPL 4449845 Contact Us For Availability
