  • Whirlpool RBS240PDB3

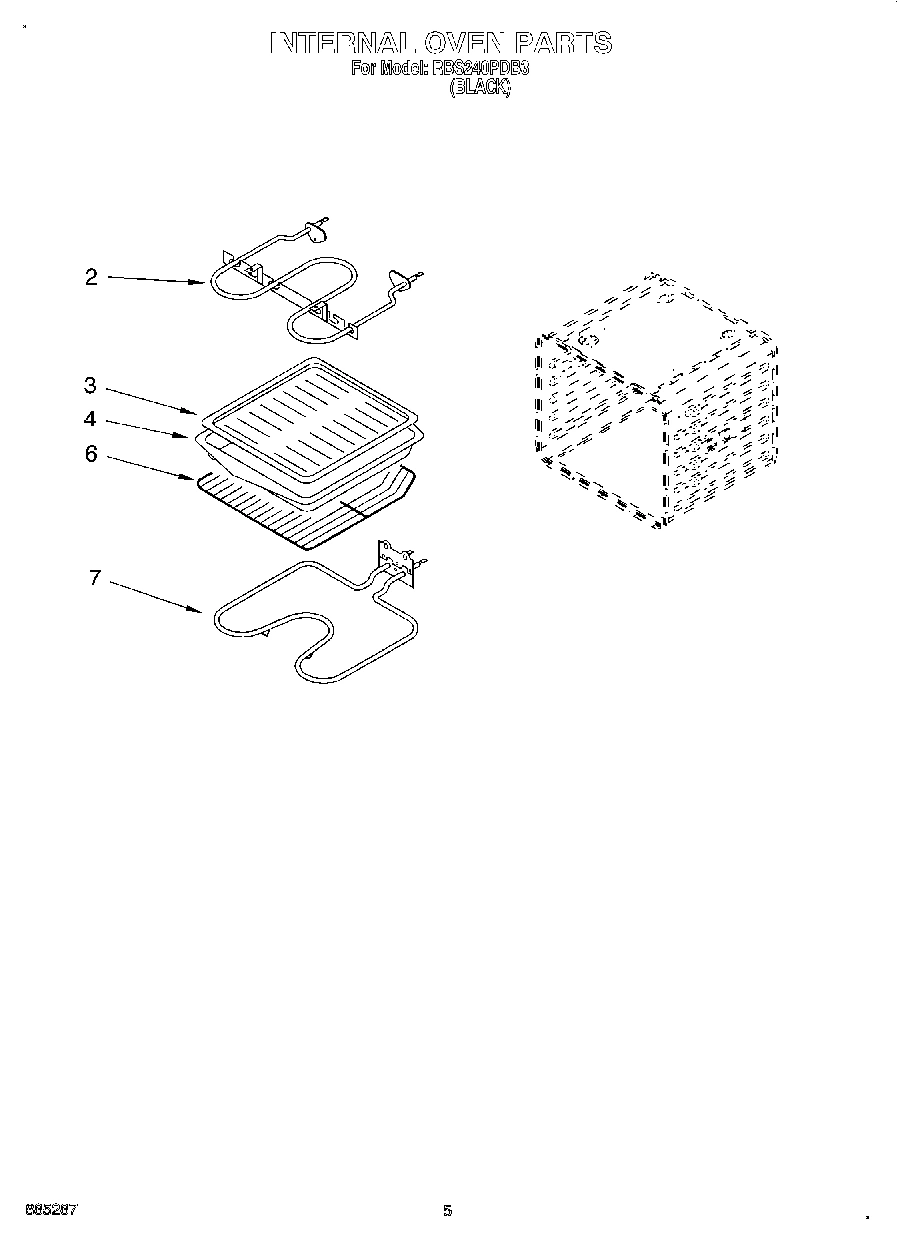

Model Whirlpool RBS240PDB3 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

Installation Instructions
Installation Instructions WPL LIT4450409 Contact Us For Availability
View on Model
Use & Care Guide (Oven)
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
View on Model
Installation/ Undercounter
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
View on Model
Tech Sheet (Oven)
Tech Sheet (Oven) WPL LIT4454766 Contact Us For Availability
View on Model

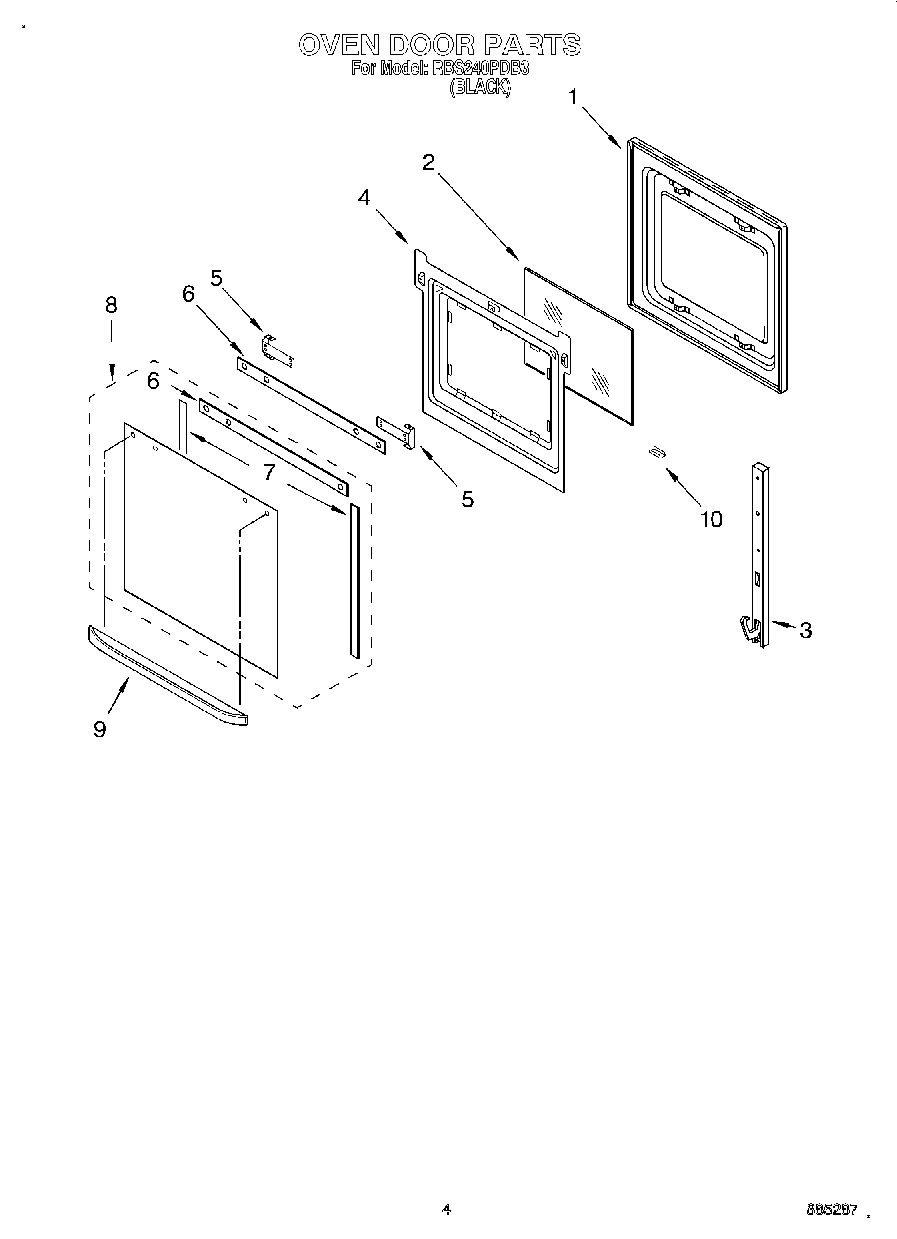

1
Liner, Door
Liner, Door WPL 4450427 Contact Us For Availability
View on Model
1

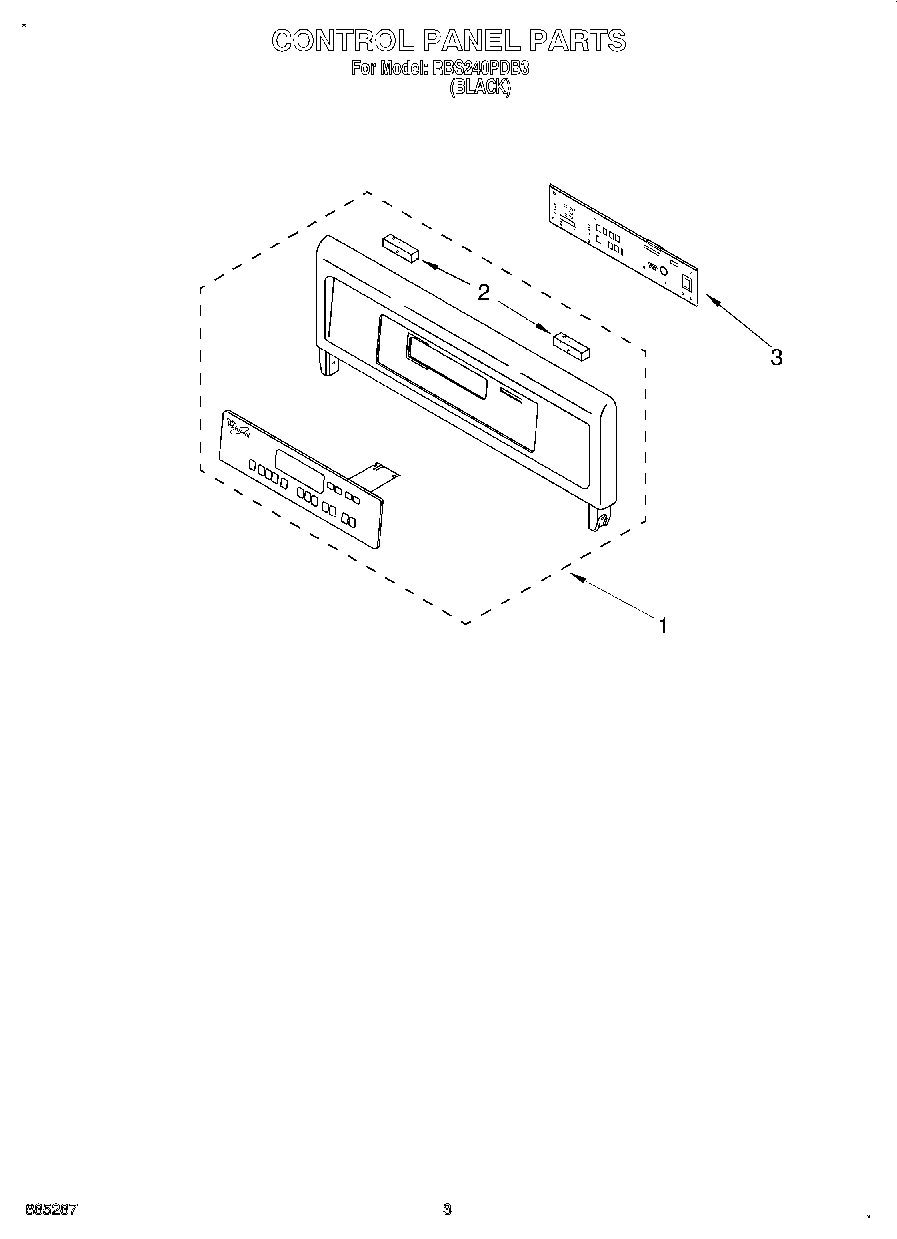

Control Panel Assy. (W/Membrane Switch)
Control Panel Assy. (W/Membrane Switch) WPL 4451324 Contact Us For Availability
View on Model
2
Screw
Screw WPL 4159465 Contact Us For Availability
View on Model
2
Gasket, Control Panel
Gasket, Control Panel WPL 4451032 Contact Us For Availability
View on Model
3
Hinge, Door
Hinge, Door WPL 4451171 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4448873 Contact Us For Availability
View on Model
4
Retainer, Glass
Retainer, Glass WPL 4450421 Contact Us For Availability
View on Model
5
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
5
Screw (4)
Screw (4) WPL 4451040 Contact Us For Availability
View on Model
6
Seal, Top
Seal, Top WPL 4450835 Contact Us For Availability
View on Model
7
Seal, Side
Seal, Side WPL 4450838 Contact Us For Availability
View on Model
8
Glass, Outer Door
Glass, Outer Door WPL 4450687 Contact Us For Availability
View on Model
9
Screw (4)
Screw (4) WPL 4449746 Contact Us For Availability
View on Model
9
Handle, Door
Handle, Door WPL 4448402 Contact Us For Availability
View on Model
10
Clip, Glass
Clip, Glass WPL 4450863 Contact Us For Availability
View on Model

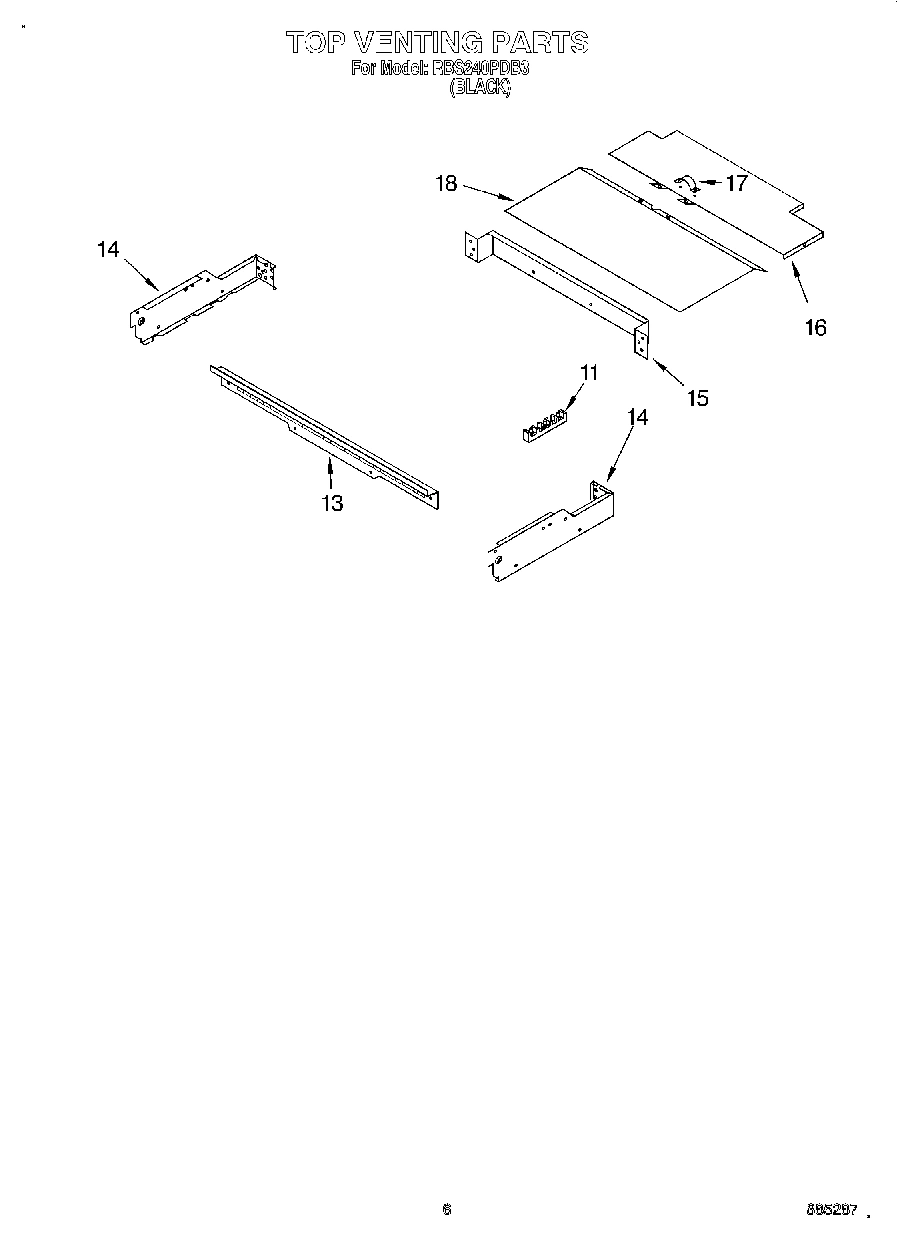

14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 4450658 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
18
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
18
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
18
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
18
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
18
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
18
Harness, Wire (Door Switch)
Harness, Wire (Door Switch) WPL 4450298 Contact Us For Availability
View on Model
18
Cover, Top Front
Cover, Top Front WPL 4450552 Contact Us For Availability
View on Model
18
Harness, Wire (Main)
Harness, Wire (Main) WPL 4451161 Contact Us For Availability
View on Model
18
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
18
Roll Tape, Exhaust Duct
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
View on Model

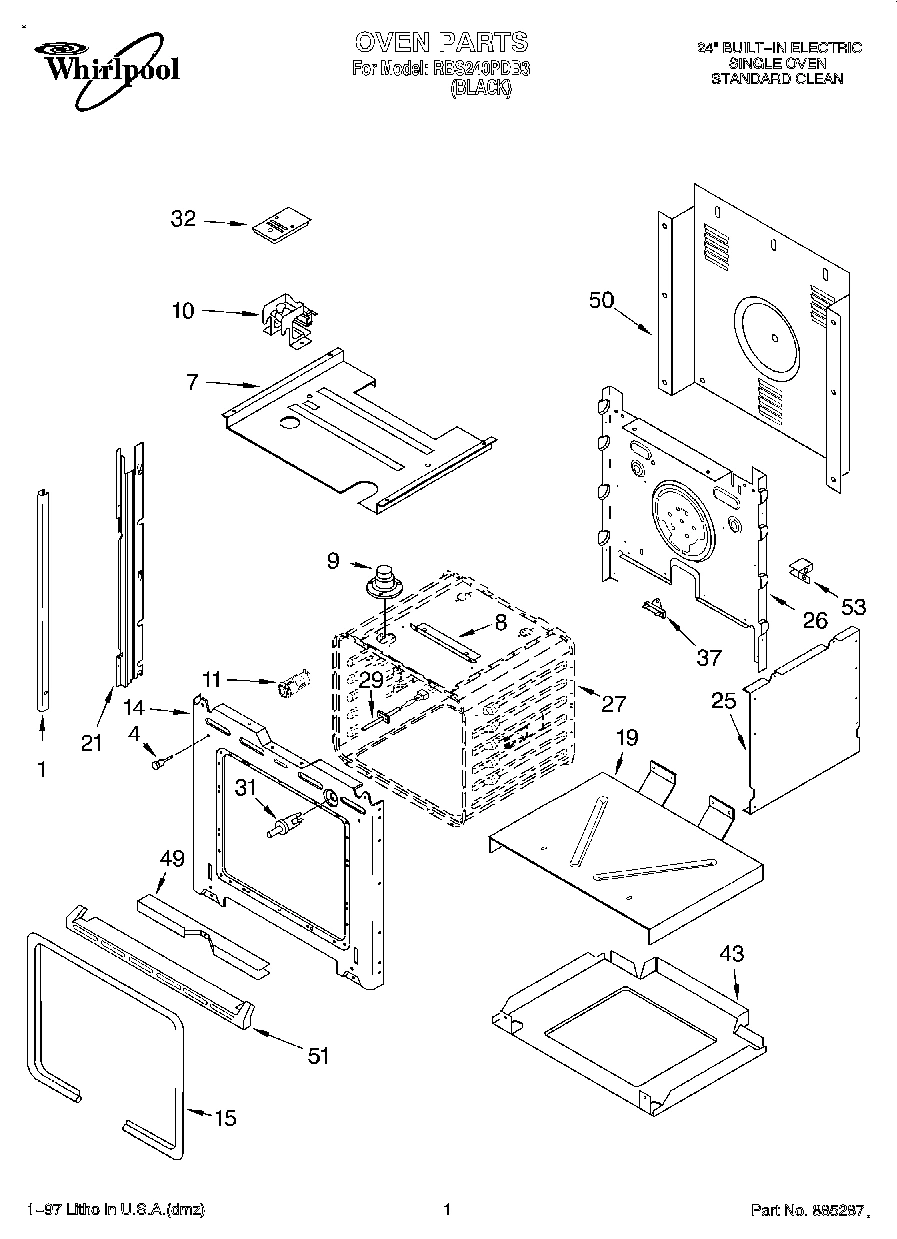

53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
