  • Whirlpool RBD277PDB2

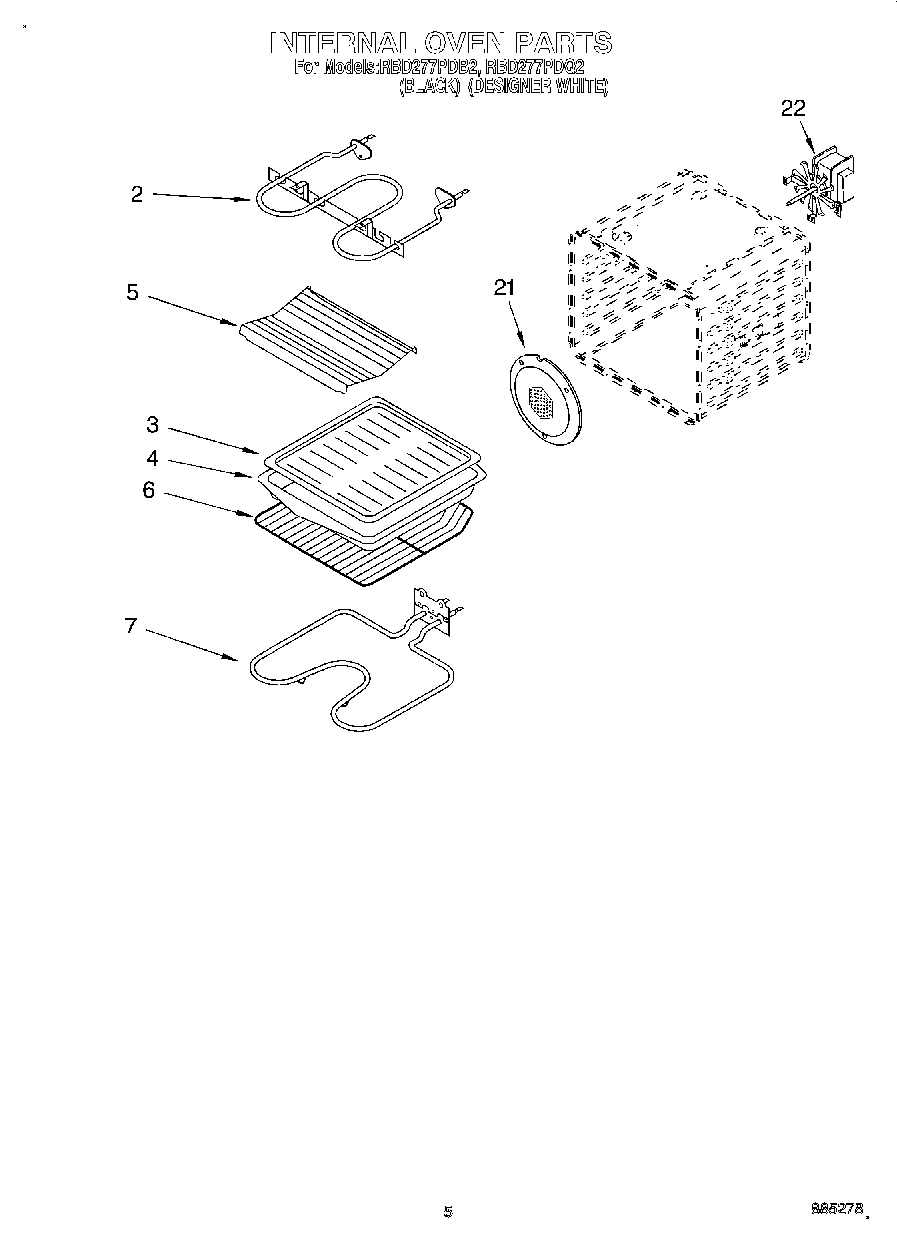

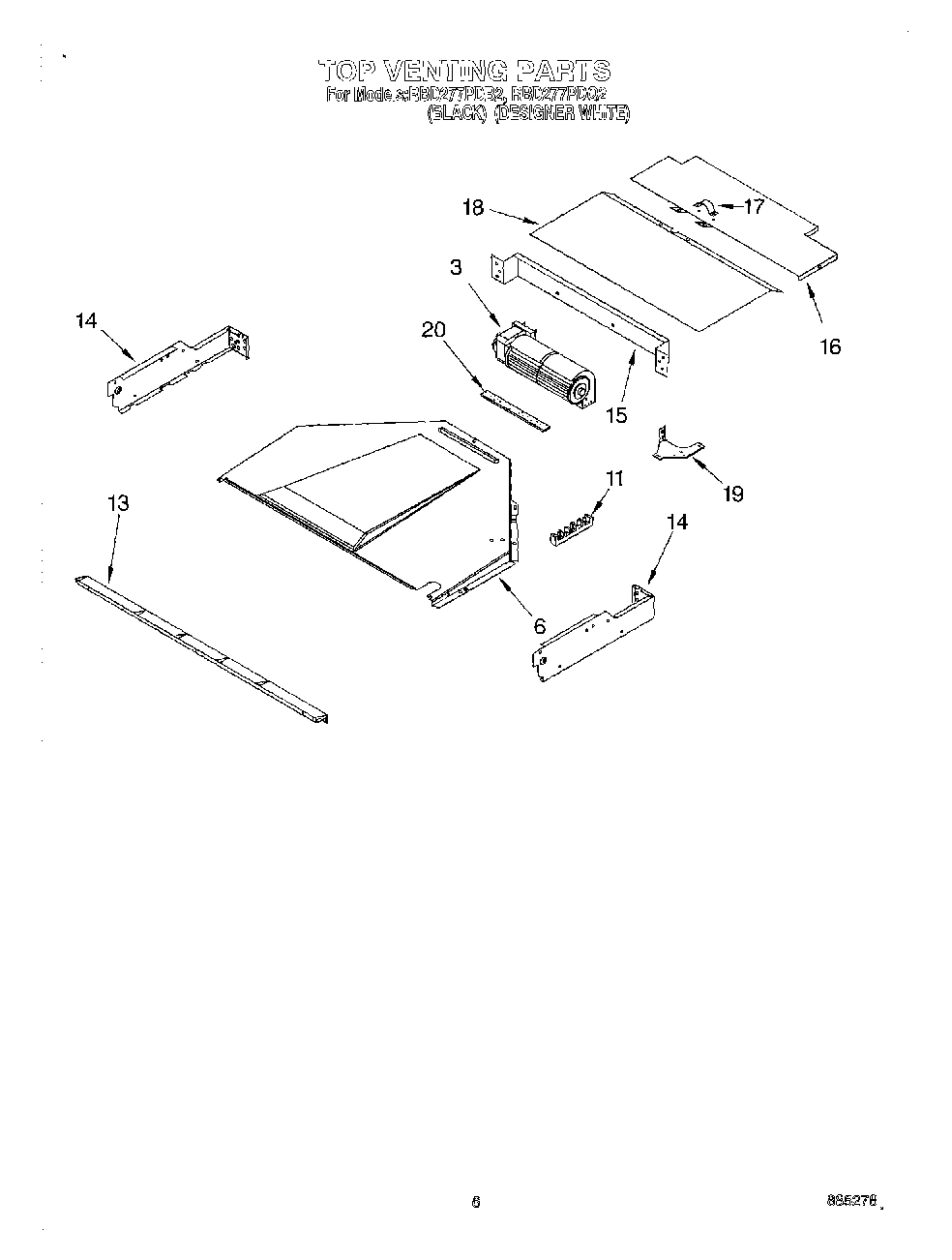

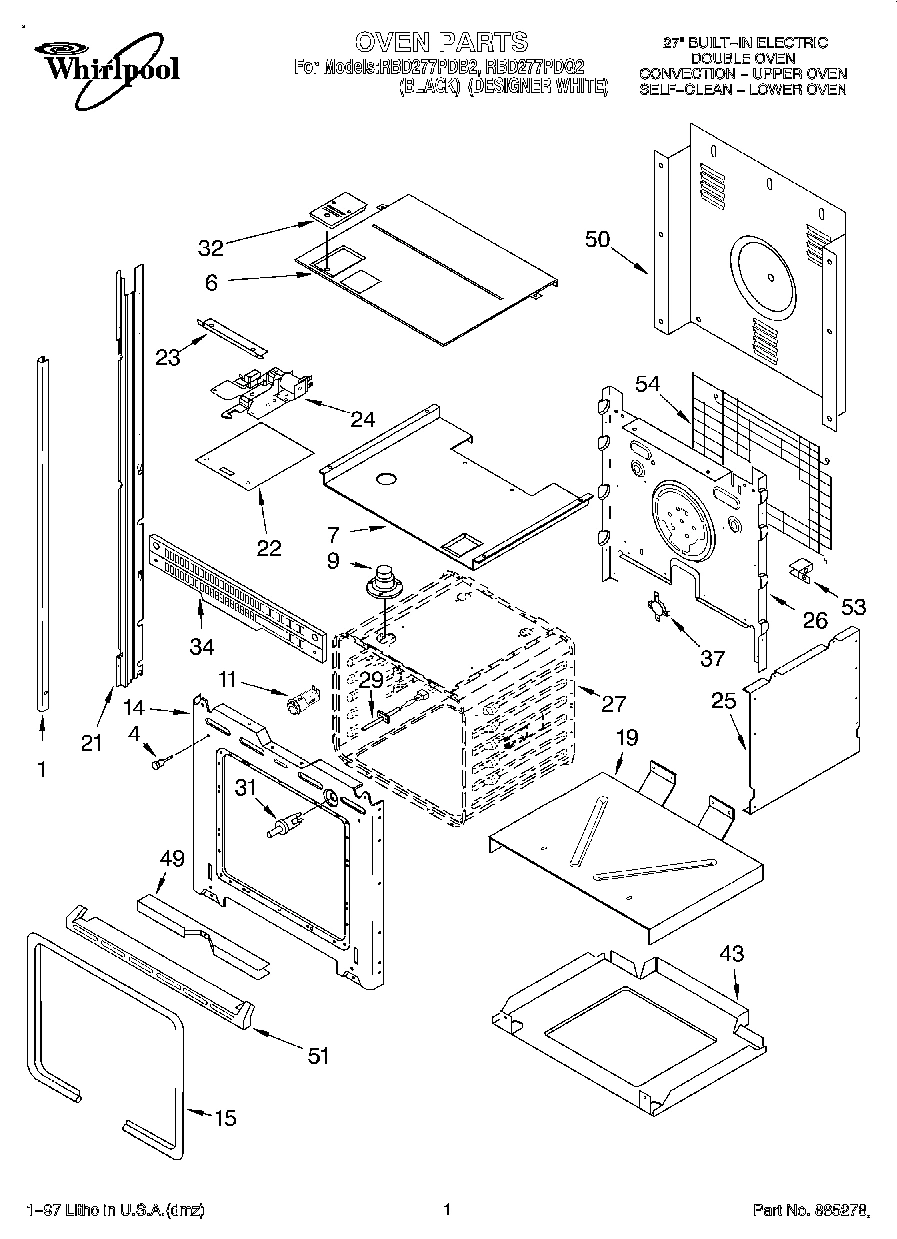

Model Whirlpool RBD277PDB2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

Cookbook, T/C Ovens
Cookbook, T/C Ovens WPL LIT4449237 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT4450410 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT4450569 Contact Us For Availability
View on Model
Tech Sheet (Oven)
Tech Sheet (Oven) WPL LIT4454767 Contact Us For Availability
View on Model

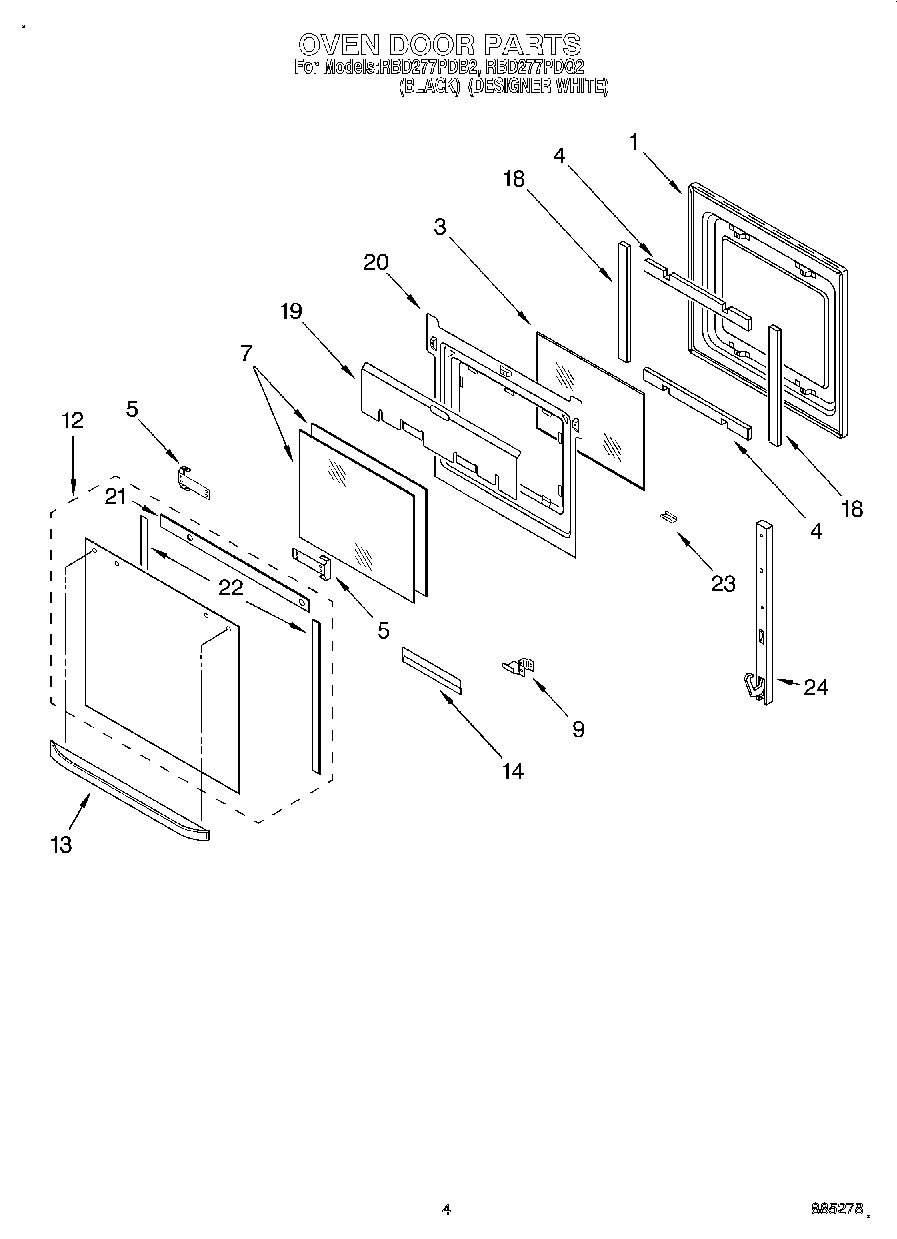

1
Door Liner
Door Liner WPL 4450428 Contact Us For Availability
View on Model

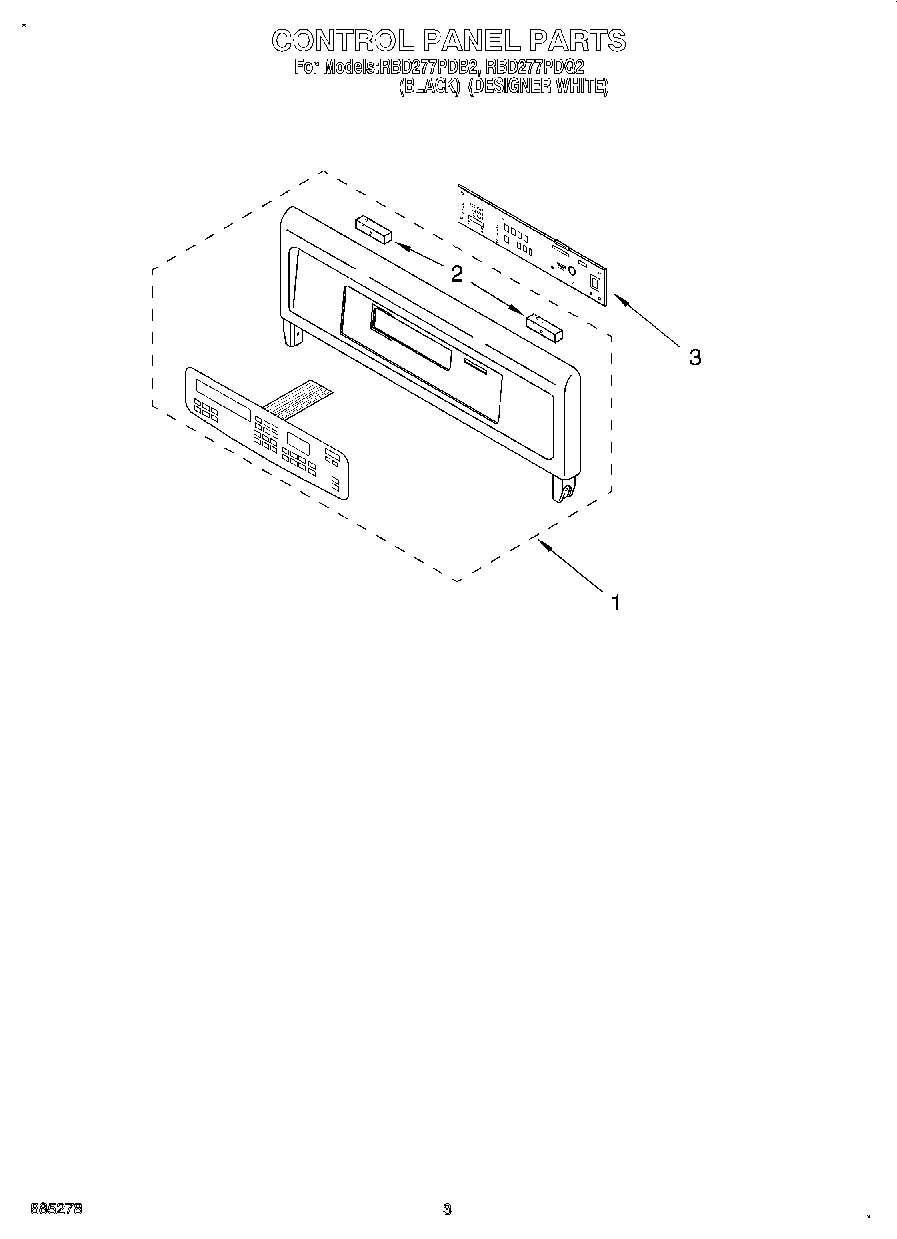

1
Control Panel Assy. W/Membrane, Switch (Black
Control Panel Assy. W/Membrane, Switch (Black WPL 4451310 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane, Switch (White
Control Panel Assy. W/Membrane, Switch (White WPL 4451311 Contact Us For Availability
View on Model
2
Screw
Screw WPL 4449899 Contact Us For Availability
View on Model
2
Gasket, Control Panel
Gasket, Control Panel WPL 4451033 Contact Us For Availability
View on Model
3
Blower
Blower WPL 4450920 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4448876 Contact Us For Availability
View on Model
4
Insulation, Top and Bottom Door
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
View on Model
5
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
5
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
5
Rack, Roasting
Rack, Roasting WPL 3181534 Contact Us For Availability
View on Model
6
Rack, Oven
Rack, Oven WPL 4448715 Contact Us For Availability
View on Model
6
Exhaust Duct
Exhaust Duct WPL 4450366 Contact Us For Availability
View on Model
9
Retainer, Glass
Retainer, Glass WPL 4450470 Contact Us For Availability
View on Model
12
Door Glass, Outer (Black Model)
Door Glass, Outer (Black Model) WPL 4450689 Contact Us For Availability
View on Model
12
Door Glass, Outer (White Model)
Door Glass, Outer (White Model) WPL 4450690 Contact Us For Availability
View on Model
13
Vent, (Control Panel)
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
View on Model
13
Door Handle (Black Model)
Door Handle (Black Model) WPL 4448405 Contact Us For Availability
View on Model
13
Handle, Door (White Model)
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
14
Retainer, Glass
Retainer, Glass WPL 4449031 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 4450658 Contact Us For Availability
View on Model
16
Cover, Top Rear
Cover, Top Rear WPL 4450550 Contact Us For Availability
View on Model
18
Cover, Top Front
Cover, Top Front WPL 4450553 Contact Us For Availability
View on Model
19
Bracket, Blower
Bracket, Blower WPL 4450545 Contact Us For Availability
View on Model
19
Shield, Heat
Shield, Heat WPL 4450361 Contact Us For Availability
View on Model
20
Conduit, Double
Conduit, Double WPL 4450953 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
20
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
20
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
20
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
20
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
20
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
20
Seal, Foam
Seal, Foam WPL 3182384 Contact Us For Availability
View on Model
20
Harness, Wire (Door Switch)
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
View on Model
20
Harness, Wire (Main)
Harness, Wire (Main) WPL 4454700 Contact Us For Availability
View on Model
20
Harness, Wire (Latch)
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
View on Model
20
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
20
Ro
Ro WPL 814387 Contact Us For Availability
View on Model
20
Retainer, Glass
Retainer, Glass WPL 4450422 Contact Us For Availability
View on Model
21
Seal, Door Top
Seal, Door Top WPL 4450836 Contact Us For Availability
View on Model
22
Seal, Side
Seal, Side WPL 4450838 Contact Us For Availability
View on Model
22
Motor, Convection Fan
Motor, Convection Fan WPL 4448952 Contact Us For Availability
View on Model
23
Retainer, Clip (Black Model)
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
View on Model
23
Retainer, Clip (White Model)
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
View on Model
51
Trim, Bottom (Screw)
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
View on Model
51
Trim, Bottom (Black Model)
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
View on Model
51
Trim, Bottom (White Model)
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
54
Insulation, Wrap
Insulation, Wrap WPL 4449315 Contact Us For Availability
View on Model
54
Insulation, Back
Insulation, Back WPL 4450364 Contact Us For Availability
View on Model
54
Spacer, Harness
Spacer, Harness WPL 4451002 Contact Us For Availability
View on Model
