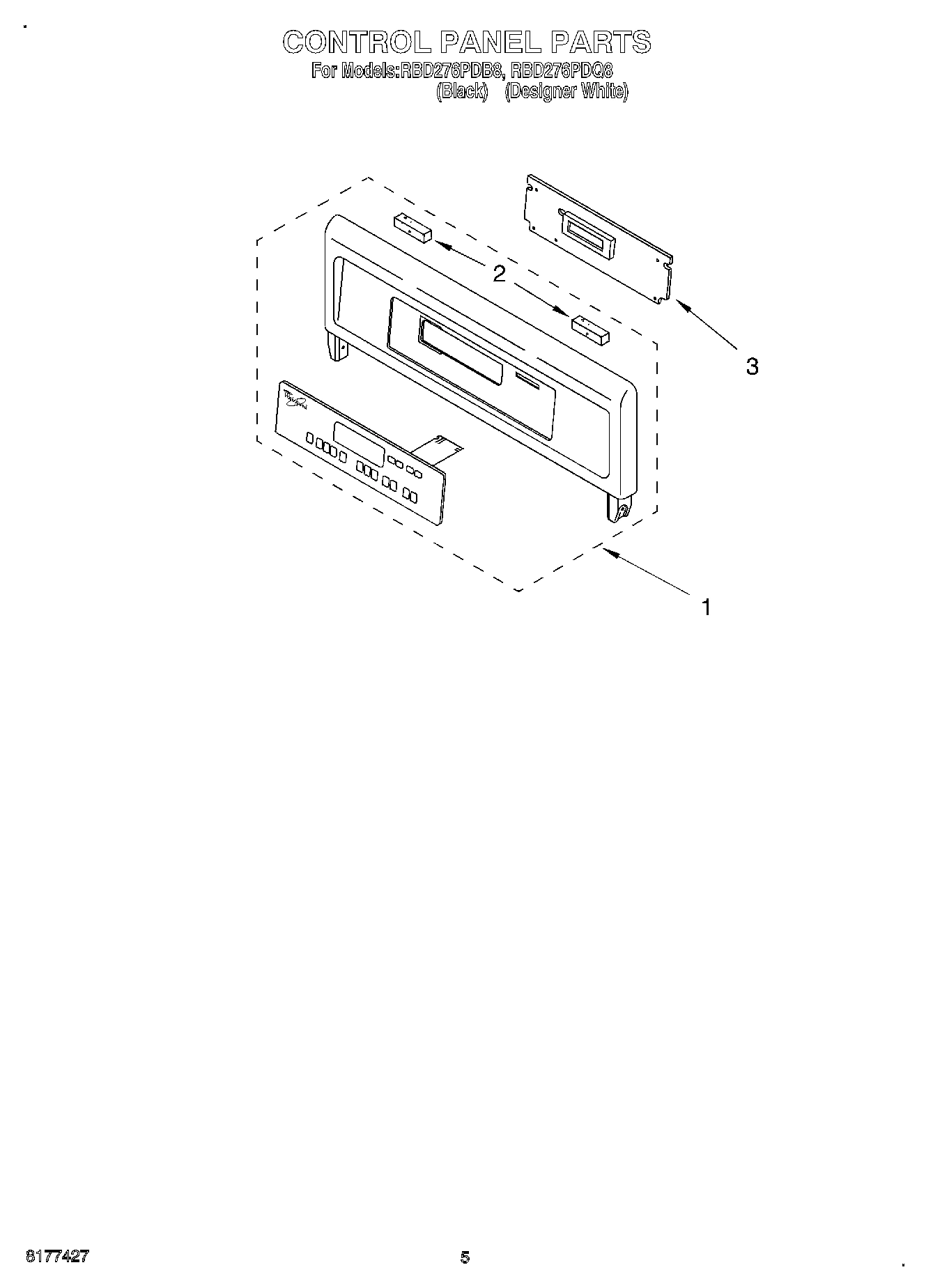

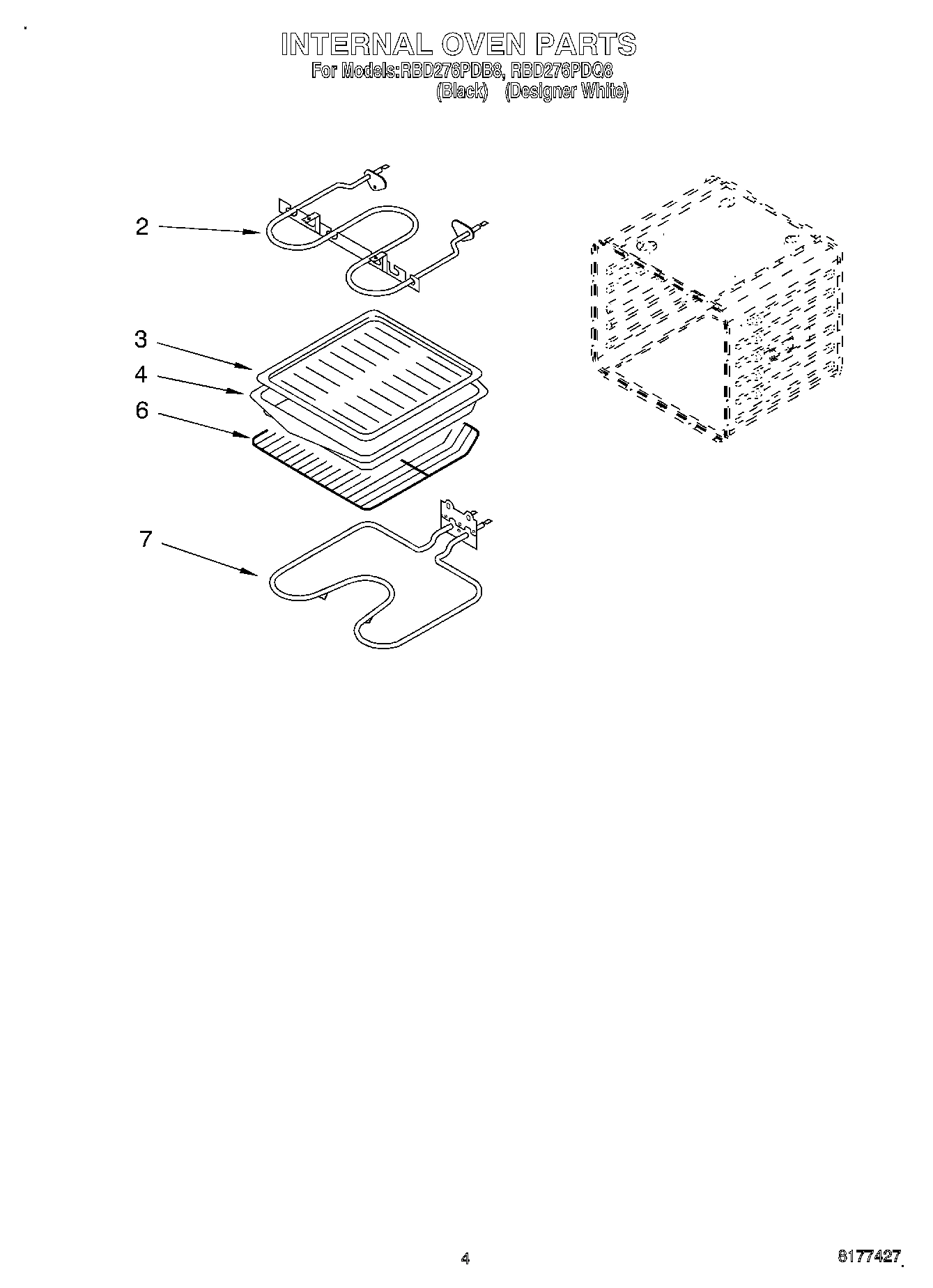

Model Whirlpool RBD276PDB8 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450410 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT4450568 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451887 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Divider, Vent WPL 4452200 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

Top, Chassis WPL 4455189 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4451739 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

19

Support, Insulation WPL 4451477 Contact Us For Availability

20

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

21

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

23

Solenoid WPL 4452224 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4451042 Whirlpool Thermal Fuse In Stock WPL WP4451042 $14.00

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Microswitch N.C. WPL 4452312 Contact Us For Availability

Conduit, Double WPL 4450953 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Transformer, Control WPL 4451891 Contact Us For Availability

Harness, Wire (Latch) WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wi WPL 4455349 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI120175A Contact Us For Availability

28

Switch, Micro WPL 4451426 Contact Us For Availability

29

Sensor WPL 4451665 Contact Us For Availability

30

Spring, Latch WPL 4451537 Contact Us For Availability

34

Vent, Center WPL 4452266 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4451397 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability

51

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

Insulation WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability
