Model Whirlpool RBD276PDB2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

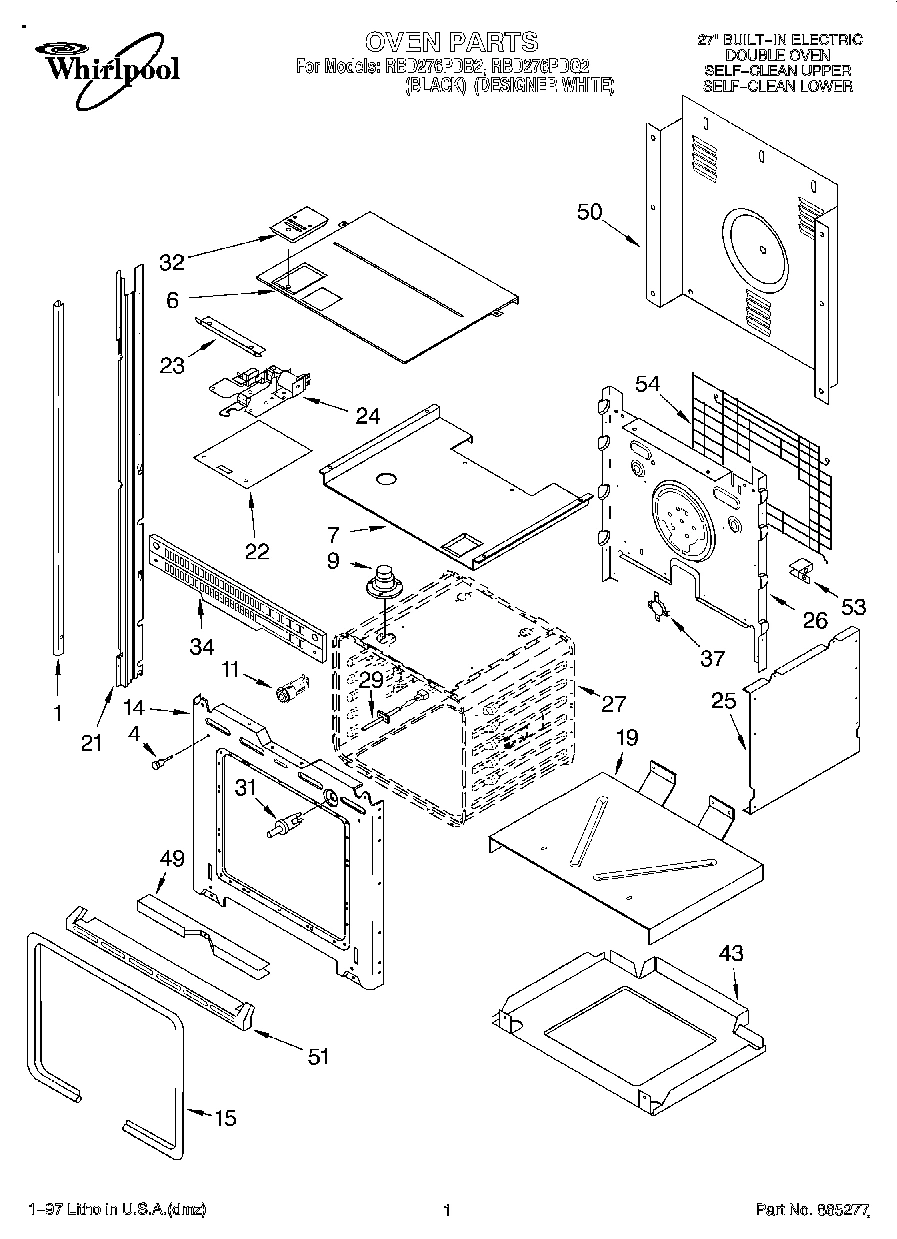

01 - OVEN

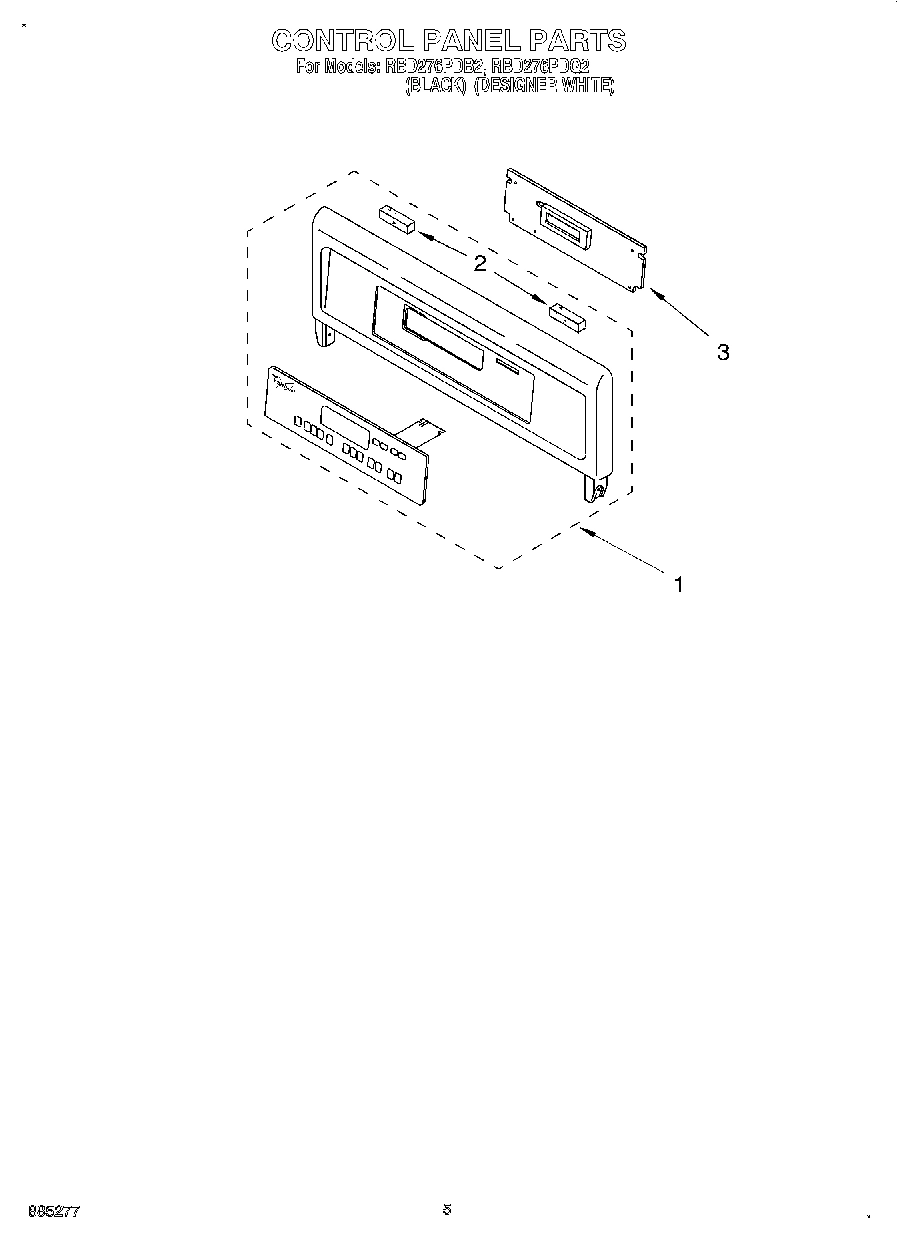

04 - CONTROL PANEL, LITERATURE
03 - INTERNAL OVEN
05 - TOP VENTING, OPTIONAL
02 - OVEN DOOR
Common parts from model Whirlpool RBD276PDB2 BUILT-IN ELECTRIC DOUBLE OVEN
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450568 Contact Us For Availability
Tech Sheet WPL LIT4454767 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451307 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451308 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
2
Screw WPL 4449899 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448876 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
12
Door Glass, Outer (Black Model) WPL 4450689 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450690 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448405 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Blower, Single Sp. Upper & Lower WPL 4450920 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Conduit, Double WPL 4450953 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Seal, Foam WPL 3182384 Contact Us For Availability
21
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
21
Harness, Wire (Main) WPL 4454701 Contact Us For Availability
21
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
21
Roll Tap WPL 814387 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
