Model Whirlpool RBD276PDB12 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

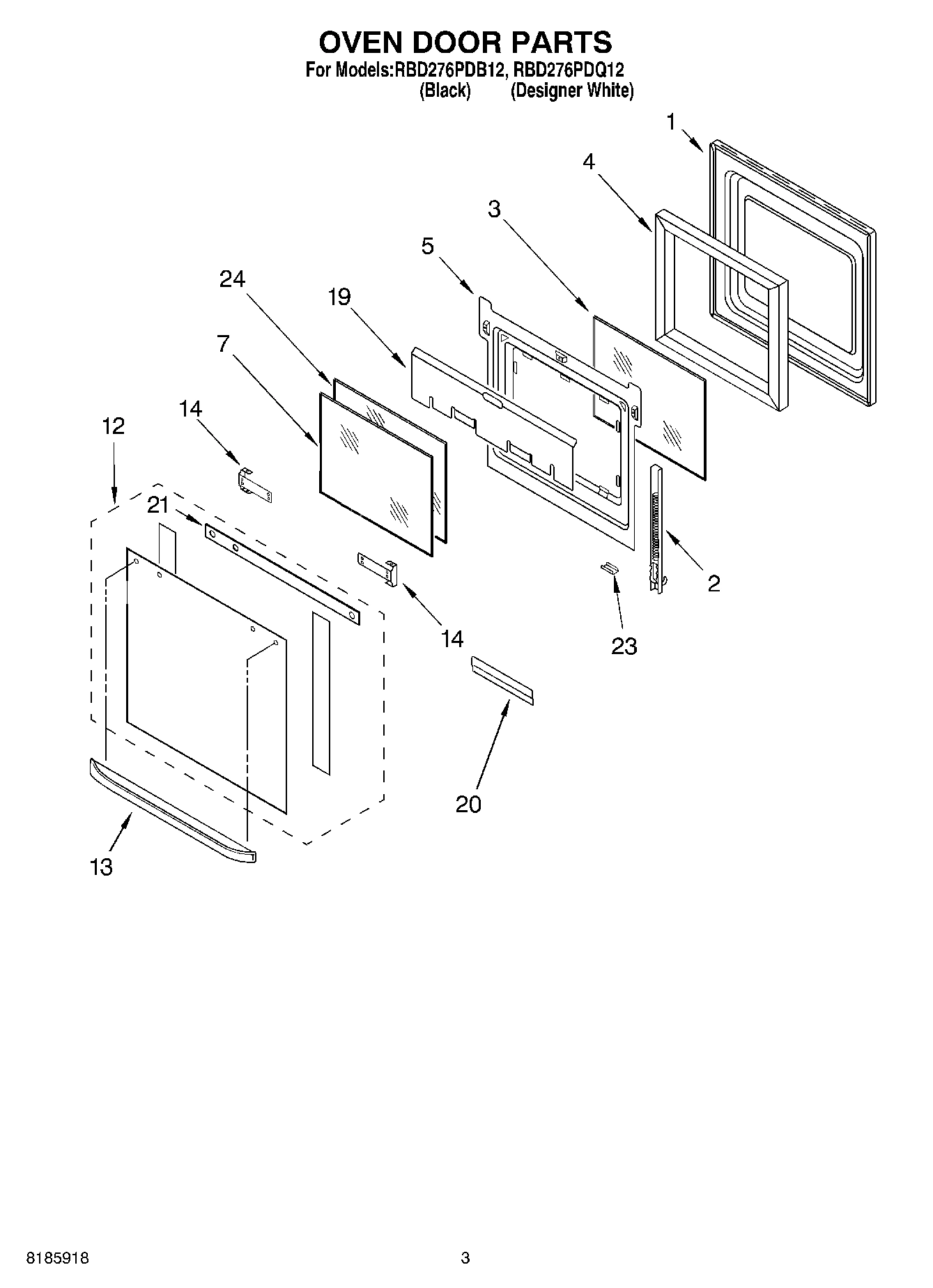

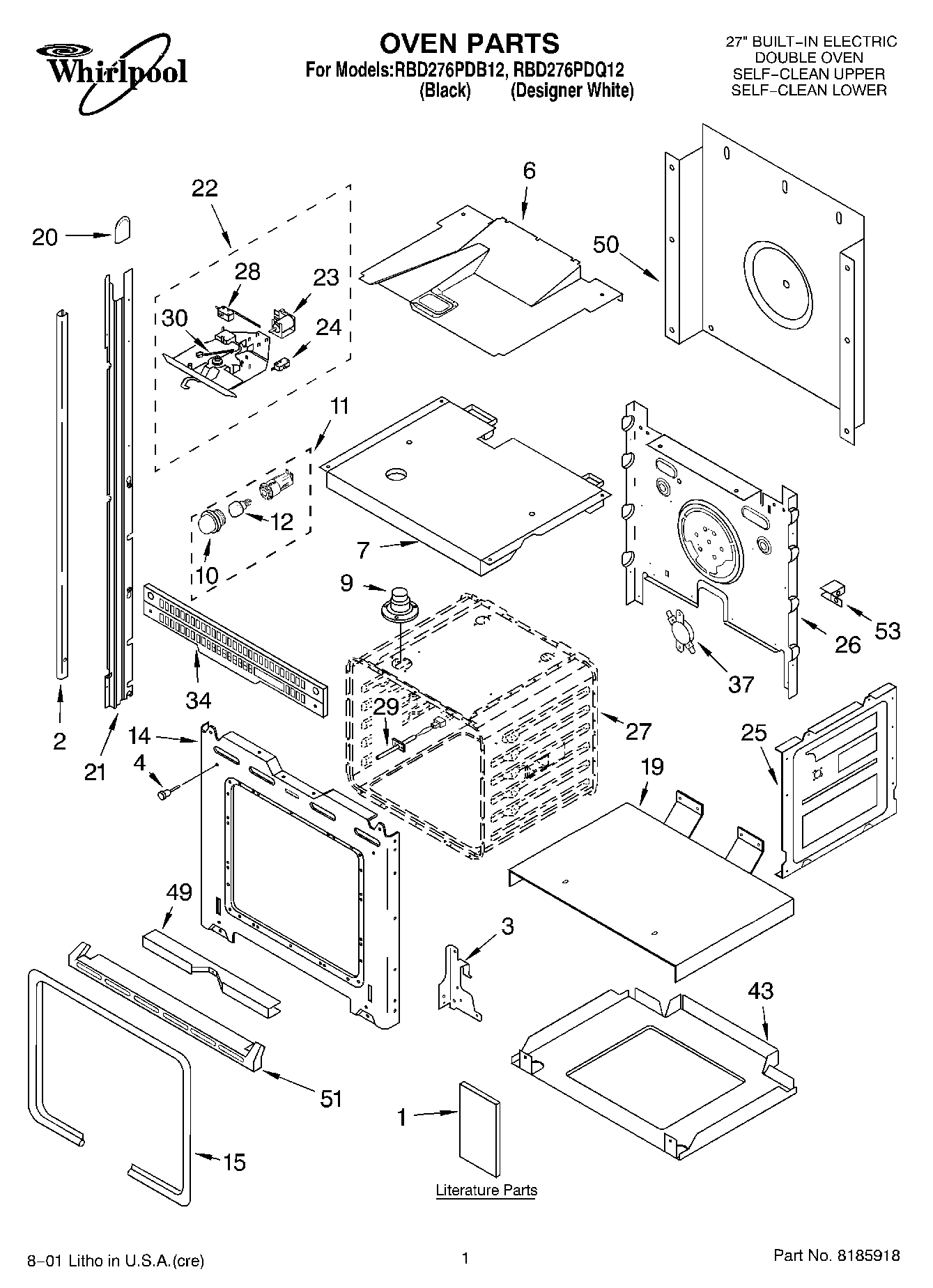

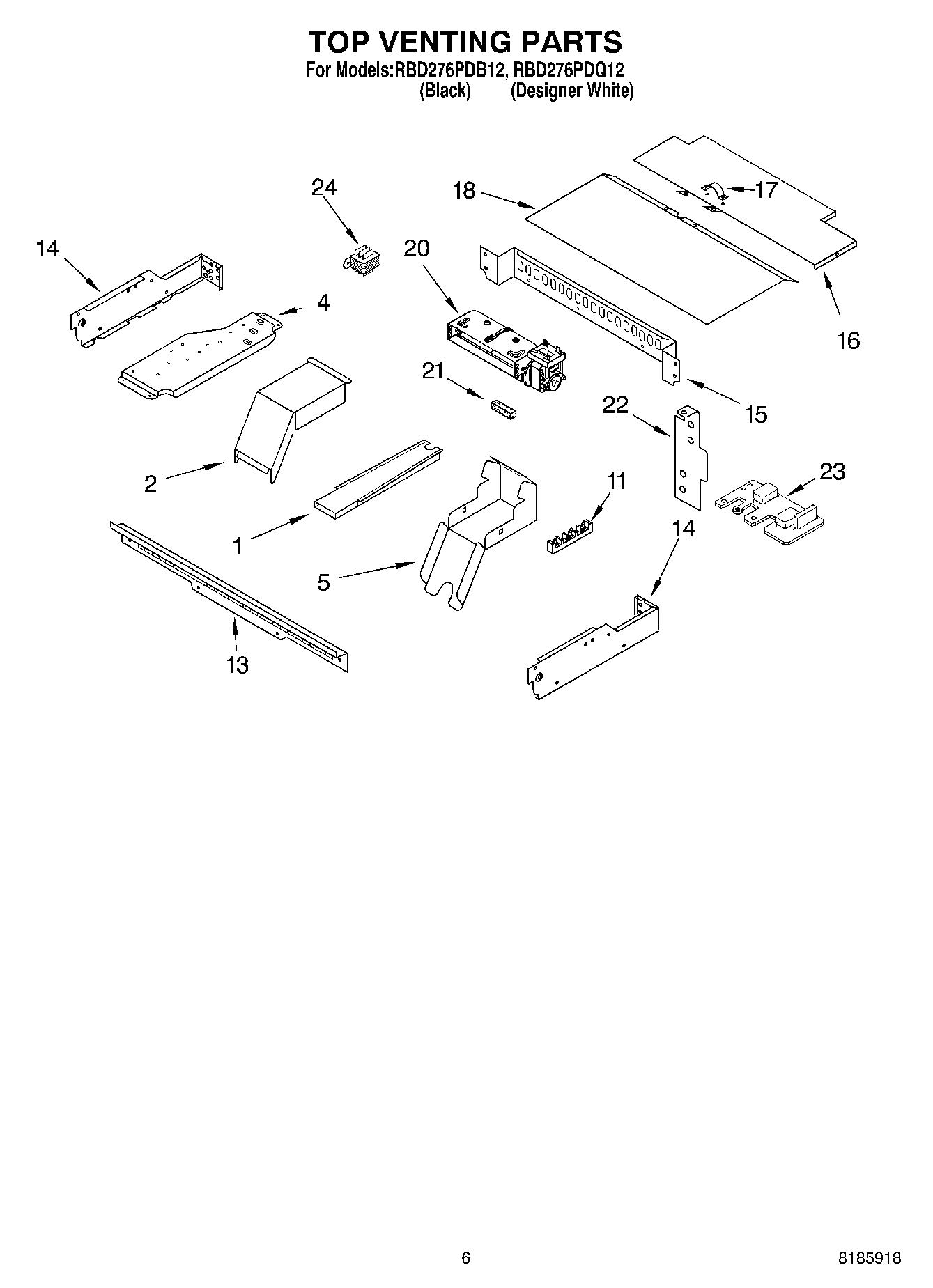

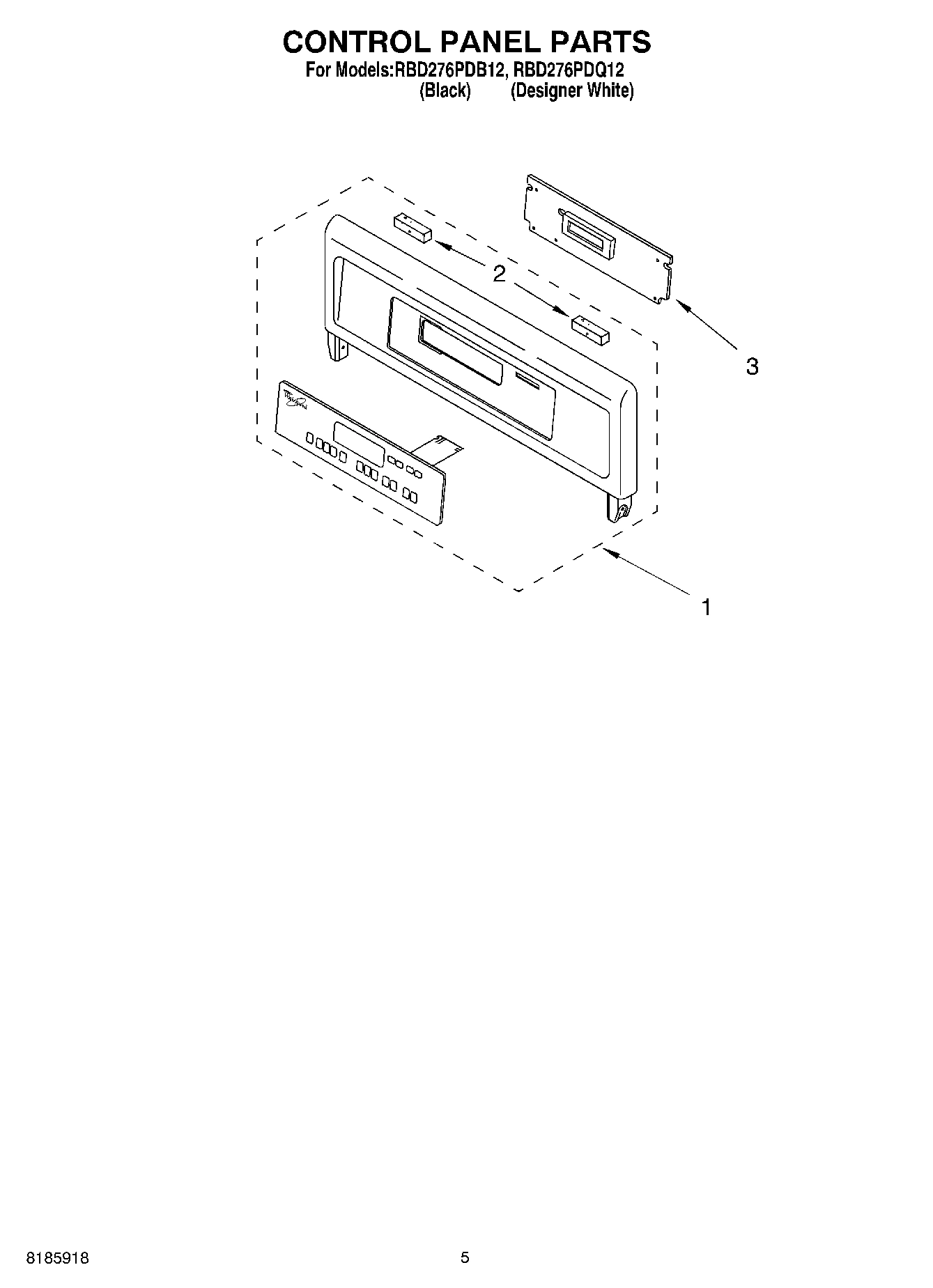

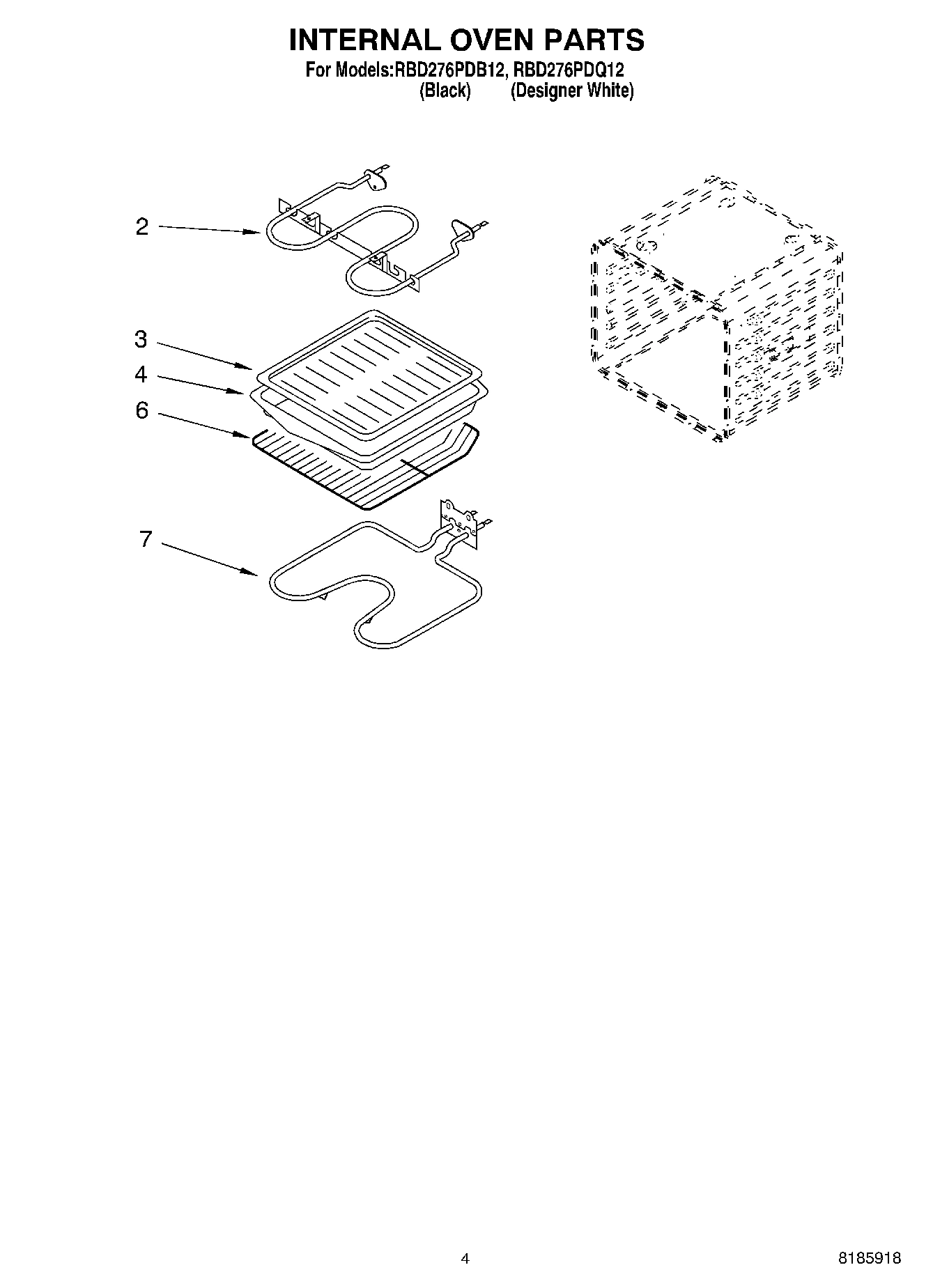

1

Door Liner WPL 4455617 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451887 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300655 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8300772 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $39.24

2

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

Retainer, Glass WPL 8300777 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Divider, Vent WPL 4452200 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

Top, Chassis WPL 4455864 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

11

Screw WPL 3400080 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

12

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

12

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Door Handle (Black Model) WPL 4448405 Contact Us For Availability

13

Handle, Door (White Model) WPL 4448406 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

19

Shield, Heat WPL 4450361 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

20

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 8300819 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

Solenoid WPL 4452224 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Microswitch N.C. WPL 4452312 Contact Us For Availability

Conduit, Double WPL 4450953 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455738 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

WPL 8300642 WPL 8300642 Contact Us For Availability

Glass, Inner WPL 4455256 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI120170A Contact Us For Availability

28

Switch, Micro WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

34

Vent, Center WPL 4452266 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

51

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

Insulation, Wrap WPL 4449315 Contact Us For Availability

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability
