Model Whirlpool RBD275PVB03 27`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts & Diagrams

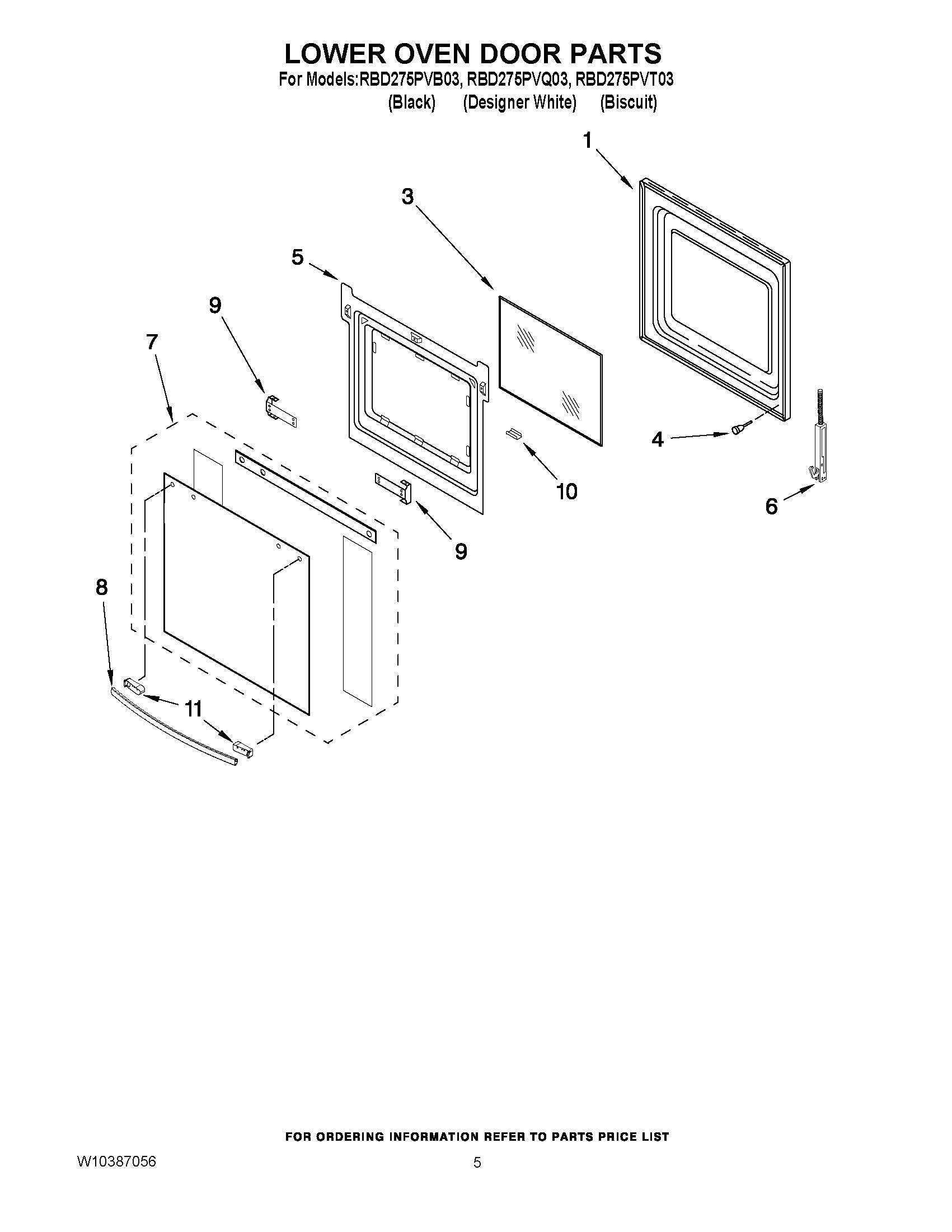

03 - LOWER OVEN DOOR PARTS

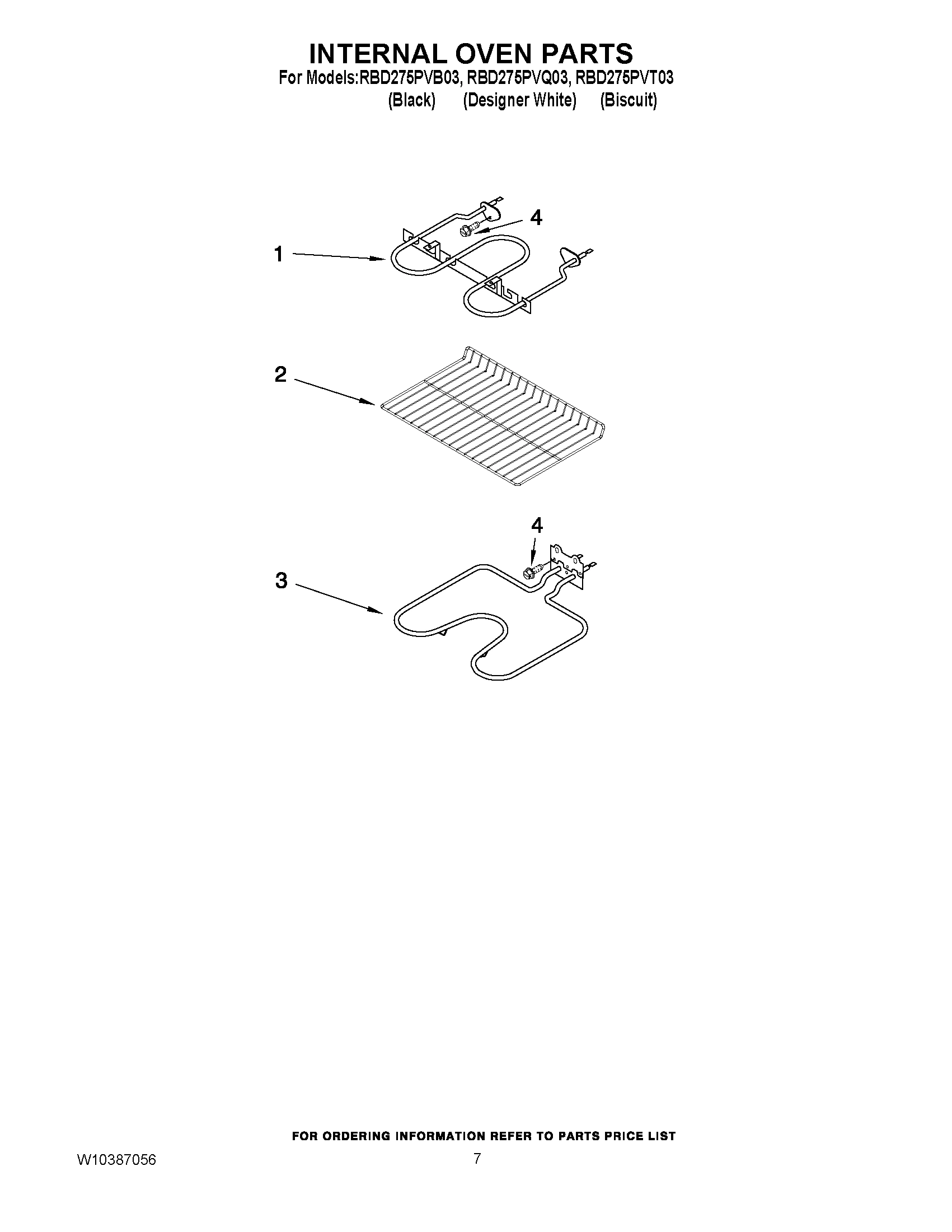

05 - INTERNAL OVEN PARTS
07 - TOP VENTING PARTS
04 - UPPER OVEN DOOR PARTS
06 - CONTROL PANEL PARTS
01 - LOWER OVEN PARTS
02 - UPPER OVEN PARTS
08 - OPTIONAL PARTS
Common parts from model Whirlpool RBD275PVB03 27`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Panel, Door WPL 8303699 Contact Us For Availability
1
Panel, Control (White) WPL 8302845 Contact Us For Availability
1
Screw WPL 4449040 Contact Us For Availability
1
Use & Care Guide WPL W10192041 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (ENGLISH) WPL W10192049 Contact Us For Availability
2
Rack, Oven WPL 4448715 Contact Us For Availability
2
TRIM, SIDE RIGHT (WHITE) WPL W10339501 Contact Us For Availability
2
TRIM, SIDE RIGHT (BISCUIT) WPL W10339503 Contact Us For Availability
2
TRIM, SIDE LEFT (BISCUIT) WPL W10339504 Contact Us For Availability
3
Assembly, Membrane (Black) WPL 8304275 Contact Us For Availability
3
Assembly, Membrane (White) WPL 8304276 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
4
Bumper, Door WPL W10105790 Contact Us For Availability
5
Retainer, Glass WPL 4457131 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
6
Motorized Latch Sister Board WPL 8301848 Contact Us For Availability
6
Screw WPL 3400080 Contact Us For Availability
6
Nameplate WPL W10215072 Contact Us For Availability
6
Plug, Door WPL 4450935 Contact Us For Availability
7
Glass, Inner WPL 9759224 Contact Us For Availability
7
Top, Chassis WPL 4455864 Contact Us For Availability
9
Bracket, Handle (Right) WPL 4455803 Contact Us For Availability
9
Bracket, Handle (Left) WPL 4455804 Contact Us For Availability
9
BRACKET, MOUNTING BOTTOM VENT WPL 4452152 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
10
Assembly, Fan WPL 4451664 Contact Us For Availability
14
SUPPRESSOR WPL 8302143 Contact Us For Availability
14
Frame, Front WPL W10130370 Contact Us For Availability
15
Transformer, Control WPL 9760587 Contact Us For Availability
15
GASKET, DOOR WPL W10203264 Contact Us For Availability
16
Support, Insulation WPL 4451477 Contact Us For Availability
17
Rail, Side (Left) WPL 8302794 Contact Us For Availability
21
Back, Chassis WPL W10161109 Contact Us For Availability
21
Deflector, Vent WPL 9760676 Contact Us For Availability
22
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
24
Vent, Center WPL 4452266 Contact Us For Availability
26
Trim, Bottom Vent (Black) WPL W10207684 Contact Us For Availability
26
Base, Chassis WPL 4455529 Contact Us For Availability
26
Trim, Bottom Vent (White) WPL W10207687 Contact Us For Availability
26
Trim, Bottom Vent (Biscuit) WPL W10207688 Contact Us For Availability
29
Support, Bracket WPL 4449845 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
NI
Harness, Main WPL 8302154 Contact Us For Availability
NI
Conduit, Double WPL 4450953 Contact Us For Availability
NI
Lead, Ground Strap WPL 4452400 Contact Us For Availability
NI
SCREW WPL 7101P42660 Contact Us For Availability
NI
Insulation, Wrap WPL 4449315 Contact Us For Availability
NI
Insulation, Back WPL 4450364 Contact Us For Availability
NI
Clamp WPL 4448664 Contact Us For Availability
NI
Screw, Ground WPL 4450800 Contact Us For Availability
NI
Support, Wiring WPL 4451761 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
NI
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
× ![]()
