Model Whirlpool RBD275PVB03 27`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts &amp; Diagrams

1

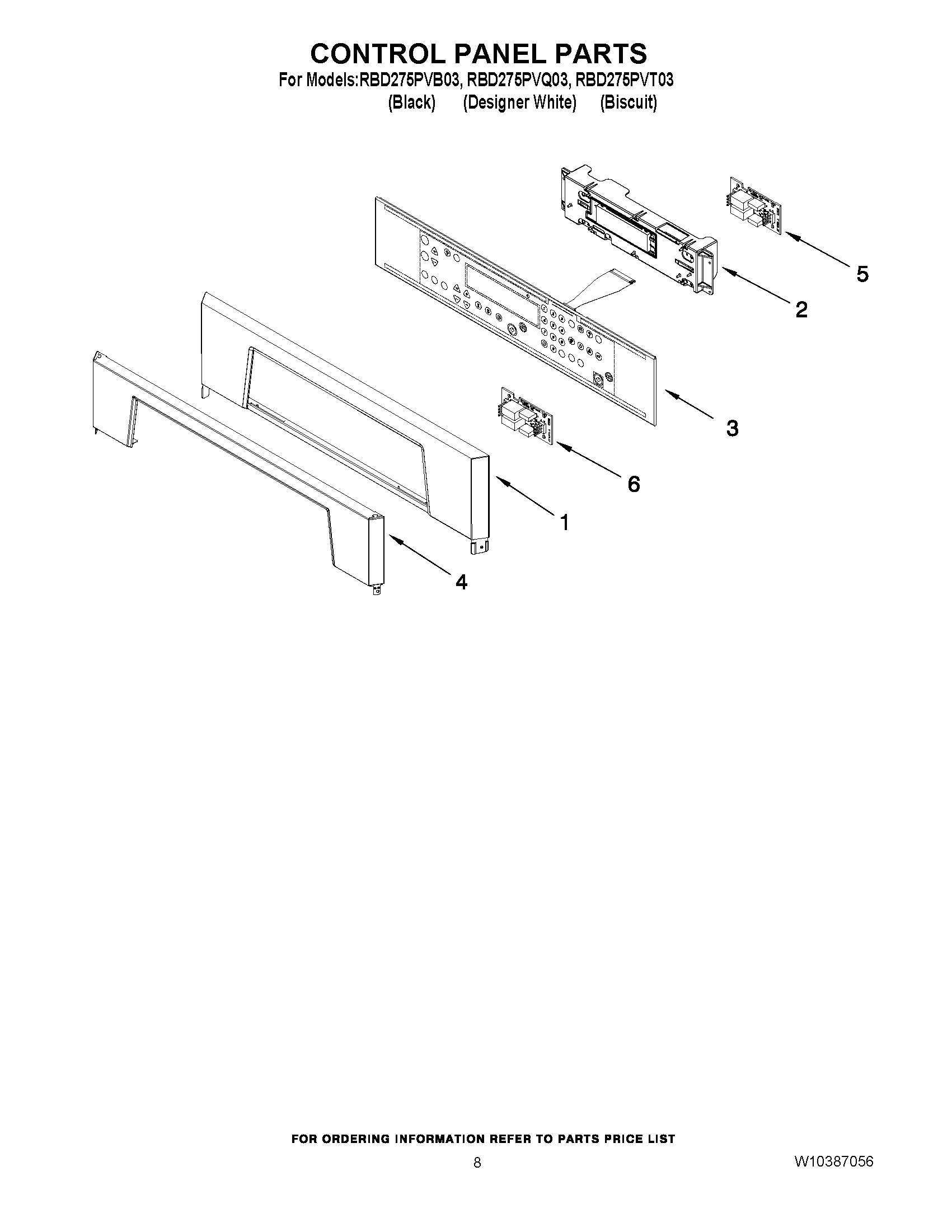

WP8302844 Whirlpool Control Panel Backorder WPL WP8302844 $156.73

1

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $80.78

1

Panel, Door WPL 8303699 Contact Us For Availability

1

Panel, Control (White) WPL 8302845 Contact Us For Availability

1

Screw WPL 4449040 Contact Us For Availability

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $52.49

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $44.10

2

WPW10176670 Whirlpool Blower In Stock WPL WPW10176670 $135.29

2

WPW10339500 Whirlpool Trim Backorder WPL WPW10339500 $82.21

2

WPW10339502 Whirlpool Trim Kit Backorder WPL WPW10339502 $53.49

2

Rack, Oven WPL 4448715 Contact Us For Availability

2

TRIM, SIDE RIGHT (BLACK) WPL W10339499 Contact Us For Availability

2

TRIM, SIDE RIGHT (WHITE) WPL W10339501 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

3

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

3

Assembly, Membrane (Black) WPL 8304275 Contact Us For Availability

3

Assembly, Membrane (White) WPL 8304276 Contact Us For Availability

4

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

Retainer, Glass WPL 4457131 Contact Us For Availability

6

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

6

Motorized Latch Sister Board WPL 8301848 Contact Us For Availability

6

Screw WPL 3400080 Contact Us For Availability

6

Nameplate WPL W10215072 Contact Us For Availability

7

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

7

Glass, Inner WPL 9759224 Contact Us For Availability

8

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

9

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

9

Bracket, Handle (Left) WPL 4455804 Contact Us For Availability

10

Lens, Light WPL W10067870 Contact Us For Availability

10

Assembly, Fan WPL 4451664 Contact Us For Availability

14

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

14

SUPPRESSOR WPL 8302143 Contact Us For Availability

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $71.22

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

Transformer, Control WPL 9760587 Contact Us For Availability

GASKET, DOOR WPL W10203264 Contact Us For Availability

16

Support, Insulation WPL 4451477 Contact Us For Availability

17

WP8302793 Whirlpool Mounting Rail Backorder WPL WP8302793 $60.74

17

Rail, Side (Left) WPL 8302794 Contact Us For Availability

18

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $150.25

20

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

21

Back, Chassis WPL W10161109 Contact Us For Availability

22

WP4451354 Whirlpool Thermal Fuse Assembly In Stock WPL WP4451354 $17.04

22

LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability

23

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

24

Vent, Center WPL 4452266 Contact Us For Availability

25

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

26

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

26

Trim, Bottom Vent (Black) WPL W10207684 Contact Us For Availability

26

Base, Chassis WPL 4455529 Contact Us For Availability

27

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

27

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

28

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

29

Support, Bracket WPL 4449845 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $28.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8302154 Whirlpool Oven Wire Harness Backorder WPL 8302154 $153.36

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Conduit, Double WPL 4450953 Contact Us For Availability

SCREW WPL 7101P42660 Contact Us For Availability

Insulation, Wrap WPL 4449315 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
