Model Whirlpool RBD275PRS02 27`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts & Diagrams

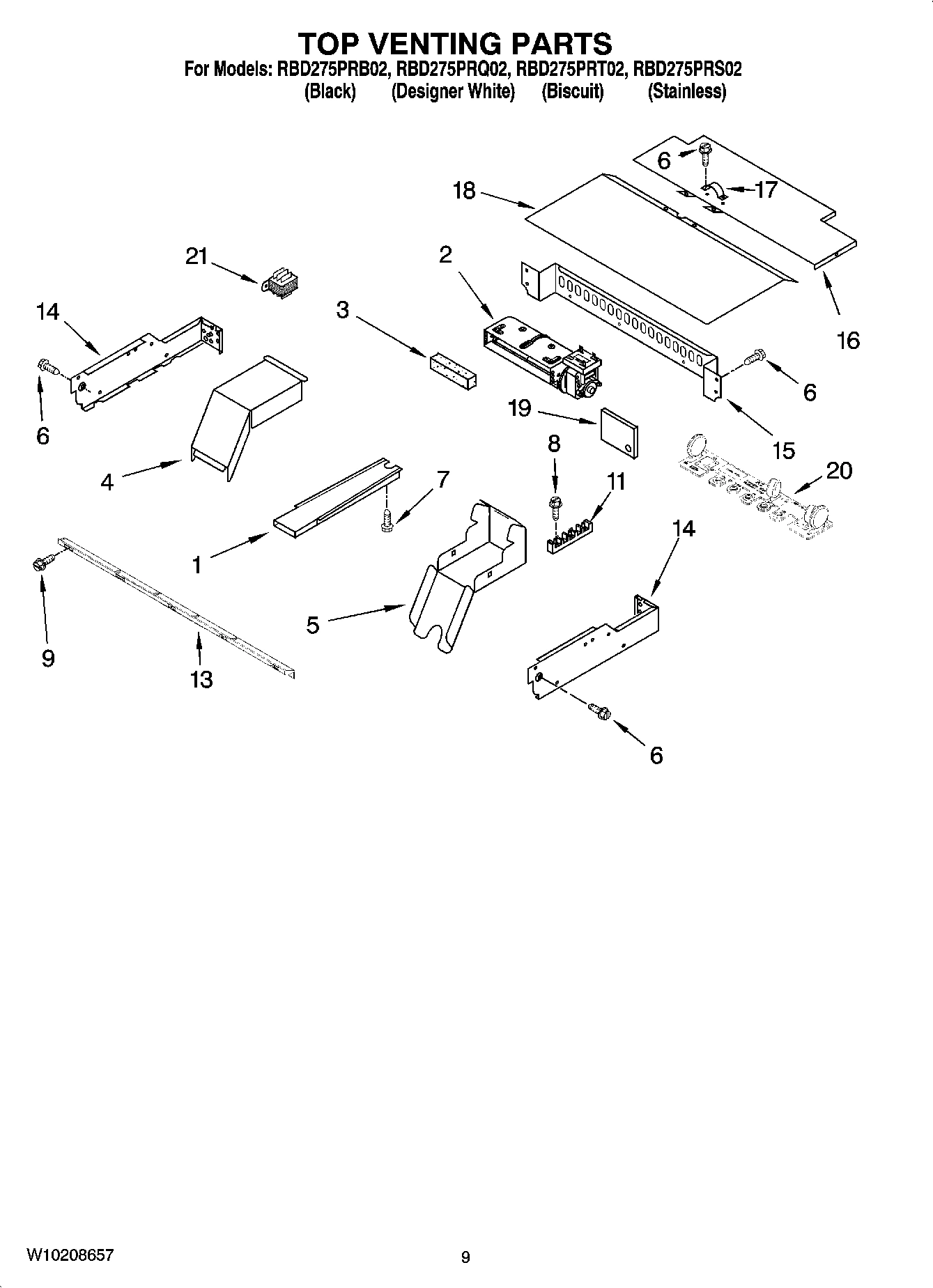

07 - TOP VENTING PARTS, OPTIONAL PARTS

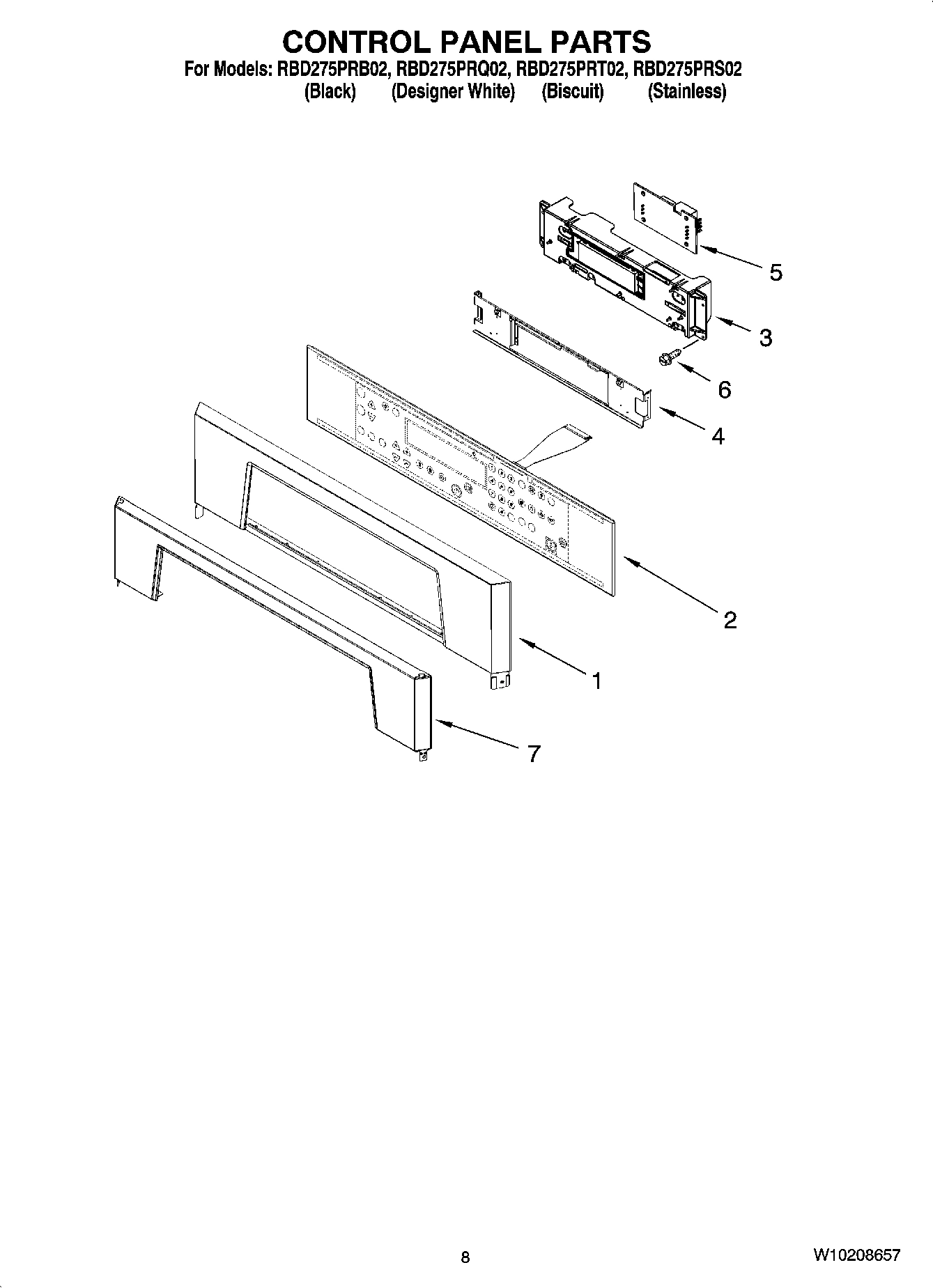

06 - CONTROL PANEL PARTS
04 - UPPER OVEN DOOR PARTS
03 - LOWER OVEN DOOR PARTS
05 - INTERNAL OVEN PARTS
01 - LOWER OVEN PARTS
02 - UPPER OVEN PARTS
Common parts from model Whirlpool RBD275PRS02 27`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER
Conduit, Double WPL 4450953 Contact Us For Availability
Following Parts Not Illustrated WPL ARI120104A Contact Us For Availability
Insulation WPL ARI120105A Contact Us For Availability
Insulation, Wrap WPL 4449315 Contact Us For Availability
Insulation, Back WPL 4450364 Contact Us For Availability
Following Parts Not Illustrated WPL ARI120107A Contact Us For Availability
Insulation WPL ARI120108A Contact Us For Availability
1
Liner, Door WPL 8303699 Contact Us For Availability
1
Assembly, Control Panel (White) WPL 8302845 Contact Us For Availability
1
Tech Sheet WPL 8302068 Contact Us For Availability
1
Installation Instructions WPL 8303648 Contact Us For Availability
1
SAFER COOKING TIPS (ENGLISH WPL 9762761 Contact Us For Availability
1
Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
Use & Care Guide WPL W10162170 Contact Us For Availability
2
Rack, Oven WPL 4448715 Contact Us For Availability
2
Membrane Switch (Black) WPL 8304275 Contact Us For Availability
2
Membrane Switch (White) WPL 8304276 Contact Us For Availability
2
Trim, Side Right (White) WPL W10136100 Contact Us For Availability
2
Trim, Side Left (Biscuit) WPL W10136103 Contact Us For Availability
2
Trim, Side Left (Stainless) WPL W10166948 Contact Us For Availability
2
Trim, Side Right (Stainless) WPL W10166949 Contact Us For Availability
4
Hinge, Door (SS Model Only) (Right Side) WPL 9760566 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Hinge, Door (SS Model Only) (Left Side) WPL 9760565 Contact Us For Availability
5
Board, Latch WPL 8301848 Contact Us For Availability
5
Retainer, Glass WPL 4457131 Contact Us For Availability
7
Glass, Inner WPL 9759224 Contact Us For Availability
7
Screw WPL 4449040 Contact Us For Availability
7
Top, Chassis WPL 4455864 Contact Us For Availability
8
Screw WPL 3400080 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
14
Frame, Front WPL W10130370 Contact Us For Availability
14
Frame, Front WPL 4455611 Contact Us For Availability
15
Gasket, Door WPL 4450492 Contact Us For Availability
17
Nameplate WPL 8303811 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
SUPPRESSOR WPL 8302143 Contact Us For Availability
21
Transformer, Single Control WPL 9760587 Contact Us For Availability
21
Rail, Side (Left) WPL 8302794 Contact Us For Availability
22
Assembly, Fan & Bracket WPL 4451664 Contact Us For Availability
26
Back, Chassis WPL W10161109 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI120103A Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI120106A Contact Us For Availability
30
Deflector, Vent WPL 9760676 Contact Us For Availability
30
Vent, Center WPL 4452266 Contact Us For Availability
32
Base, Chassis WPL 4455529 Contact Us For Availability
34
Support, Bracket WPL 4449845 Contact Us For Availability
35
Trim, Bottom (Stainless) WPL 8303578 Contact Us For Availability
35
Trim, Bottom (Black) WPL 8303579 Contact Us For Availability
35
Trim, Bottom (White) WPL 8303580 Contact Us For Availability
35
Trim, Bottom (Biscuit) WPL 8303581 Contact Us For Availability
× ![]()
