Model Whirlpool RBD275PRQ02 27`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts & Diagrams

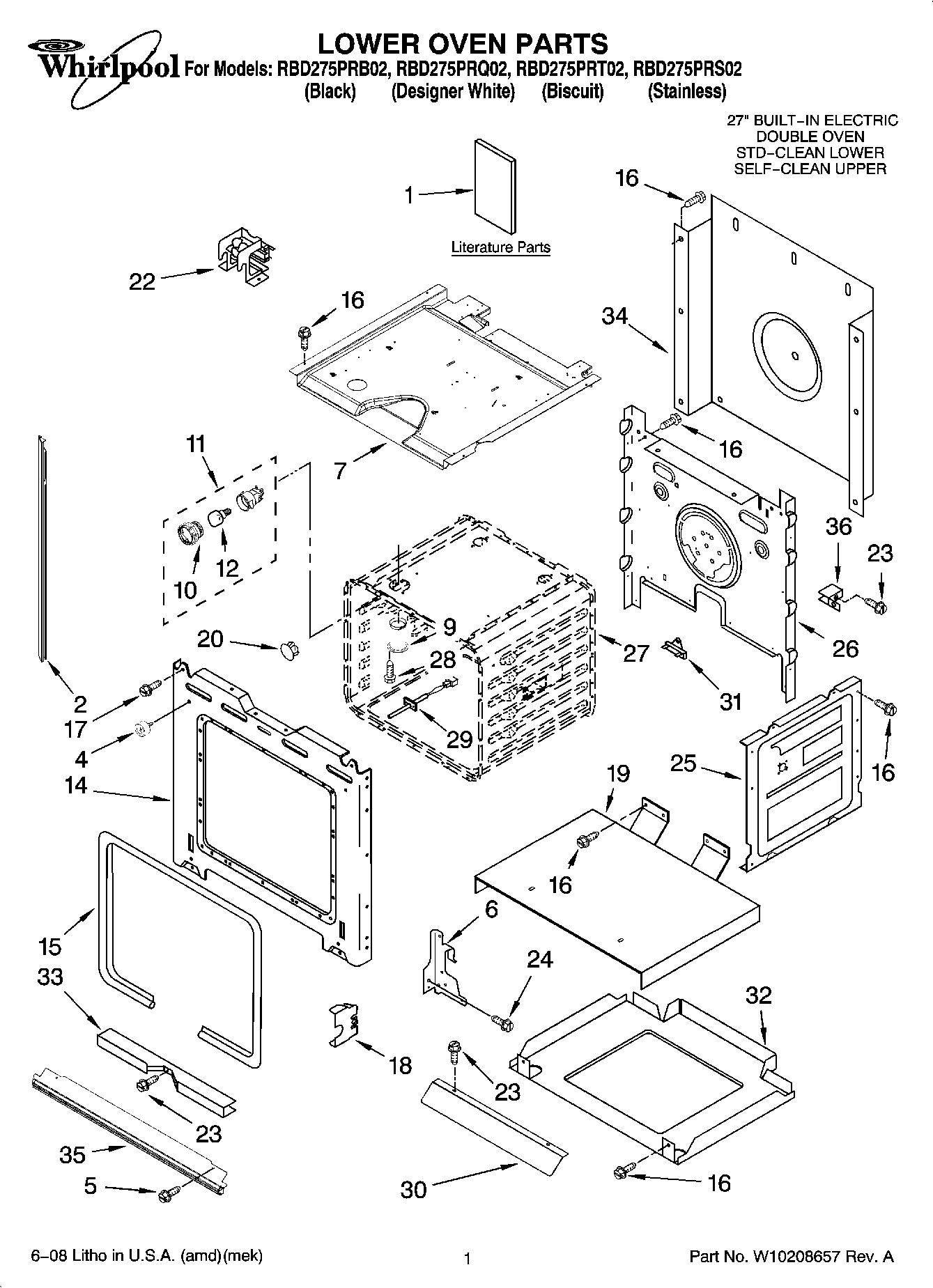

01 - LOWER OVEN PARTS

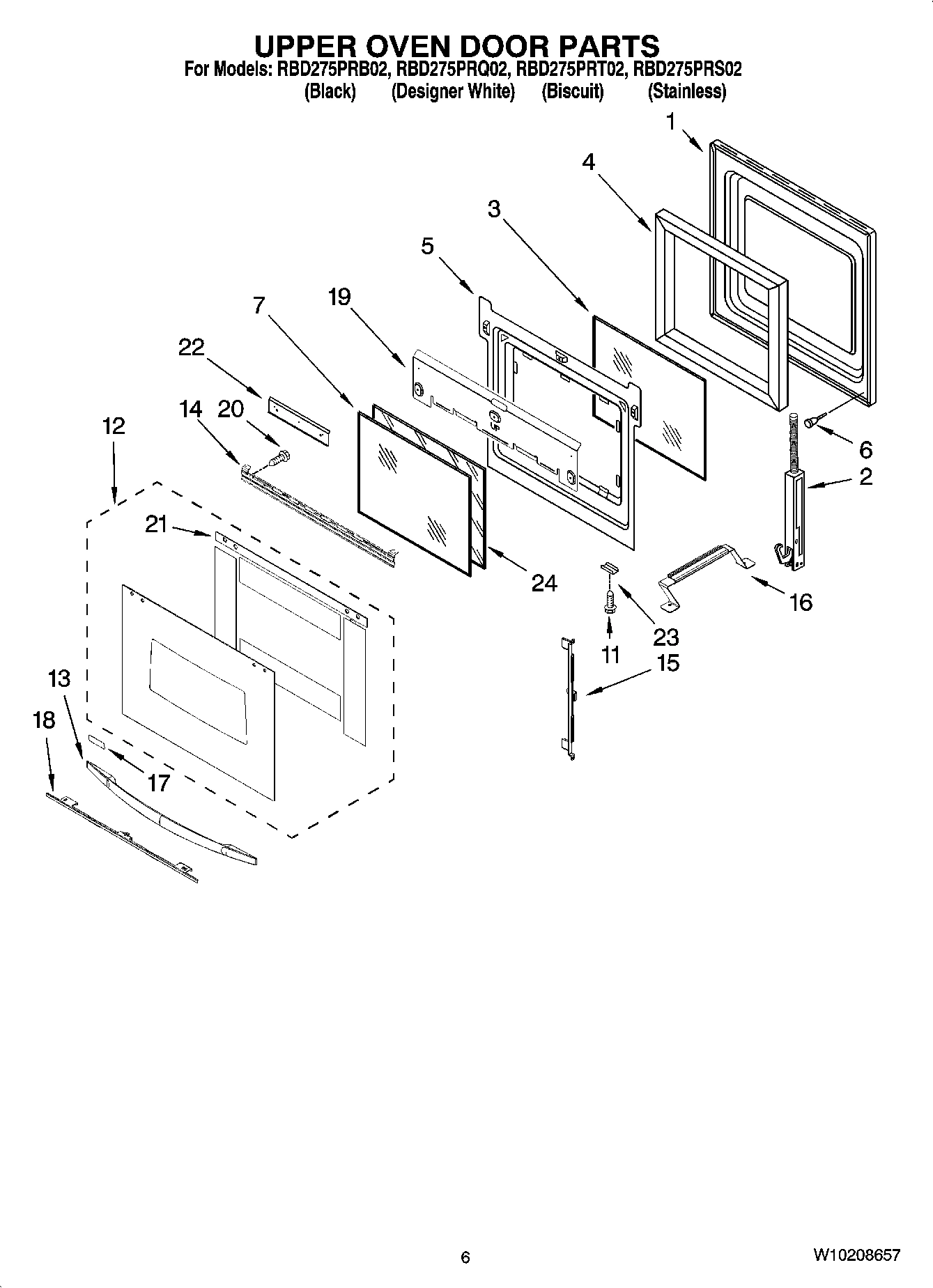

04 - UPPER OVEN DOOR PARTS

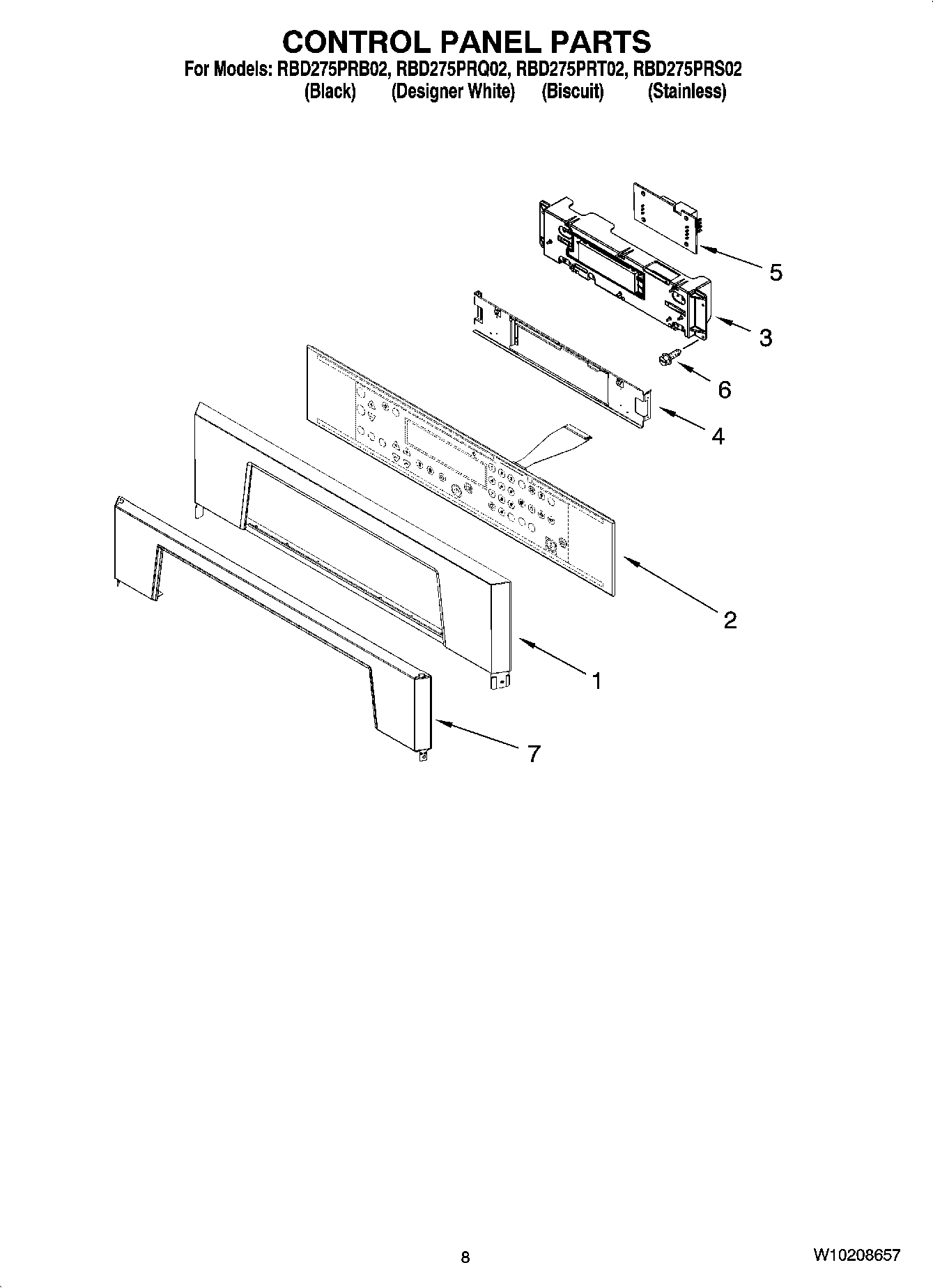

06 - CONTROL PANEL PARTS

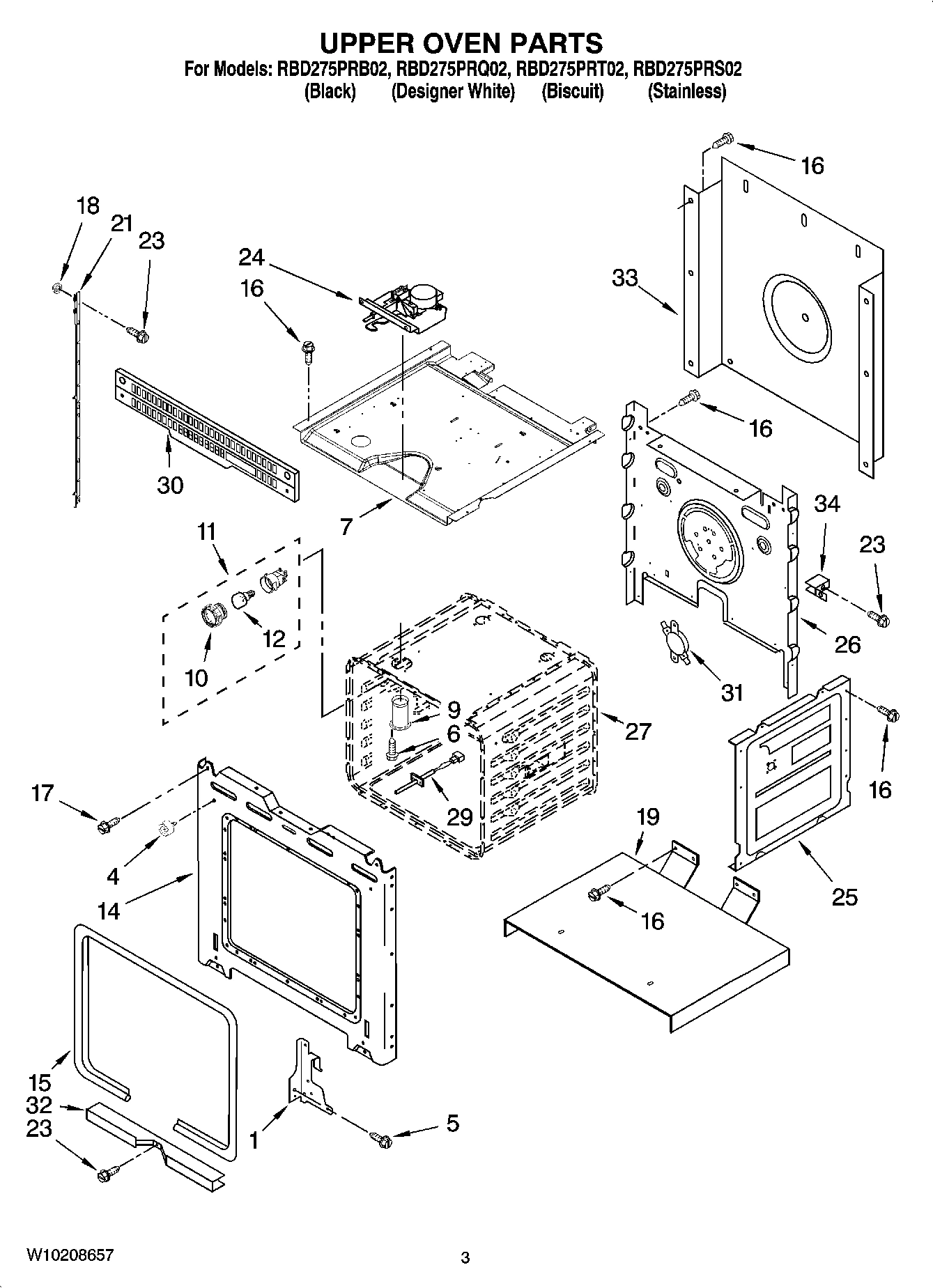

02 - UPPER OVEN PARTS

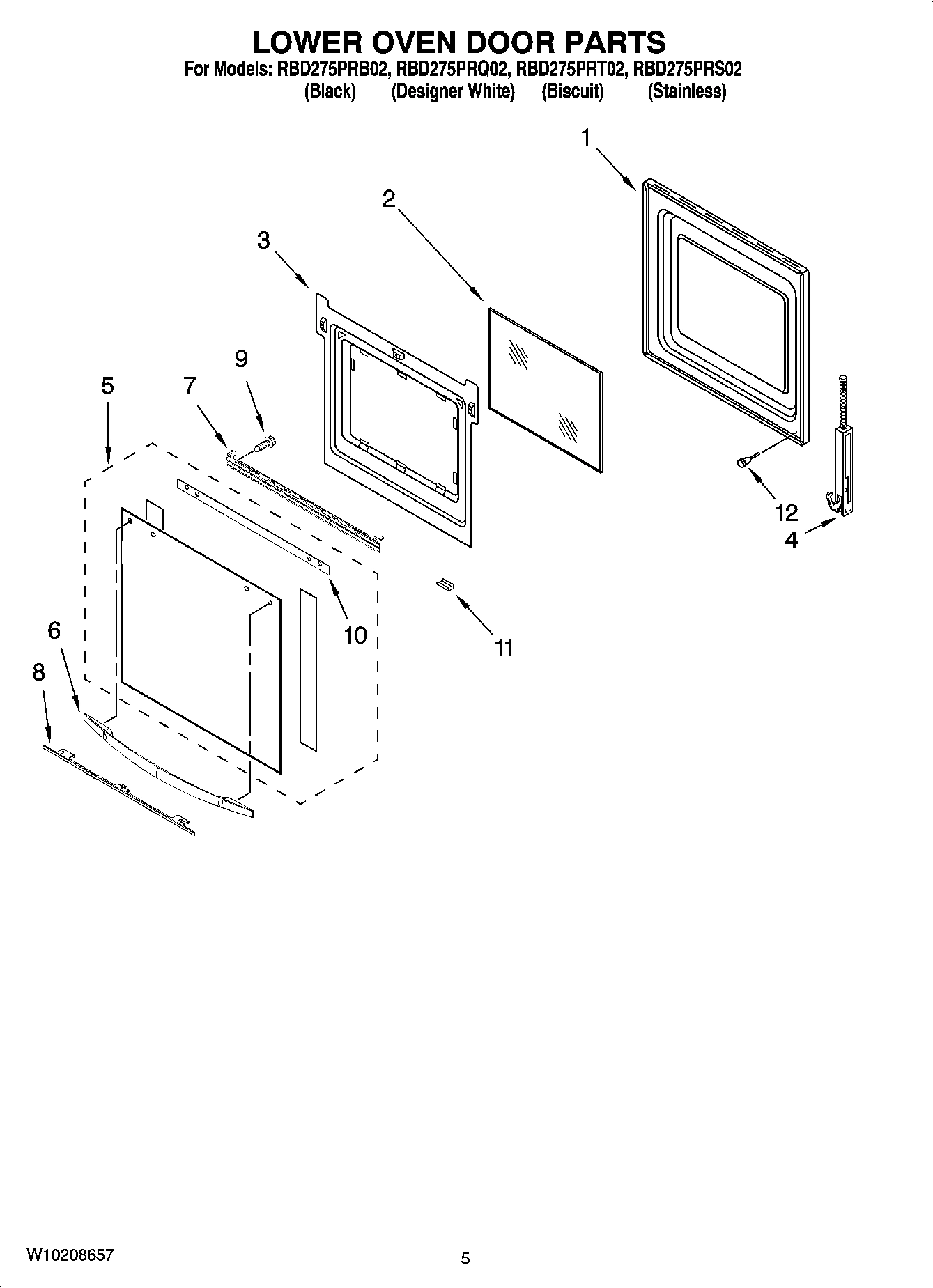

03 - LOWER OVEN DOOR PARTS

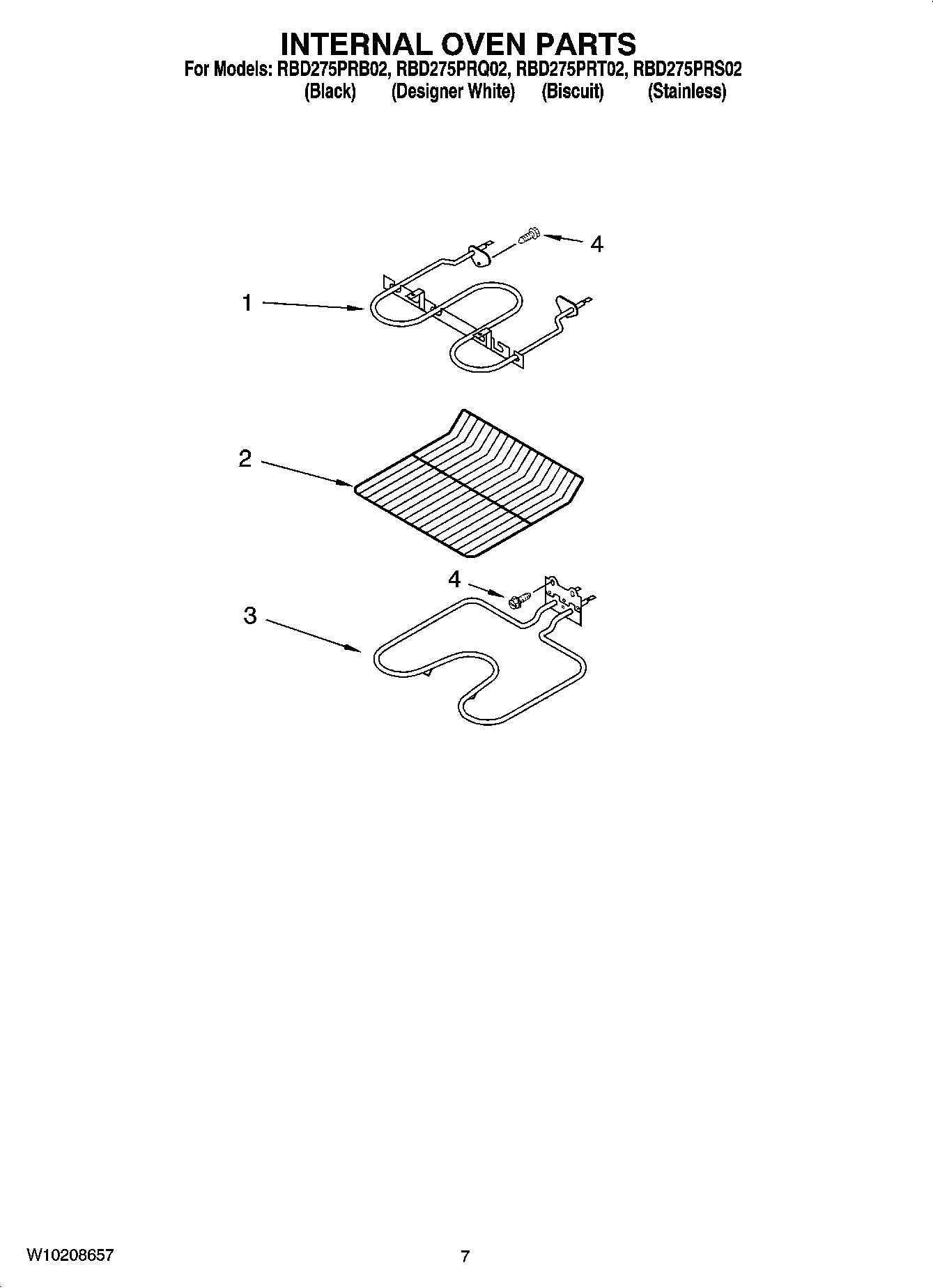

05 - INTERNAL OVEN PARTS

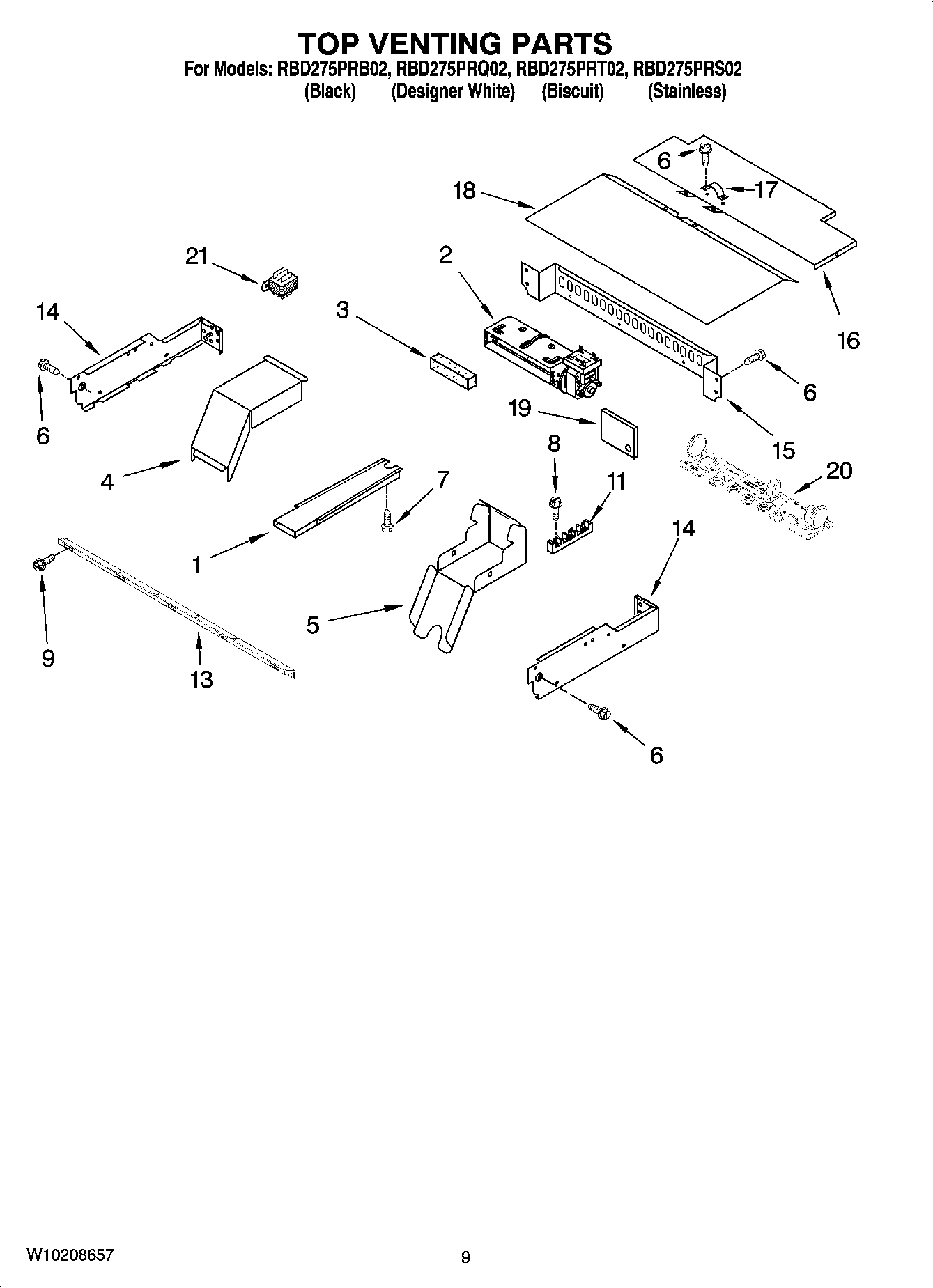

07 - TOP VENTING PARTS, OPTIONAL PARTS
Common parts from model Whirlpool RBD275PRQ02 27`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER
Conduit, Double WPL 4450953 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
ADHESIVE WPL ARI120083A Contact Us For Availability
SPLICING WIRES--25FT. LENGTH WPL ARI120084A Contact Us For Availability
WIRING HARNESS PARTS WPL ARI120085A Contact Us For Availability
Miscellaneous WPL ARI120086A Contact Us For Availability
1
Liner, Door WPL 8303699 Contact Us For Availability
1
Assembly, Control Panel (White) WPL 8302845 Contact Us For Availability
2
Rack, Oven WPL 4448715 Contact Us For Availability
2
Membrane Switch (Black) WPL 8304275 Contact Us For Availability
2
Membrane Switch (White) WPL 8304276 Contact Us For Availability
3
Retainer, Glass WPL 4457131 Contact Us For Availability
4
Hinge, Door (SS Model Only) (Right Side) WPL 9760566 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Hinge, Door (SS Model Only) (Left Side) WPL 9760565 Contact Us For Availability
4
Hinge, Door (Left Side) WPL 9760564 Contact Us For Availability
5
Board, Latch WPL 8301848 Contact Us For Availability
5
Assembly, Door Glass (Stainless) WPL 8303313 Contact Us For Availability
5
Assembly, Door Glass (Black) WPL 8303320 Contact Us For Availability
5
Door Glass, Assy (White) WPL 8303338 Contact Us For Availability
5
Assembly, Door Glass (Biscuit) WPL 8303341 Contact Us For Availability
6
Door Handle (Black) WPL 8302810 Contact Us For Availability
6
Door Handle (White) WPL 8302811 Contact Us For Availability
6
Door Handle (Biscuit) WPL 8302812 Contact Us For Availability
7
Glass, Inner WPL 9759224 Contact Us For Availability
7
Bracket, Handle WPL W10136472 Contact Us For Availability
8
Screw WPL 3400080 Contact Us For Availability
8
Retainer, Door (Black) WPL 8303388BL Contact Us For Availability
8
Retainer, Door (Biscuit) WPL 8303388BT Contact Us For Availability
8
Retainer, Door (White) WPL 8303388WH Contact Us For Availability
9
Screw WPL 4451040 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
10
Seal-Door WPL 8303877 Contact Us For Availability
11
Retainer, Clip WPL 4450863 Contact Us For Availability
13
VENT, CONTROL PANEL WPL 8303498 Contact Us For Availability
15
Back, Control WPL 9759135 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
17
Nameplate WPL 8303811 Contact Us For Availability
17
Screw WPL 4449040 Contact Us For Availability
18
Cover, Top Front WPL 4452366 Contact Us For Availability
19
Plate, Fan WPL 4454943 Contact Us For Availability
20
SUPPRESSOR WPL 8302143 Contact Us For Availability
21
Transformer, Single Control WPL 9760587 Contact Us For Availability
22
Assembly, Fan & Bracket WPL 4451664 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI120080A Contact Us For Availability
30
Vent, Center WPL 4452266 Contact Us For Availability
32
Base, Chassis WPL 4455529 Contact Us For Availability
34
Support, Bracket WPL 4449845 Contact Us For Availability
× ![]()
