Model Whirlpool RBD275PRB00 24`` BUILT-IN ELECTRIC DOUBLE OVEN STD-CLEAN LOWER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8302154 Whirlpool Oven Wire Harness Backorder WPL 8302154 $153.36

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

WP8302844 Whirlpool Control Panel Backorder WPL WP8302844 $156.73

1

Liner, Door WPL 8303699 Contact Us For Availability

1

Control Panel Assy. (White) WPL 8302845 Contact Us For Availability

1

Control Panel Assy. (Biscuit) WPL 8302846 Contact Us For Availability

2

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $41.19

2

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $40.96

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $52.49

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $44.10

2

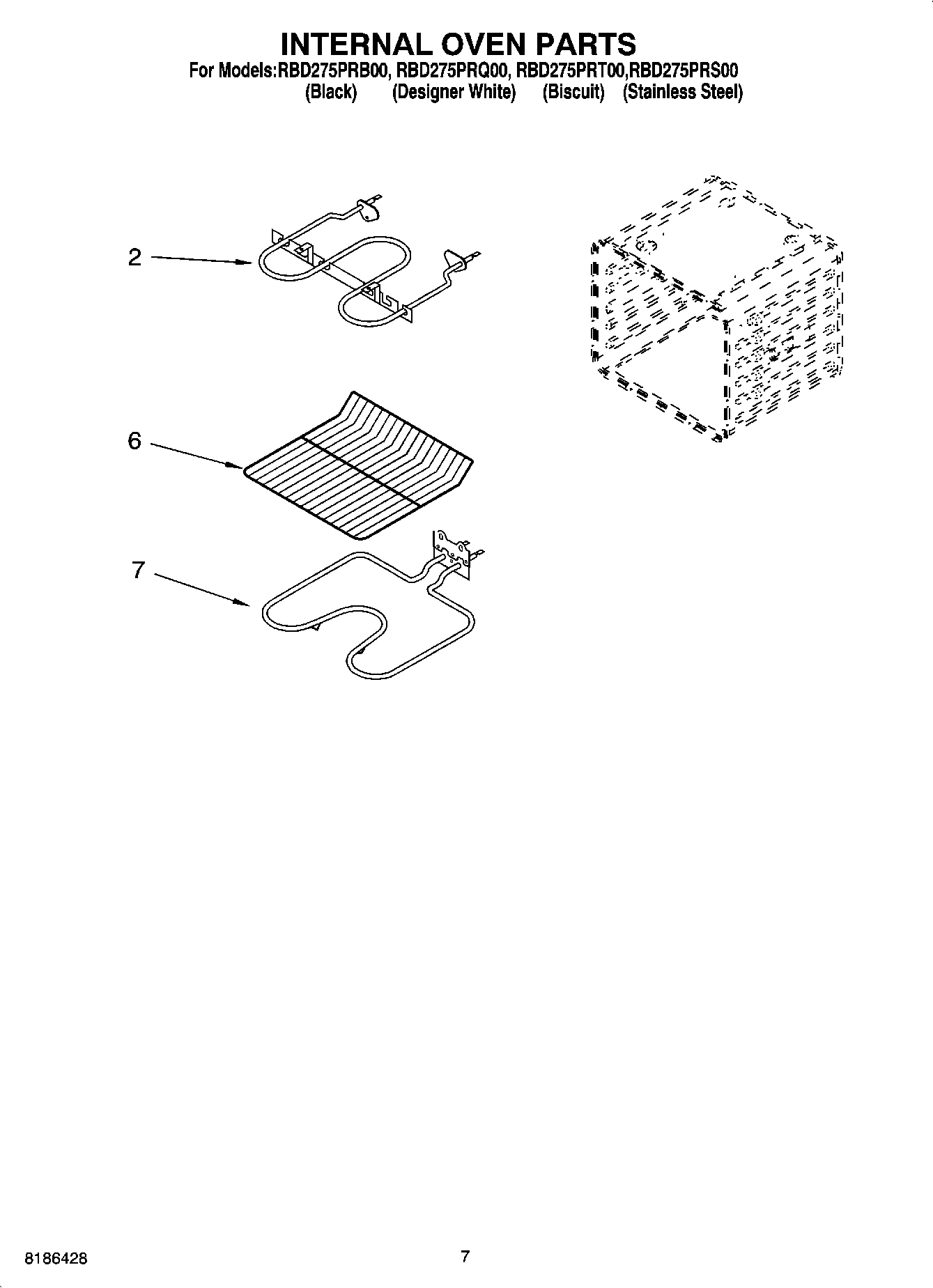

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $80.78

2

Trim, Side (LH Stainless) WPL 8303209 Contact Us For Availability

2

Trim, Side (RH Stainless) WPL 8303210 Contact Us For Availability

2

Membrane Switch (Black) WPL 8304248 Contact Us For Availability

2

Membrane Switch (White) WPL 8304249 Contact Us For Availability

2

Membrane Switch (Biscuit) WPL 8304250 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

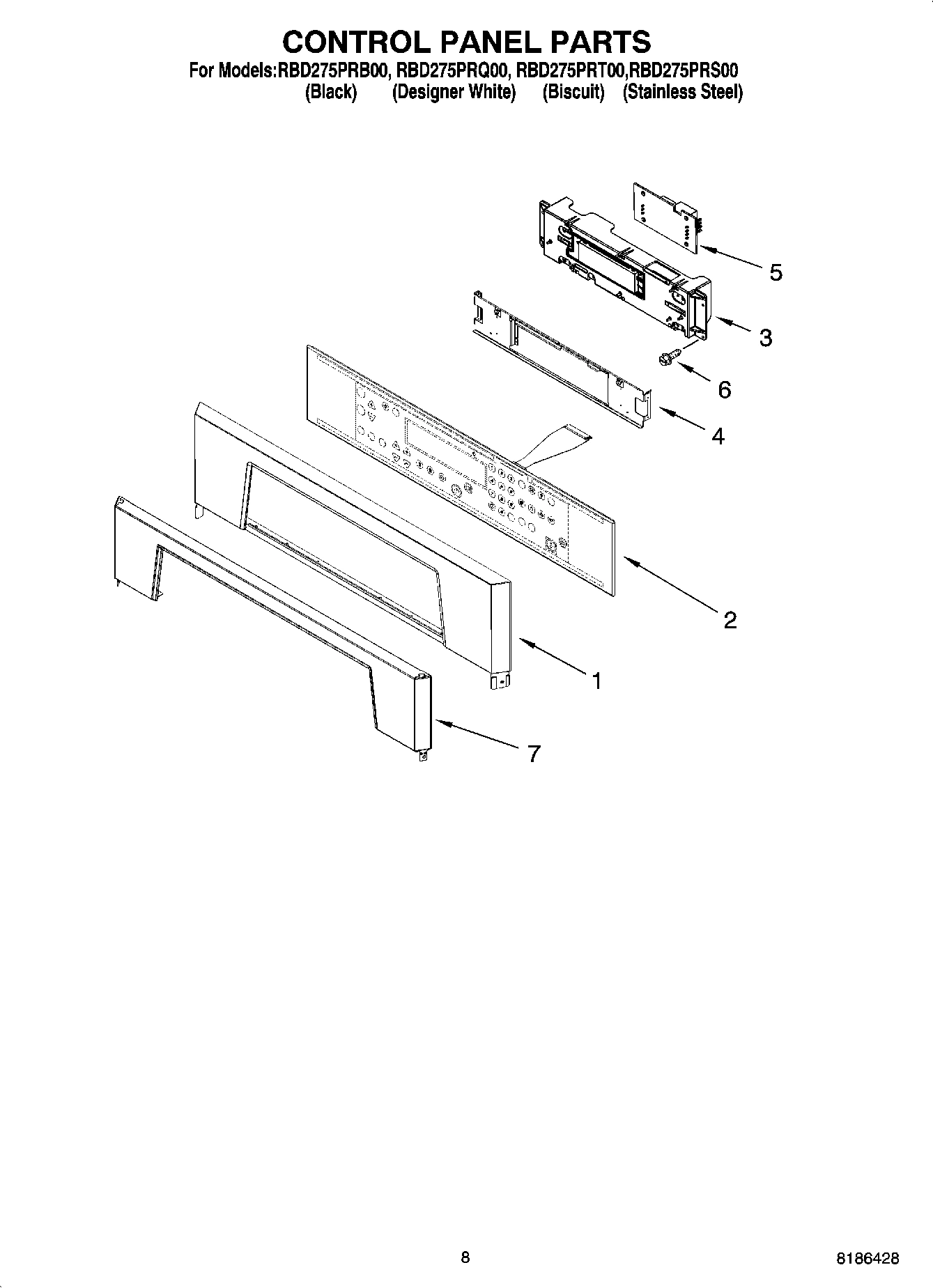

Microcomputer WPL 8303883 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Bracket, Control WPL 8304162 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

5

Board, Mtrzd Latch WPL 8301848 Contact Us For Availability

5

Retainer, Glass WPL 4457131 Contact Us For Availability

6

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

6

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

6

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

6

WP9760563 Whirlpool Door Hinge Backorder WPL WP9760563 $39.67

6

Rack, Oven (4) WPL 4448715 Contact Us For Availability

6

Hinge, Door (Right side) WPL 9760566 Contact Us For Availability

6

Hinge, Door (Left side) WPL 9760565 Contact Us For Availability

6

Hinge, Door (Left Side (SS Model Only)) WPL 9760564 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $52.29

7

Glass, Inner WPL 9759224 Contact Us For Availability

7

Screw WPL 4449040 Contact Us For Availability

7

Top, Chassis WPL 4455864 Contact Us For Availability

7

Trim-Panel (Use on S.Steel model only) WPL 8302878 Contact Us For Availability

8

Screw WPL 3400080 Contact Us For Availability

8

Spacer, Foam WPL 4452490 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $37.09

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $28.53

Assembly, Door Glass (Stainless) WPL 8303313 Contact Us For Availability

Assembly, Door Glass (Black) WPL 8303320 Contact Us For Availability

Door Glass, Assy (White) WPL 8303338 Contact Us For Availability

Assembly, Door Glass (Biscuit) WPL 8303341 Contact Us For Availability

Insulation, Bottom Vent WPL 4452336 Contact Us For Availability

Door Handle (Black) WPL 8302810 Contact Us For Availability

Door Handle (White) WPL 8302811 Contact Us For Availability

Door Handle (Biscuit) WPL 8302812 Contact Us For Availability

14

Frame, Front WPL 4455611 Contact Us For Availability

14

Bracket, Handle WPL 8303166 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $71.22

15

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

15

Gasket, Door WPL 4450492 Contact Us For Availability

16

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

16

BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability

17

Nameplate WPL 8303811 Contact Us For Availability

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

Retainer, Door (Black) WPL 8303388BL Contact Us For Availability

Retainer, Door (Biscuit) WPL 8303388BT Contact Us For Availability

Retainer, Door (White) WPL 8303388WH Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

19

Shield, Heat WPL 4457102 Contact Us For Availability

20

4450935 Whirlpool Oven Door Plug Backorder WPL 4450935 $9.39

20

SUPPRESSOR WPL 8302143 Contact Us For Availability

20

Screw WPL 4451040 Contact Us For Availability

21

Seal-Door WPL 8303877 Contact Us For Availability

22

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

22

Shield, Heat (Bottom) WPL 4457113 Contact Us For Availability

23

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

23

Retainer, Clip WPL 4450863 Contact Us For Availability

23

Retainer, Clip WPL 4451432 Contact Us For Availability

24

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP9759227 Whirlpool Glass Door Backorder WPL WP9759227 $80.96

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI120051A Contact Us For Availability

28

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

33

Deflector, Vent WPL 9760676 Contact Us For Availability

37

WP4451354 Whirlpool Thermal Fuse Assembly In Stock WPL WP4451354 $17.04

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

Trim, Bottom (Black) WPL 8302937 Contact Us For Availability

Trim, Bottom (White) WPL 8302938 Contact Us For Availability

Trim, Bottom (Biscuit) WPL 8302939 Contact Us For Availability

Trim, Bottom (Stainless) WPL 8302940 Contact Us For Availability

Insulation, Wrap WPL 4449315 Contact Us For Availability

Support, Bracket WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI120052A Contact Us For Availability
