Model Whirlpool RBD275PDQ2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

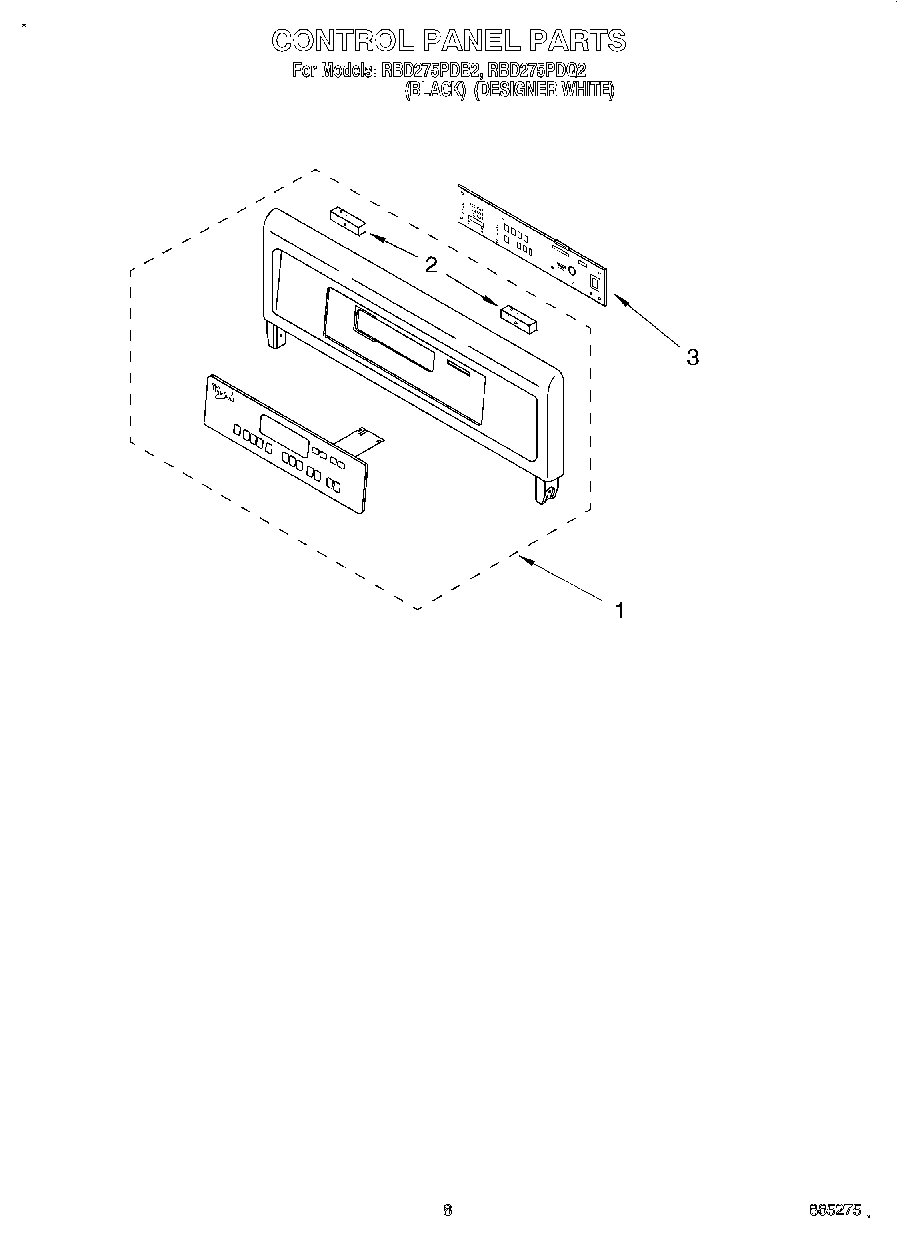

06 - CONTROL PANEL, LITERATURE

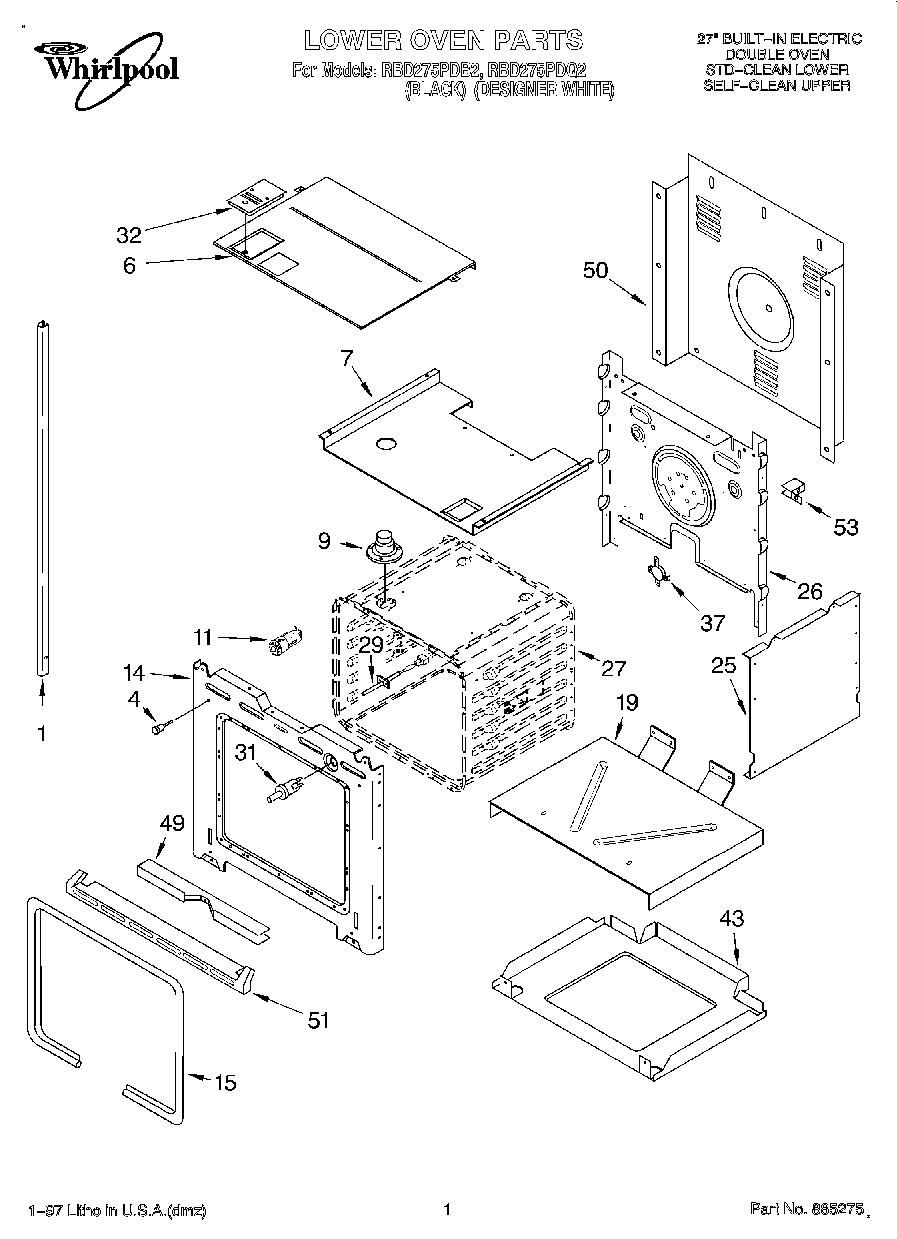

01 - LOWER OVEN

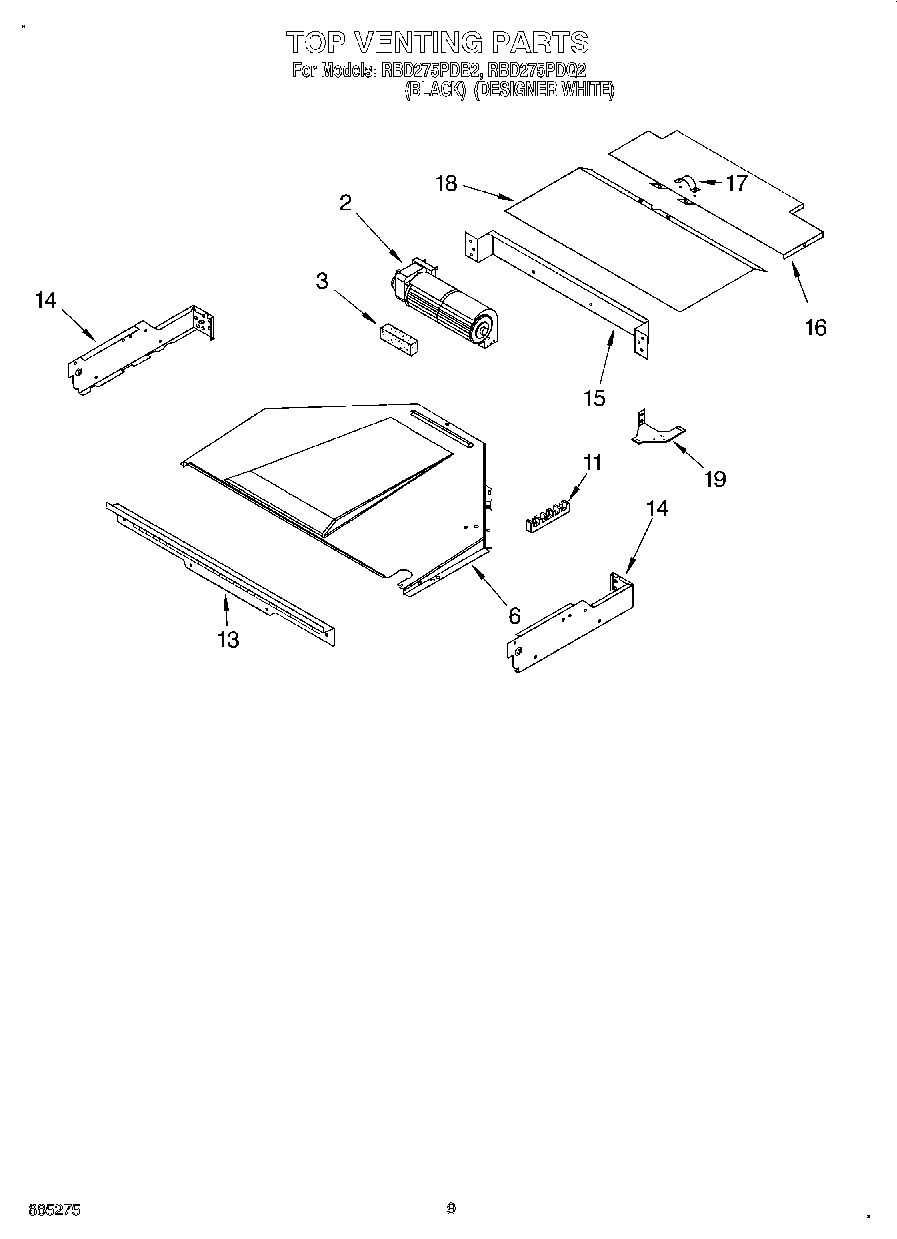

07 - TOP VENTING, OPTIONAL

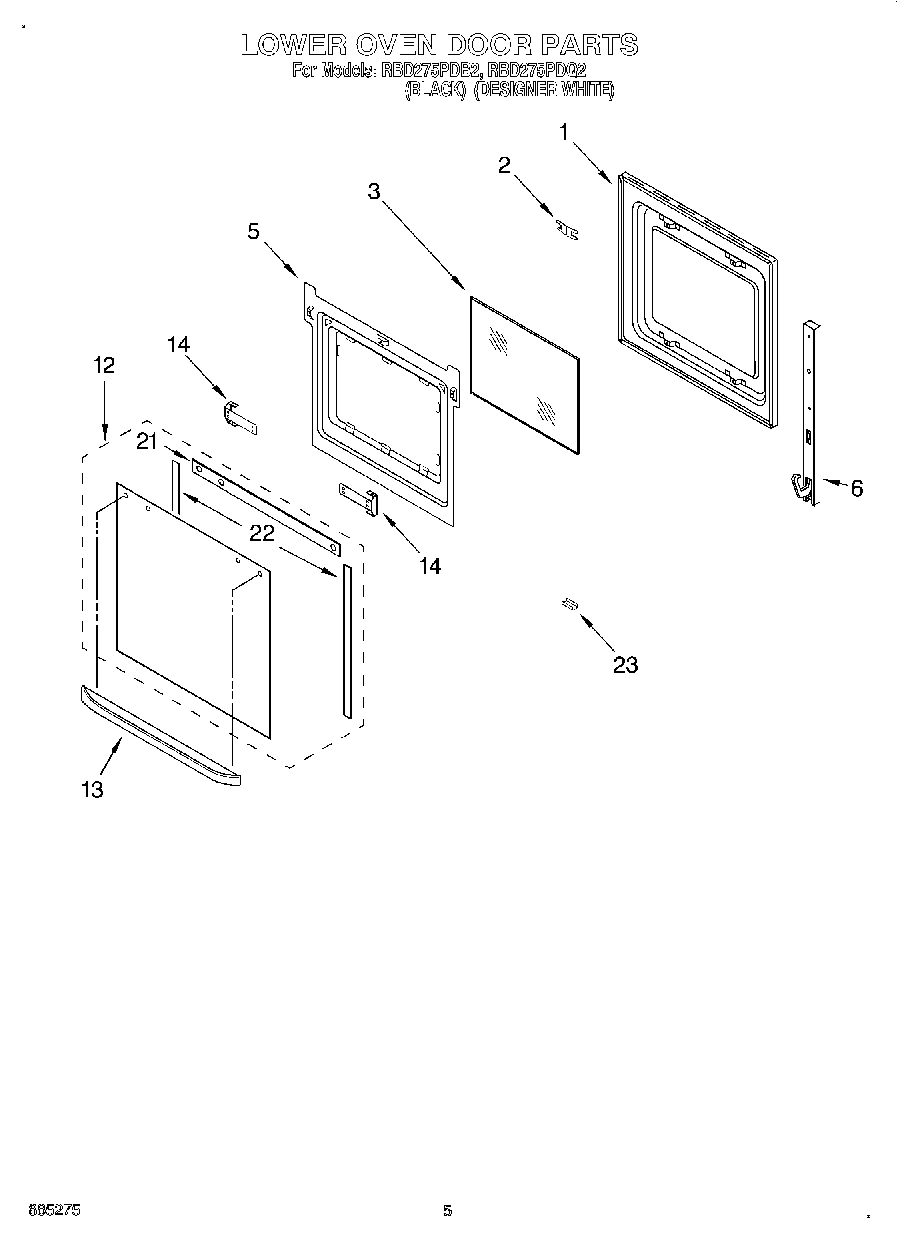

03 - LOWER OVEN DOOR

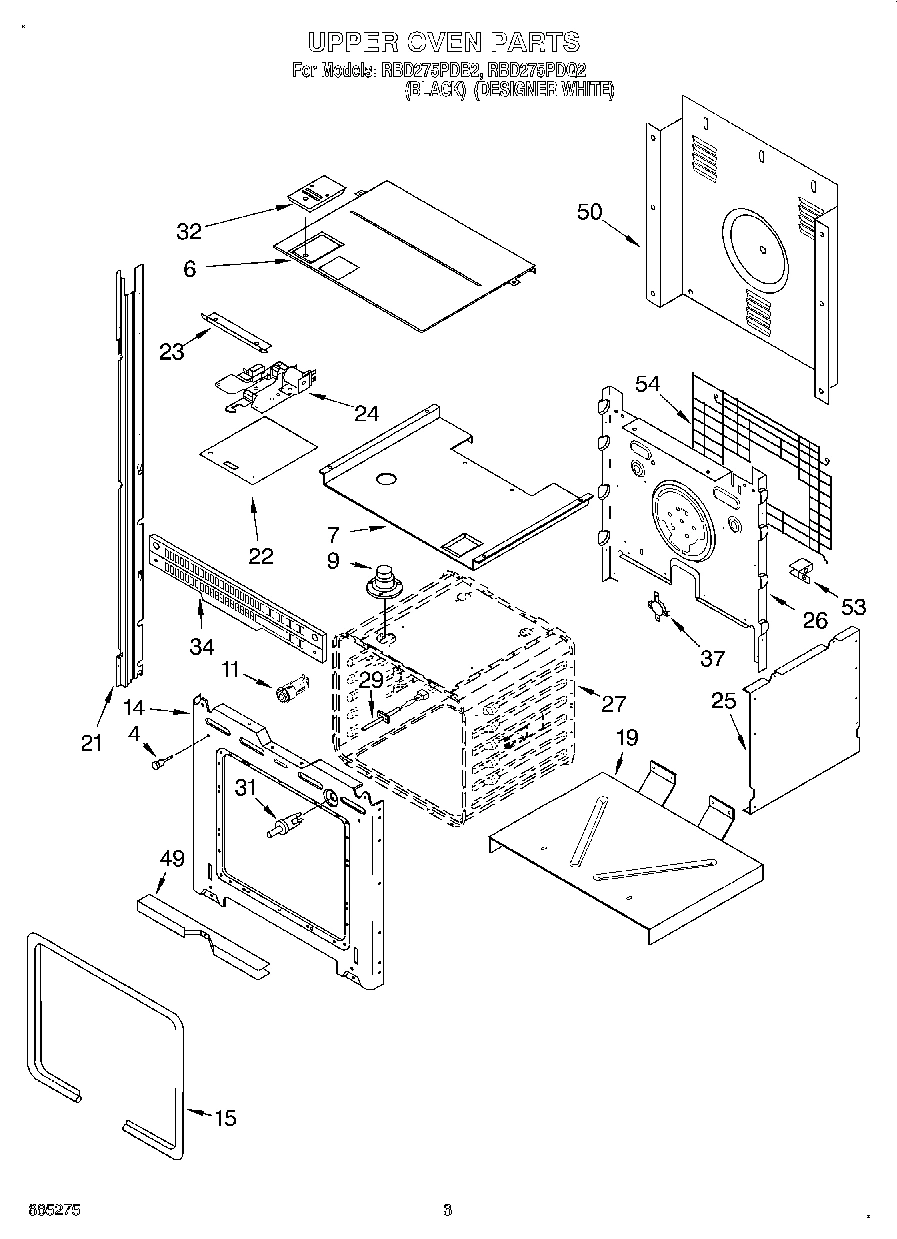

02 - UPPER OVEN

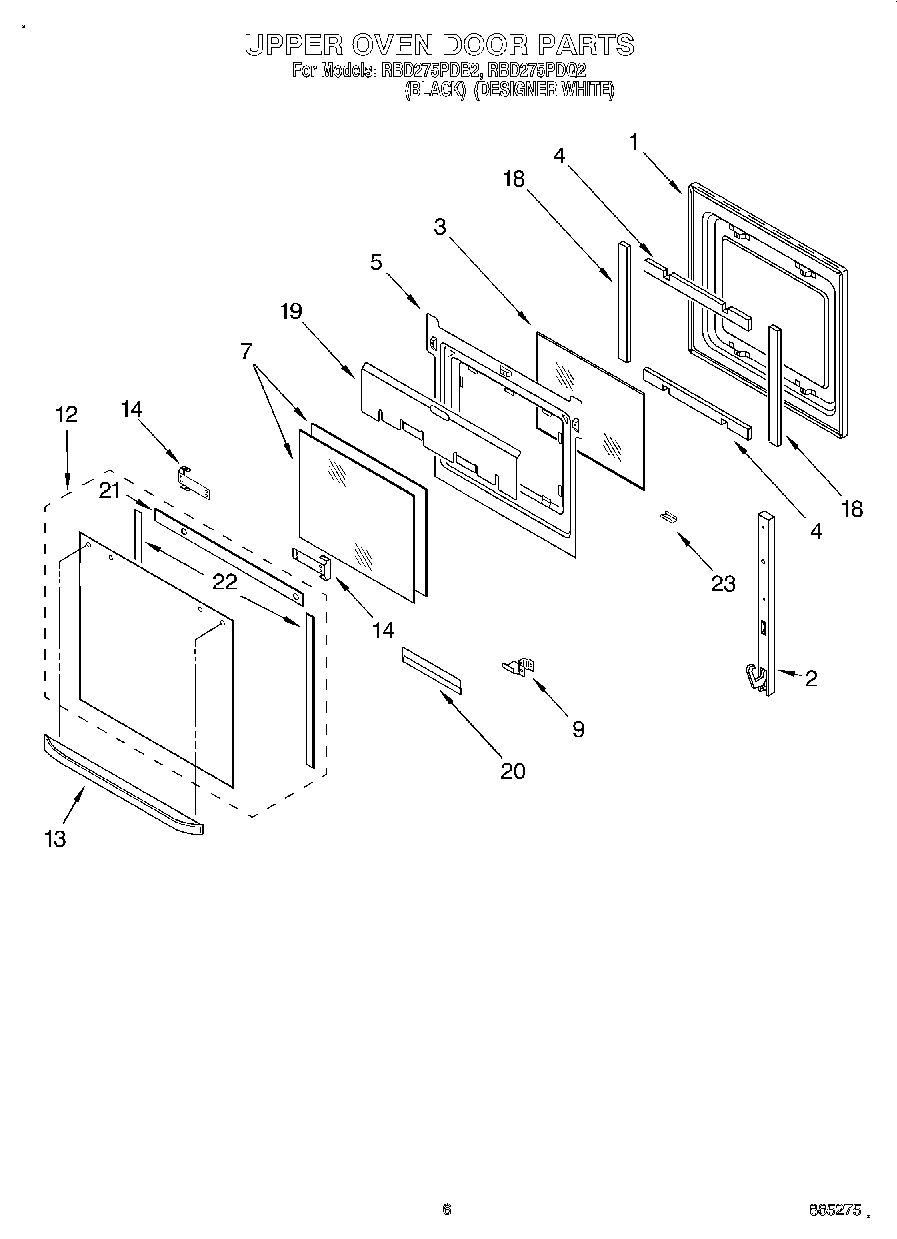

04 - UPPER OVEN DOOR

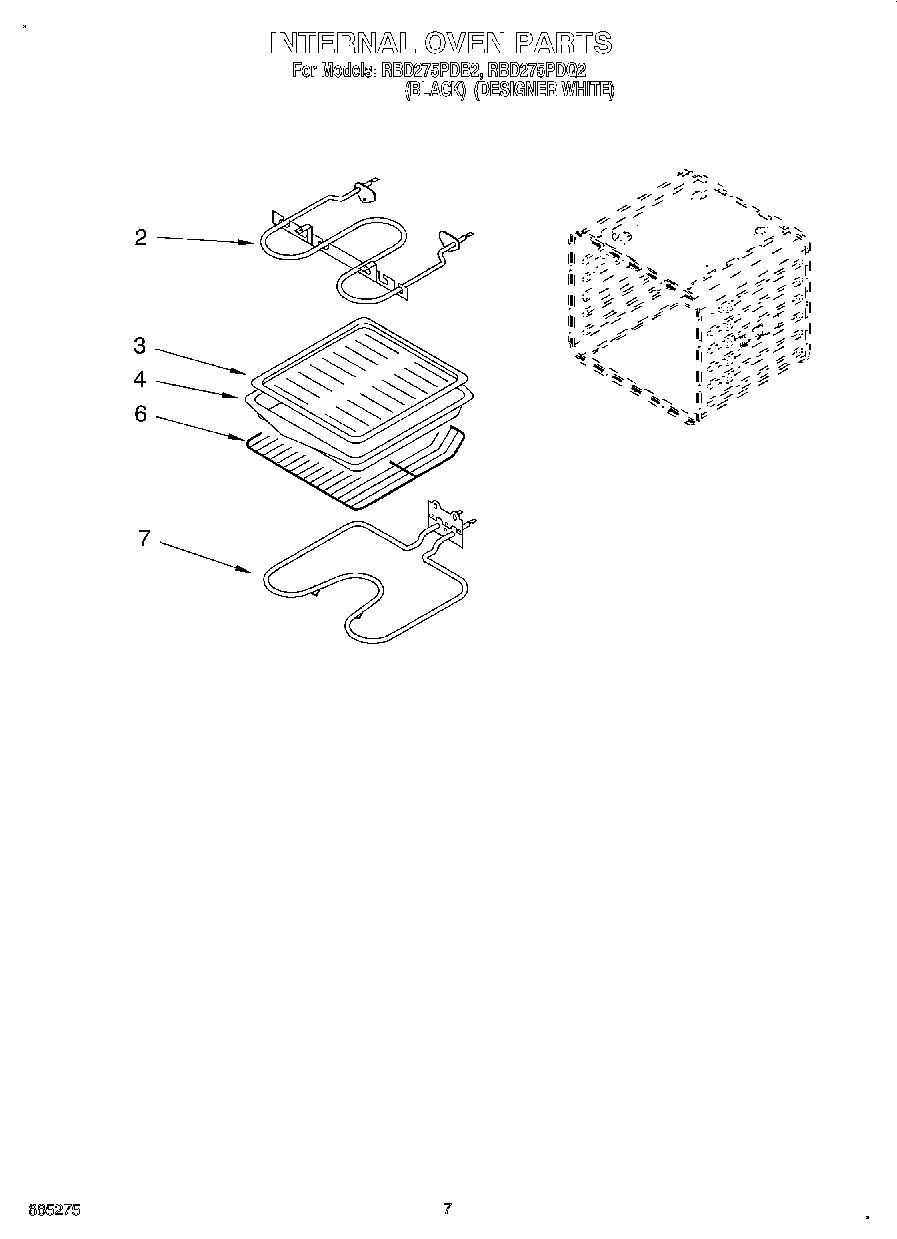

05 - INTERNAL OVEN
Common parts from model Whirlpool RBD275PDQ2 BUILT-IN ELECTRIC DOUBLE OVEN
1
Door Liner WPL 4450428 Contact Us For Availability
3
Foam, Block WPL 3182384 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
6
Hinge, Door WPL 4451171 Contact Us For Availability
6
Divider, Vent WPL 4451038 Contact Us For Availability
7
Partition WPL 4451165 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
12
Door Glass, Outer (Black Model) WPL 4450689 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450690 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448405 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Harness, Wire STD (Door Switch) WPL 4450298 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire S/C (Door Switch) WPL 4450951 Contact Us For Availability
19
Harness, Wire (Main) WPL 4454702 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
19
Support, Insulation WPL 4450541 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
22
Screw WPL 4450289 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
24
Latch Assy WPL 4454710 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Chassis WPL 4454728 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119980A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
34
Vent, Center WPL 4449049 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
