Model Whirlpool RBD275PDB6 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams
02 - UPPER OVEN

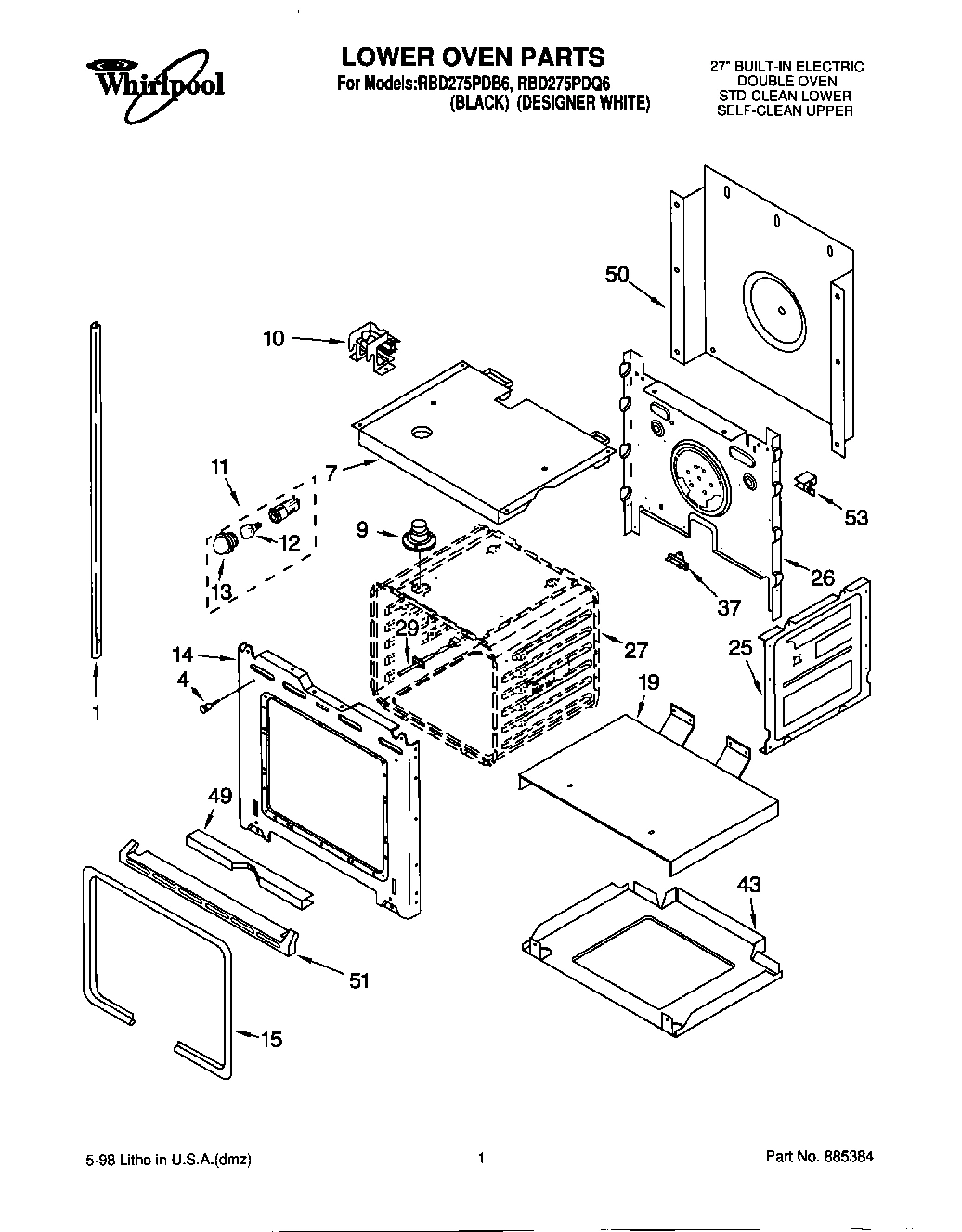

01 - LOWER OVEN
05 - INTERNAL OVEN
04 - UPPER OVEN DOOR
06 - CONTROL PANEL, LITERATURE
03 - LOWER OVEN DOOR
07 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool RBD275PDB6 BUILT-IN ELECTRIC DOUBLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452022 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (Black WPL 4451304 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (White WPL 4451305 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Screw WPL 4449899 Contact Us For Availability
3
Microcomputer WPL 4452242 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Hinge, Door WPL 4451171 Contact Us For Availability
10
Fan & Bracket Assy WPL 4451664 Contact Us For Availability
12
Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448405 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Conduit, Double WPL 4450953 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
18
Spacer, Harness WPL 4452222 Contact Us For Availability
18
Harness, Wire (Main) WPL 4454920 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
21
Seal, Door Top WPL 4451673 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119939A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
