  • Whirlpool RBD275PDB1

Model Whirlpool RBD275PDB1 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

Installation Instructions
Installation Instructions WPL LIT4450410 Contact Us For Availability
View on Model
Use & Care Guide (Oven)
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
View on Model
Tech Sheet (Oven)
Tech Sheet (Oven) WPL LIT4450941 Contact Us For Availability
View on Model

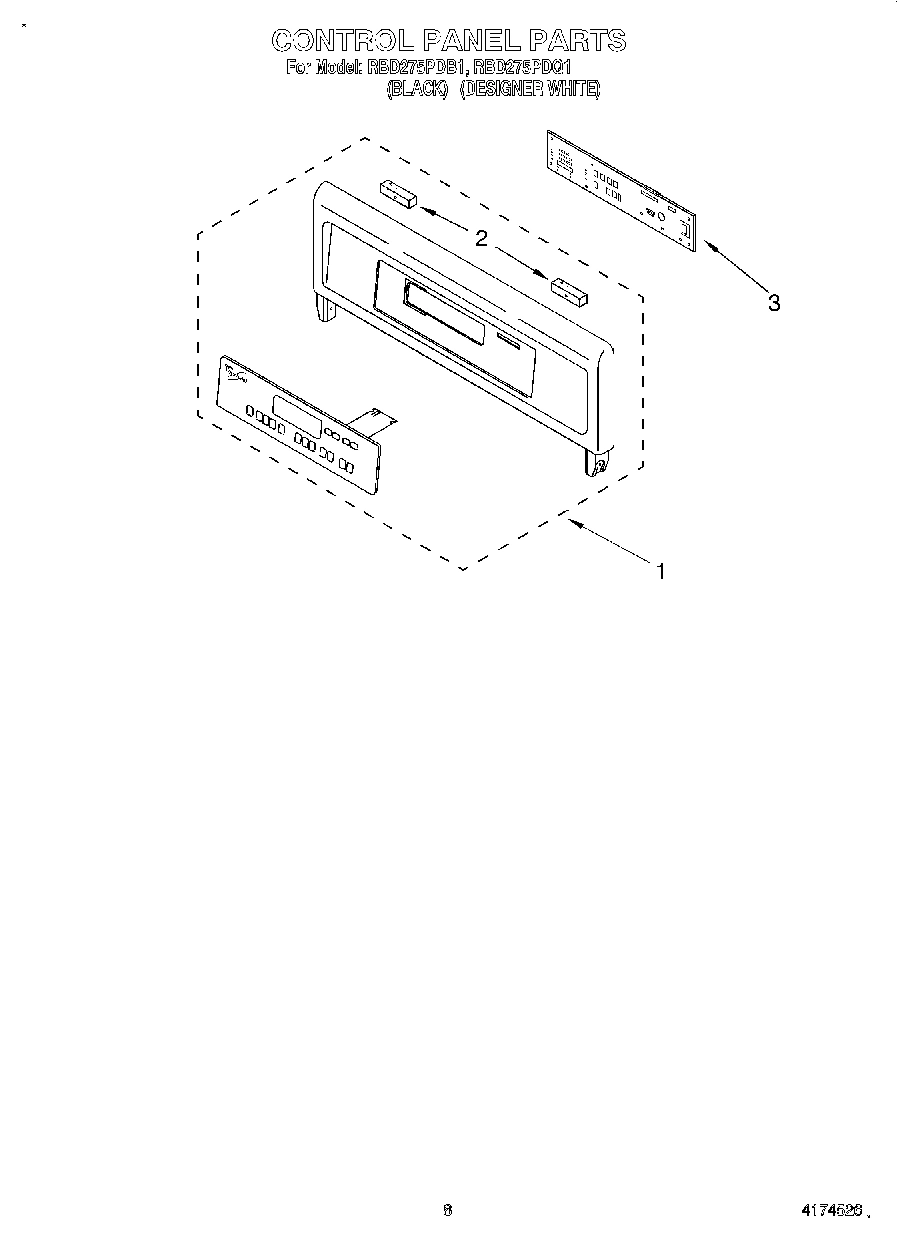

1
Control Panel Assy. W/Membrane, Switch (Black
Control Panel Assy. W/Membrane, Switch (Black WPL 4451304 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane, Switch (White
Control Panel Assy. W/Membrane, Switch (White WPL 4451305 Contact Us For Availability
View on Model
1
Door Liner
Door Liner WPL 4450428 Contact Us For Availability
View on Model
1
Trim, Side (Screw White)
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
View on Model
1
Trim, Side (RH Black)
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
View on Model
1
Trim, Side (Right Hand) (White Model)
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
View on Model
1
Trim, Side (LH Black)
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
View on Model
1
Trim, Side (Left Hand)) (White Model)
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
View on Model

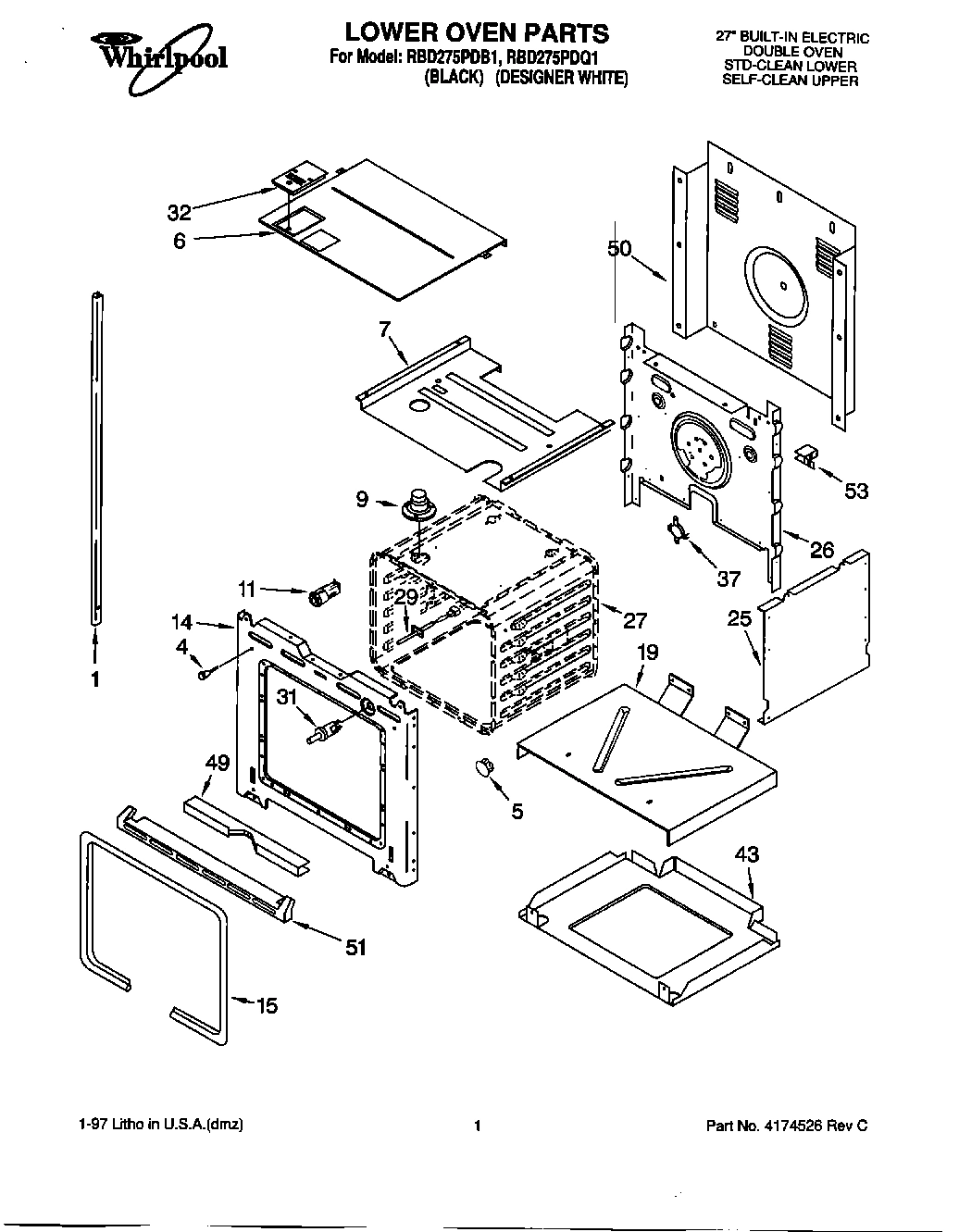

2
Gasket, Control Panel
Gasket, Control Panel WPL 4451033 Contact Us For Availability
View on Model
2
Blower
Blower WPL 4450920 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4448876 Contact Us For Availability
View on Model
3
Foam, Block
Foam, Block WPL 3182384 Contact Us For Availability
View on Model
5
Retainer, Glass
Retainer, Glass WPL 4450422 Contact Us For Availability
View on Model
5
Plug, Button
Plug, Button WPL 4448982 Contact Us For Availability
View on Model
6
Rack, Oven
Rack, Oven WPL 4448715 Contact Us For Availability
View on Model
6
Hinge, Door
Hinge, Door WPL 4451171 Contact Us For Availability
View on Model
6
Exhaust Duct
Exhaust Duct WPL 4450366 Contact Us For Availability
View on Model
6
Divider, Vent
Divider, Vent WPL 4450536 Contact Us For Availability
View on Model
7
Partition
Partition WPL 4451165 Contact Us For Availability
View on Model
9
Tube, Vent
Tube, Vent WPL 4449009 Contact Us For Availability
View on Model

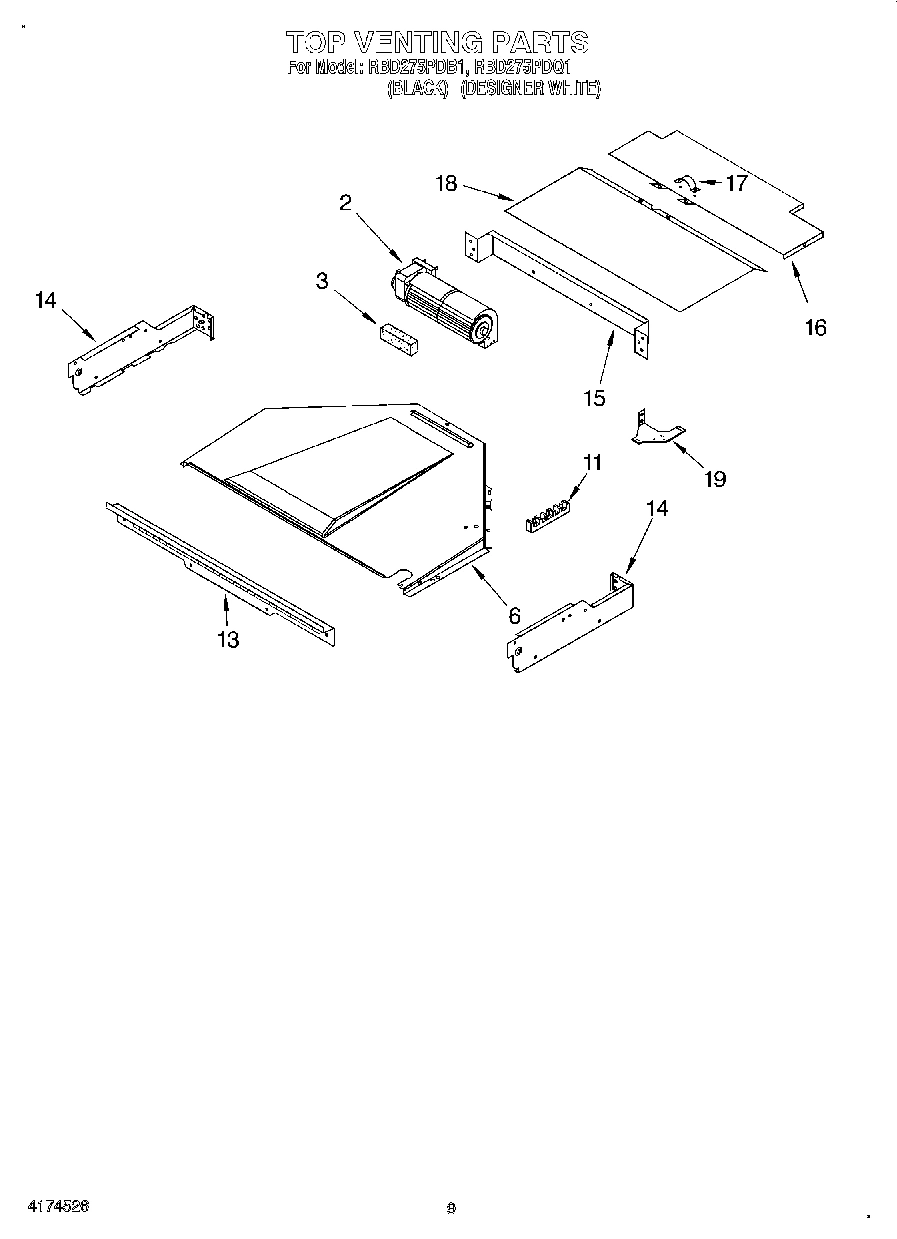

12
Door Glass, Outer (Black Model)
Door Glass, Outer (Black Model) WPL 4450689 Contact Us For Availability
View on Model
12
Door Glass, Outer (White Model)
Door Glass, Outer (White Model) WPL 4450690 Contact Us For Availability
View on Model
13
Safety Switch (Oven Temp)
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
View on Model
13
Door Handle (Black Model)
Door Handle (Black Model) WPL 4448405 Contact Us For Availability
View on Model
13
Handle, Door (White Model)
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
View on Model
13
Vent, (Control Panel)
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
View on Model
14
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
14
Frame, Front
Frame, Front WPL 4450416 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 4450658 Contact Us For Availability
View on Model
15
Gasket, Door
Gasket, Door WPL 4450492 Contact Us For Availability
View on Model
16
Cover, Top Rear
Cover, Top Rear WPL 4450550 Contact Us For Availability
View on Model
18
Cover, Top Front
Cover, Top Front WPL 4450553 Contact Us For Availability
View on Model
19
Conduit, Double
Conduit, Double WPL 4450953 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
19
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
19
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
19
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
19
Harness, Wire STD (Door Switch)
Harness, Wire STD (Door Switch) WPL 4450298 Contact Us For Availability
View on Model
19
Bracket, Blower
Bracket, Blower WPL 4450545 Contact Us For Availability
View on Model
19
Harness, Wire (Latch)
Harness, Wire (Latch) WPL 4450753 Contact Us For Availability
View on Model
19
Harness, Wire (Main)
Harness, Wire (Main) WPL 4450944 Contact Us For Availability
View on Model
19
Harness, Wire S/C (Door Switch)
Harness, Wire S/C (Door Switch) WPL 4450951 Contact Us For Availability
View on Model
19
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
19
WPL 814387
WPL 814387 WPL 814387 Contact Us For Availability
View on Model
19
Support, Insulation
Support, Insulation WPL 4450541 Contact Us For Availability
View on Model
20
Retainer, Glass
Retainer, Glass WPL 4449031 Contact Us For Availability
View on Model
21
Seal, Door Top
Seal, Door Top WPL 4450836 Contact Us For Availability
View on Model
22
Seal, Side
Seal, Side WPL 4450838 Contact Us For Availability
View on Model
23
Retainer, Clip (Black Model)
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
View on Model
23
Retainer, Clip (White Model)
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
View on Model
25
Side, Chassis (R.H. & L.H.)
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL 4451168 Contact Us For Availability
View on Model
27
Liner, Oven (Not a Serviceable Part)
Liner, Oven (Not a Serviceable Part) WPL ARI119901A Contact Us For Availability
View on Model
29
Sensor
Sensor WPL 4450026 Contact Us For Availability
View on Model
31
Switch, Door
Switch, Door WPL 4450819 Contact Us For Availability
View on Model
32
Vent Box Assy
Vent Box Assy WPL 4449369 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 4450526 Contact Us For Availability
View on Model
50
Cover, Back
Cover, Back WPL 4450544 Contact Us For Availability
View on Model
51
Trim, Bottom (Screw)
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
View on Model
51
Trim, Bottom (Black Model)
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
View on Model
51
Trim, Bottom (White Model)
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
View on Model
53
Insulation, Wrap
Insulation, Wrap WPL 4449315 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
53
Insulation, Back
Insulation, Back WPL 4450364 Contact Us For Availability
View on Model
