Model Whirlpool RBD245PDQ3 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams
02 - UPPER OVEN
01 - LOWER OVEN

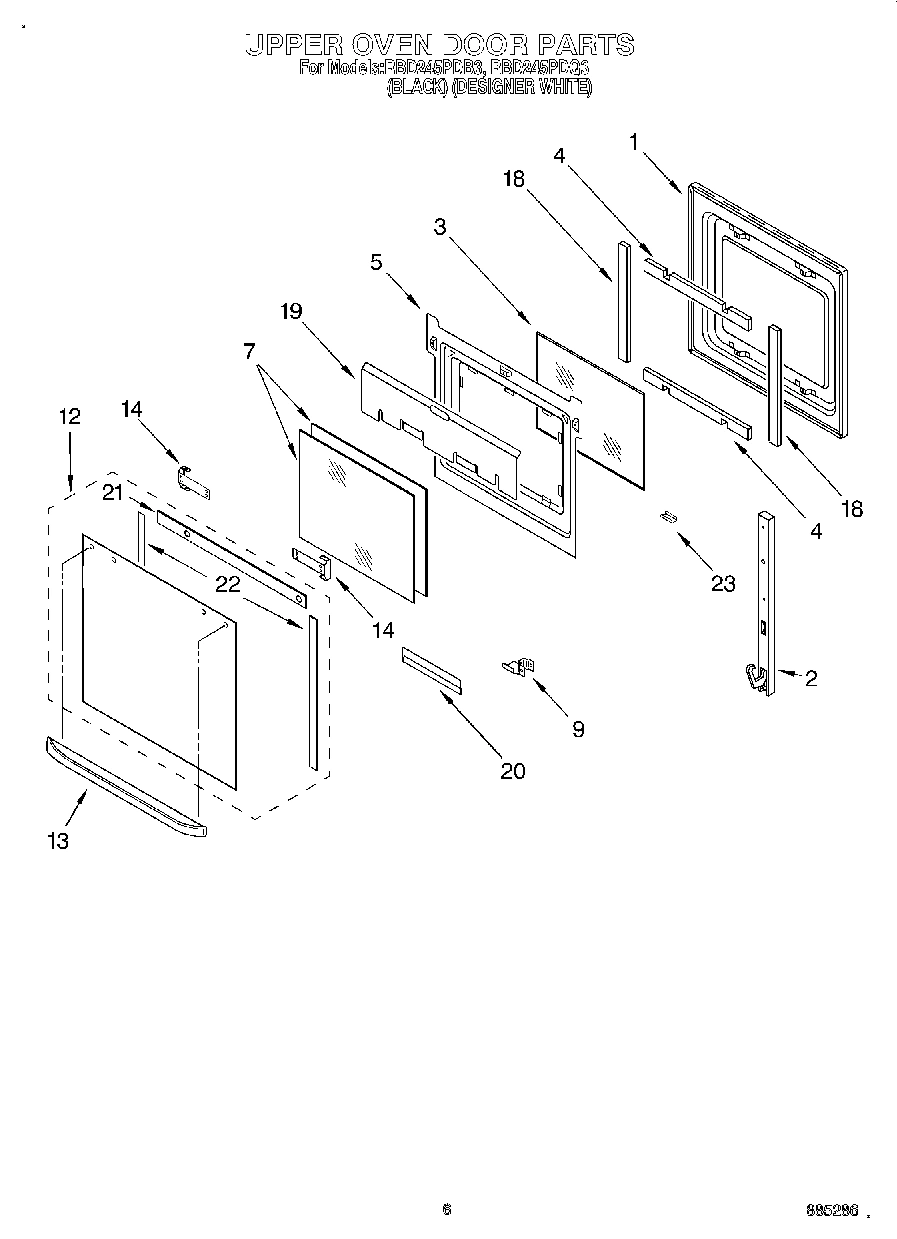

04 - UPPER OVEN DOOR
06 - CONTROL PANEL, LITERATURE

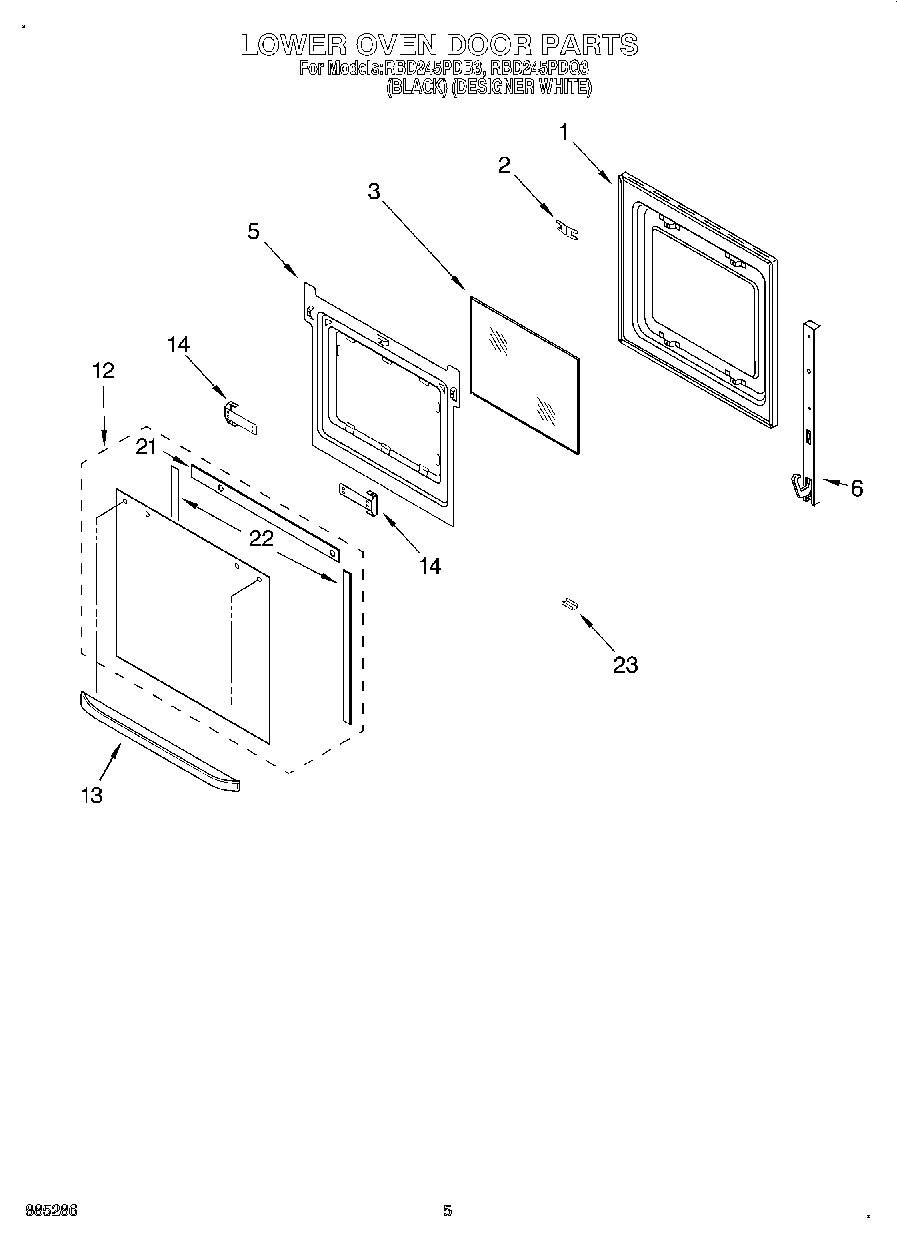

03 - LOWER OVEN DOOR

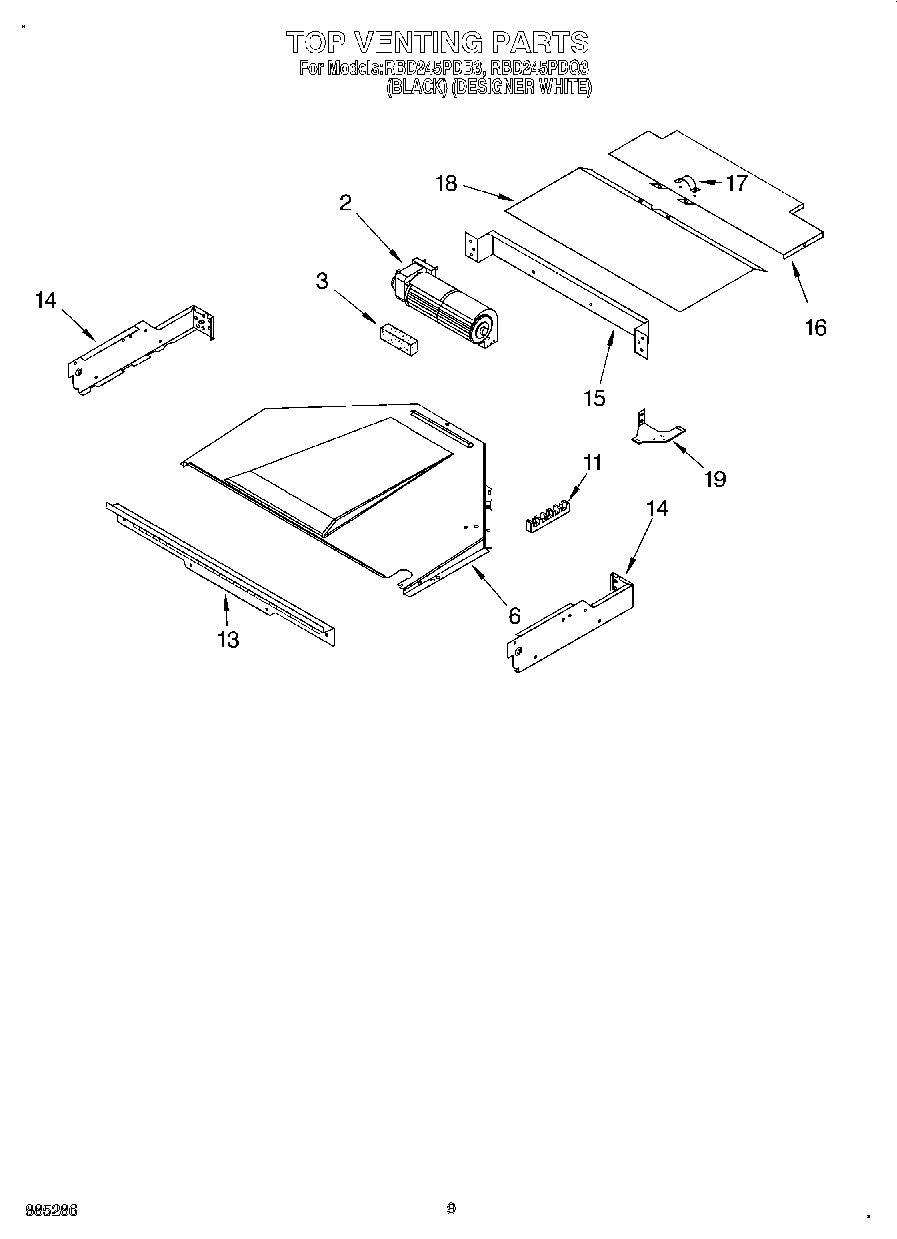

07 - TOP VENTING, OPTIONAL

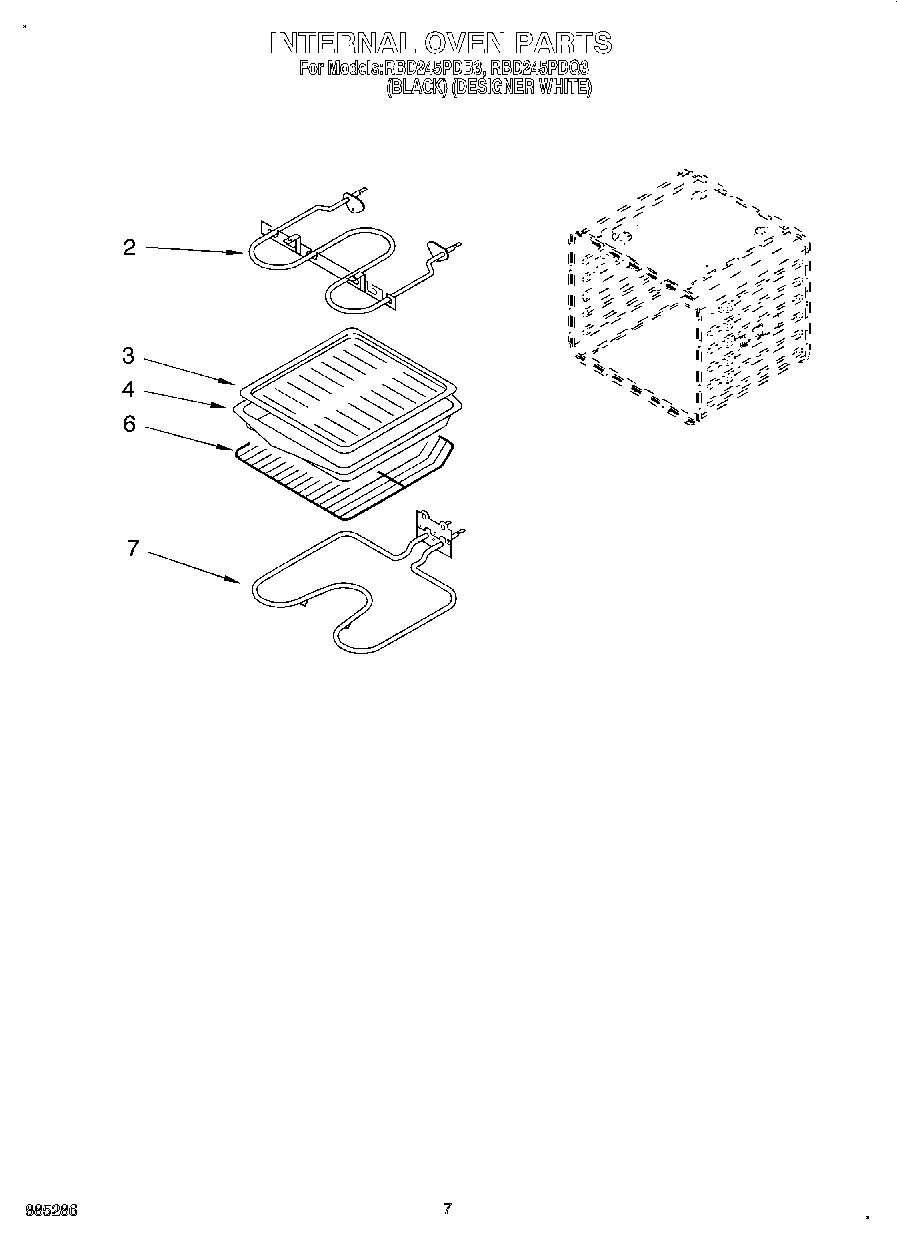

05 - INTERNAL OVEN
Common parts from model Whirlpool RBD245PDQ3 BUILT-IN ELECTRIC DOUBLE OVEN
Installation Instructions WPL LIT4450409 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454767 Contact Us For Availability
1
Liner, Door WPL 4450427 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451301 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451302 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Screw WPL 4449899 Contact Us For Availability
2
Gasket, Control Panel WPL 4451032 Contact Us For Availability
2
Blower WPL 4450920 Contact Us For Availability
3
Microcomputer WPL 4448876 Contact Us For Availability
3
Foam, Block WPL 3182384 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448678 Contact Us For Availability
5
Retainer, Glass WPL 4450421 Contact Us For Availability
6
Hinge, Door WPL 4451171 Contact Us For Availability
6
Exhaust Duct WPL 4450546 Contact Us For Availability
7
Glass, Inner (2) WPL 4449251 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
12
Door Glass, Outer (Black Model) WPL 4450687 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450688 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448402 Contact Us For Availability
13
Door Handle (White Model) WPL 4448403 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
18
Cover, Top Front WPL 4450552 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Shield, Heat WPL 4450360 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Harness, STD (Door Switch) WPL 4450298 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire S/C (Door Switch) WPL 4450951 Contact Us For Availability
19
Harness, Wire STD (Main) WPL 4451162 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450835 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119723A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448473 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448474 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
× ![]()
