Model Whirlpool RBD245PDB8 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

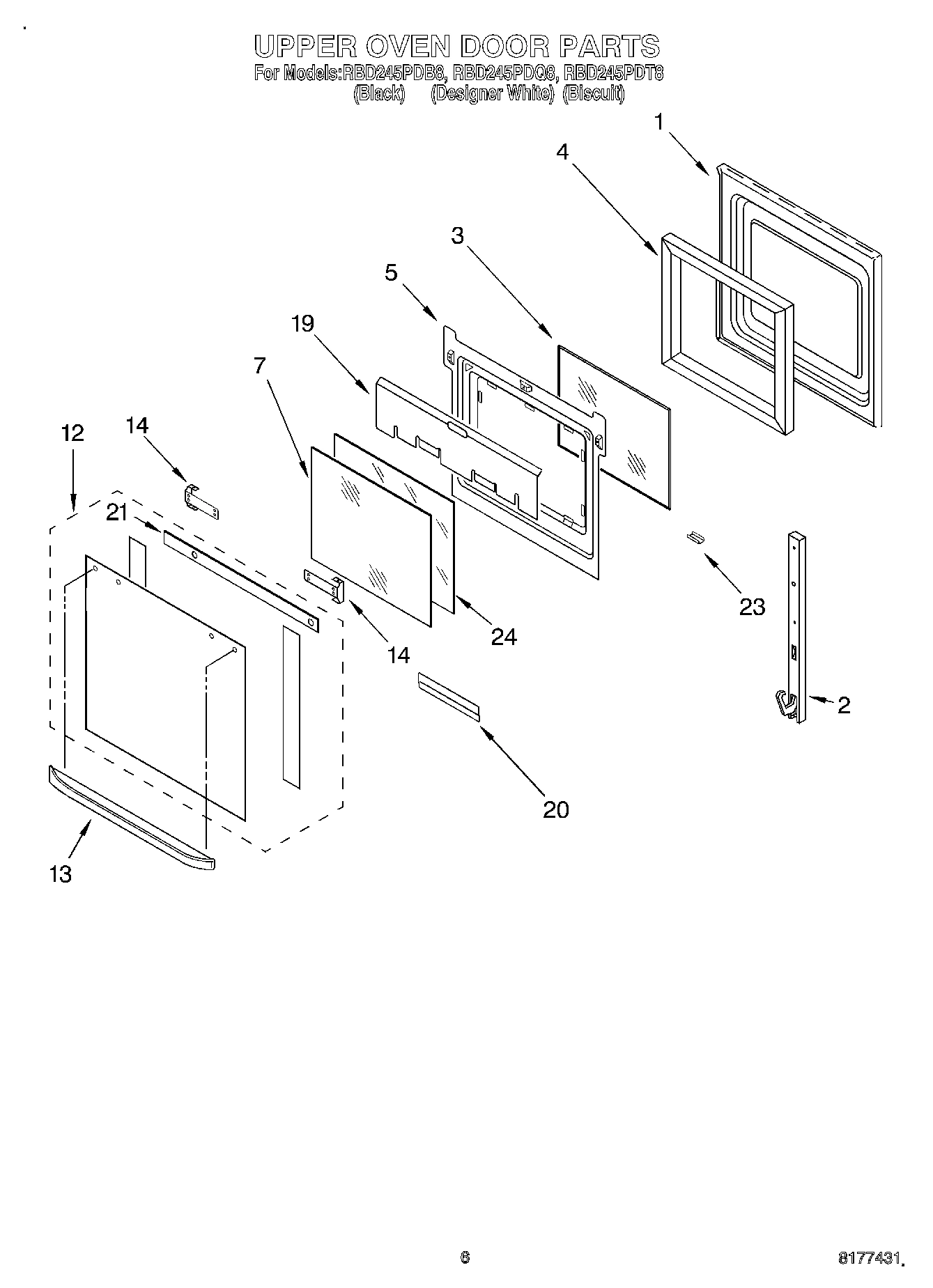

04 - UPPER OVEN DOOR

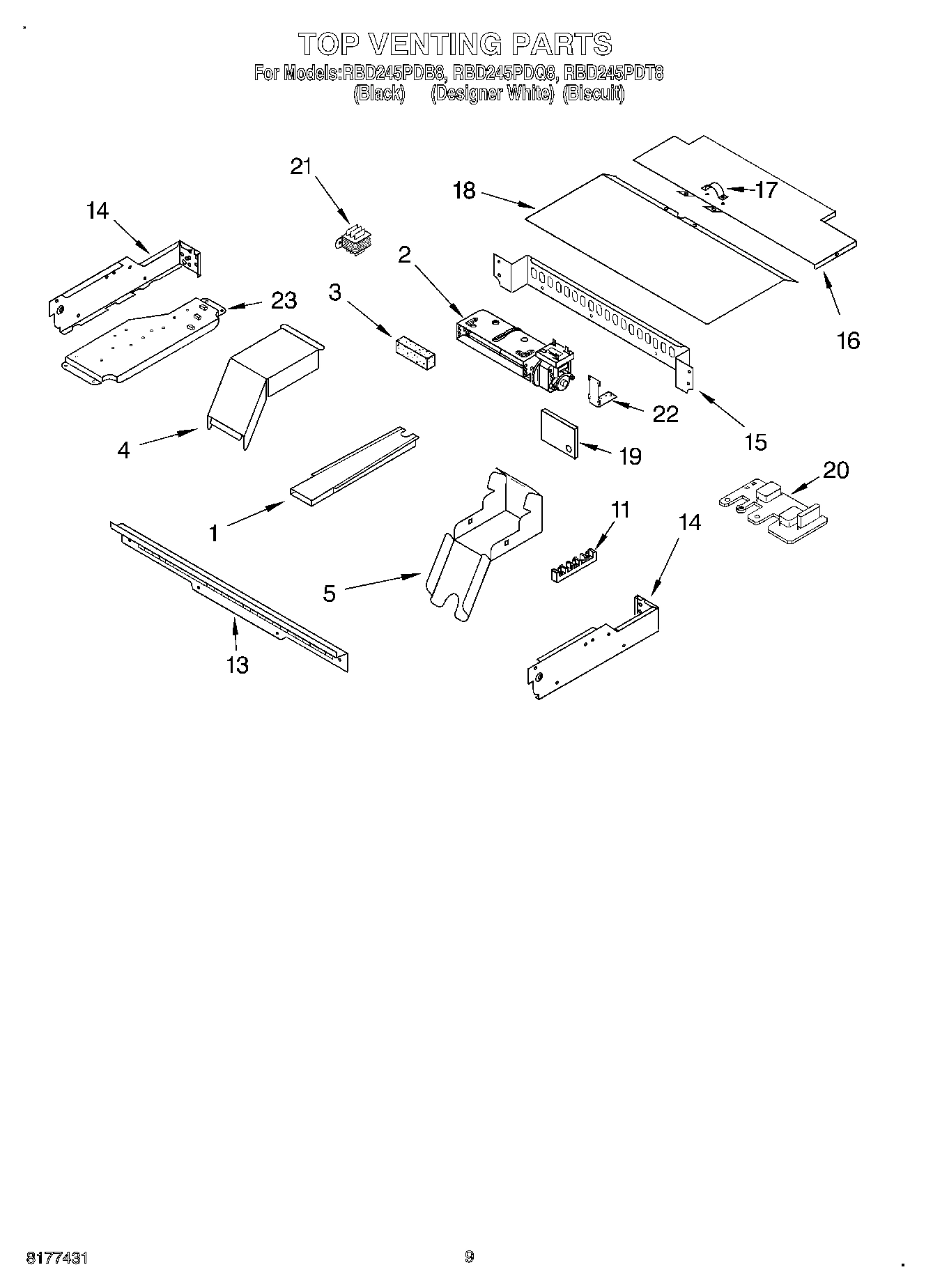

07 - TOP VENTING

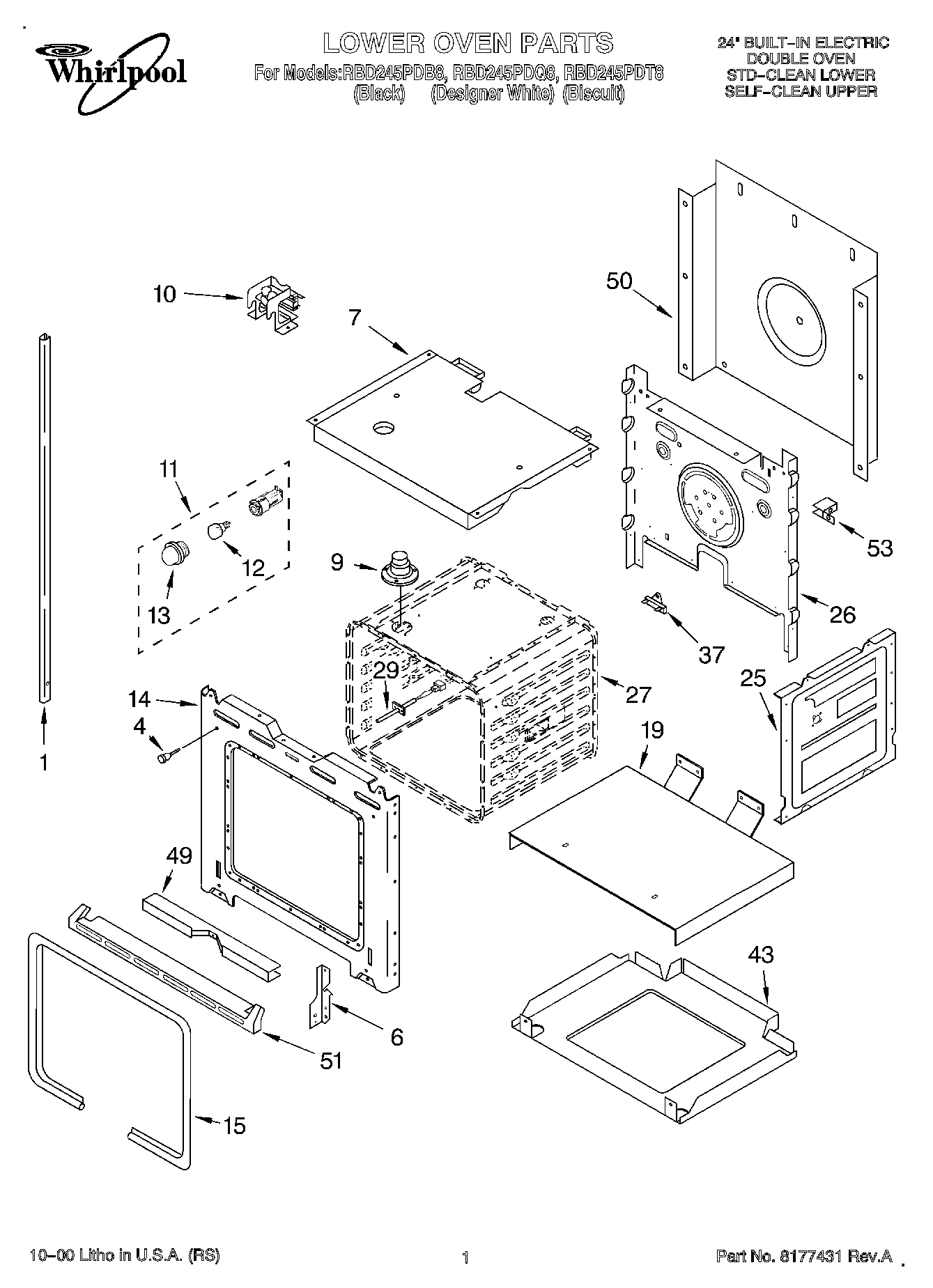

01 - LOWER OVEN

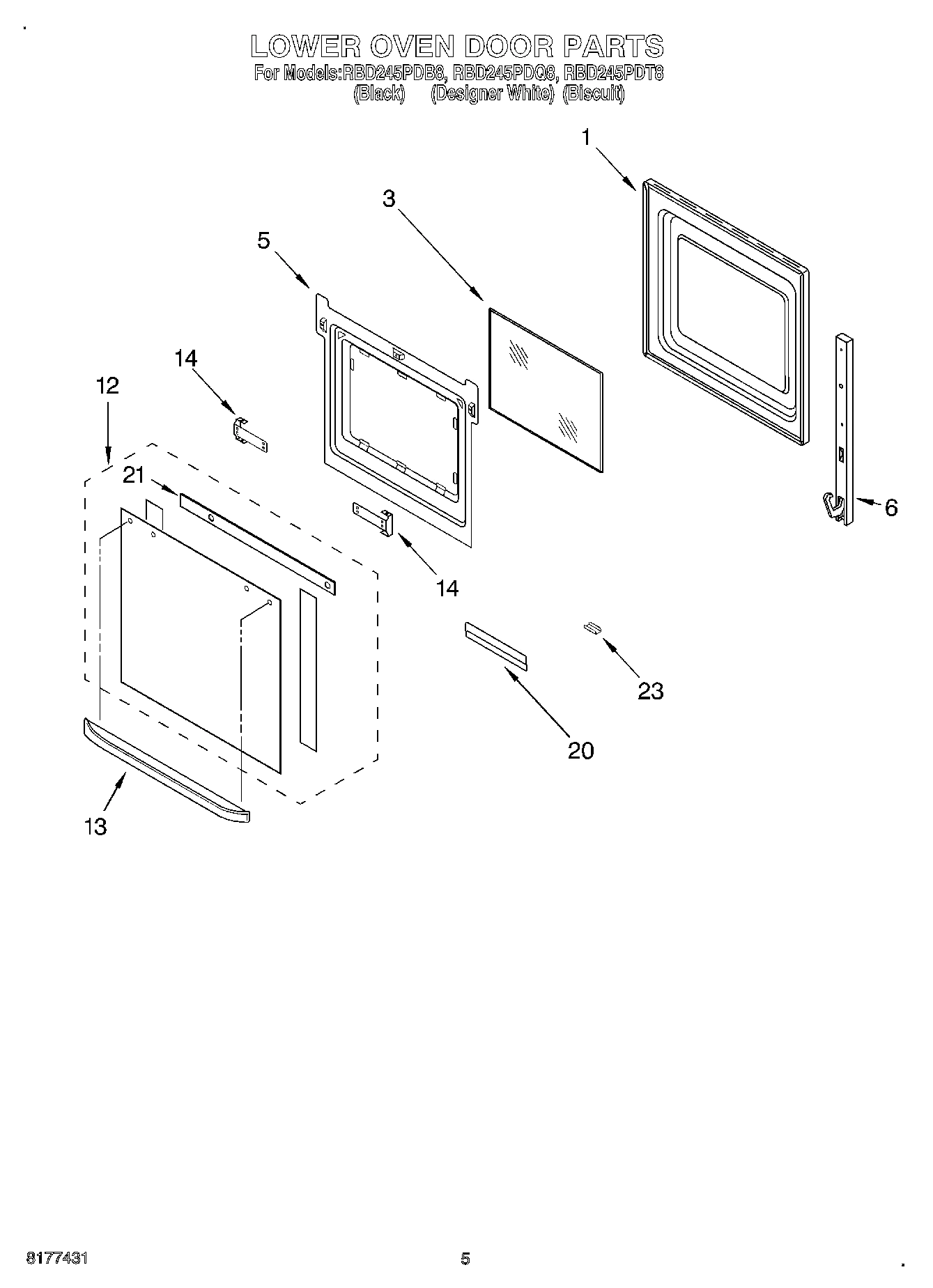

03 - LOWER OVEN DOOR

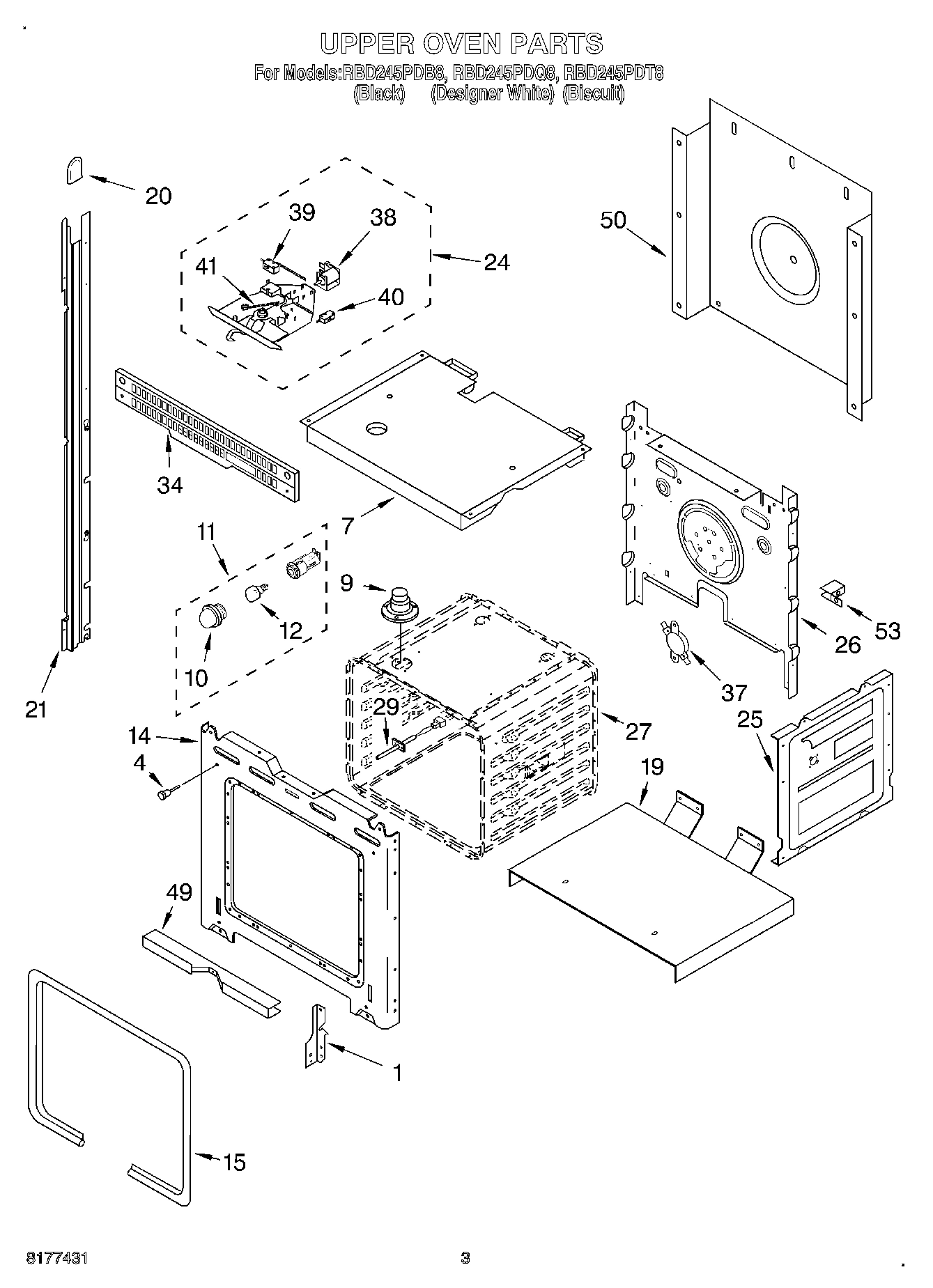

02 - UPPER OVEN

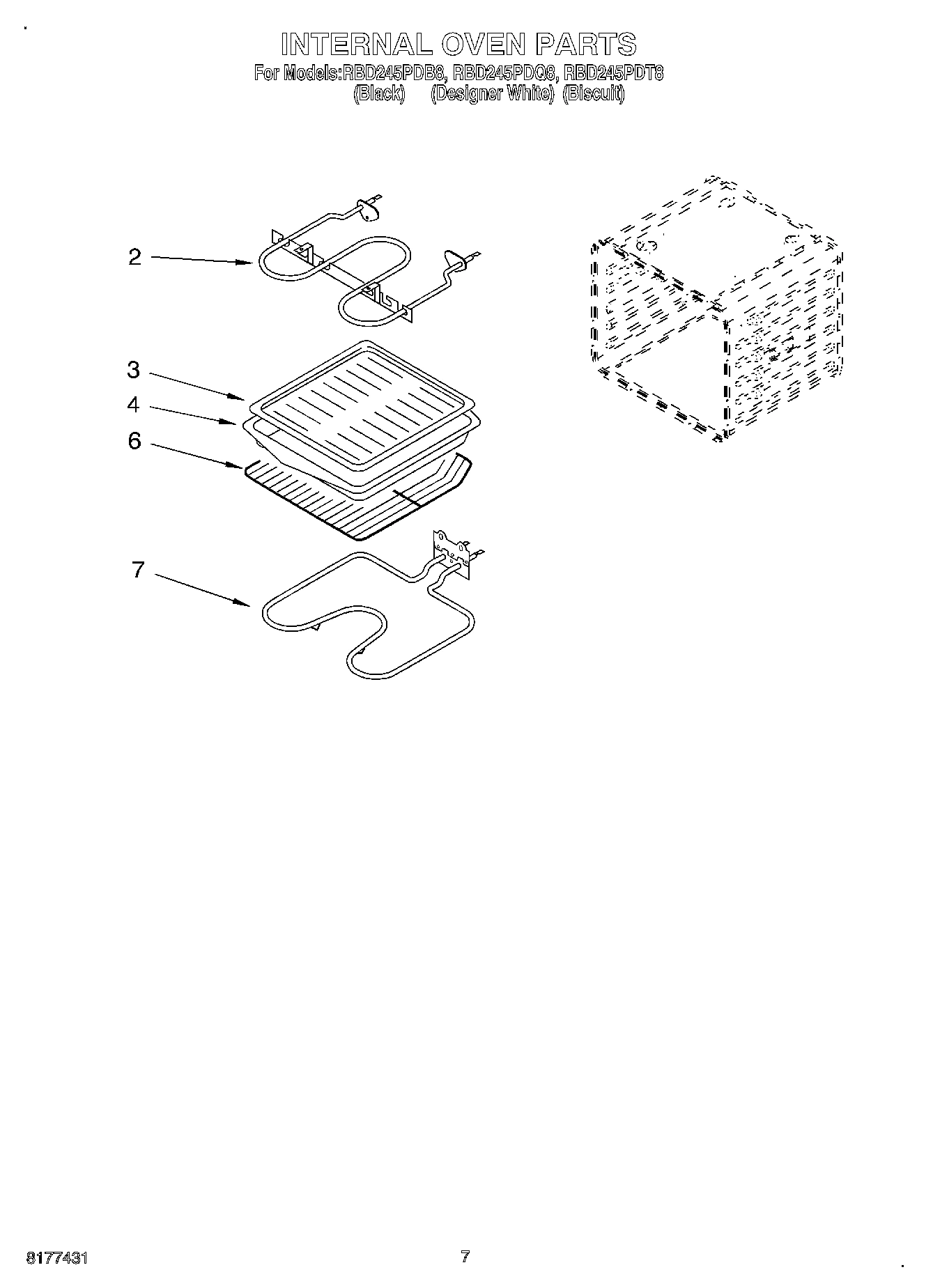

05 - INTERNAL OVEN

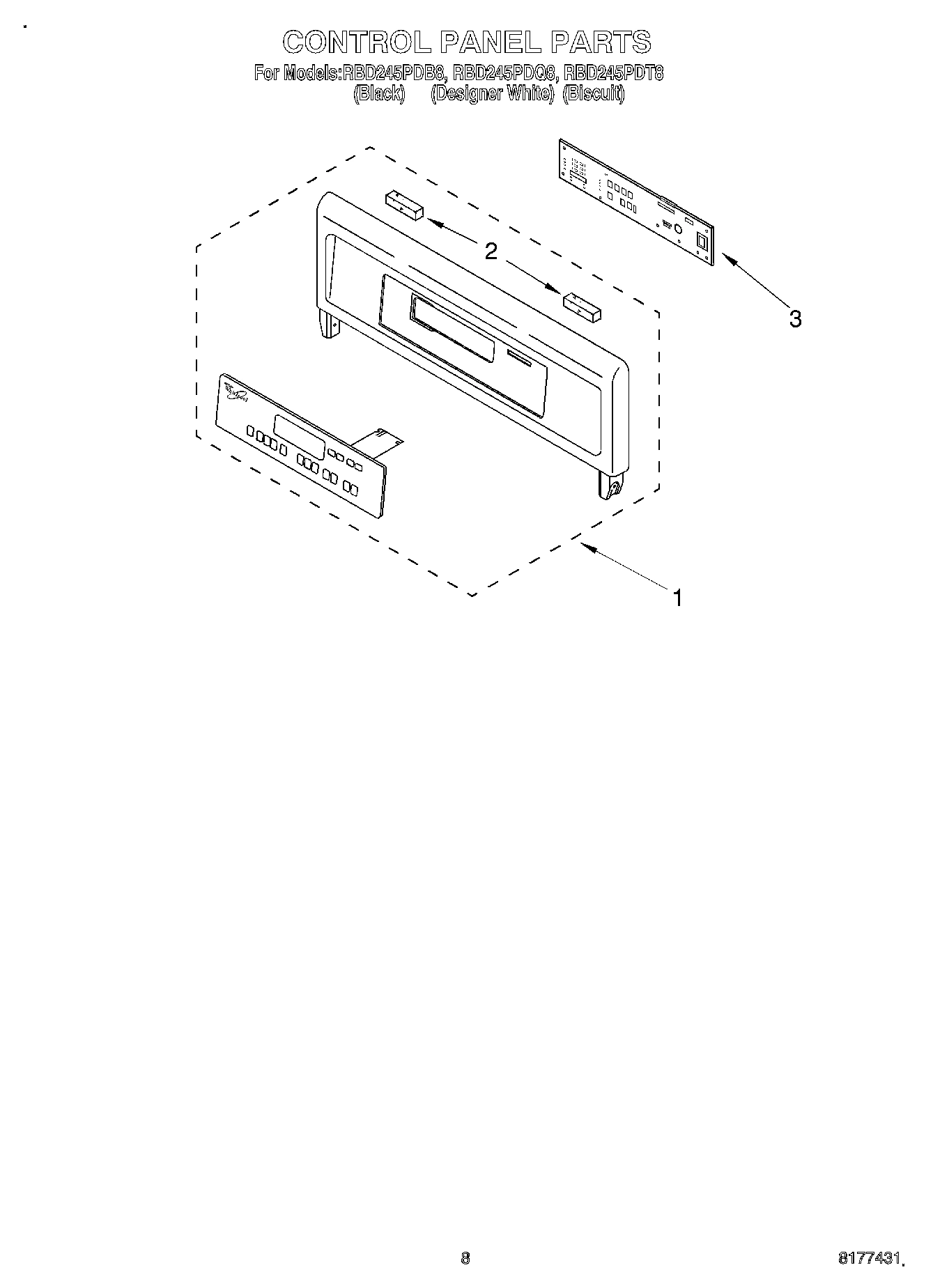

06 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RBD245PDB8 BUILT-IN ELECTRIC DOUBLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT4450409 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Tech Sheet WPL LIT4451887 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
1
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
1
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
1
Trim, Side (RH Biscuit) WPL 4452122 Contact Us For Availability
1
Trim, Side (LH Biscuit) WPL 4452123 Contact Us For Availability
1
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
1
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451965 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451966 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 8300516 Contact Us For Availability
2
Blower WPL 4455334 Contact Us For Availability
2
Gasket, Control Panel WPL 4451032 Contact Us For Availability
3
Screw WPL 4449899 Contact Us For Availability
3
Microcomputer WPL 4451991 Contact Us For Availability
6
Hinge, Door WPL 4454945 Contact Us For Availability
7
Glass, Inner WPL 4449251 Contact Us For Availability
10
Fan & Bracket Assy WPL 4451664 Contact Us For Availability
10
Lens, Light WPL 4452165 Contact Us For Availability
12
Door Glass Assy (Black Model) WPL 4452059 Contact Us For Availability
12
Door Glass Assy (White Model) WPL 4452060 Contact Us For Availability
12
Door Glass Assy (Biscuit Model) WPL 8300527 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448402 Contact Us For Availability
13
Door Handle (White Model) WPL 4448403 Contact Us For Availability
13
Door Handle (Biscuit Model) WPL 8300512 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Retainer, Glass WPL 4451669 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Seal, Door Top WPL 4451672 Contact Us For Availability
23
Conduit, Double WPL 4450953 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
24
Latch Assembly WPL 4451896 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119687A Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI119688A Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
38
Solenoid WPL 4452224 Contact Us For Availability
39
Switch, Micro N.C. WPL 4451422 Contact Us For Availability
40
Switch, Micro WPL 4451426 Contact Us For Availability
41
Spring, Latch WPL 4451537 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448473 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448474 Contact Us For Availability
51
Trim, Bottom (Biscuit Model) WPL 8300528 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
× ![]()
