Model Hotpoint RB787WY2WW Electric Range – Common Parts & Diagrams

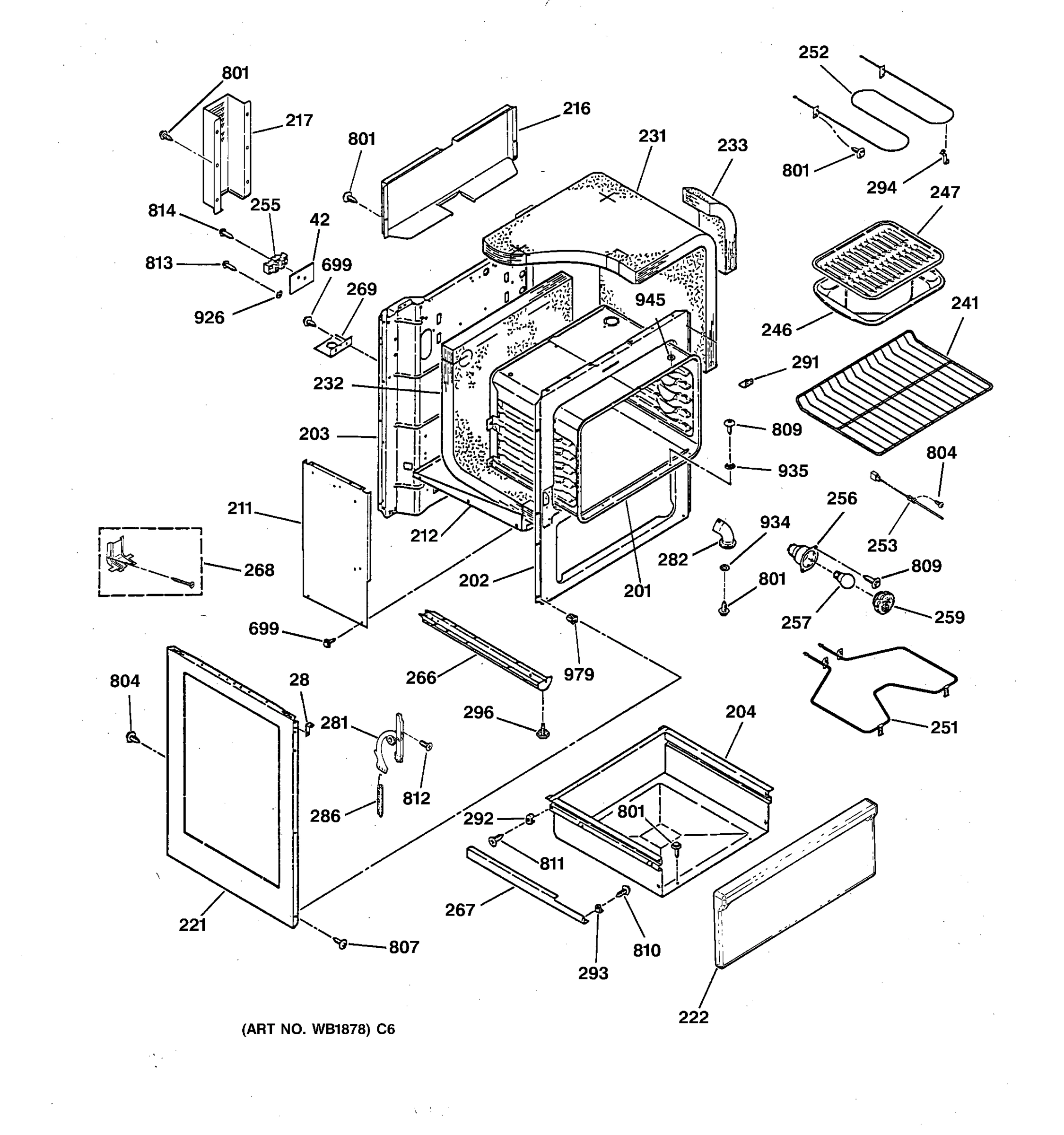

BODY PARTS

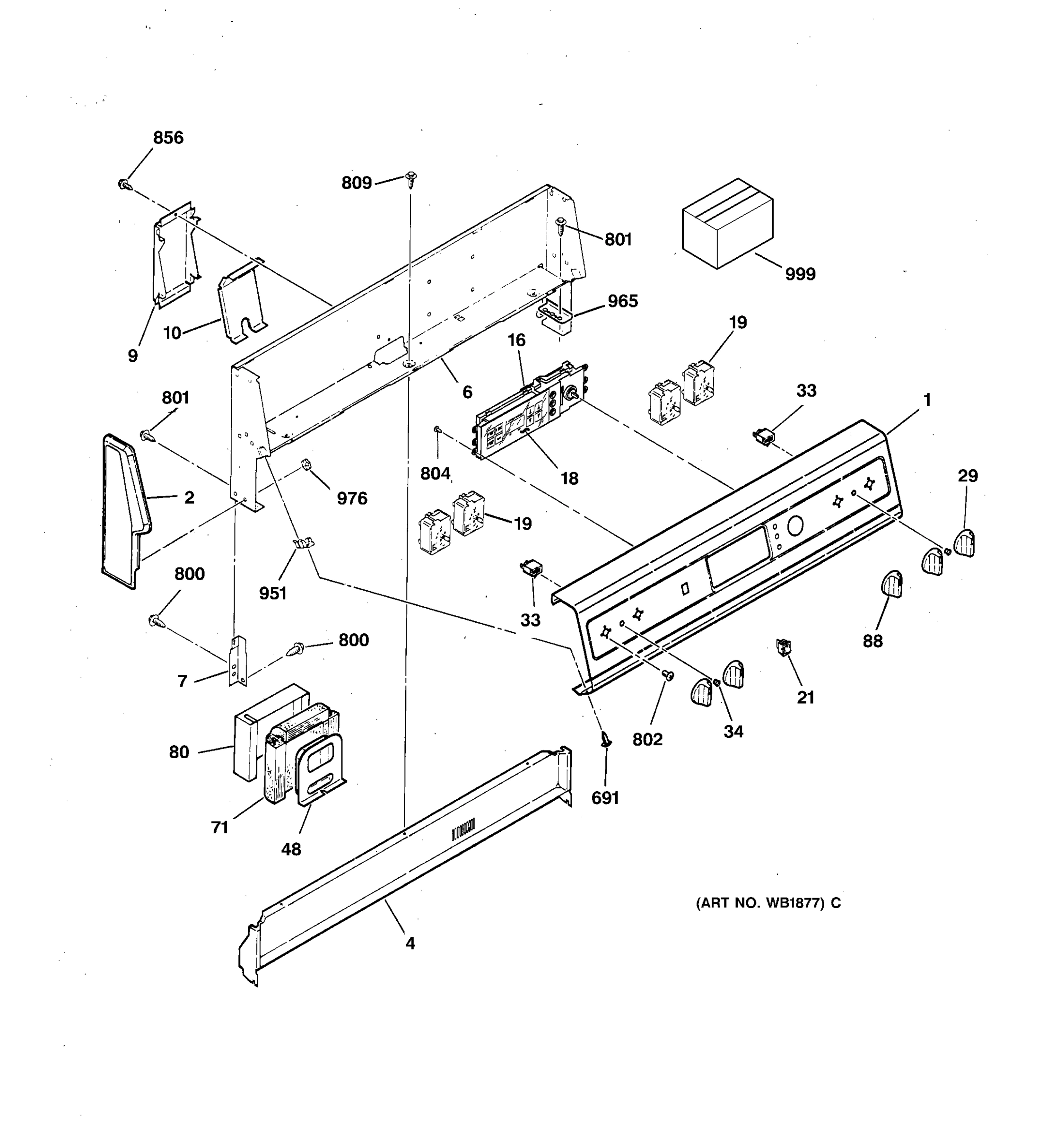

CONTROL PANEL
COOKTOP
DOOR LOCK
OVEN DOOR
Common parts from model Hotpoint RB787WY2WW Electric Range
1
GEN WB36K5636 GEN WB36K5636 Contact Us For Availability
2
GEN WB36K5470 GEN WB36K5470 Contact Us For Availability
2
GEN WB36K5471 GEN WB36K5471 Contact Us For Availability
4
GEN WB37K5031 GEN WB37K5031 Contact Us For Availability
6
GEN WB37M0005 GEN WB37M0005 Contact Us For Availability
7
BACKGUARD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT LT GEN WB06X0128 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
COVER RACEWAY GEN WB06X0134 Contact Us For Availability
16
GEN WB27K5251 GEN WB27K5251 Contact Us For Availability
18
GEN WB27K5257 GEN WB27K5257 Contact Us For Availability
19
GEN WB23M0023 GEN WB23M0023 Contact Us For Availability
21
ROCKER SWITCH-WHT-OV LGT GEN WB24K5036 Contact Us For Availability
29
INFINITE KNOB-WHITE GEN WB03K5215 Contact Us For Availability
33
GEN WB25K5020 GEN WB25K5020 Contact Us For Availability
33
GEN WB25M0008 GEN WB25M0008 Contact Us For Availability
34
GEN WB25M0009 GEN WB25M0009 Contact Us For Availability
48
GEN WB38K5049 GEN WB38K5049 Contact Us For Availability
51
GEN WB57K5335 GEN WB57K5335 Contact Us For Availability
56
GEN WB30T10003 GEN WB30T10003 Contact Us For Availability
57
GEN WB30T10004 GEN WB30T10004 Contact Us For Availability
60
GEN WB09K5014 GEN WB09K5014 Contact Us For Availability
61
GEN WB64K5068 GEN WB64K5068 Contact Us For Availability
62
GEN WB02K5318 GEN WB02K5318 Contact Us For Availability
66
GEN WB34K5199 GEN WB34K5199 Contact Us For Availability
71
GEN WB35K5052 GEN WB35K5052 Contact Us For Availability
71
GEN WB35K5111 GEN WB35K5111 Contact Us For Availability
76
GEN WB38K5050 GEN WB38K5050 Contact Us For Availability
79
BURN BOX BTM BAFFLE-LT GEN WB34M0045 Contact Us For Availability
79
BURN BOX BTM BAFFLE-RT GEN WB34M0046 Contact Us For Availability
80
GEN WB38K5033 GEN WB38K5033 Contact Us For Availability
82
GEN WB24K5103 GEN WB24K5103 Contact Us For Availability
82
GEN WB24K5114 GEN WB24K5114 Contact Us For Availability
85
GEN WB35K5098 GEN WB35K5098 Contact Us For Availability
88
THERMOSTAT KNOB-WHITE GEN WB03K5216 Contact Us For Availability
90
GLASS SUPPORT-RIGHT GEN WB02X9876 Contact Us For Availability
90
GLASS SUPPORT-LEFT GEN WB02X9877 Contact Us For Availability
95
INDICATOR LIGHT BRACKET GEN WB02K5317 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55T10005 GEN WB55T10005 Contact Us For Availability
112
GEN WB55T10003 GEN WB55T10003 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5216 GEN WB57K5216 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
CENTER GLASS GEN WB56X1907 Contact Us For Availability
136
GEN WB15K5090 GEN WB15K5090 Contact Us For Availability
140
GEN WB56K5136 GEN WB56K5136 Contact Us For Availability
144
GEN WB02K5316 GEN WB02K5316 Contact Us For Availability
146
DOOR HANDLE SPACER-WHITE GEN WB02X9640 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
151
GEN WB14K5011 GEN WB14K5011 Contact Us For Availability
160
GEN WB02X9882 GEN WB02X9882 Contact Us For Availability
161
GEN WB24K5092 GEN WB24K5092 Contact Us For Availability
171
INSULATOR-MICRO SWITCH GEN WB02X9880 Contact Us For Availability
176
GEN WB02X9881 GEN WB02X9881 Contact Us For Availability
178
LOCK BOX INSULATION GEN WB35K5027 Contact Us For Availability
181
GEN WB02K5097 GEN WB02K5097 Contact Us For Availability
191
LATCH HANDLE GEN WB02X9434 Contact Us For Availability
192
GEN WB03K5152 GEN WB03K5152 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
WIRE COVER-REAR-UPP GEN WB34M0020 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
221
BODY SIDE-TEXTURED-WHITE GEN WB63K5188 Contact Us For Availability
222
LOWER FRONT PANEL-WHITE GEN WB56K5059 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
GEN WB35T10003 GEN WB35T10003 Contact Us For Availability
233
INSULATION TOP SIDES GEN WB02X9718 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
266
GEN WB02K5274 GEN WB02K5274 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
282
GEN WB38M0001 GEN WB38M0001 Contact Us For Availability
286
OV DR SPRING GEN WB09X0273 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB02X9188 GEN WB02X9188 Contact Us For Availability
323
CAP HANDLE LT (WH) GEN WB07K5339 Contact Us For Availability
324
CAP HANDLE-RT (WH) GEN WB07K5338 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
820
GEN WB01X1152 GEN WB01X1152 Contact Us For Availability
871
GEN WB01M0013 GEN WB01M0013 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
951
GEN WB02X9443 GEN WB02X9443 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
999
GEN 31-10059 GEN 31-10059 Contact Us For Availability
999
GEN 31-13256 GEN 31-13256 Contact Us For Availability
999
USE CARE MANUAL GEN 39-4753 Contact Us For Availability
× ![]()
