Model Whirlpool RB770PXXB3 – Common Parts & Diagrams

1

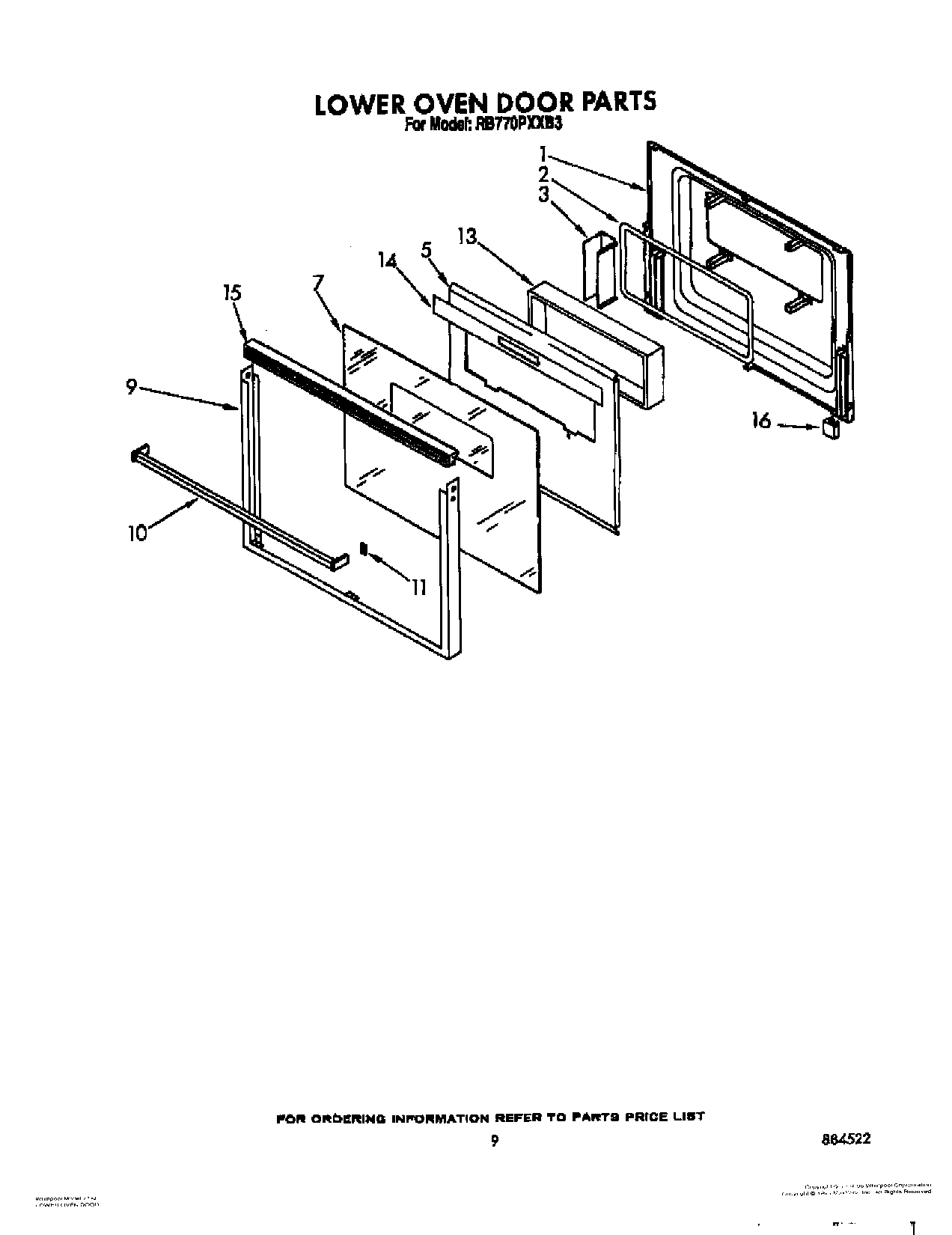

Liner, Door
Liner, Door WPL 3177600 Contact Us For Availability
View on Model
1
Screw (2)
Screw (2) WPL 3178001 Contact Us For Availability
View on Model
1
Screw (6)
Screw (6) WPL 4168863 Contact Us For Availability
View on Model
1

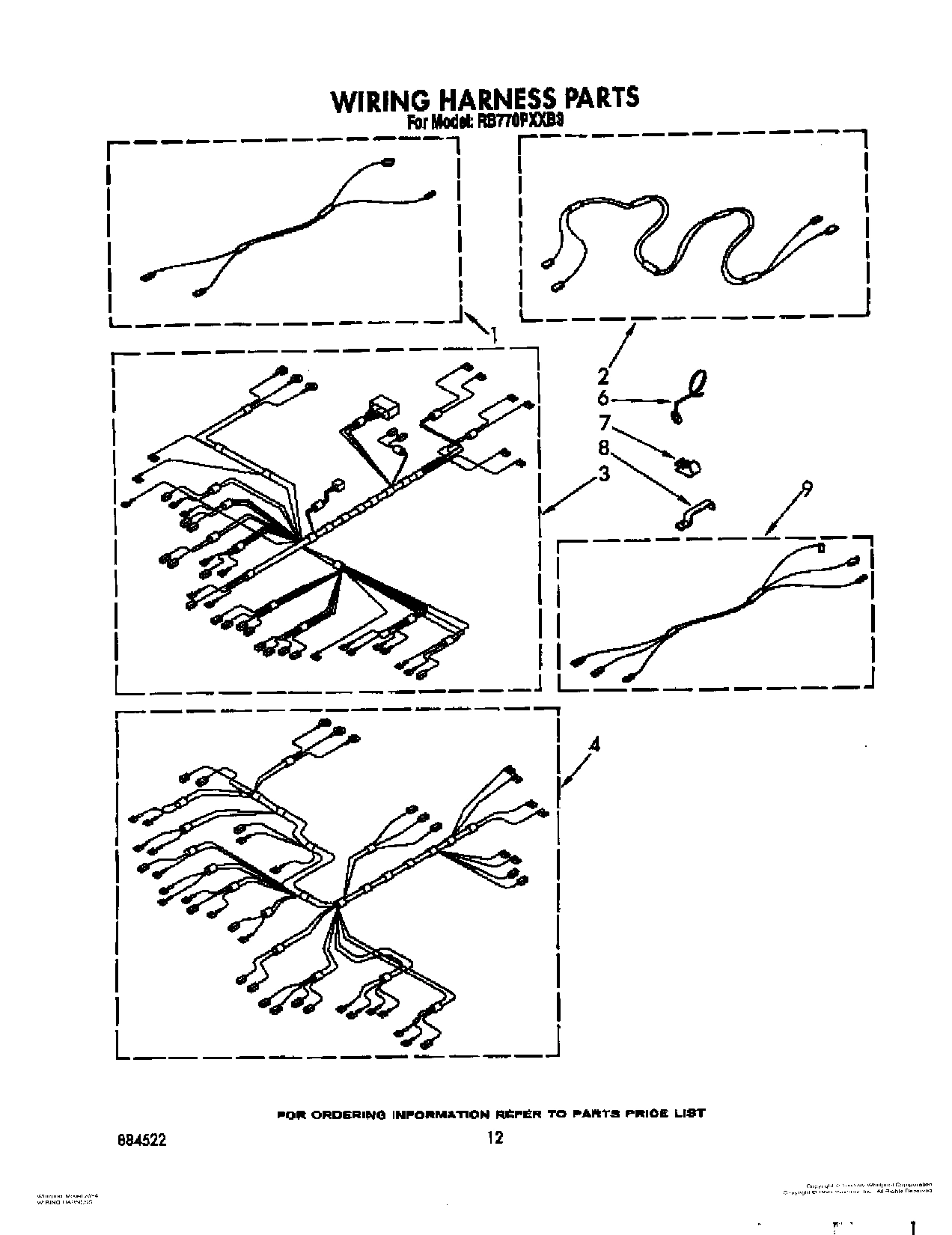

Harness Wire (Door Switch Upper)
Harness Wire (Door Switch Upper) WPL 3179941 Contact Us For Availability
View on Model
1

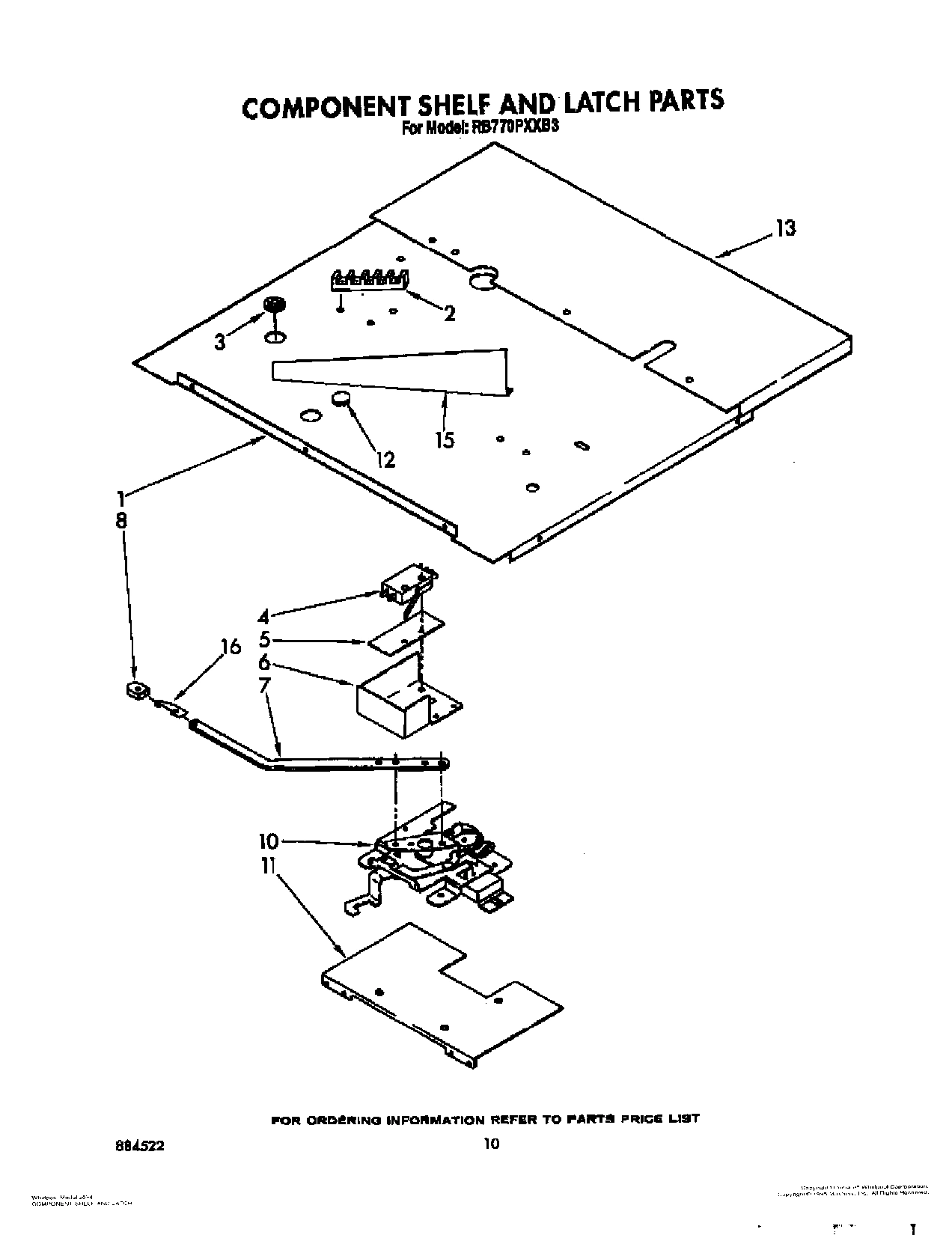

Shelf, Component
Shelf, Component WPL 3178089 Contact Us For Availability
View on Model
1

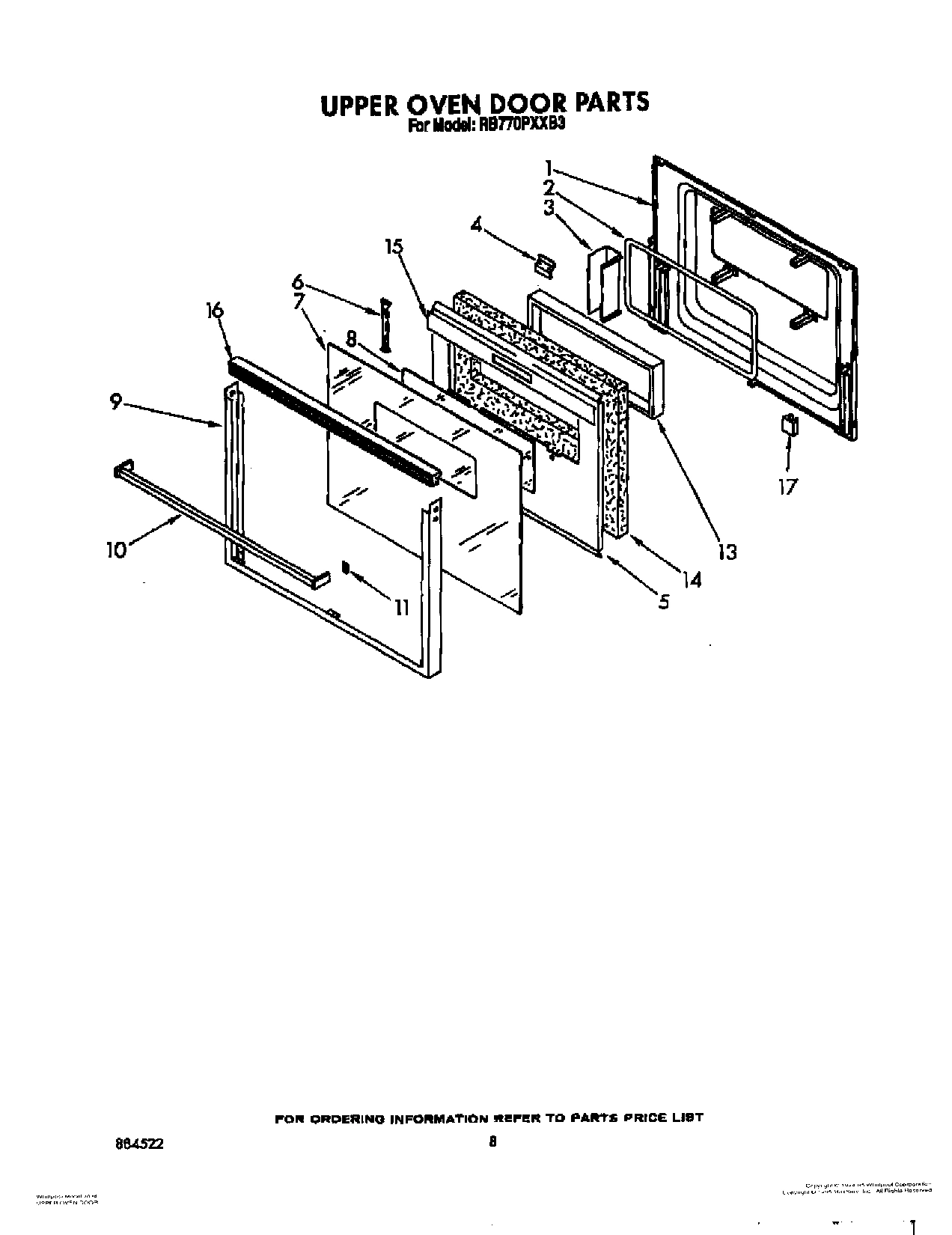

Liner, Door
Liner, Door WPL 3177599 Contact Us For Availability
View on Model
2
Retainer (2)
Retainer (2) WPL 4168674 Contact Us For Availability
View on Model
2

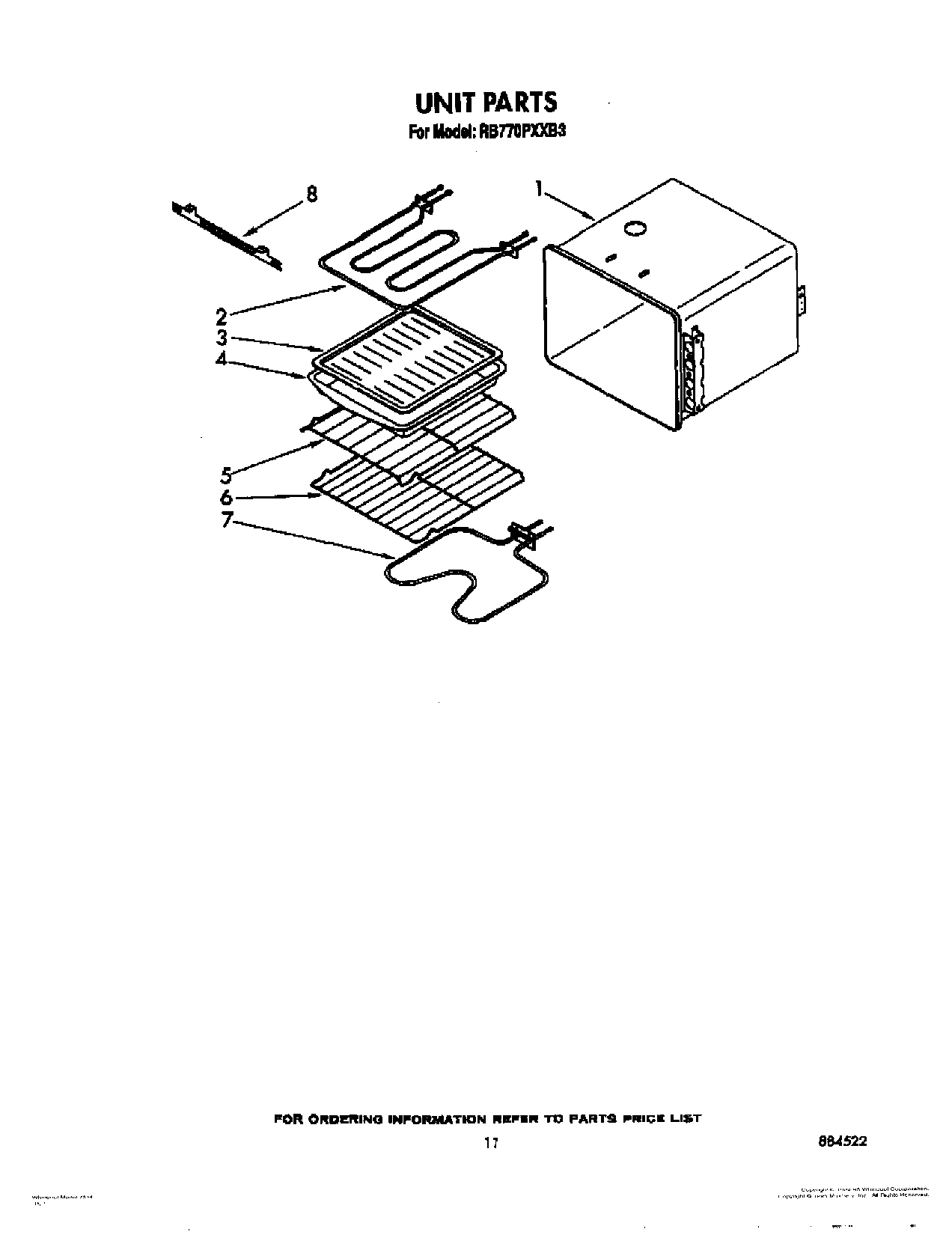

Element, Broil
Element, Broil WPL 661415 Contact Us For Availability
View on Model
2
Gasket, Window
Gasket, Window WPL 3178584 Contact Us For Availability
View on Model
2
Harness Wire (Door Switch Lower)
Harness Wire (Door Switch Lower) WPL 3185130 Contact Us For Availability
View on Model
2
Bracket, Conduit
Bracket, Conduit WPL 3177545 Contact Us For Availability
View on Model
3
Spacer, Window
Spacer, Window WPL 3179693 Contact Us For Availability
View on Model
3
Harness Wire (Lower Oven)
Harness Wire (Lower Oven) WPL 3185171 Contact Us For Availability
View on Model
3
Bushing
Bushing WPL 4159035 Contact Us For Availability
View on Model
3
Cabinet, Back
Cabinet, Back WPL 3177623 Contact Us For Availability
View on Model
4
Tube, Vent
Tube, Vent WPL 3181700 Contact Us For Availability
View on Model
4
Harness Wire (Upper Oven)
Harness Wire (Upper Oven) WPL 3185198 Contact Us For Availability
View on Model
4
Switch, Latch
Switch, Latch WPL 3178668 Contact Us For Availability
View on Model
4
Screw (2)
Screw (2) WPL 98106 Contact Us For Availability
View on Model
4
Latch, Strike
Latch, Strike WPL 3177831 Contact Us For Availability
View on Model
5
End Trim, Vent Door (Right Hand)
End Trim, Vent Door (Right Hand) WPL 3148698 Contact Us For Availability
View on Model
5
Rack, Offset
Rack, Offset WPL 3180865 Contact Us For Availability
View on Model
5
Insulation, Retainer
Insulation, Retainer WPL 3177718 Contact Us For Availability
View on Model
5
Insulator, Switch
Insulator, Switch WPL 3178185 Contact Us For Availability
View on Model
6
Trim, Bottom
Trim, Bottom WPL 3180656 Contact Us For Availability
View on Model
6
Screw (4)
Screw (4) WPL 342043 Contact Us For Availability
View on Model
6
screw (2)
screw (2) WPL 254225 Contact Us For Availability
View on Model
6
Rack, Oven
Rack, Oven WPL 3180864 Contact Us For Availability
View on Model
6
Standoff, Wire
Standoff, Wire WPL 3179668 Contact Us For Availability
View on Model
6
Guard, Latch
Guard, Latch WPL 3177662 Contact Us For Availability
View on Model
6
Cabinet, Top
Cabinet, Top WPL 3178138 Contact Us For Availability
View on Model
6
Bracket, Glass Mounting (2)
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
View on Model
7

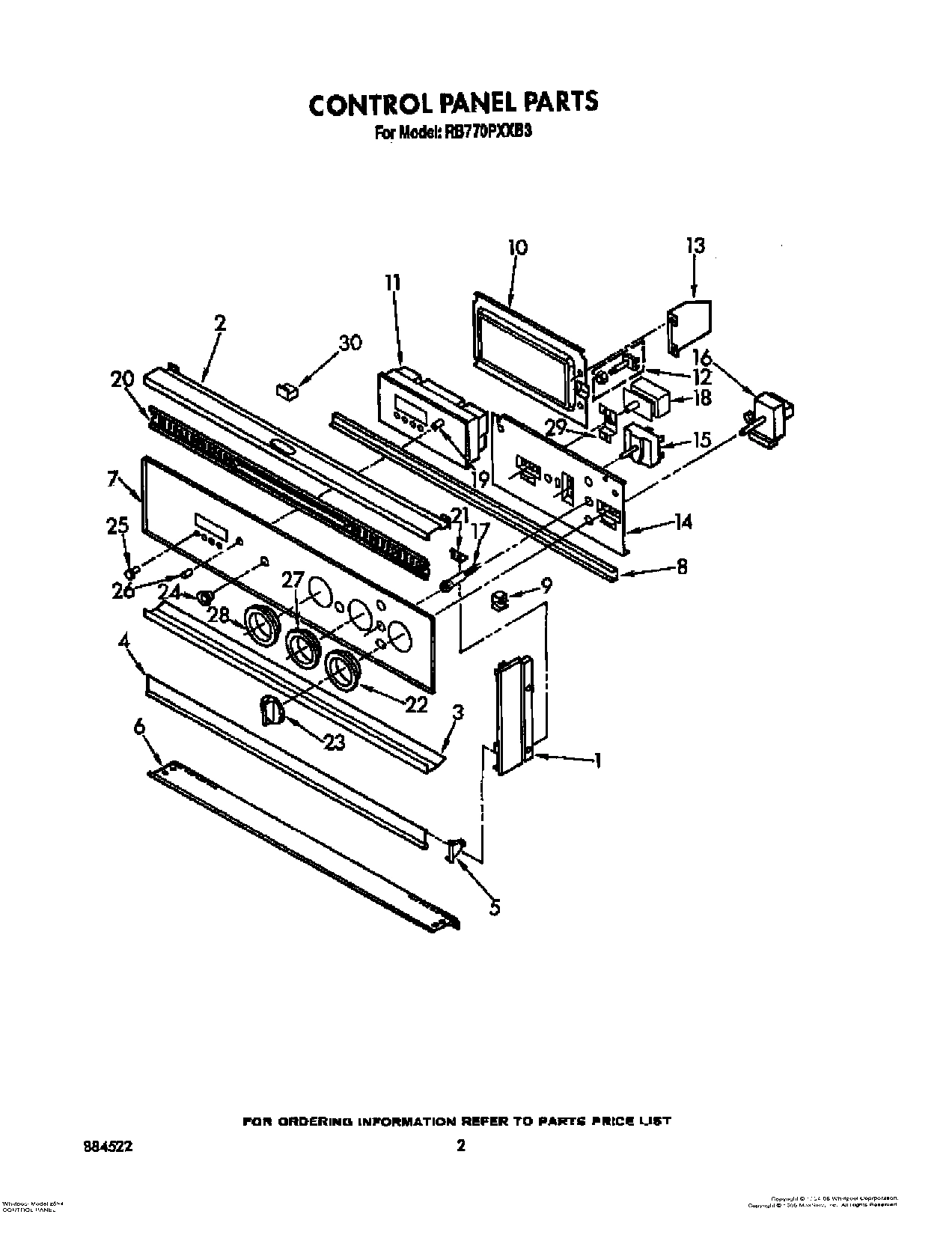

Glass, Control Panel
Glass, Control Panel WPL 3179442 Contact Us For Availability
View on Model
7
Top, Module
Top, Module WPL 3177436 Contact Us For Availability
View on Model
7
Glass, Door
Glass, Door WPL 3179498 Contact Us For Availability
View on Model
7
Handle, Latch
Handle, Latch WPL 3180409 Contact Us For Availability
View on Model
7
Screw (2)
Screw (2) WPL 3180567 Contact Us For Availability
View on Model
8
Rail, Mounting (Components)
Rail, Mounting (Components) WPL 3180289 Contact Us For Availability
View on Model
8
Bracket, Element
Bracket, Element WPL 3180694 Contact Us For Availability
View on Model
8
Knob, Latch Handle
Knob, Latch Handle WPL 311253 Contact Us For Availability
View on Model
8
Side, Cabinet
Side, Cabinet WPL 3177440 Contact Us For Availability
View on Model
8
Glass, Reflective
Glass, Reflective WPL 4164243 Contact Us For Availability
View on Model
9
Retainer, Glass (6)
Retainer, Glass (6) WPL 3180440 Contact Us For Availability
View on Model
9
Screw (3)
Screw (3) WPL 3179117 Contact Us For Availability
View on Model
9
Frame, Door
Frame, Door WPL 3180607 Contact Us For Availability
View on Model
9
Wiring Harness (Latch Assembly)
Wiring Harness (Latch Assembly) WPL 3180731 Contact Us For Availability
View on Model
9
Tube, Vent
Tube, Vent WPL 3181699 Contact Us For Availability
View on Model
10
Plate, Mounting (Clock)
Plate, Mounting (Clock) WPL 3180293 Contact Us For Availability
View on Model
10
Handle, Door
Handle, Door WPL 3179481 Contact Us For Availability
View on Model
10
Latch, Mechanism
Latch, Mechanism WPL 3178410 Contact Us For Availability
View on Model
11
Clip, Mounting
Clip, Mounting WPL 3148282 Contact Us For Availability
View on Model
11
Timer
Timer WPL 3149806 Contact Us For Availability
View on Model
11
Plate, Mounting
Plate, Mounting WPL 3177496 Contact Us For Availability
View on Model
12
Switch, Oven Light
Switch, Oven Light WPL 312581 Contact Us For Availability
View on Model
12
Frame, Front
Frame, Front WPL 3177688 Contact Us For Availability
View on Model
12
Screw (8)
Screw (8) WPL 3179776 Contact Us For Availability
View on Model
12
Plug, Button
Plug, Button WPL 3179777 Contact Us For Availability
View on Model
13
Washer (2)
Washer (2) WPL 312796 Contact Us For Availability
View on Model
13
Shield, Heat
Shield, Heat WPL 3180542 Contact Us For Availability
View on Model
13
Window Package
Window Package WPL 4164235 Contact Us For Availability
View on Model
14
Plate Mounting (Components)
Plate Mounting (Components) WPL 3180294 Contact Us For Availability
View on Model
14
Frame, Front
Frame, Front WPL 3177689 Contact Us For Availability
View on Model
14
Insulation, Door
Insulation, Door WPL 3180094 Contact Us For Availability
View on Model
15
Switch, Selector
Switch, Selector WPL 3178237 Contact Us For Availability
View on Model
15
Seal, Door
Seal, Door WPL 3179813 Contact Us For Availability
View on Model
15
Shield, Door
Shield, Door WPL 3181348 Contact Us For Availability
View on Model
15
Baffle, Air
Baffle, Air WPL 3180693 Contact Us For Availability
View on Model
16

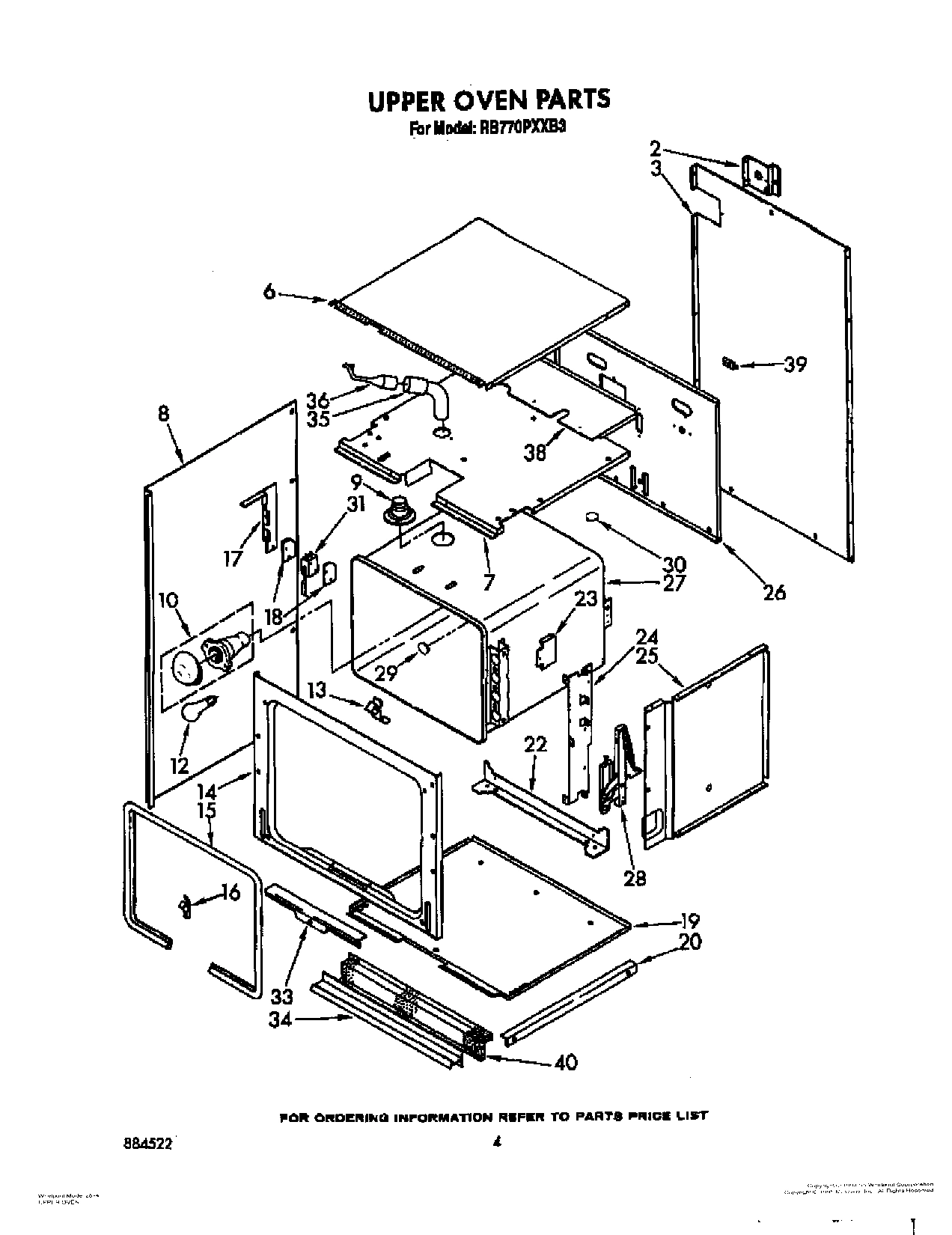

Thermostat, Upper Oven
Thermostat, Upper Oven WPL 3178275 Contact Us For Availability
View on Model
16
Bottom, Oven
Bottom, Oven WPL 3177551 Contact Us For Availability
View on Model
16
Clip, Oven Seal
Clip, Oven Seal WPL 3179848 Contact Us For Availability
View on Model
16
Trim, Door
Trim, Door WPL 3179476 Contact Us For Availability
View on Model
16
Support, Latch
Support, Latch WPL 3180692 Contact Us For Availability
View on Model
17
Light, Indicator (4)
Light, Indicator (4) WPL 4168598 Contact Us For Availability
View on Model
17
Bracket, Switch
Bracket, Switch WPL 3177681 Contact Us For Availability
View on Model
17
Bumper, Door Glass
Bumper, Door Glass WPL 3181701 Contact Us For Availability
View on Model
18
Screw (2)
Screw (2) WPL 3178002 Contact Us For Availability
View on Model
18

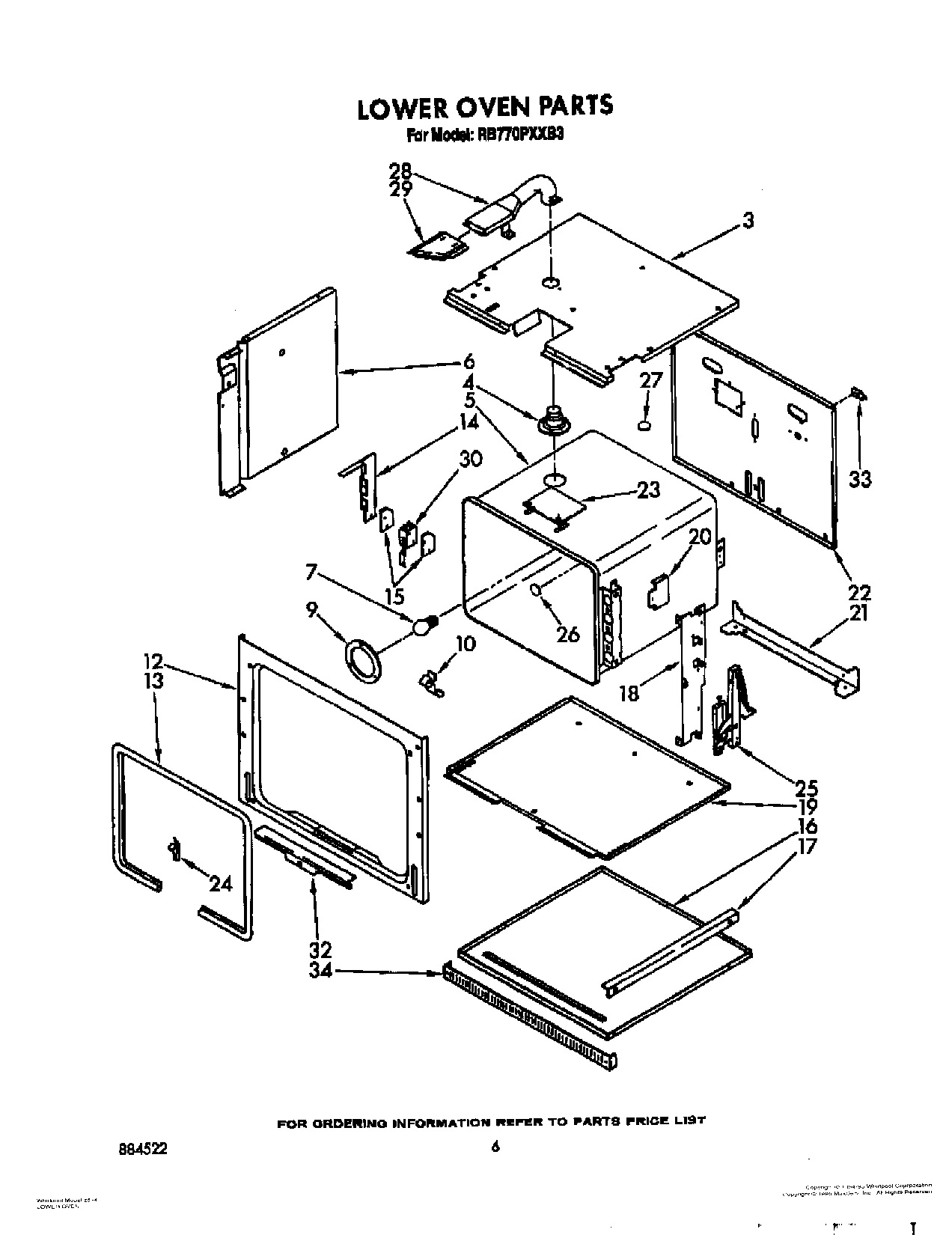

Thermostat, Lower Oven
Thermostat, Lower Oven WPL 3178283 Contact Us For Availability
View on Model
18
Insulator, Switch
Insulator, Switch WPL 3177923 Contact Us For Availability
View on Model
19
Shaft, Bit Generator
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
View on Model
19
Bottom, Module
Bottom, Module WPL 3177621 Contact Us For Availability
View on Model
20
Insert, Vent
Insert, Vent WPL 3179916 Contact Us For Availability
View on Model
20
Rail, Support (2)
Rail, Support (2) WPL 3179220 Contact Us For Availability
View on Model
21
Bracket, Mounting
Bracket, Mounting WPL 3181279 Contact Us For Availability
View on Model
22
Escutcheon, Oven Thermostat (Upper)
Escutcheon, Oven Thermostat (Upper) WPL 3180524 Contact Us For Availability
View on Model
22
Support, Oven
Support, Oven WPL 3177434 Contact Us For Availability
View on Model
23
Shield, Radiation
Shield, Radiation WPL 3178612 Contact Us For Availability
View on Model
23
Cover, Latch Mtg.
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
View on Model
24
Bezel Switch
Bezel Switch WPL 313030 Contact Us For Availability
View on Model
24
Bracket, Hinge
Bracket, Hinge WPL 3177433 Contact Us For Availability
View on Model
25
Button, Set (4)
Button, Set (4) WPL 313958 Contact Us For Availability
View on Model
25
Side, Module (R.H. & L.H.)
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
View on Model
26
Knob, Bit Generator
Knob, Bit Generator WPL 313523 Contact Us For Availability
View on Model
26
Back, Module
Back, Module WPL 3177556 Contact Us For Availability
View on Model
27
Ecsutcheon, Selector Switch
Ecsutcheon, Selector Switch WPL 3180525 Contact Us For Availability
View on Model
27
Liner, Oven
Liner, Oven WPL 3180828 Contact Us For Availability
View on Model
28
Ecsutcheon, Oven Thermostat (Lower)
Ecsutcheon, Oven Thermostat (Lower) WPL 3180523 Contact Us For Availability
View on Model
28
Screw (4)
Screw (4) WPL 3179795 Contact Us For Availability
View on Model
28
Hinge, Door (2)
Hinge, Door (2) WPL 3178298 Contact Us For Availability
View on Model
28
Tube, Vent
Tube, Vent WPL 3179945 Contact Us For Availability
View on Model
29
Bracket, Mounting (Lower Thermostat)
Bracket, Mounting (Lower Thermostat) WPL 3181764 Contact Us For Availability
View on Model
29
Button, Plug
Button, Plug WPL 3185108 Contact Us For Availability
View on Model
29
Tube, Vent
Tube, Vent WPL 3181964 Contact Us For Availability
View on Model
30
Screw (4)
Screw (4) WPL 309133 Contact Us For Availability
View on Model
30
Support, Glass
Support, Glass WPL 3181831 Contact Us For Availability
View on Model
30
Button, Plug
Button, Plug WPL 3185109 Contact Us For Availability
View on Model
31
Screw (2)
Screw (2) WPL 313489 Contact Us For Availability
View on Model
31
Nut (2)
Nut (2) WPL 4159117 Contact Us For Availability
View on Model
31
Switch, Door
Switch, Door WPL 4173553 Contact Us For Availability
View on Model
33
Retainer, Seal
Retainer, Seal WPL 3179587 Contact Us For Availability
View on Model
34
Trim, Lower Vent
Trim, Lower Vent WPL 3177783 Contact Us For Availability
View on Model
34
Insulation, Back
Insulation, Back WPL 3177868 Contact Us For Availability
View on Model
34
Vent, Middle Trim
Vent, Middle Trim WPL 3177751 Contact Us For Availability
View on Model
34
Screw (2)
Screw (2) WPL 4173601 Contact Us For Availability
View on Model
35
Vent, Tube (Upper, Female)
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
View on Model
36
Vent Tube (Upper Male)
Vent Tube (Upper Male) WPL 3180321 Contact Us For Availability
View on Model
38
Extension, Shelf
Extension, Shelf WPL 3178132 Contact Us For Availability
View on Model
39
Screw
Screw WPL 4159445 Contact Us For Availability
View on Model
39
Cover, Cap Tube
Cover, Cap Tube WPL 4168203 Contact Us For Availability
View on Model
40
Insulation, Wrap
Insulation, Wrap WPL 3177862 Contact Us For Availability
View on Model
40
Insulation, Back
Insulation, Back WPL 3177872 Contact Us For Availability
View on Model
40
Screw, Shoulder
Screw, Shoulder WPL 3180040 Contact Us For Availability
View on Model
40
Screen, Wire Mesh
Screen, Wire Mesh WPL 3180888 Contact Us For Availability
View on Model
