Model Whirlpool RB770PXT2 – Common Parts & Diagrams

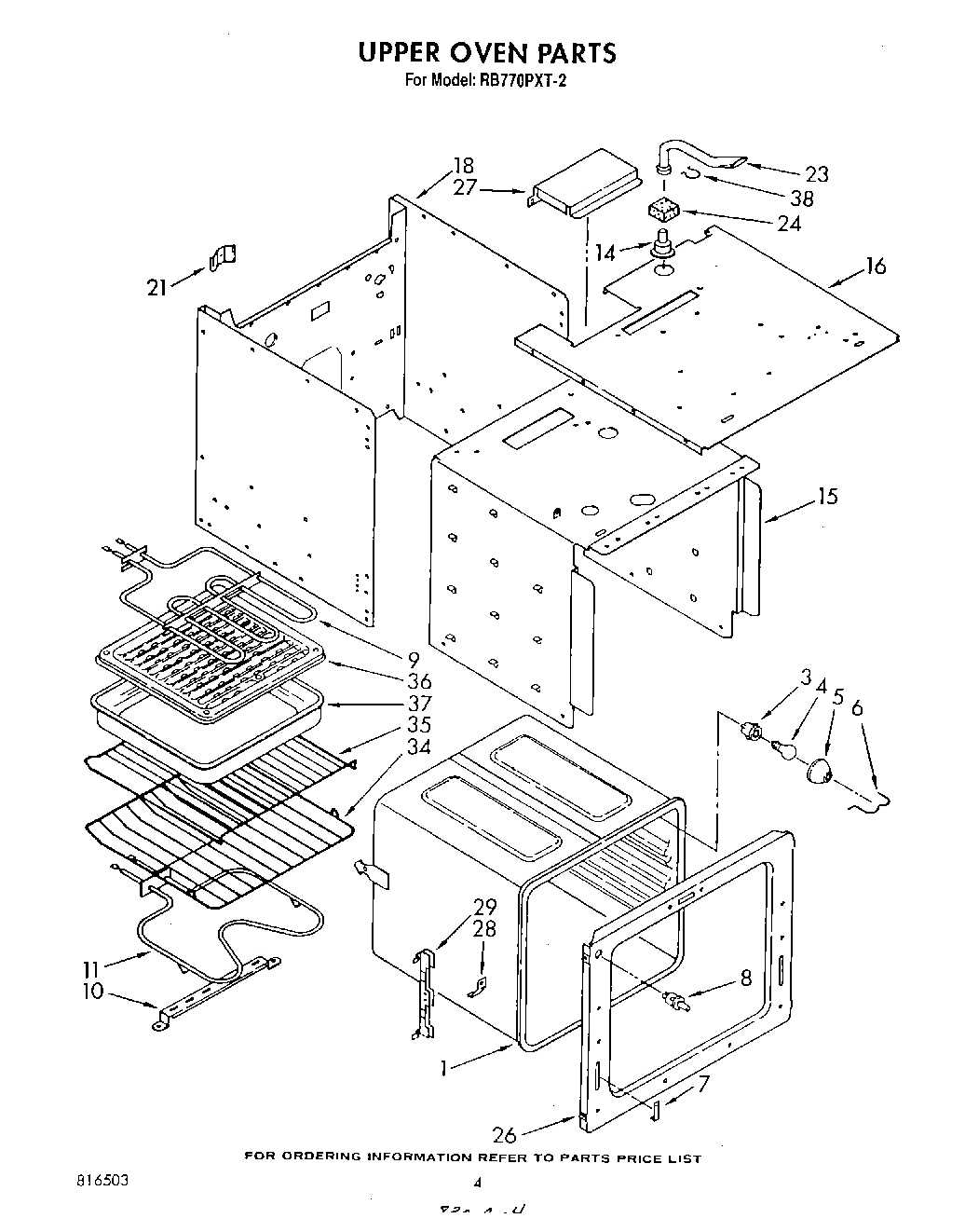

04 - UPPER OVEN , LITERATURE AND OPTIONAL

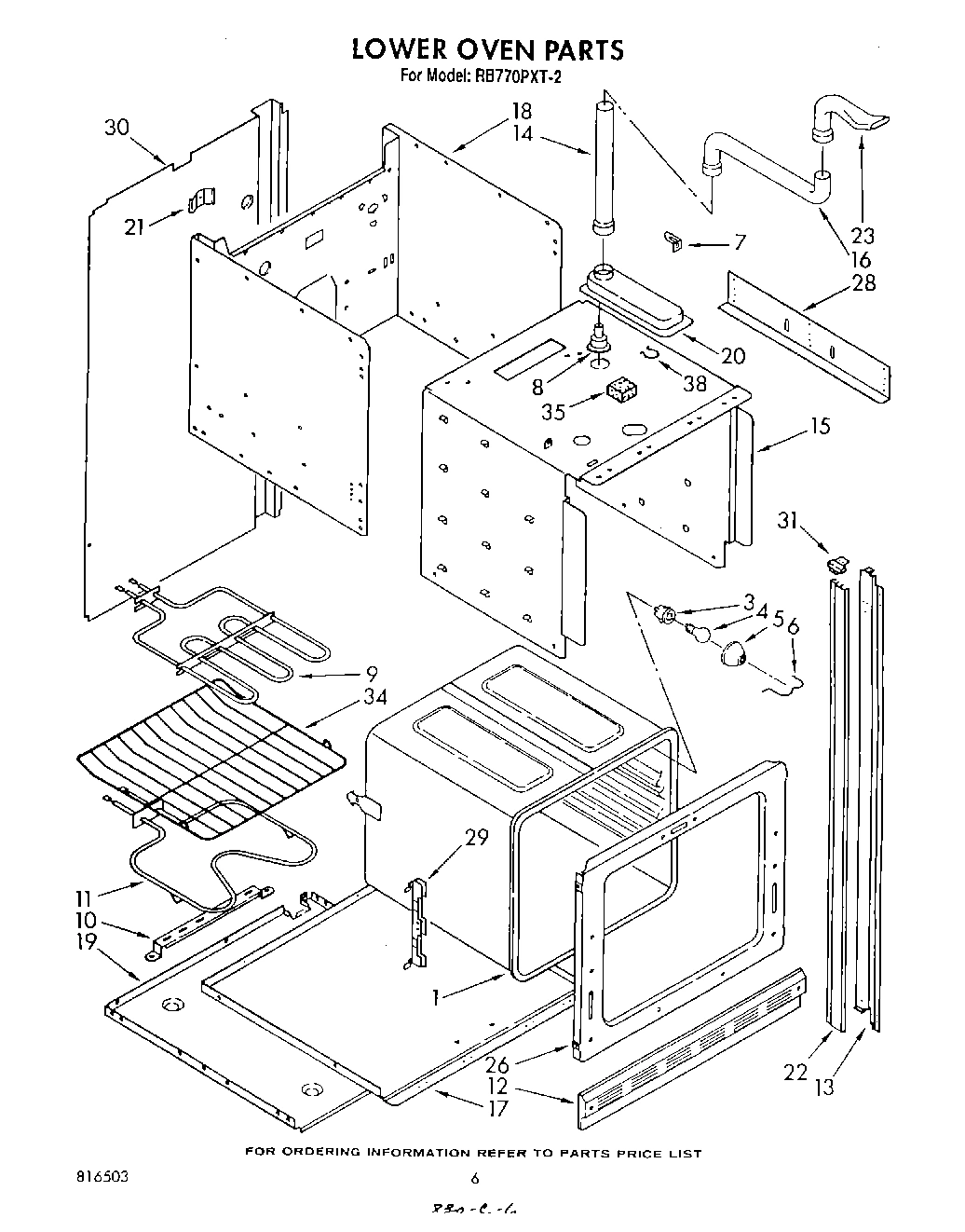

05 - LOWER OVEN
03 - UPPER OVEN DOOR
06 - LOWER OVEN DOOR
02 - CONTROL PANEL AND LATCH
Common parts from model Whirlpool RB770PXT2
1
Oven (27``) WPL 816272 Contact Us For Availability
1
Frame, Oven Door WPL 816506 Contact Us For Availability
1
Frame, Oven Door WPL 816354 Contact Us For Availability
2
Handle, Oven Door WPL 816358 Contact Us For Availability
2
Screw, 10-24 x 2 (2) WPL 816359 Contact Us For Availability
2
Handle, Oven Door WPL 816438 Contact Us For Availability
2
Axle, Latch WPL 877884 Contact Us For Availability
3
Glass, Outer WPL 816356 Contact Us For Availability
3
Latch, Door WPL 816384 Contact Us For Availability
4
Insulation, Oven Door WPL 816441 Contact Us For Availability
4
Motor, Latch Assembly WPL 816289 Contact Us For Availability
5
Lens, Light WPL 877804 Contact Us For Availability
5
Panel, Airwash WPL 816508 Contact Us For Availability
5
Panel, Airwash WPL 816351 Contact Us For Availability
5
Switch, Latch (2) WPL 816454 Contact Us For Availability
6
Retainer, Lens WPL 816291 Contact Us For Availability
6
Glass, Inner WPL 816513 Contact Us For Availability
6
Glass, Inner WPL 816377 Contact Us For Availability
6
Trim, Control Panel WPL 816331 Contact Us For Availability
7
Retainer, Door WPL 816379 Contact Us For Availability
7
Bracket, Vent Tube WPL 816300 Contact Us For Availability
7
Spacer, Glass WPL 816512 Contact Us For Availability
7
Plate, Motor Mounting WPL 816282 Contact Us For Availability
8
Switch, Oven Light WPL 816321 Contact Us For Availability
8
Vent Tube WPL 816447 Contact Us For Availability
8
Liner, Oven Door WPL 816507 Contact Us For Availability
8
Liner, Oven Door WPL 816514 Contact Us For Availability
8
Housing, Control WPL 816275 Contact Us For Availability
9
Unit, Broil WPL 816295 Contact Us For Availability
9
Screw, 10-24 x 2 3/4 (4) WPL 816362 Contact Us For Availability
9
Baffle, Weldment WPL 816510 Contact Us For Availability
9
Rod, Latch WPL 816288 Contact Us For Availability
10
Support, WPL 816297 Contact Us For Availability
10
Seal, Oven Door WPL 816446 Contact Us For Availability
10
Seal-Oven Door WPL 816417 Contact Us For Availability
10
Cover, Housing WPL 816335 Contact Us For Availability
11
Unit, Bake WPL 816293 Contact Us For Availability
11
Screw, 10-16 x 1 (2) WPL 9426223 Contact Us For Availability
12
Trim, Base WPL 816344 Contact Us For Availability
12
Seal, Window WPL 816363 Contact Us For Availability
12
Seal, Window WPL 816376 Contact Us For Availability
12
Housing, Latch WPL 877614 Contact Us For Availability
13
Screw, 10-24 x 5/8 (4) WPL 816270 Contact Us For Availability
13
Side Trim (Inner) (R.H.) WPL 816285 Contact Us For Availability
13
Side Trim (Inner) (L.H.) WPL 816286 Contact Us For Availability
13
Hinge Assy. (2) WPL 816385 Contact Us For Availability
13
Hinge Assy. (2) WPL 816406 Contact Us For Availability
13
Cover, Latch WPL 816276 Contact Us For Availability
14
Vent Tube WPL 816442 Contact Us For Availability
14
Vent Tube WPL 816299 Contact Us For Availability
14
Spacer, Door Handle WPL 816415 Contact Us For Availability
15
Insulation Retainer, Top and Sides WPL 816277 Contact Us For Availability
15
Collar, Glass WPL 816509 Contact Us For Availability
15
Retainer, Glass WPL 816367 Contact Us For Availability
15
Escutcheon, Thermostat Upper Oven WPL 816405 Contact Us For Availability
16
Casing, Top WPL 816303 Contact Us For Availability
16
Vent Tube WPL 816301 Contact Us For Availability
16
Spacer, Handle (2) WPL 816440 Contact Us For Availability
16
Thermostat, Oven (Lower) WPL 816318 Contact Us For Availability
17
Insulation Retainer, Bottom WPL 816278 Contact Us For Availability
17
Spacer, Door (2) WPL 816505 Contact Us For Availability
18
Casing, Back and Sides WPL 816279 Contact Us For Availability
18
Casing, Back and Sides WPL 816280 Contact Us For Availability
19
Casing, Bottom WPL 816283 Contact Us For Availability
19
Strike WPL 877507 Contact Us For Availability
20
Duct, Oven WPL 816298 Contact Us For Availability
21
Spring, Oven (2) WPL 816287 Contact Us For Availability
22
Screw, 10-16 x 1/2 WPL 3149333 Contact Us For Availability
22
Side Trim, Outer (2) WPL 816324 Contact Us For Availability
23
Duct, Oven Vent WPL 816326 Contact Us For Availability
23
Duct, Oven Vent WPL 816327 Contact Us For Availability
24
Bracket, Control WPL 816309 Contact Us For Availability
25
Thermostat, Oven Upper WPL 816314 Contact Us For Availability
26
Front Frame WPL 816386 Contact Us For Availability
26
Front Frame WPL 816407 Contact Us For Availability
26
Switch, Oven Light WPL 816445 Contact Us For Availability
27
Cover, Motor WPL 816319 Contact Us For Availability
27
Switch, Oven Selector WPL 816313 Contact Us For Availability
28
Spacer, Oven WPL 816387 Contact Us For Availability
28
Support, Height (2) WPL 816284 Contact Us For Availability
28
Indicator Light (2) (Lock, Oven) WPL 816315 Contact Us For Availability
28
Indicator Light (Clean) WPL 816316 Contact Us For Availability
29
Channel Assembly, Hinge (2) WPL 816388 Contact Us For Availability
29
Timer (Digital) WPL 816310 Contact Us For Availability
30
Cover, Rear WPL 816341 Contact Us For Availability
31
End Cap, Top (2) WPL 816333 Contact Us For Availability
31
Knob, Timer WPL 816311 Contact Us For Availability
32
Panel, Glass (Control) WPL 816404 Contact Us For Availability
33
Screw, 10-24 x 1/2 (4) WPL 241428 Contact Us For Availability
33
Trim, Vent WPL 816322 Contact Us For Availability
34
Rack, Oven Regular WPL 816342 Contact Us For Availability
34
Screw, 6-32 x 1/2 (4) WPL 487010 Contact Us For Availability
34
Trim, Top WPL 816334 Contact Us For Availability
35
Insulation WPL 816328 Contact Us For Availability
35
Rack, Oven Offset WPL 816343 Contact Us For Availability
36
Grill, Broiler Pan WPL 816448 Contact Us For Availability
36
Bezel, Switch WPL 816332 Contact Us For Availability
37
Button, Clock (4) WPL 816439 Contact Us For Availability
38
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
Wire, White 14 Ga. 150 oC WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Wire, Red 12 Ga. 150 oC WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Wire, Yellow 14 Ga. 200 oC WPL 242832 Contact Us For Availability
38
WPL 261582 WPL 261582 Contact Us For Availability
38
WPL 261810 WPL 261810 Contact Us For Availability
38
Retainer WPL 816329 Contact Us For Availability
39
Bumper (6) WPL 868363 Contact Us For Availability
47
Screw, 8-32 x 3/16 WPL 877919 Contact Us For Availability
47
Escutcheon, Thermostat - Lower Oven WPL 311067 Contact Us For Availability
× ![]()
