Model Whirlpool RB760PXXB0 – Common Parts & Diagrams
06 - UNIT
05 - COMPONENT SHELF AND LATCH

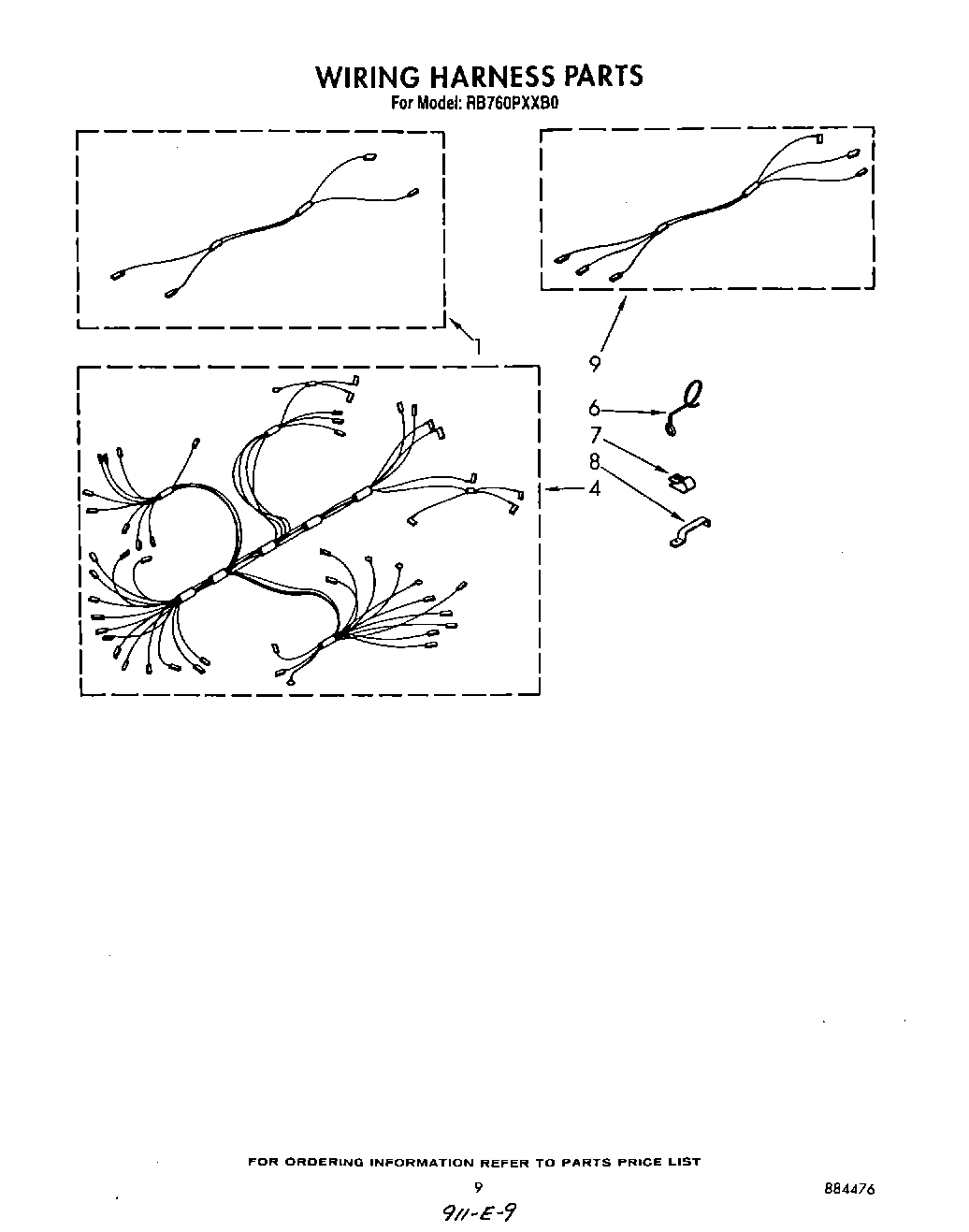

07 - WIRING HARNESS
02 - CONTROL PANEL, OPTIONAL

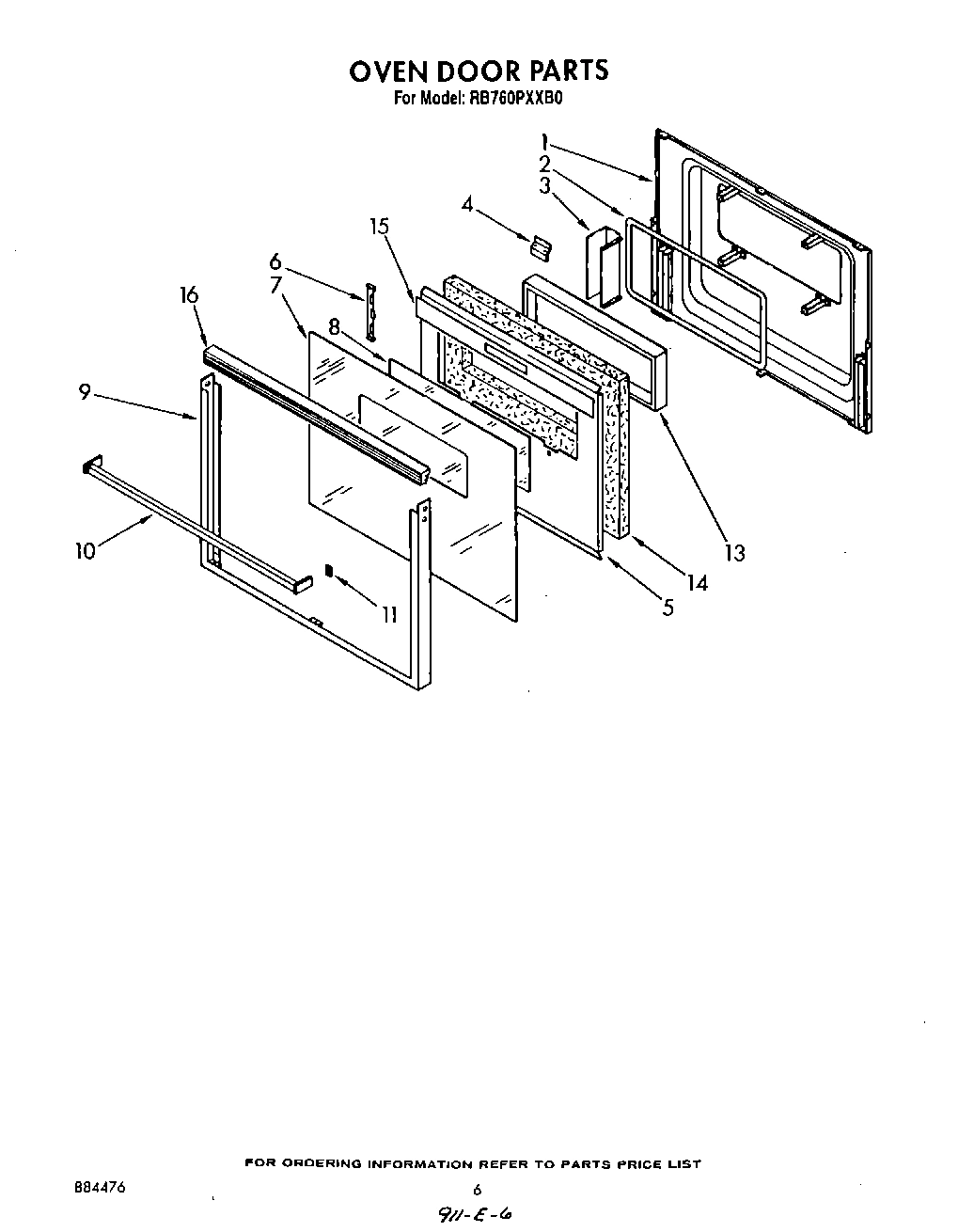

04 - OVEN DOOR

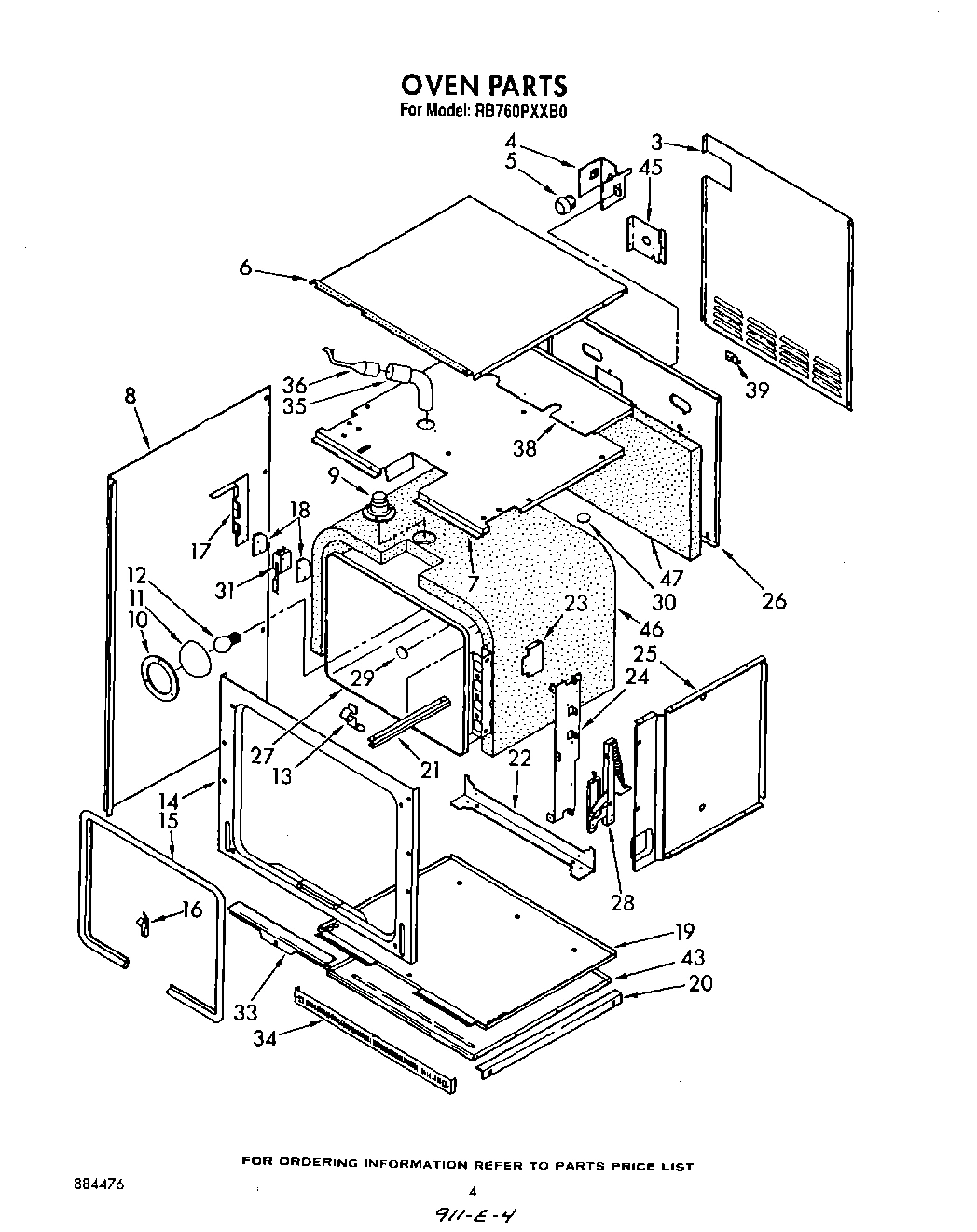

03 - OVEN
Common parts from model Whirlpool RB760PXXB0
Use & Care Guide WPL LIT3180016 Contact Us For Availability
Tech Sheet WPL LIT3180386 Contact Us For Availability
Installation Instructions WPL LIT3180568 Contact Us For Availability
Repair Parts List WPL LIT884476 Contact Us For Availability
1
Wiring Harness Door Switch WPL 3179941 Contact Us For Availability
1
End Cap (Left Hand) WPL 3179458 Contact Us For Availability
1
End Cap (Right Hand) WPL 3179459 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
2
Trim, Top WPL 3179421 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
3
Trim, Center WPL 3180683 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
3
Cabinet, Back WPL 3177625 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Wiring Harness (Oven) WPL 3180384 Contact Us For Availability
4
Door, Vent WPL 3179452 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Housing, Light WPL 3177446 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
End Trim, Vent Door (Left Hand) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door (Right Hand) WPL 3148698 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
5
Socket, Light WPL 3177981 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Trim, Bottom WPL 3180656 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Cabinet, Top WPL 3178138 Contact Us For Availability
7
Handle, Latch WPL 3180409 Contact Us For Availability
7
Glass, Control Panel WPL 3180534 Contact Us For Availability
7
Glass, Door WPL 3179498 Contact Us For Availability
7
Top, Module WPL 3177436 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Screw (2) WPL 3179116 Contact Us For Availability
8
Screw (2) WPL 3179950 Contact Us For Availability
8
Screw WPL 3180567 Contact Us For Availability
8
Rail, Mounting (Components) WPL 3180289 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Side, Cabinet Left & Right Side WPL 3177442 Contact Us For Availability
9
Wiring Harness (Latch Assembly) WPL 3180731 Contact Us For Availability
9
Retainer, Glass (6) WPL 3180440 Contact Us For Availability
9
Frame, Door WPL 3180607 Contact Us For Availability
9
Tube, Vent WPL 4168492 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Plate, Mounting (Clock) WPL 3180293 Contact Us For Availability
10
Handle, Door WPL 3179481 Contact Us For Availability
10
Retainer, Glass WPL 3177447 Contact Us For Availability
11
Clip, Mounting WPL 3148282 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Timer WPL 3149806 Contact Us For Availability
11
Screw (3) WPL 3180967 Contact Us For Availability
11
Glass, Oven Light WPL 4166866 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Screw (12) WPL 3178001 Contact Us For Availability
12
Switch, Oven Light WPL 3179891 Contact Us For Availability
12
Retainer, Glass WPL 4167975 Contact Us For Availability
13
Shield, Heat WPL 3180542 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Plate, Mounting (Controls) WPL 3180294 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Frame, Front WPL 3177689 Contact Us For Availability
15
Baffle, Air WPL 3180693 Contact Us For Availability
15
Switch, Selector WPL 3178234 Contact Us For Availability
15
Shield, Door WPL 3181348 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Screw (2) WPL 3180040 Contact Us For Availability
16
Thermostat, Oven WPL 3178273 Contact Us For Availability
16
Trim, Door WPL 3179476 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Support, Latch WPL 3180692 Contact Us For Availability
17
Light, Indicator (3) WPL 4168598 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
19
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Insert, Vent WPL 3179916 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Bracket, Mounting WPL 3181279 Contact Us For Availability
21
Screw (4) WPL 3179117 Contact Us For Availability
21
Support, Element (2) WPL 4168217 Contact Us For Availability
22
Escutcheon, Oven Thermostat WPL 3180524 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bezel Switch WPL 313030 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Button, Set WPL 313958 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Knob, Bit Generator WPL 313523 Contact Us For Availability
26
Back, Module WPL 3177556 Contact Us For Availability
27
Screw, WPL 254225 Contact Us For Availability
27
Escutcheon, Selector Switch WPL 3180525 Contact Us For Availability
27
Liner, Oven WPL 3177466 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 4159122 Contact Us For Availability
30
Button, Plug WPL 4159120 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Insulator, Switch WPL 3177923 Contact Us For Availability
33
Screw (2) WPL 3179776 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Screw (2) WPL 4168863 Contact Us For Availability
34
Vent, Lower Trim WPL 3177783 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent Tube (Upper Male) WPL 3180321 Contact Us For Availability
37
Shield, Vent WPL 3178614 Contact Us For Availability
38
Extension, Shelf WPL 3178132 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3177862 Contact Us For Availability
47
Insulation, Back WPL 3177868 Contact Us For Availability
× ![]()
