Model GE RB557GV2WH – Common Parts & Diagrams

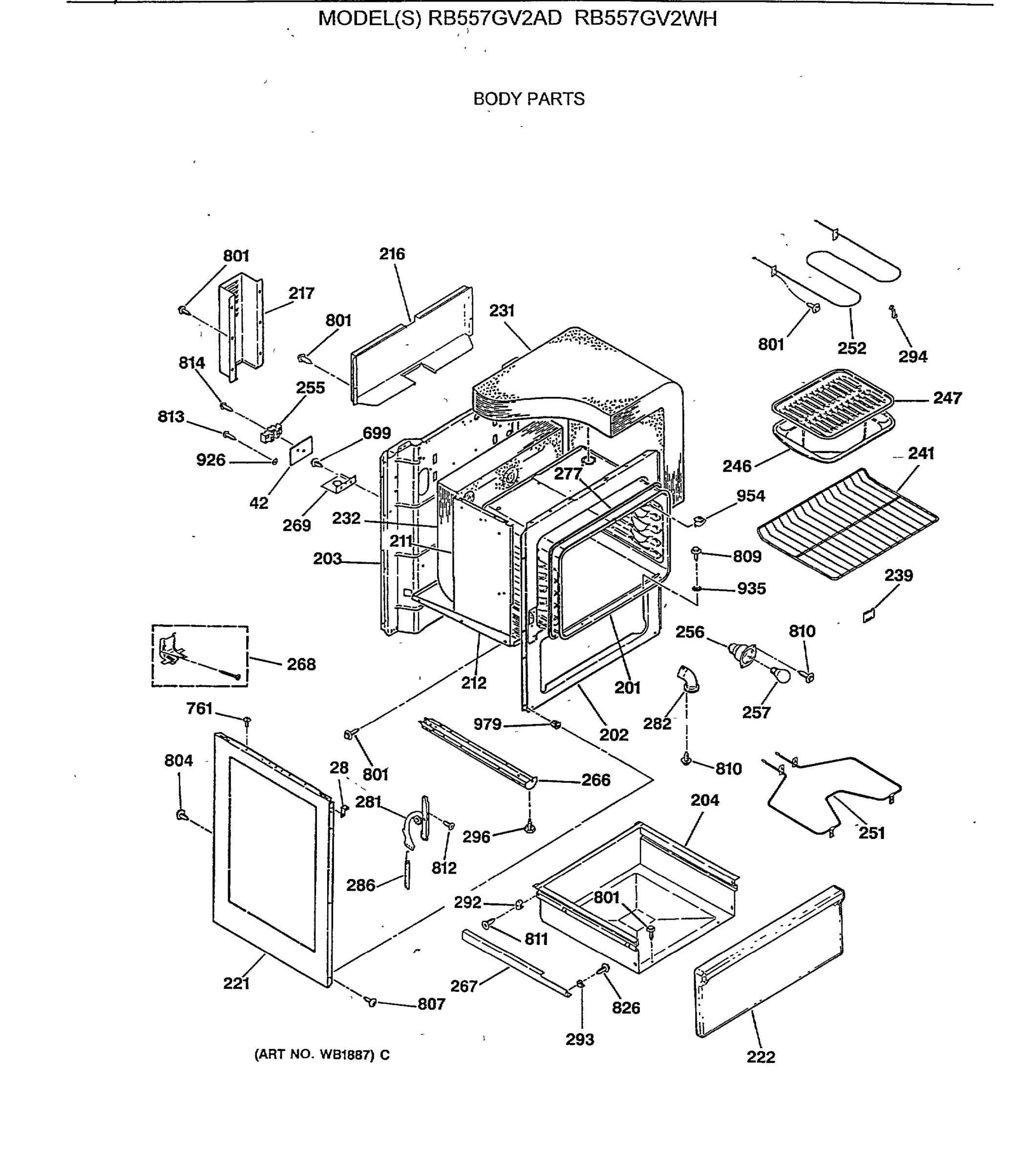

BODY PARTS

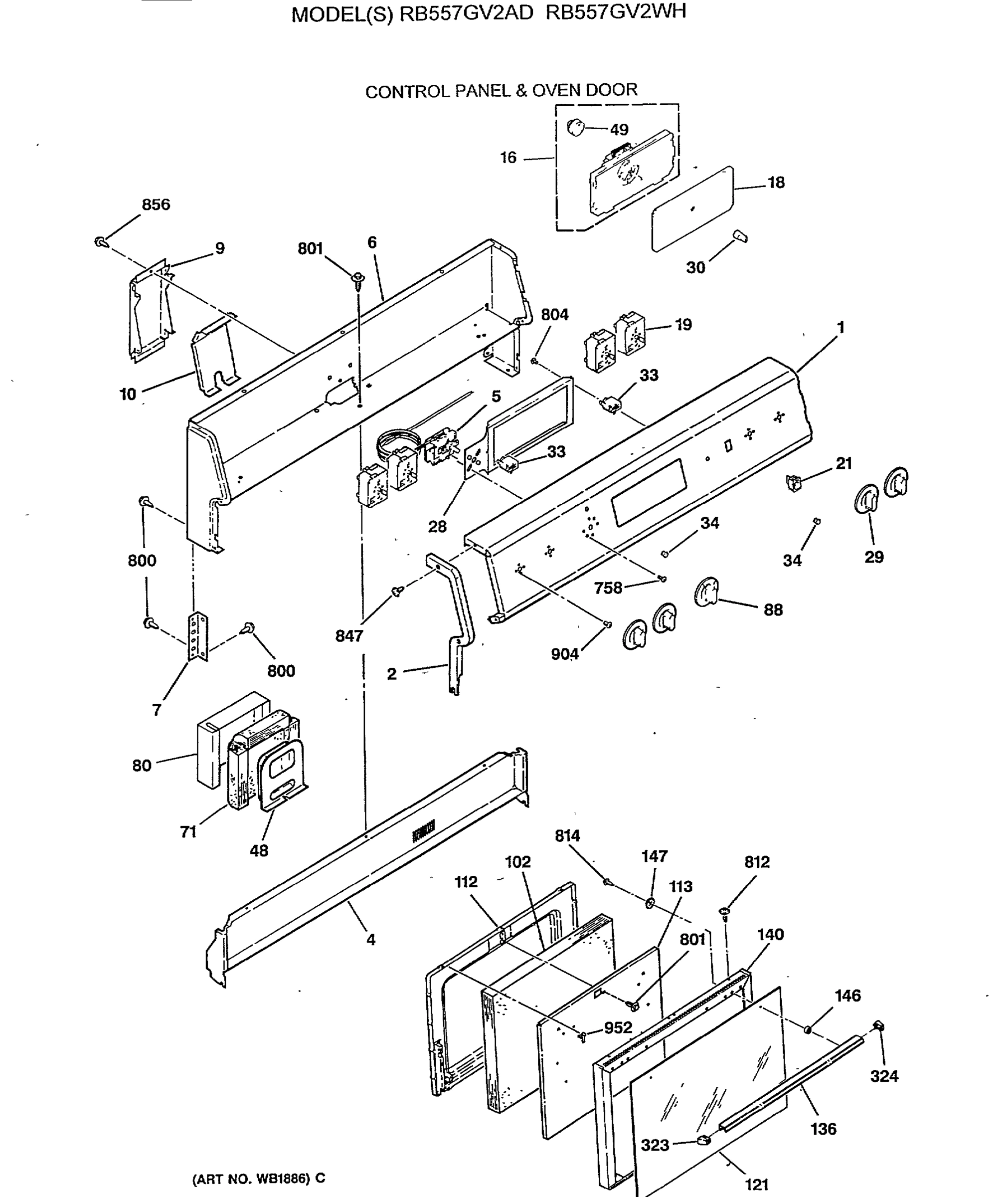

CONTROL PANEL & OVEN DOOR

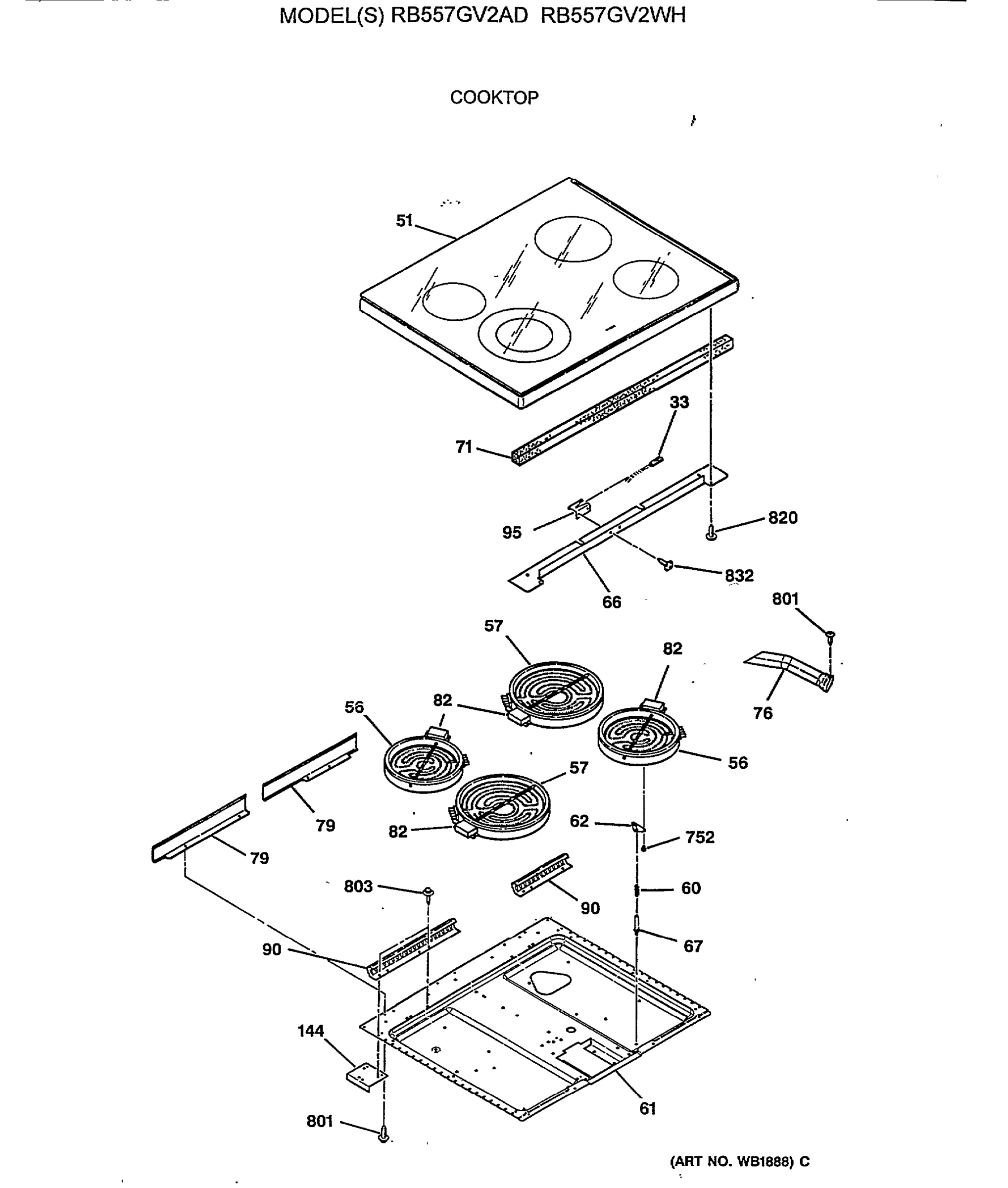

COOKTOP
Common parts from model GE RB557GV2WH
1
GEN WB36K5598 GEN WB36K5598 Contact Us For Availability
2
GEN WB36K5380 GEN WB36K5380 Contact Us For Availability
2
GEN WB36K5381 GEN WB36K5381 Contact Us For Availability
4
GEN WB37K5032 GEN WB37K5032 Contact Us For Availability
6
GEN WB37K5035 GEN WB37K5035 Contact Us For Availability
7
BKGD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT LT GEN WB06X0128 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
COVER RACEWAY GEN WB06X0134 Contact Us For Availability
16
GEN WB11K5015 GEN WB11K5015 Contact Us For Availability
18
GEN WB57K5150 GEN WB57K5150 Contact Us For Availability
19
GEN WB23M0023 GEN WB23M0023 Contact Us For Availability
28
GEN WB02K5219 GEN WB02K5219 Contact Us For Availability
28
GEN WB02K5268 GEN WB02K5268 Contact Us For Availability
29
GEN WB03K5252 GEN WB03K5252 Contact Us For Availability
33
GEN WB25K5022 GEN WB25K5022 Contact Us For Availability
48
GEN WB38K5049 GEN WB38K5049 Contact Us For Availability
49
GEN WB11X0008 GEN WB11X0008 Contact Us For Availability
56
GEN WB23K5039 GEN WB23K5039 Contact Us For Availability
57
GEN WB23K5040 GEN WB23K5040 Contact Us For Availability
60
GEN WB09K5014 GEN WB09K5014 Contact Us For Availability
61
GEN WB64K5068 GEN WB64K5068 Contact Us For Availability
66
GEN WB34K5199 GEN WB34K5199 Contact Us For Availability
71
GEN WB35K5052 GEN WB35K5052 Contact Us For Availability
71
GEN WB35K5111 GEN WB35K5111 Contact Us For Availability
76
GEN WB38K5050 GEN WB38K5050 Contact Us For Availability
79
BURN BOX BTM BAFFLE-LT GEN WB34M0045 Contact Us For Availability
79
BURN BOX BTM BAFFLE-RT GEN WB34M0046 Contact Us For Availability
80
GEN WB38K5033 GEN WB38K5033 Contact Us For Availability
82
GEN WB24K5070 GEN WB24K5070 Contact Us For Availability
82
GEN WB24K5071 GEN WB24K5071 Contact Us For Availability
88
GEN WB03K5251 GEN WB03K5251 Contact Us For Availability
90
GLASS SUPPORT-RIGHT GEN WB02X9876 Contact Us For Availability
90
GLASS SUPPORT-LEFT GEN WB02X9877 Contact Us For Availability
95
GEN WB02K5157 GEN WB02K5157 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
GEN WB55K5042 GEN WB55K5042 Contact Us For Availability
113
GEN WB02K5315 GEN WB02K5315 Contact Us For Availability
121
GEN WB57K5213 GEN WB57K5213 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
144
GEN WB02K5316 GEN WB02K5316 Contact Us For Availability
146
DOOR HANDLE SPACER-BLACK GEN WB02X9037 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
211
GEN WB02M0038 GEN WB02M0038 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
WIRE COVER-REAR-UPP GEN WB34M0020 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
221
BODY SIDE-TEXTURED-WHITE GEN WB63K5188 Contact Us For Availability
222
LOWER FRONT PANEL-WHITE GEN WB56K5059 Contact Us For Availability
231
GEN WB35K5074 GEN WB35K5074 Contact Us For Availability
232
GEN WB35K5073 GEN WB35K5073 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
266
GEN WB02K5274 GEN WB02K5274 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
277
GEN WB32K5051 GEN WB32K5051 Contact Us For Availability
282
GEN WB38M0001 GEN WB38M0001 Contact Us For Availability
286
GEN WB09X0264 GEN WB09X0264 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB02X9188 GEN WB02X9188 Contact Us For Availability
323
GEN WB07K0087 GEN WB07K0087 Contact Us For Availability
324
GEN WB07K0088 GEN WB07K0088 Contact Us For Availability
614
CLAMP GEN WB02X9737 Contact Us For Availability
752
GEN WB00X6542 GEN WB00X6542 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
812
SCREW-BLACK GEN WB01K5160 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
904
GEN WB01X5550 GEN WB01X5550 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
952
GEN WB02K5359 GEN WB02K5359 Contact Us For Availability
954
THERMOSTAT BULB RET CLIP GEN WB02X9105 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
999
GEN 31-10059 GEN 31-10059 Contact Us For Availability
999
GEN 31-13216 GEN 31-13216 Contact Us For Availability
999
GEN 39-4748 GEN 39-4748 Contact Us For Availability
999
GEN WB18K5500 GEN WB18K5500 Contact Us For Availability
999
GEN WB18K5578 GEN WB18K5578 Contact Us For Availability
× ![]()
