Model Hotpoint RB536V1 Electric Range – Common Parts & Diagrams

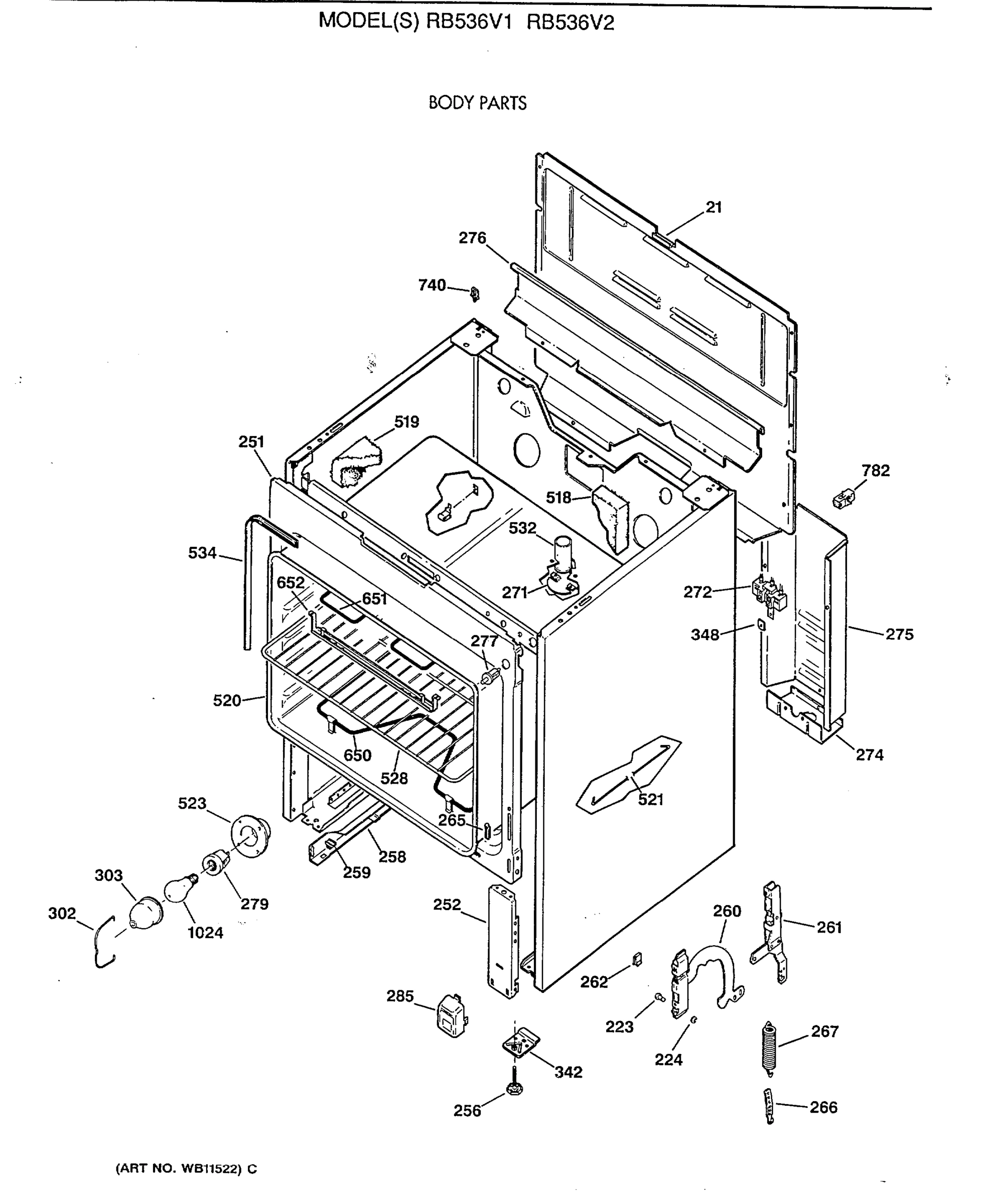

BODY PARTS

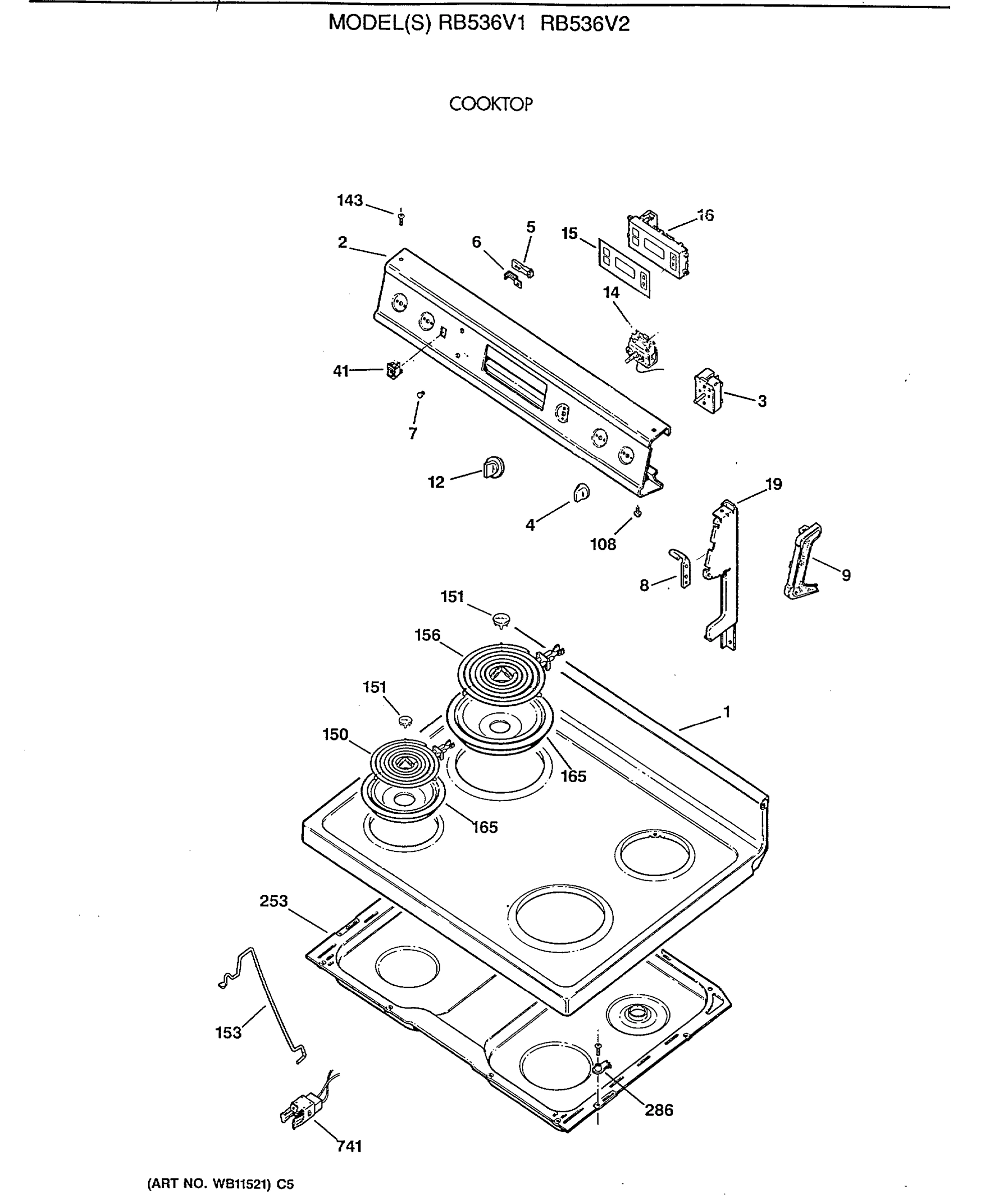

COOKTOP
DOOR & DRAWER PARTS
Common parts from model Hotpoint RB536V1 Electric Range
1
GEN WB62X5427 GEN WB62X5427 Contact Us For Availability
2
TRIM & BRACKET ASM - BLK GEN WB36X5765 Contact Us For Availability
4
GEN WB03X5792 GEN WB03X5792 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
6
CLIP - LAMP GEN WB02X1185 Contact Us For Availability
8
GEN WB02X8126 GEN WB02X8126 Contact Us For Availability
8
GEN WB02X8127 GEN WB02X8127 Contact Us For Availability
9
GEN WB07X7136 GEN WB07X7136 Contact Us For Availability
9
GEN WB07X7137 GEN WB07X7137 Contact Us For Availability
12
GEN WB03X5793 GEN WB03X5793 Contact Us For Availability
15
GEN WB27X5561 GEN WB27X5561 Contact Us For Availability
16
GEN WB27X5559 GEN WB27X5559 Contact Us For Availability
19
PLATE END RH - WHITE GEN WB07X7272 Contact Us For Availability
19
PLATE END LH - WHITE GEN WB07X7273 Contact Us For Availability
19
GEN WB07X7274 GEN WB07X7274 Contact Us For Availability
19
GEN WB07X7275 GEN WB07X7275 Contact Us For Availability
41
GEN WB24X5290 GEN WB24X5290 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
153
GEN WB02X8114 GEN WB02X8114 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X5117 GEN WB09X5117 Contact Us For Availability
271
BAFFLE GEN WB02X1626 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
276
GEN WB2X8105 GEN WB2X8105 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5533 GEN WB49X5533 Contact Us For Availability
350
GEN WB55X5373 GEN WB55X5373 Contact Us For Availability
358
PANEL DOOR ASM AD GEN WB56X7058 Contact Us For Availability
358
PANEL DOOR ASM WH GEN WB56X7068 Contact Us For Availability
360
GEN WB49X5522 GEN WB49X5522 Contact Us For Availability
361
GEN WB01X5873 GEN WB01X5873 Contact Us For Availability
364
GEN WB02X8443 GEN WB02X8443 Contact Us For Availability
366
GEN WB02X3241 GEN WB02X3241 Contact Us For Availability
375
GEN WB36X5679 GEN WB36X5679 Contact Us For Availability
376
GEN WB02X2978 GEN WB02X2978 Contact Us For Availability
377
GEN WB07X7069 GEN WB07X7069 Contact Us For Availability
400
GEN WB36X0526 GEN WB36X0526 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
457
GEN WB56X7069 GEN WB56X7069 Contact Us For Availability
518
GEN WB02X8120 GEN WB02X8120 Contact Us For Availability
519
GEN WB02X8121 GEN WB02X8121 Contact Us For Availability
520
CLIP THERMOMSTAT GEN WB02X8441 Contact Us For Availability
520
GEN WB53X5149 GEN WB53X5149 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5122 GEN WB09X5122 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
752
GEN WB00X6542 GEN WB00X6542 Contact Us For Availability
904
GEN WB01X5550 GEN WB01X5550 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
32767
GEN 31-0824 GEN 31-0824 Contact Us For Availability
32767
GEN 31-20092 GEN 31-20092 Contact Us For Availability
32767
GEN 340732 GEN 340732 Contact Us For Availability
32767
GEN 39-4741 GEN 39-4741 Contact Us For Availability
× ![]()
