Model Hotpoint RB536GW3 Electric Range – Common Parts & Diagrams

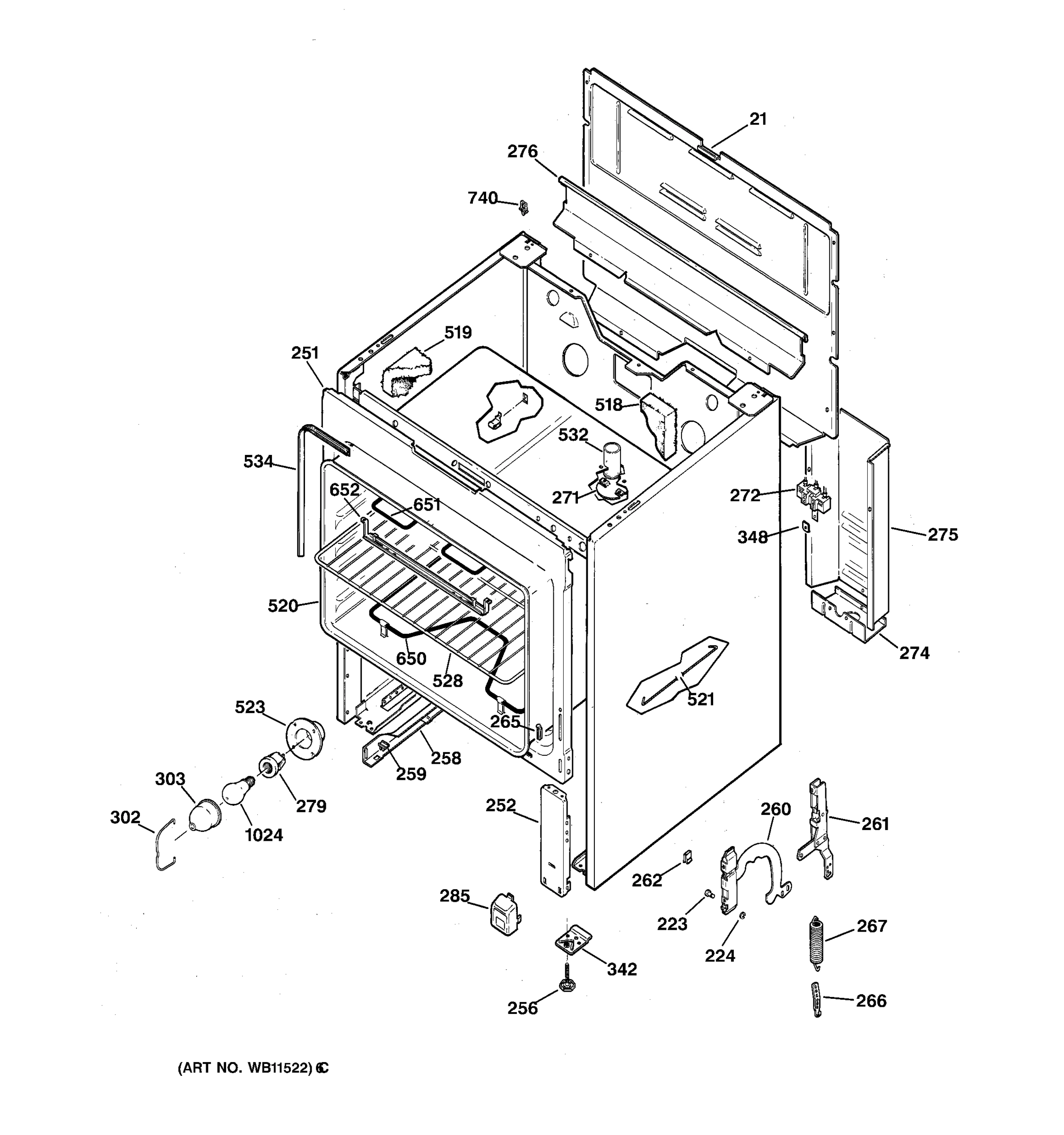

BODY PARTS

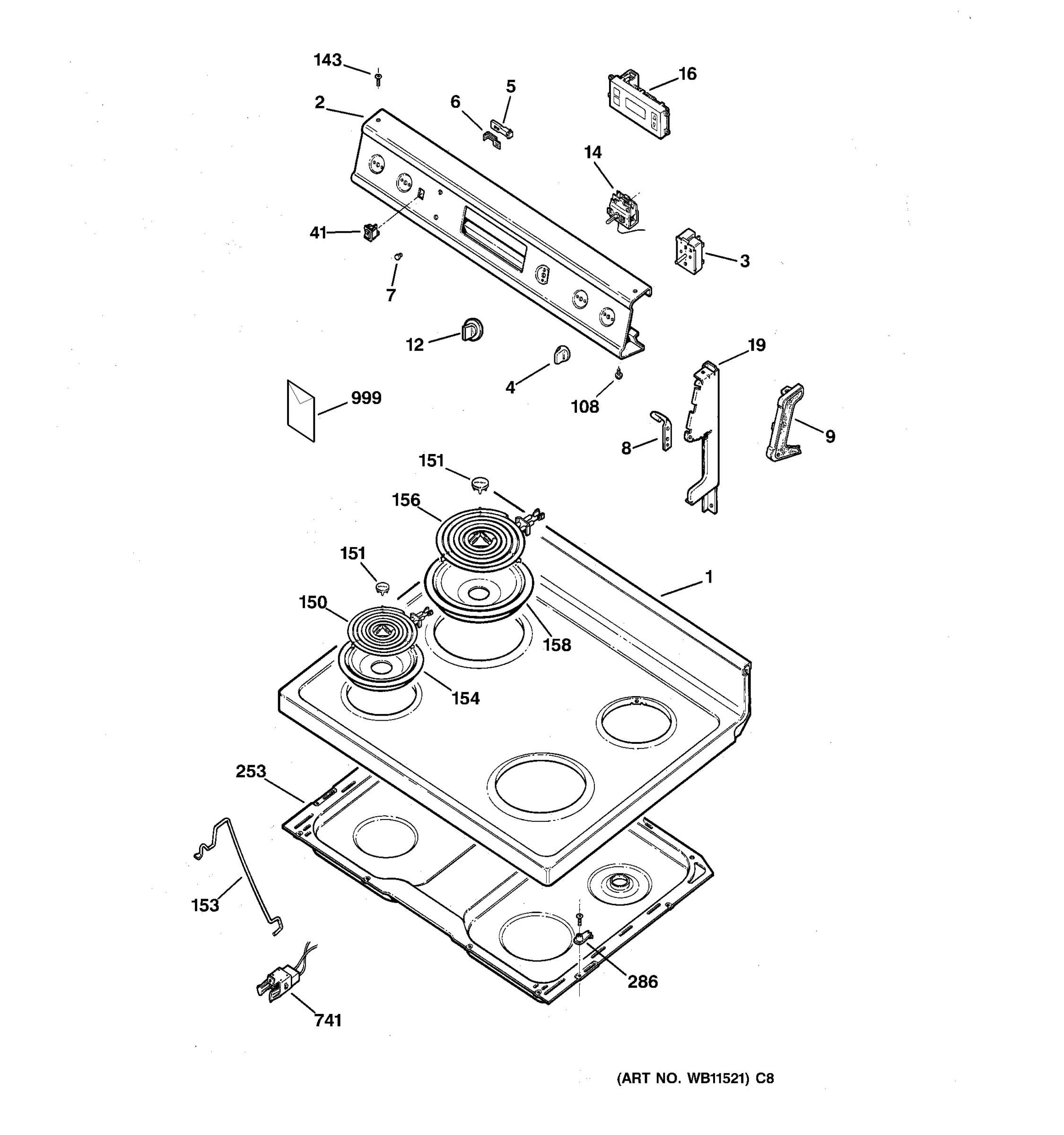

CONTROL PANEL & COOKTOP

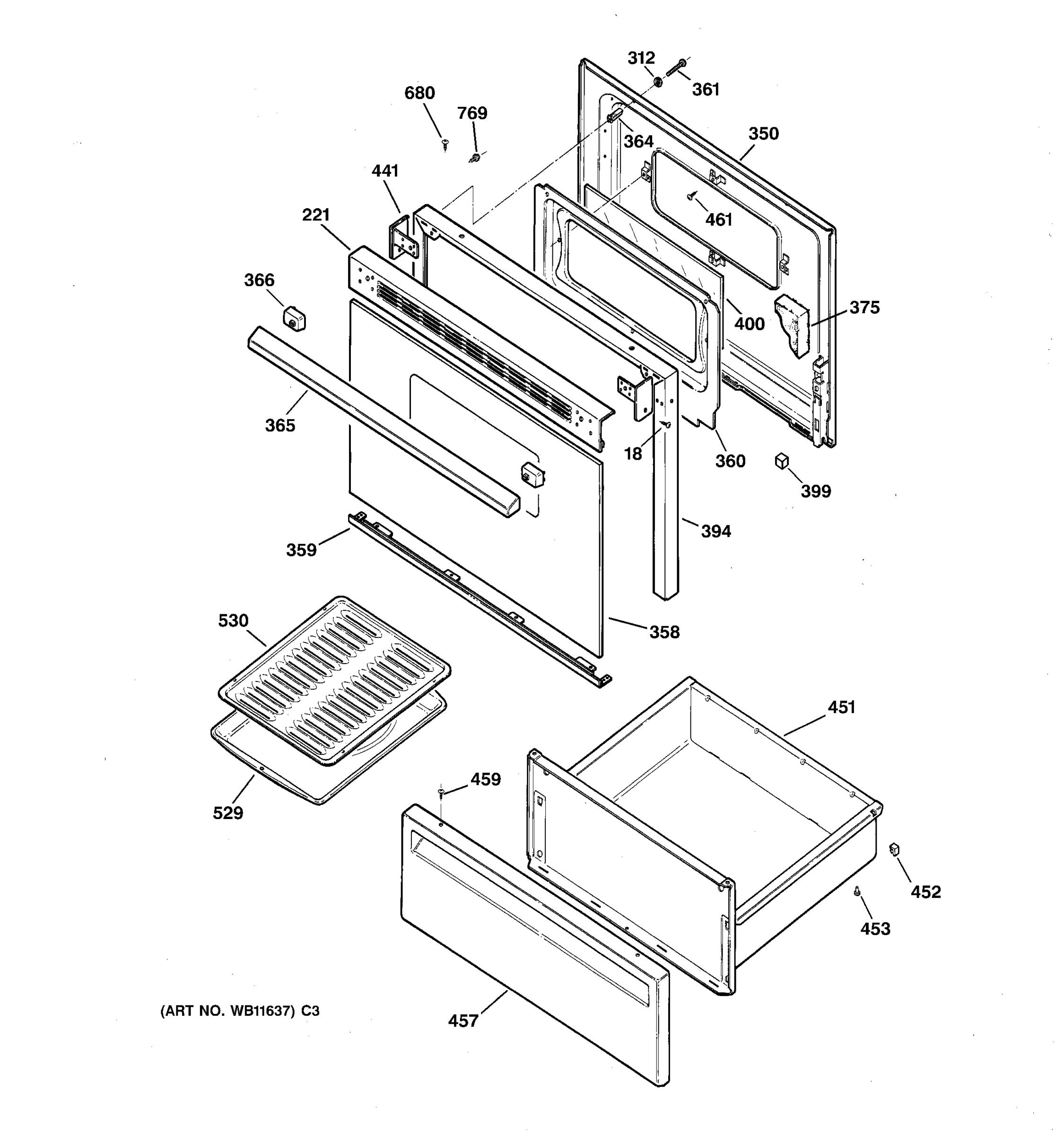

DOOR & DRAWER PARTS
Common parts from model Hotpoint RB536GW3 Electric Range
1
WELD ASM RANGETOP WH GEN WB62X5451 Contact Us For Availability
2
TRIM BRACKET ASM GEN WB36X5765 Contact Us For Availability
4
GEN WB03X5792 GEN WB03X5792 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
6
CLIP LAMP GEN WB02X1185 Contact Us For Availability
8
GEN WB02X10485 GEN WB02X10485 Contact Us For Availability
8
GEN WB02X10486 GEN WB02X10486 Contact Us For Availability
9
GEN WB07X7136 GEN WB07X7136 Contact Us For Availability
9
GEN WB07X7137 GEN WB07X7137 Contact Us For Availability
12
GEN WB03X5793 GEN WB03X5793 Contact Us For Availability
16
GEN WB27X5598 GEN WB27X5598 Contact Us For Availability
18
GEN WR01X1768 GEN WR01X1768 Contact Us For Availability
19
GEN PLATE END RH BK GEN PLATE END RH BK Contact Us For Availability
19
GEN WB07X10154 GEN WB07X10154 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
153
GEN WB02X8114 GEN WB02X8114 Contact Us For Availability
221
GEN WB07X7342 GEN WB07X7342 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
258
DRAWER GUIDE RH LH GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X0146 GEN WB09X0146 Contact Us For Availability
271
BAFFLE GEN WB02X1626 Contact Us For Availability
274
GEN WB02X8247 GEN WB02X8247 Contact Us For Availability
275
GEN WB02X8249 GEN WB02X8249 Contact Us For Availability
276
GEN WB02X8105 GEN WB02X8105 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
342
GEN WB02X8241 GEN WB02X8241 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
350
GEN WB55X5373 GEN WB55X5373 Contact Us For Availability
358
GEN WB36X5691 GEN WB36X5691 Contact Us For Availability
360
GEN WB49X5522 GEN WB49X5522 Contact Us For Availability
361
GEN WB01X5873 GEN WB01X5873 Contact Us For Availability
364
GEN WB02X8558 GEN WB02X8558 Contact Us For Availability
366
GEN WB02X8245 GEN WB02X8245 Contact Us For Availability
375
GEN WB02X8411 GEN WB02X8411 Contact Us For Availability
394
GEN WB07X7340 GEN WB07X7340 Contact Us For Availability
394
GEN WB07X7341 GEN WB07X7341 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
GEN WB36X0526 GEN WB36X0526 Contact Us For Availability
441
GEN WB07X7289 GEN WB07X7289 Contact Us For Availability
441
GEN WB07X7290 GEN WB07X7290 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
457
GEN WB56X7069 GEN WB56X7069 Contact Us For Availability
518
GEN WB02X8120 GEN WB02X8120 Contact Us For Availability
519
GEN WB02X8121 GEN WB02X8121 Contact Us For Availability
520
CLIP THERMOMSTAT GEN WB02X8441 Contact Us For Availability
520
GEN WB53X5149 GEN WB53X5149 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
999
GEN 31-0824 GEN 31-0824 Contact Us For Availability
999
GEN 31-20432 GEN 31-20432 Contact Us For Availability
999
GEN 49-8853 GEN 49-8853 Contact Us For Availability
× ![]()
