Model Hotpoint RB525DP2WH Electric Range – Common Parts & Diagrams

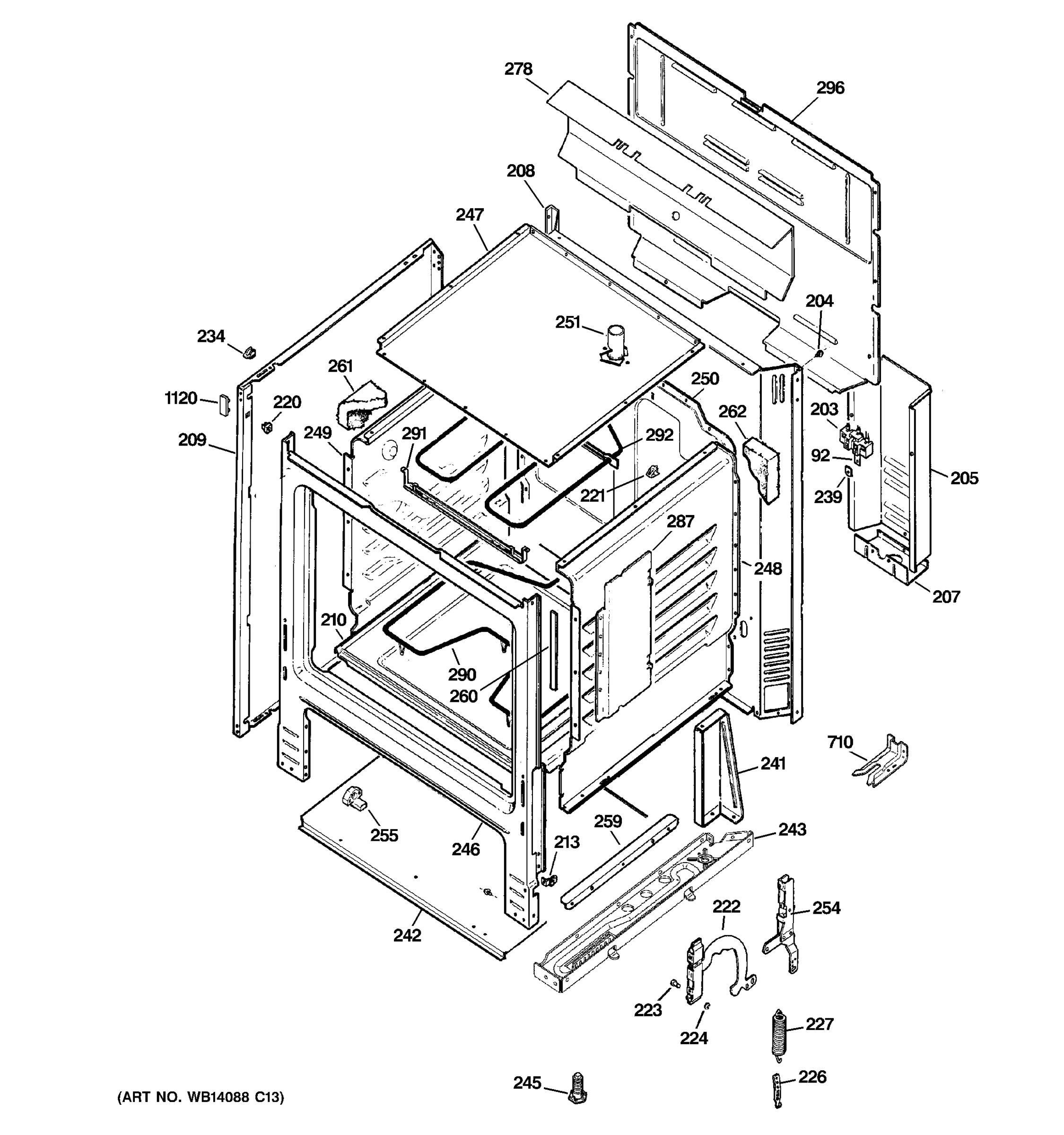

BODY PARTS

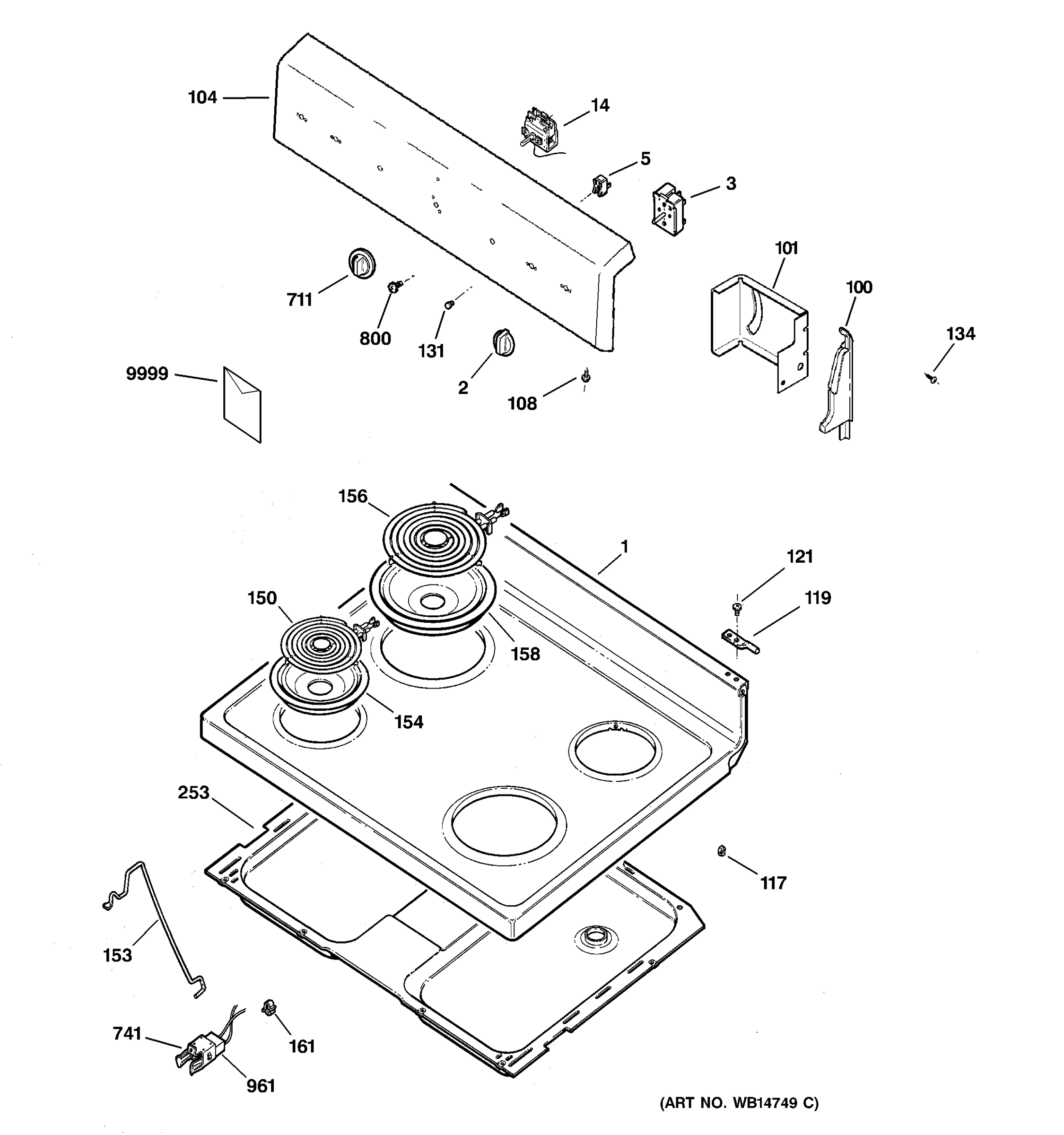

CONTROL PANEL & COOKTOP

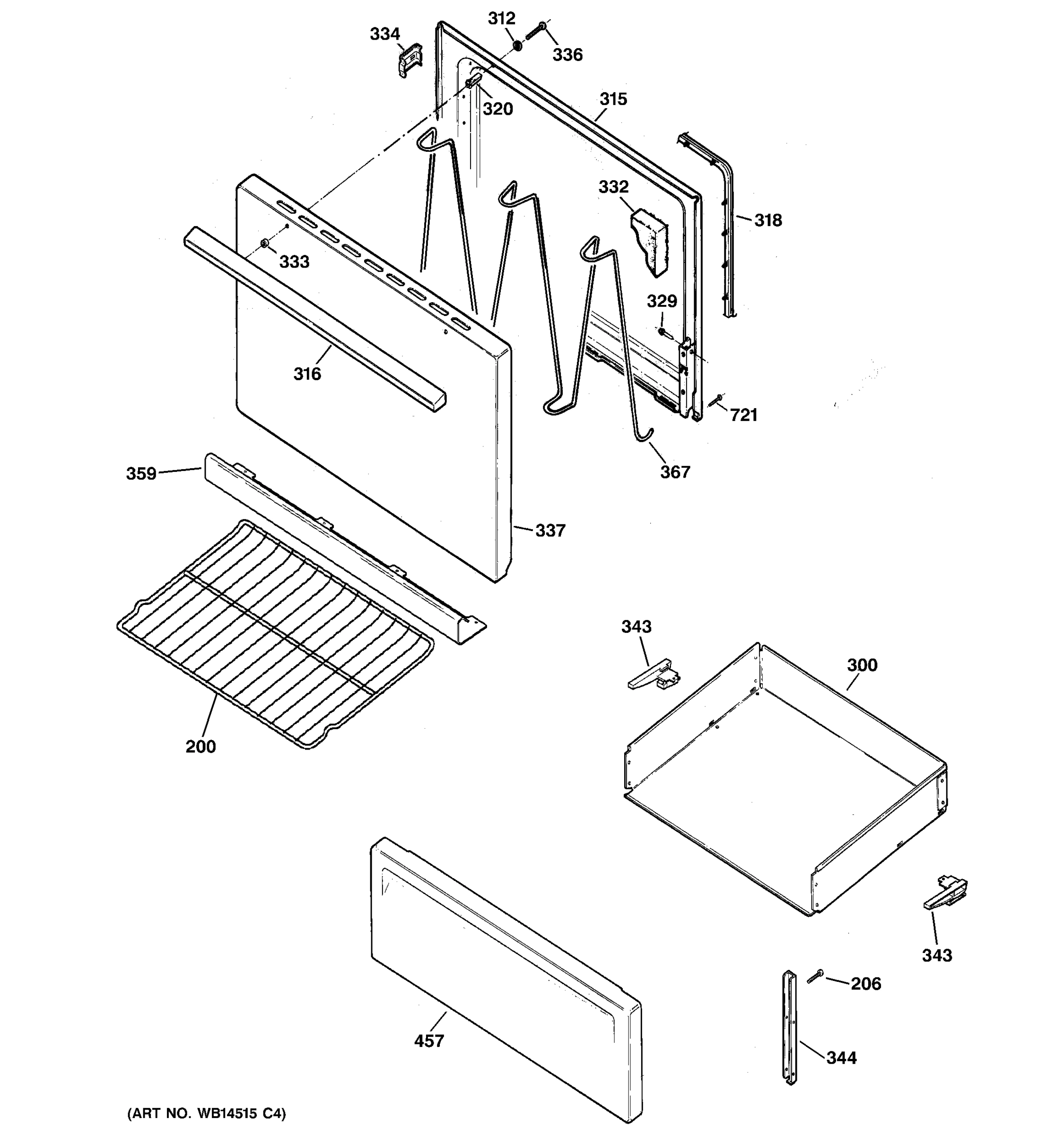

DOOR & DRAWER PARTS
Common parts from model Hotpoint RB525DP2WH Electric Range
1
GEN WB62K10083 GEN WB62K10083 Contact Us For Availability
2
GEN WB03T10072 GEN WB03T10072 Contact Us For Availability
3
INF SW CNTL 2100W GEN WB24T10027 Contact Us For Availability
3
GEN WB24T10022 GEN WB24T10022 Contact Us For Availability
5
GEN WB25K10002 GEN WB25K10002 Contact Us For Availability
14
GEN WB02K10070 GEN WB02K10070 Contact Us For Availability
100
END SUPPORT GLOSS BK RG GEN WB07K10193 Contact Us For Availability
100
END SUPPORT GLOSS BK LT GEN WB07K10194 Contact Us For Availability
117
GEN WB02K10075 GEN WB02K10075 Contact Us For Availability
153
GEN WB02K10026 GEN WB02K10026 Contact Us For Availability
156
GEN WB30K10021 GEN WB30K10021 Contact Us For Availability
203
GEN WB17T10011 GEN WB17T10011 Contact Us For Availability
205
GEN WB34K10029 GEN WB34K10029 Contact Us For Availability
206
GEN WB01K10091 GEN WB01K10091 Contact Us For Availability
207
GEN WB02K10029 GEN WB02K10029 Contact Us For Availability
208
GEN WB63K10005 GEN WB63K10005 Contact Us For Availability
226
GEN WB09K10001 GEN WB09K10001 Contact Us For Availability
242
GEN WB63K10009 GEN WB63K10009 Contact Us For Availability
245
GEN WB02K10182 GEN WB02K10182 Contact Us For Availability
247
GEN WB63K10021 GEN WB63K10021 Contact Us For Availability
251
GEN WB04K10002 GEN WB04K10002 Contact Us For Availability
251
GEN WB38K10002 GEN WB38K10002 Contact Us For Availability
253
GEN WB64K10009 GEN WB64K10009 Contact Us For Availability
254
GEN WB10K10009 GEN WB10K10009 Contact Us For Availability
254
GEN WB10K10010 GEN WB10K10010 Contact Us For Availability
255
GEN WB02K10158 GEN WB02K10158 Contact Us For Availability
261
GEN WB35K10108 GEN WB35K10108 Contact Us For Availability
262
GEN WB35K10107 GEN WB35K10107 Contact Us For Availability
291
GEN WB02K10028 GEN WB02K10028 Contact Us For Availability
300
GEN WB58K10007 GEN WB58K10007 Contact Us For Availability
320
GEN WB02K10156 GEN WB02K10156 Contact Us For Availability
333
GEN WB01K10079 GEN WB01K10079 Contact Us For Availability
337
GEN WB56K10045 GEN WB56K10045 Contact Us For Availability
343
GEN WB02K10062 GEN WB02K10062 Contact Us For Availability
343
GEN WB02K10061 GEN WB02K10061 Contact Us For Availability
344
GEN WB02K10025 GEN WB02K10025 Contact Us For Availability
359
GEN WB07K10342 GEN WB07K10342 Contact Us For Availability
711
GEN WB03K10185 GEN WB03K10185 Contact Us For Availability
741
GEN WB02K10133 GEN WB02K10133 Contact Us For Availability
800
GEN WB01K10042 GEN WB01K10042 Contact Us For Availability
1120
GEN WB02K10179 GEN WB02K10179 Contact Us For Availability
× ![]()
