Model Whirlpool RB270PXK1 – Common Parts & Diagrams
03 - UPPER OVEN
05 - LOWER OVEN DOOR , LITERATURE AND OPTIONAL

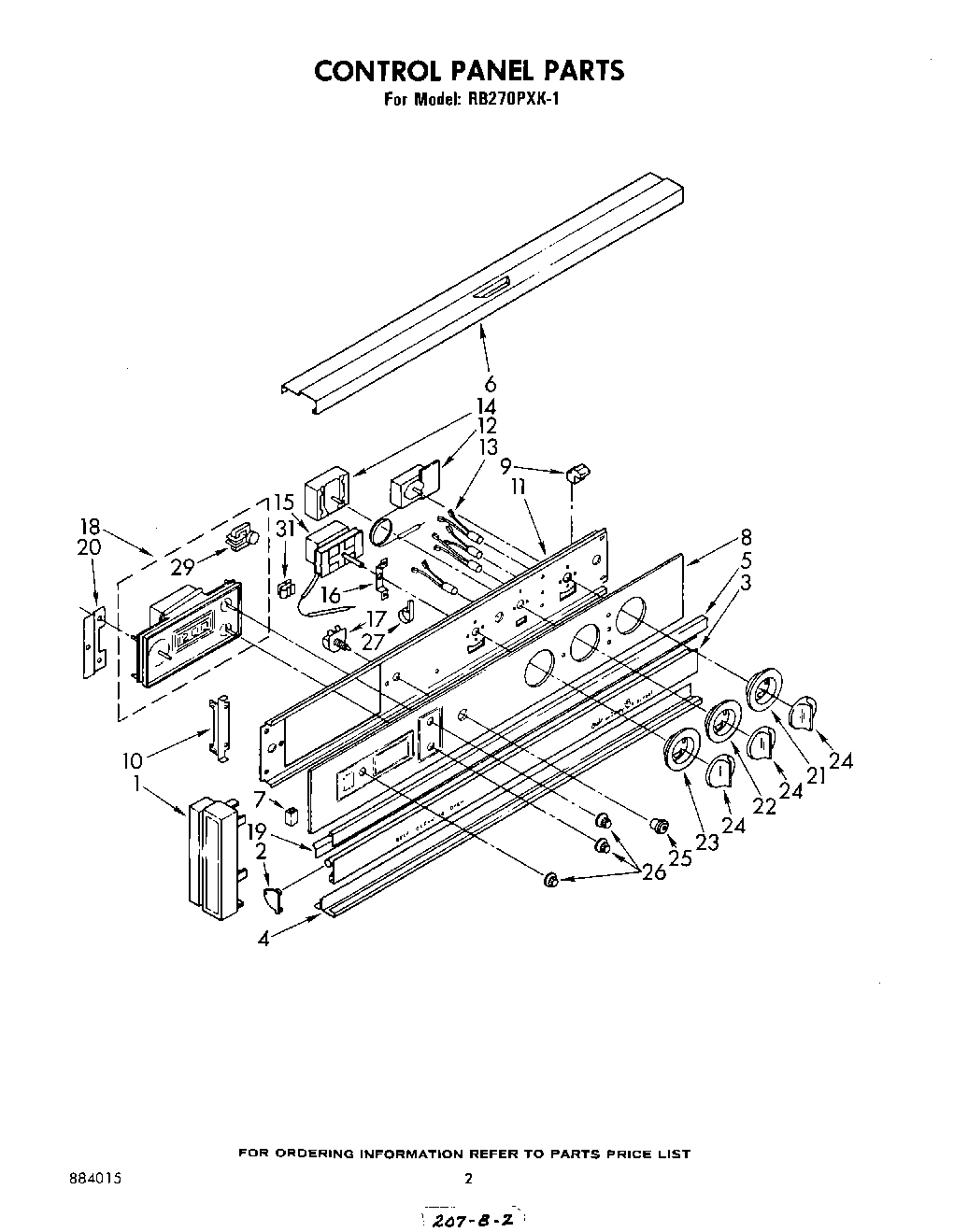

02 - CONTROL PANEL

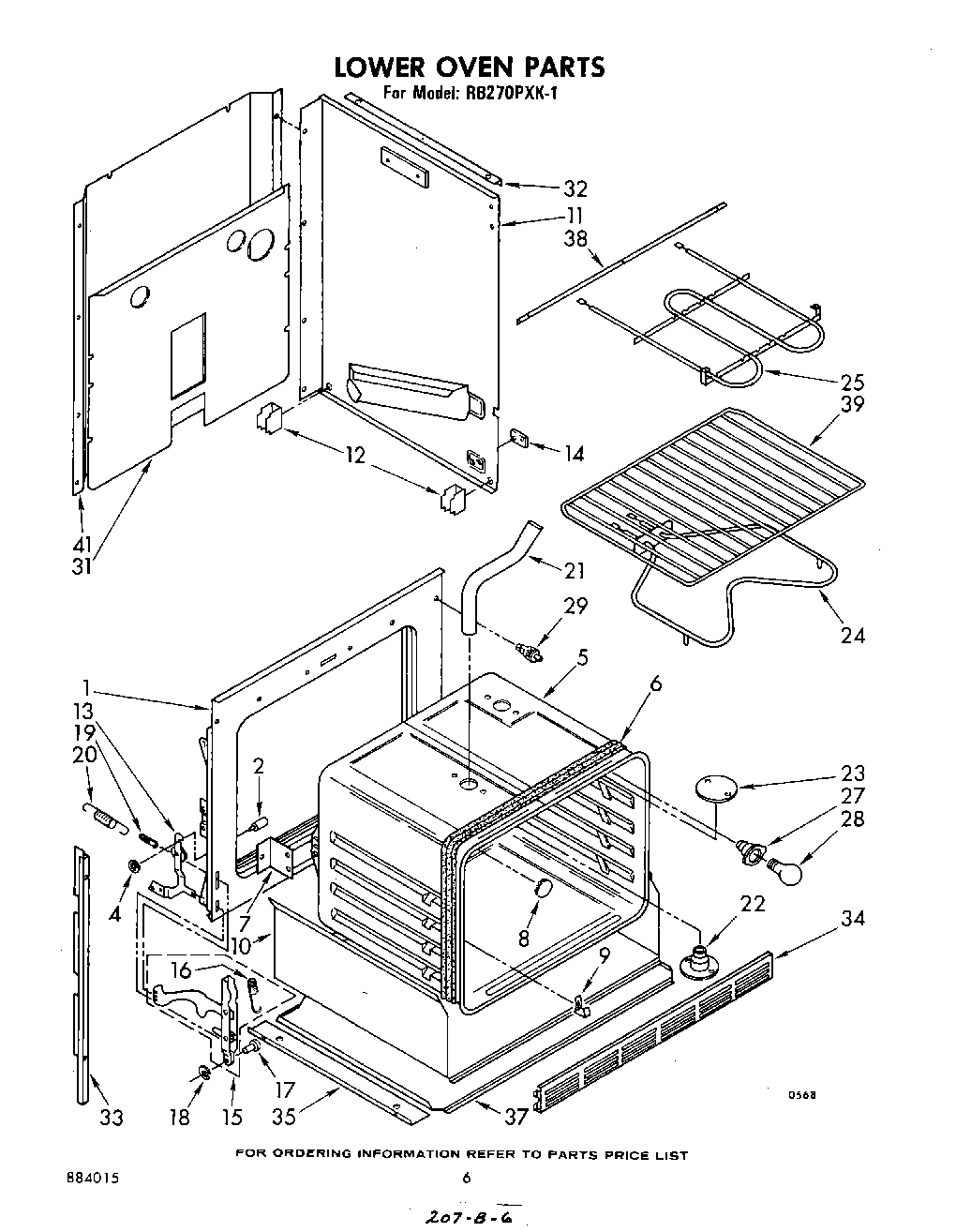

04 - LOWER OVEN

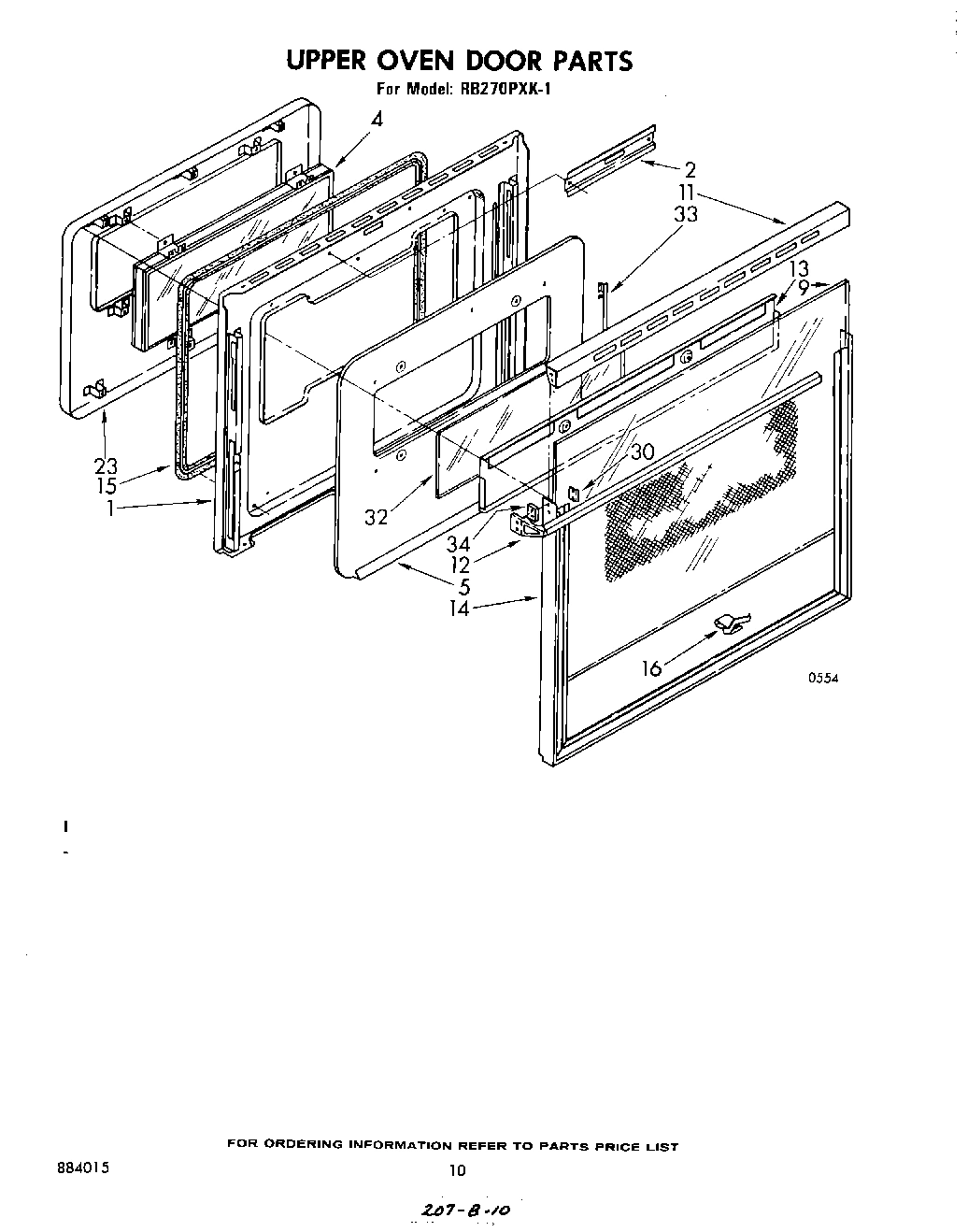

06 - UPPER OVEN DOOR
Common parts from model Whirlpool RB270PXK1
1
Screw (2) WPL 311056 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
1
End Cap (L.H.) WPL 310828 Contact Us For Availability
1
End Cap (R.H.) WPL 310829 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
2
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
2
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
3
Door, Vent WPL 312447 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
4
Trim, Bottom WPL 311190 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Window Package WPL 309844 Contact Us For Availability
5
spacer, insulation baffle (4) WPL 258990 Contact Us For Availability
5
screw (2) WPL 342043 Contact Us For Availability
5
Trim, Center WPL 311188 Contact Us For Availability
5
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
5
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Heat Seal WPL 309107 Contact Us For Availability
6
Rail, Top WPL 310824 Contact Us For Availability
7
channel, rubber (4) WPL 255859 Contact Us For Availability
7
Channel, Rubber (2) WPL 310842 Contact Us For Availability
7
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
8
Control Panel, Glass WPL 312524 Contact Us For Availability
8
Plug Button WPL 257314 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Screw (4) WPL 98520 Contact Us For Availability
10
Insulation Tray WPL 310770 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Bracket, Control WPL 310727 Contact Us For Availability
11
Side Wrapper (Right Side) WPL 311007 Contact Us For Availability
11
Side Wrapper (Left Side) WPL 311010 Contact Us For Availability
12
Handle, Oven Door WPL 311573 Contact Us For Availability
12
Thermostat, Oven Pyro WPL 310017 Contact Us For Availability
12
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
12
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
13
Seal, Foam WPL 308293 Contact Us For Availability
13
Indicator Light (4) WPL 311802 Contact Us For Availability
13
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
13
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
13
Baffle, Heat WPL 309056 Contact Us For Availability
14
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
14
Frame, Door WPL 310427 Contact Us For Availability
14
Selector Switch WPL 310006 Contact Us For Availability
14
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
15
Thermostat, Oven Continuous Clean WPL 311479 Contact Us For Availability
15
Channel Arm (2) WPL 329714 Contact Us For Availability
15
Seal, Fiberglass WPL 311904 Contact Us For Availability
16
Clip, Glass (8) WPL 310706 Contact Us For Availability
16
Screw (4) WPL 311491 Contact Us For Availability
16
Bracket, Thermostat WPL 311492 Contact Us For Availability
16
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
17
nut, 3/8 x 27 WPL 255912 Contact Us For Availability
17
Switch, Oven Light WPL 312581 Contact Us For Availability
18
Palnut, 10-32 (4) WPL 308846 Contact Us For Availability
18
Timer, Digital (Includes Illus. 29) WPL 310325 Contact Us For Availability
18
Retainer, Ring WPL 307594 Contact Us For Availability
19
Seal, Backguard WPL 311263 Contact Us For Availability
20
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
20
Eliminator, Smoke WPL 310839 Contact Us For Availability
20
pin, wedge (2) WPL 312223 Contact Us For Availability
20
Bracket, Timer WPL 310721 Contact Us For Availability
21
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
21
Tube, Lower Vent WPL 311259 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
TOUCH-UP SELF-CLEAN (1 OZ.) WPL 242757 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Rotisserie (Top Oven Only) WPL 261881 Contact Us For Availability
22
Book, Cooking Guide WPL 308500 Contact Us For Availability
22
Installation Instructions WPL 311509 Contact Us For Availability
22
pushnut (2) WPL 311896 Contact Us For Availability
22
GUIDE, USE & CARE WPL 312494 Contact Us For Availability
22
Tech Sheet WPL 313871 Contact Us For Availability
22
List, P WPL 884015 Contact Us For Availability
22
Eliminator, Smoke WPL 310840 Contact Us For Availability
23
Plate, Cover WPL 310662 Contact Us For Availability
23
Escutcheon, Thermostat - Lower Oven WPL 311067 Contact Us For Availability
23
Panel, Inner WPL 327898 Contact Us For Availability
25
Unit, Broil (Screw, 10-32 x 5/8 (2)) WPL 246127 Contact Us For Availability
25
Bezel Switch (1) WPL 308784 Contact Us For Availability
26
Cover, Light WPL 308039 Contact Us For Availability
26
Knob, Timer (3) WPL 309553 Contact Us For Availability
27
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
27
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
27
Retainer, Light WPL 308038 Contact Us For Availability
27
Socket, Oven Light (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
27
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
27
Strain, Relief WPL 308609 Contact Us For Availability
28
Baffle, Top Insulation WPL 310693 Contact Us For Availability
29
Latch Assembly WPL 328585 Contact Us For Availability
29
Motor, Timer WPL 308594 Contact Us For Availability
30
Safety Switch WPL 308185 Contact Us For Availability
30
Screw (2) WPL 98106 Contact Us For Availability
30
Clip (2) WPL 311506 Contact Us For Availability
31
Insulator, Switch WPL 309245 Contact Us For Availability
31
Panel, Back WPL 310459 Contact Us For Availability
31
Clip, Tube WPL 309211 Contact Us For Availability
32
Terminal, Shi WPL 310100 Contact Us For Availability
32
Support Angle (2) WPL 255095 Contact Us For Availability
32
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
33
WPL 308422 WPL 308422 Contact Us For Availability
33
WPL 310825 WPL 310825 Contact Us For Availability
33
Side WPL 310685 Contact Us For Availability
33
WPL 310689 WPL 310689 Contact Us For Availability
33
Retainer, Glass (2) WPL 309843 Contact Us For Availability
34
WPL 246135 WPL 246135 Contact Us For Availability
34
WPL 311253 WPL 311253 Contact Us For Availability
34
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
34
WPL 309029 WPL 309029 Contact Us For Availability
34
WPL 310668 WPL 310668 Contact Us For Availability
35
WPL 310345 WPL 310345 Contact Us For Availability
35
WPL 311592 WPL 311592 Contact Us For Availability
37
WPL 310643 WPL 310643 Contact Us For Availability
37
WPL 310458 WPL 310458 Contact Us For Availability
38
WPL 311585 WPL 311585 Contact Us For Availability
38
WPL 254225 WPL 254225 Contact Us For Availability
38
WPL 312029 WPL 312029 Contact Us For Availability
39
WPL 308173 WPL 308173 Contact Us For Availability
41
WPL 310686 WPL 310686 Contact Us For Availability
41
WPL 310690 WPL 310690 Contact Us For Availability
41
WPL 311013 WPL 311013 Contact Us For Availability
43
WPL 329019 WPL 329019 Contact Us For Availability
44
WPL 311582 WPL 311582 Contact Us For Availability
47
WPL 308172 WPL 308172 Contact Us For Availability
48
WPL 311011 WPL 311011 Contact Us For Availability
50
WPL 312320 WPL 312320 Contact Us For Availability
54
WPL 310719 WPL 310719 Contact Us For Availability
56
WPL 311982 WPL 311982 Contact Us For Availability
× ![]()
