Model Whirlpool RB265PXV1 – Common Parts & Diagrams
02 - CONTROL PANEL , LITERATURE AND OPTIONAL
03 - OVEN

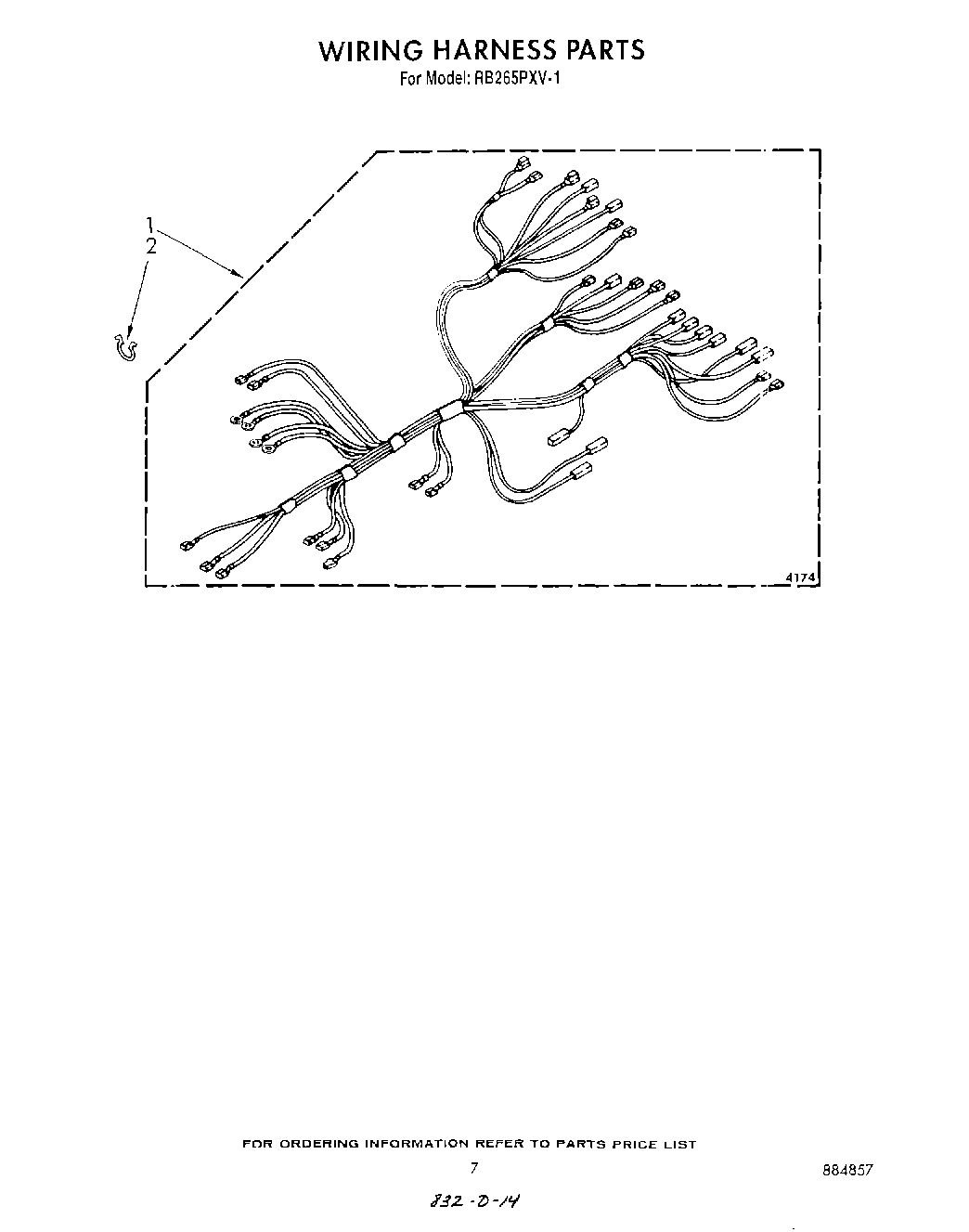

05 - WIRING HARNESS

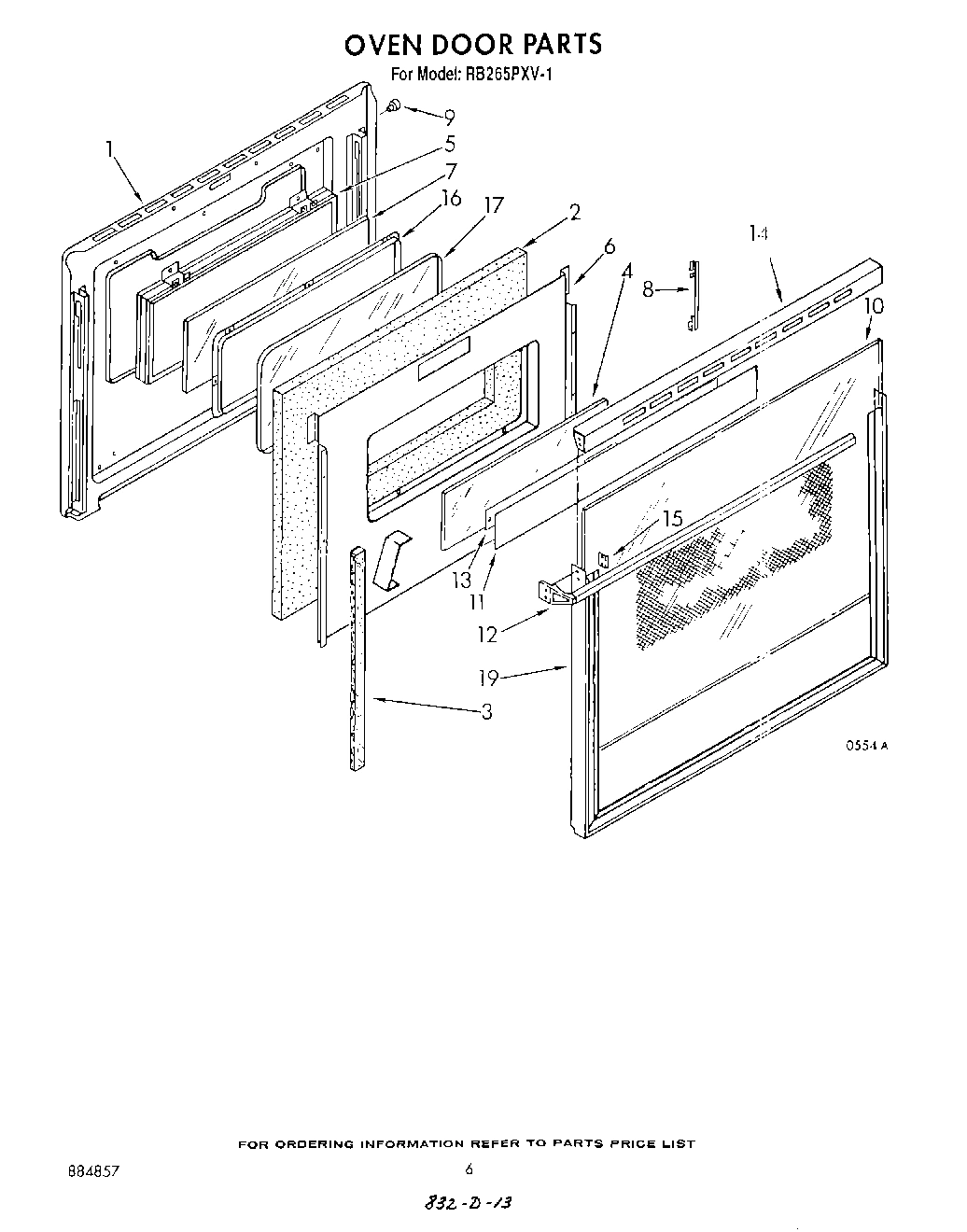

04 - OVEN DOOR
Common parts from model Whirlpool RB265PXV1
WPL 312318 WPL 312318 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Screw (2) WPL 311056 Contact Us For Availability
1
Adapter WPL 3147832 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
1
Liner, Door WPL 3148165 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Insulation, Door WPL 3147951 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
8
Gasket, Door WPL 3148284 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3148635 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3172450 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Bracket, Control WPL 313863 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Timer, Digital (Includes Illus. 26 & 28) WPL 3149806 Contact Us For Availability
13
screw (2) WPL 254225 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
14
Screw (5) WPL 3149333 Contact Us For Availability
14
Shield, Timer WPL 314129 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Bracket, Timer WPL 313864 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Light, Indicator WPL 3148720 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Thermostat, Oven WPL 3148934 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Door WPL 3148235 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
20
Screw (2) WPL 313489 Contact Us For Availability
20
Switch, Lock WPL 3148669 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (4) WPL 313958 Contact Us For Availability
27
Bracket, Control (2) WPL 313865 Contact Us For Availability
28
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
28
WPL 313523 WPL 313523 Contact Us For Availability
28
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
28
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
28
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
28
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
28
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
28
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
28
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
28
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
28
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
28
WPL 242829 WPL 242829 Contact Us For Availability
28
WPL 242830 WPL 242830 Contact Us For Availability
28
WPL 242832 WPL 242832 Contact Us For Availability
28
WPL 261582 WPL 261582 Contact Us For Availability
28
WPL 261881 WPL 261881 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314210 WPL 314210 Contact Us For Availability
42
WPL 309080 WPL 309080 Contact Us For Availability
43
WPL 3147864 WPL 3147864 Contact Us For Availability
46
WPL 307748 WPL 307748 Contact Us For Availability
46
WPL 310719 WPL 310719 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 311011 WPL 311011 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 3149542 WPL 3149542 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
64
WPL 98520 WPL 98520 Contact Us For Availability
64
WPL 3149142 WPL 3149142 Contact Us For Availability
64
WPL 310433 WPL 310433 Contact Us For Availability
64
WPL 310434 WPL 310434 Contact Us For Availability
64
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
