Model Whirlpool RB265PXV0 – Common Parts & Diagrams

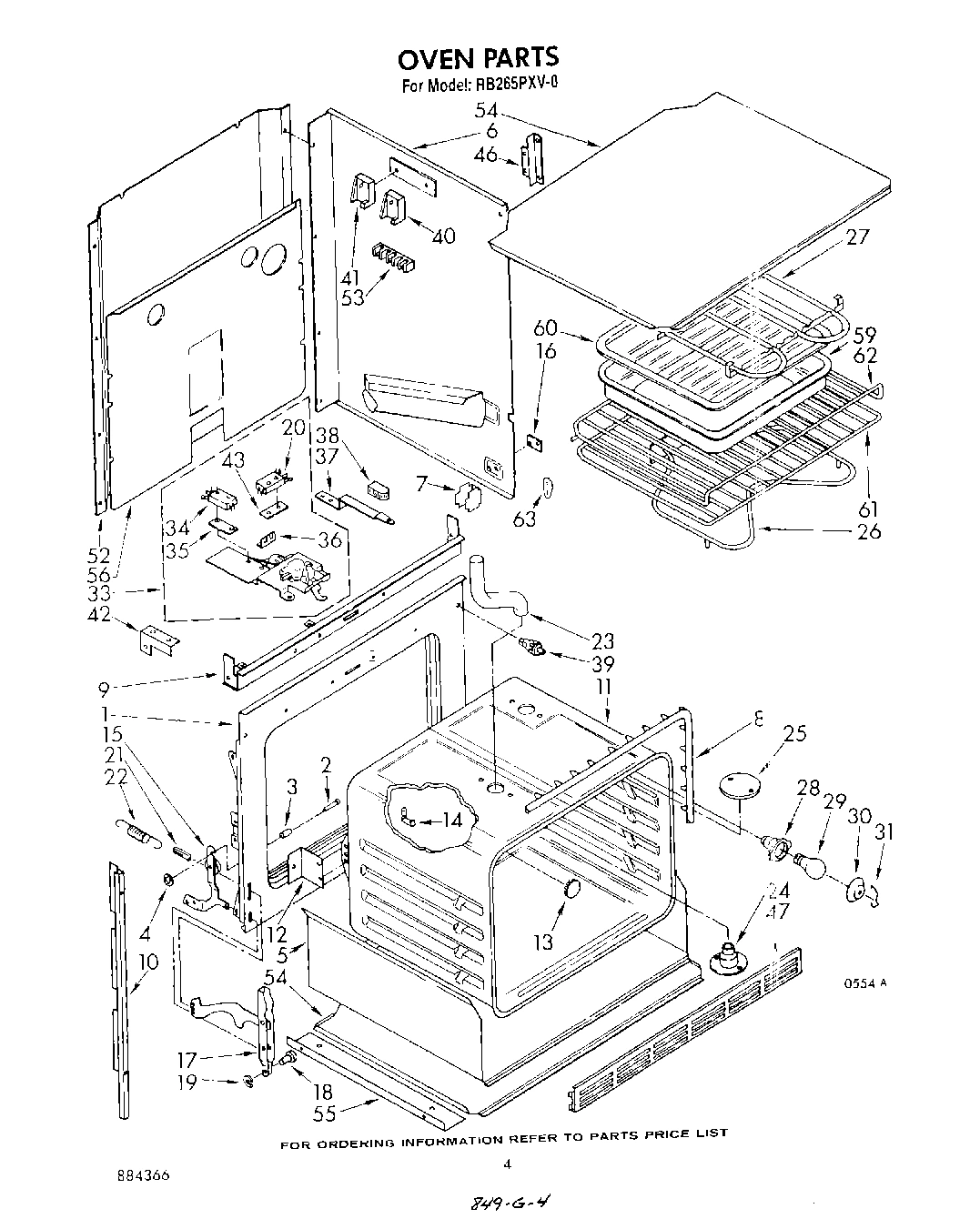

03 - OVEN

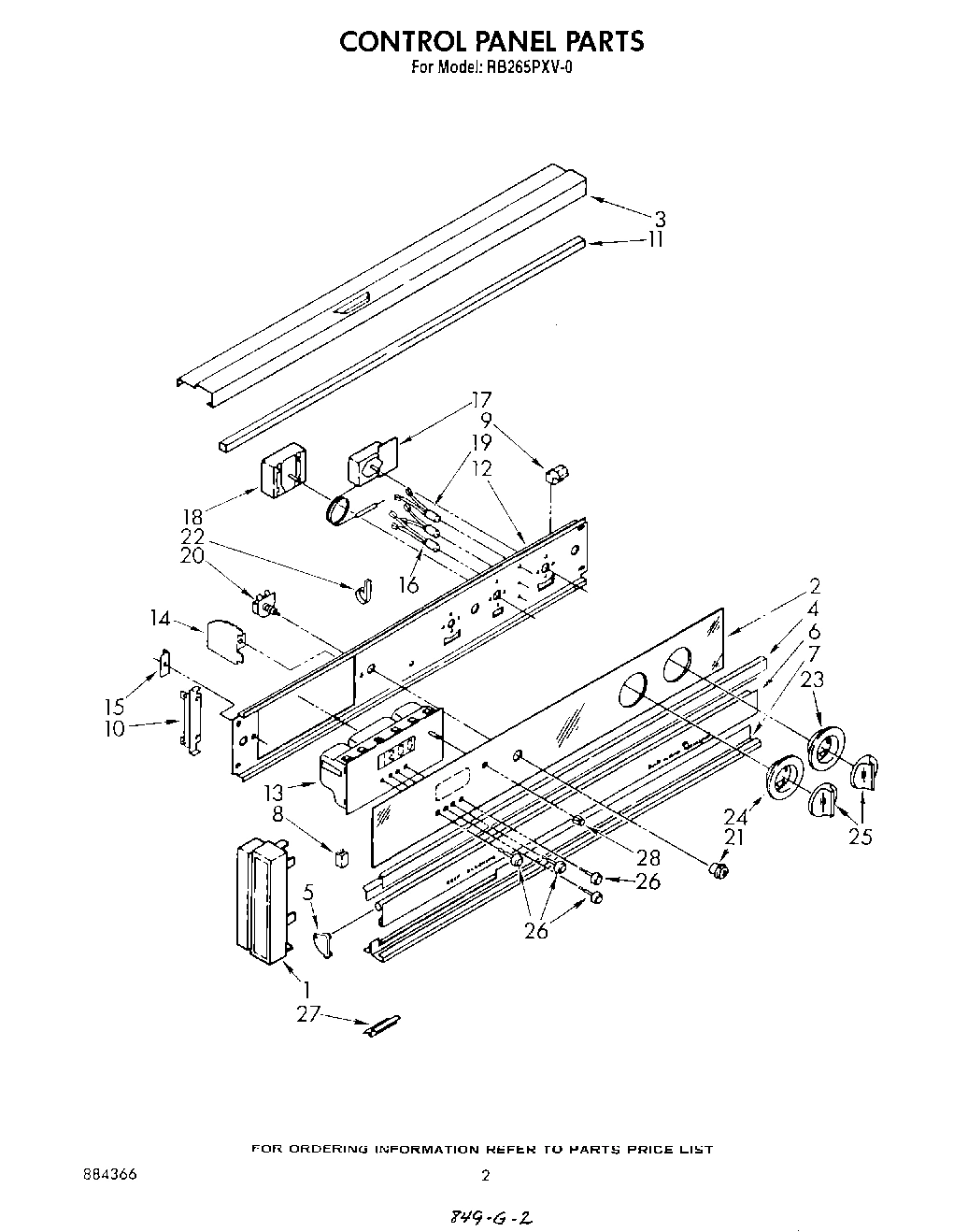

02 - CONTROL PANEL , LITERATURE AND OPTIONAL

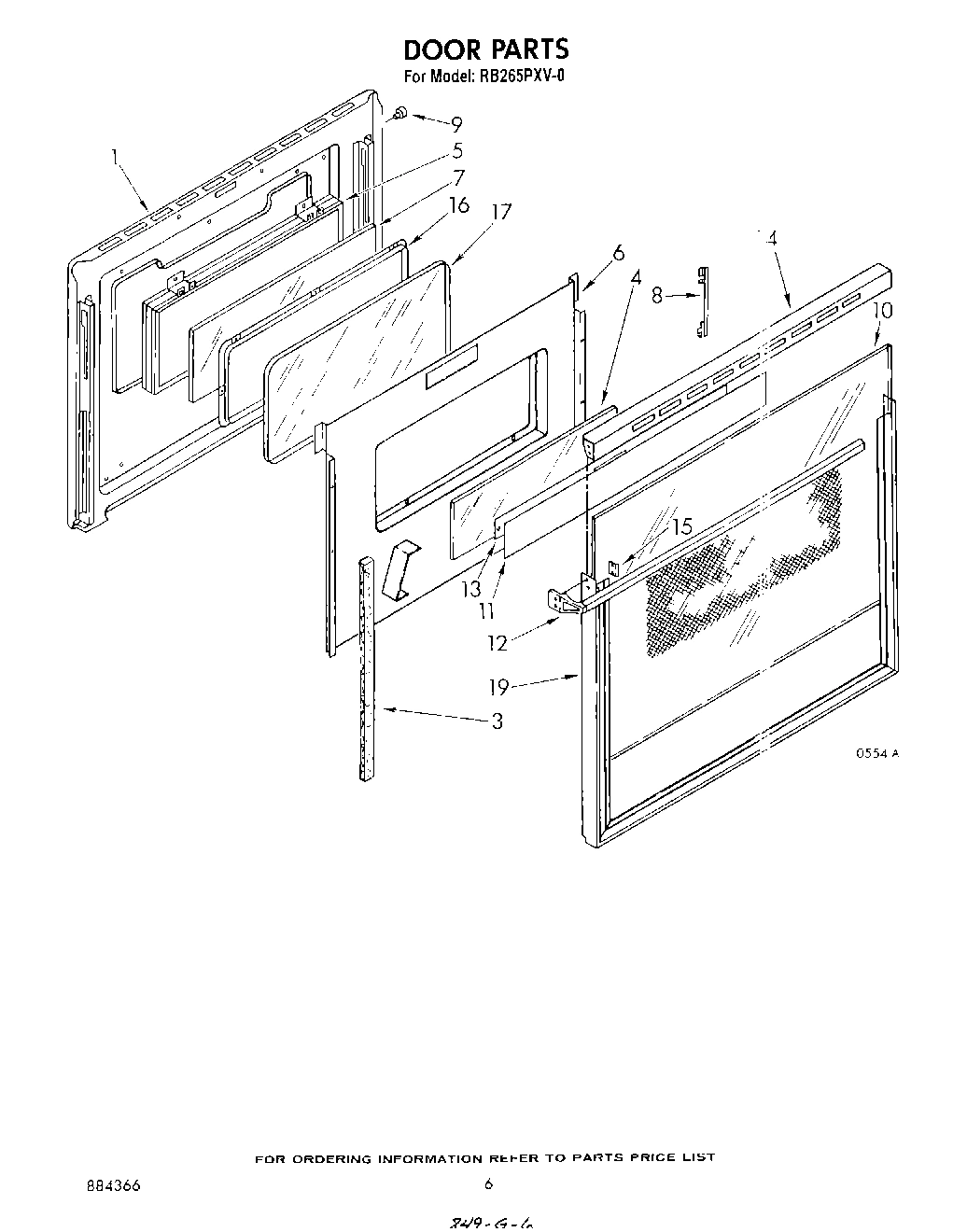

04 - DOOR

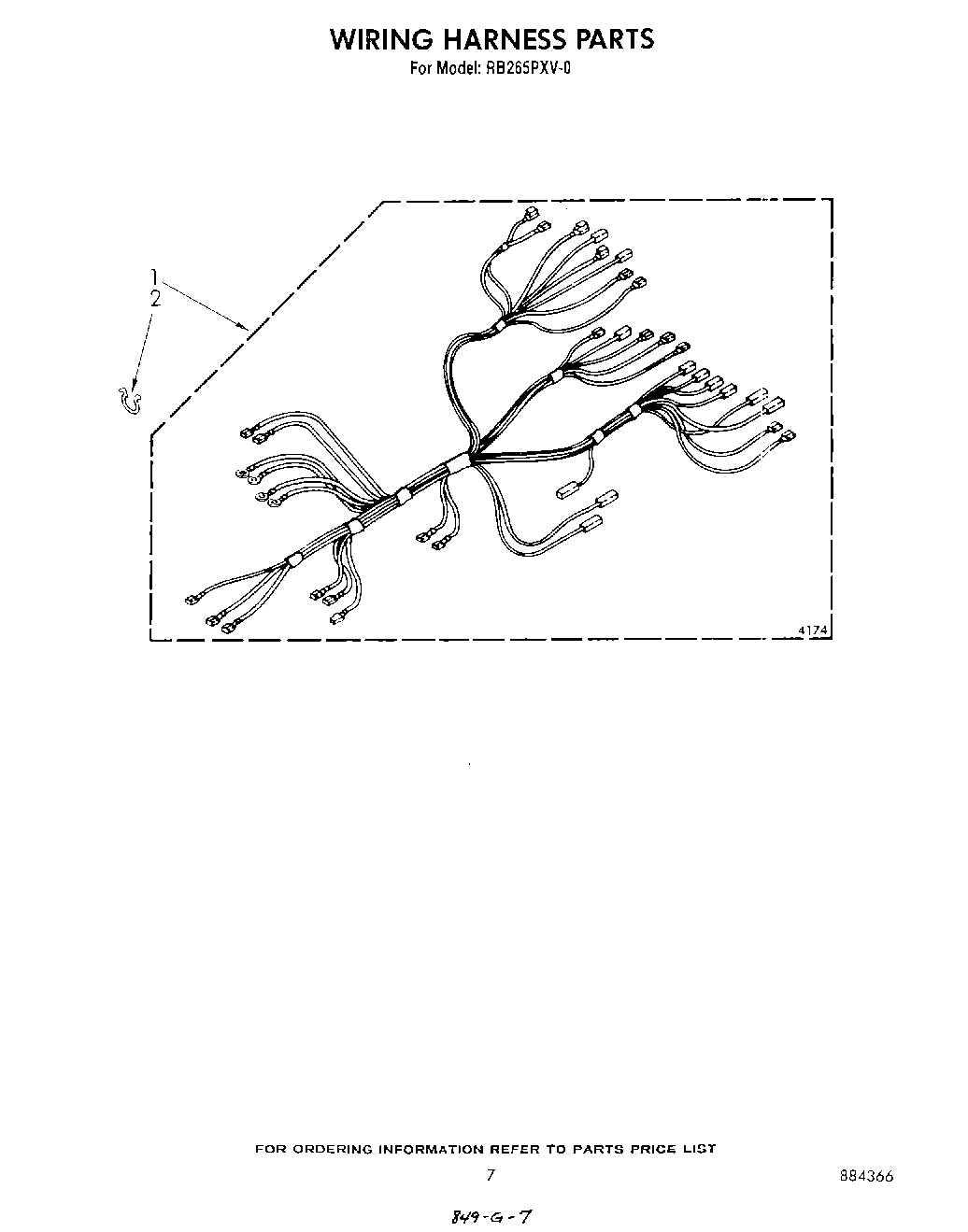

05 - WIRING HARNESS
Common parts from model Whirlpool RB265PXV0
WPL LIT311434 WPL LIT311434 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148317 WPL LIT3148317 Contact Us For Availability
WPL LIT3148598 WPL LIT3148598 Contact Us For Availability
WPL LIT884366 WPL LIT884366 Contact Us For Availability
1
Screw (2) WPL 311056 Contact Us For Availability
1
End Cap. L.H. WPL 3148621 Contact Us For Availability
1
End Cap (R.H.) WPL 3148622 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
1
Adapter WPL 3147832 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
2
Control Panel, Glass WPL 3148639 Contact Us For Availability
2
Insulation, Door WPL 3147951 Contact Us For Availability
3
Rail, Top WPL 3148625 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Trim, Center WPL 3148619 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
End Trim, Vent Door R.H. WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door L.H. WPL 3148698 Contact Us For Availability
6
Door, Vent WPL 3148617 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3148635 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 330500 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Screw, 8A x 3/8 (2) 8 x 3/8 (2) WPL 309080 Contact Us For Availability
13
Timer, Digital (Includes Illus. 26 & 28) WPL 314128 Contact Us For Availability
13
screw (2) WPL 254225 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
14
Shield, Timer WPL 314129 Contact Us For Availability
14
screw (3) WPL 307748 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Bracket, Timer WPL 313864 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Light, Indicator WPL 3148720 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Thermostat, Oven WPL 3148934 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
20
Screw (2) WPL 313489 Contact Us For Availability
20
Switch, Safety WPL 3148669 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (4) WPL 313958 Contact Us For Availability
27
Bracket, Control (2) WPL 313865 Contact Us For Availability
28
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
28
WPL 313523 WPL 313523 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
28
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
28
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
28
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
28
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
28
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
28
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
28
Wire, White 14 Ga. 150~ WPL 242826 Contact Us For Availability
28
WPL 242827 WPL 242827 Contact Us For Availability
28
WPL 242828 WPL 242828 Contact Us For Availability
28
WPL 242829 WPL 242829 Contact Us For Availability
28
WPL 242830 WPL 242830 Contact Us For Availability
28
WPL 242832 WPL 242832 Contact Us For Availability
28
WPL 261582 WPL 261582 Contact Us For Availability
28
WPL 261881 WPL 261881 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Safet WPL 308185 Contact Us For Availability
34
WPL 98106 WPL 98106 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314210 WPL 314210 Contact Us For Availability
42
WPL 3149142 WPL 3149142 Contact Us For Availability
43
WPL 3147864 WPL 3147864 Contact Us For Availability
46
WPL 310719 WPL 310719 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 311011 WPL 311011 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 310459 WPL 310459 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
× ![]()
