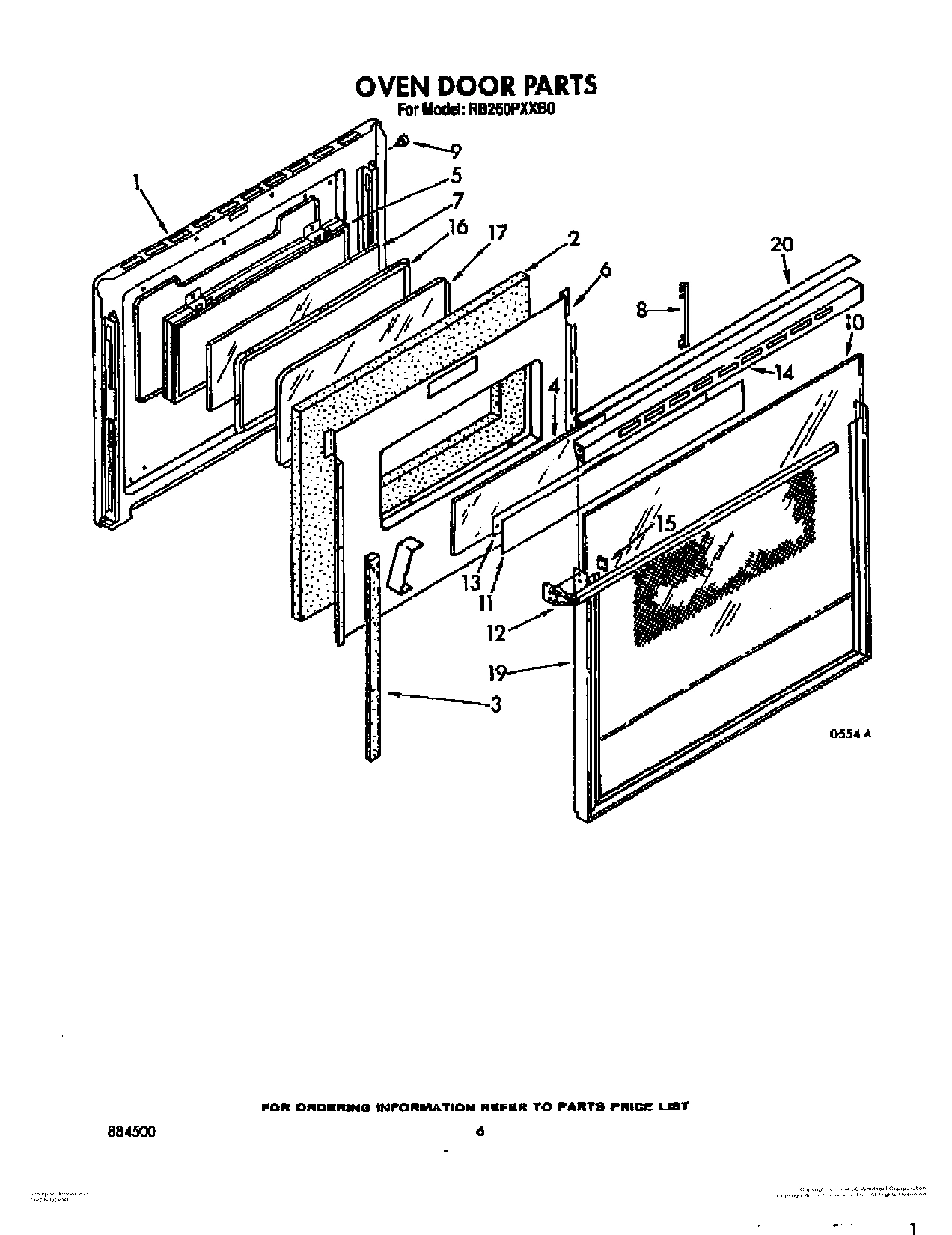

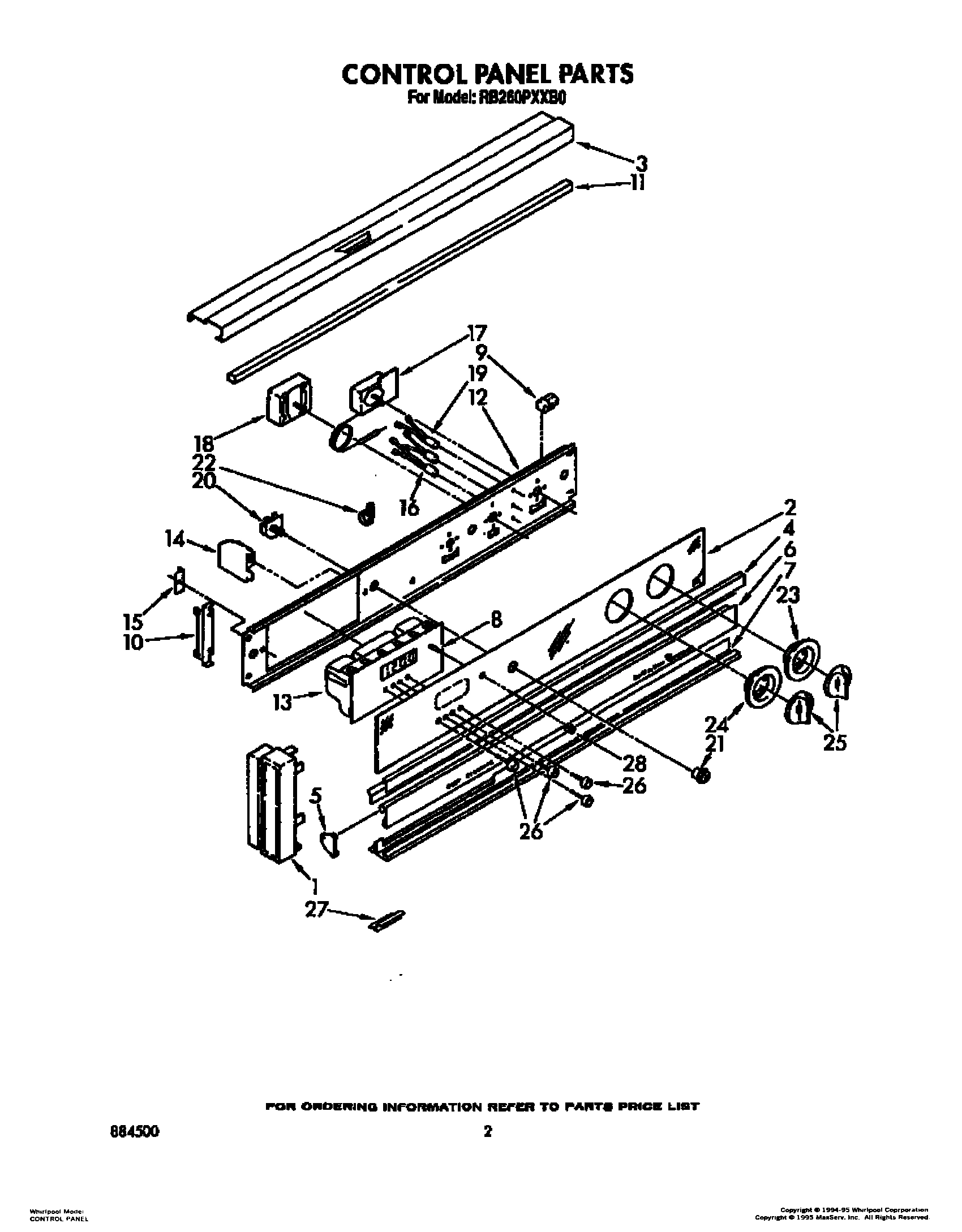

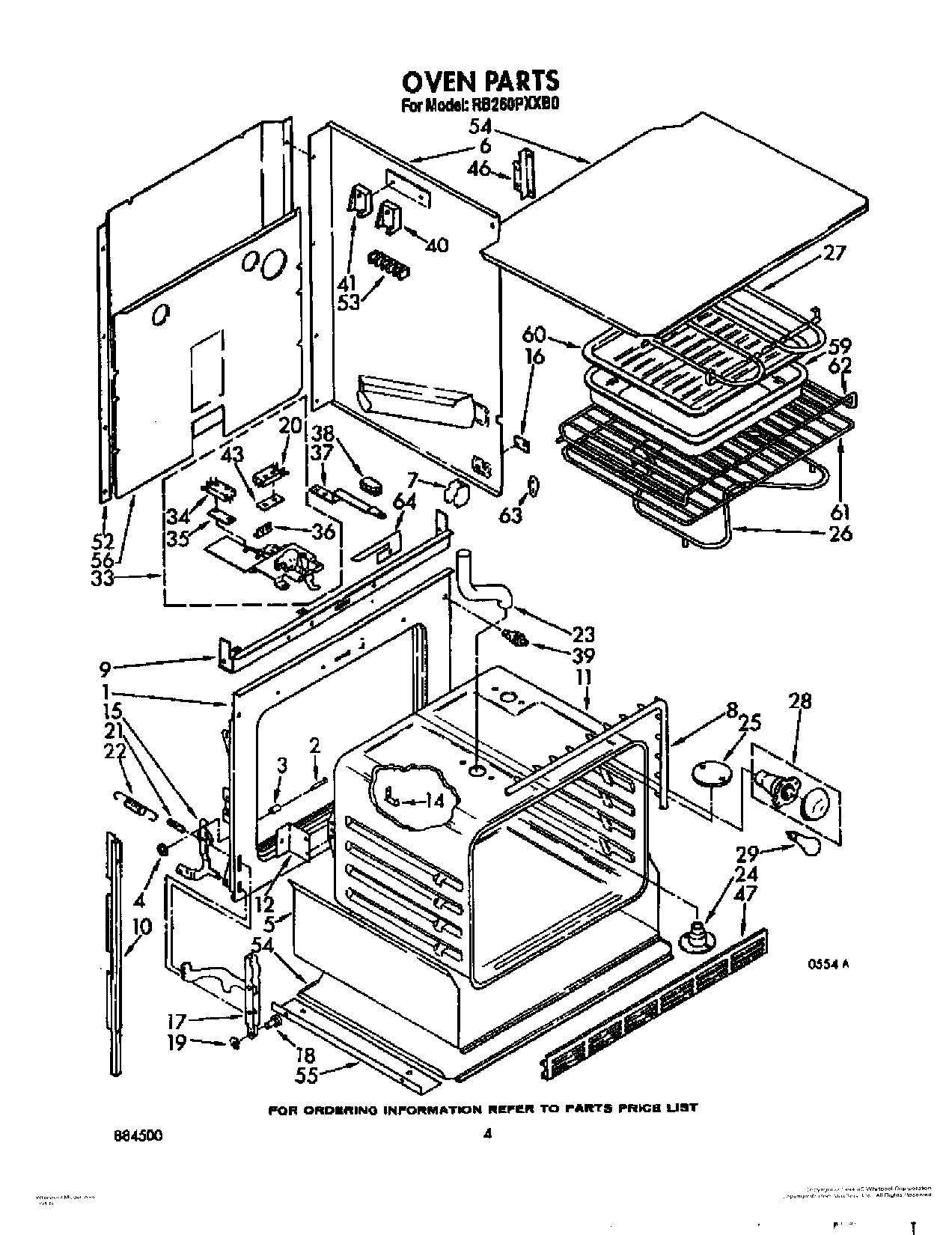

Model Whirlpool RB260PXXW0 – Common Parts &amp; Diagrams

WPL 242820 WPL 242820 Contact Us For Availability

WPL 242821 WPL 242821 Contact Us For Availability

WPL 242822 WPL 242822 Contact Us For Availability

WPL 242823 WPL 242823 Contact Us For Availability

WPL 242824 WPL 242824 Contact Us For Availability

WPL 242825 WPL 242825 Contact Us For Availability

WPL 242826 WPL 242826 Contact Us For Availability

WPL 242827 WPL 242827 Contact Us For Availability

WPL 242828 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT3148598 WPL LIT3148598 Contact Us For Availability

WPL LIT3149600 WPL LIT3149600 Contact Us For Availability

WPL LIT3185069 WPL LIT3185069 Contact Us For Availability

WPL LIT884500 WPL LIT884500 Contact Us For Availability

1

Screw (2) WPL 311056 Contact Us For Availability

1

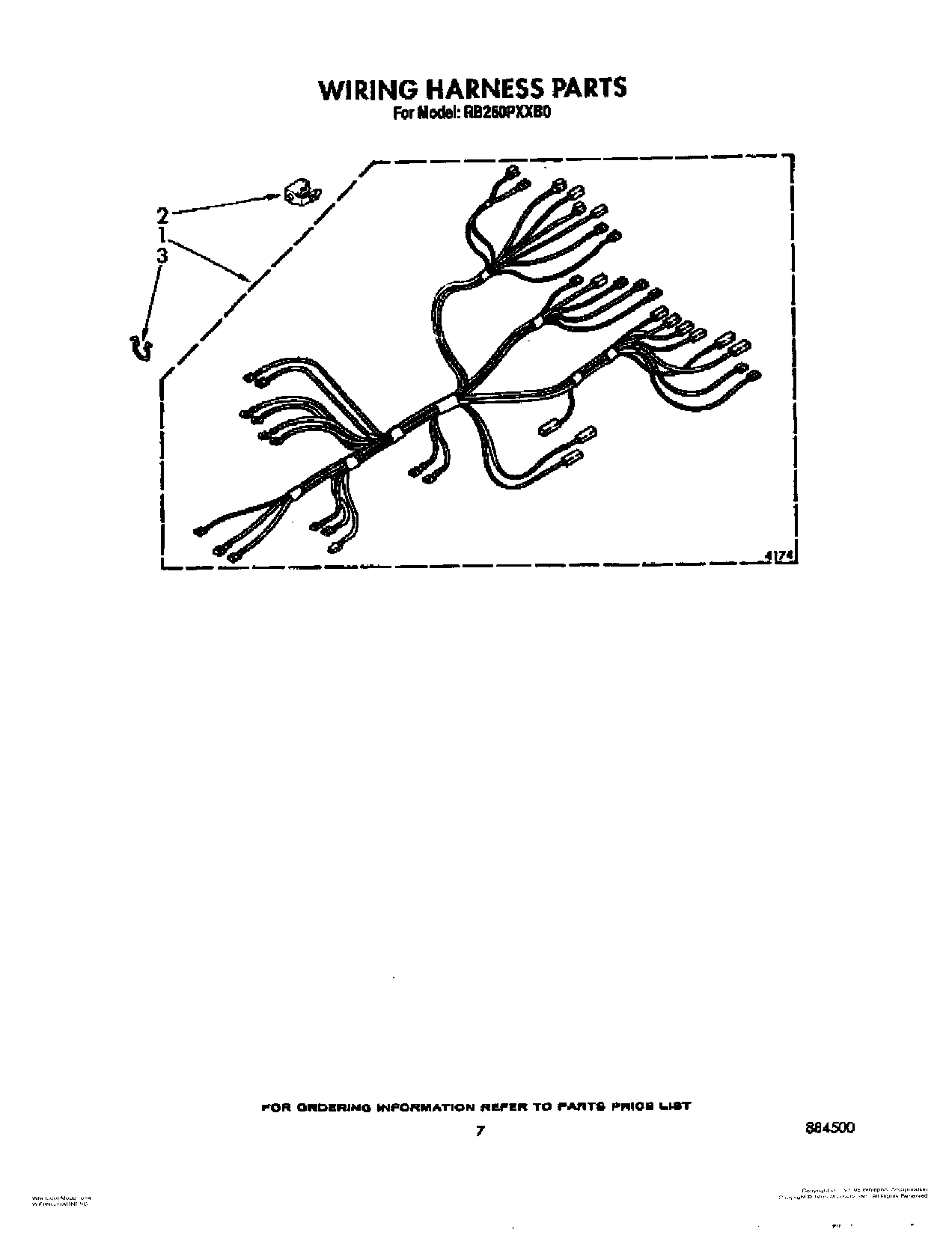

Wiring Harness (Main) WPL 3148595 Contact Us For Availability

1

End Cap. L.H. WPL 3148621 Contact Us For Availability

1

End Cap (R.H.) WPL 3148622 Contact Us For Availability

1

Liner, Door WPL 3172218 Contact Us For Availability

2

Adapter WPL 3147832 Contact Us For Availability

2

Glass, Control Panel (Black) WPL 3148639 Contact Us For Availability

2

Glass, Control Panel (White) WPL 3149179 Contact Us For Availability

2

Insulation, Door WPL 3147951 Contact Us For Availability

3

16515 Whirlpool Clip Backorder WPL 16515 $11.62

3

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

3

Rail, Top WPL 3148624 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

4

Trim, Center (Black) WPL 3148619 Contact Us For Availability

4

Trim, Center (Brushed Chrome) WPL 3149349 Contact Us For Availability

4

Glass, Reflective WPL 3148178 Contact Us For Availability

5

Seal, Window WPL 3148183 Contact Us For Availability

5

End Trim, Vent Black (Left Hand) WPL 3148471 Contact Us For Availability

5

End Trim, Vent Black (Right Hand) WPL 3148472 Contact Us For Availability

5

End Trim, Vent Black (Right Hand) WPL 3148697 Contact Us For Availability

5

End Trim, Vent Black (Left Hand Rosemont Grey WPL 3148698 Contact Us For Availability

6

Door, Vent (Black) WPL 3148617 Contact Us For Availability

6

Door, Vent (Brushed Chrome) WPL 3149603 Contact Us For Availability

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Screw (4) WPL 342043 Contact Us For Availability

7

Trim, Bottom WPL 3148618 Contact Us For Availability

8

Shaft, Bit Generator WPL 3149320 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

9

Retainer, Glass (4) WPL 3149882 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

10

Bracket, Control Panel (2) WPL 3148635 Contact Us For Availability

10

Glass, Panel (Black) WPL 3148185 Contact Us For Availability

10

Glass, Panel (White) WPL 3149049 Contact Us For Availability

11

Seal, Backguard WPL 311263 Contact Us For Availability

11

Foil, Door WPL 3148184 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Bracket, Control WPL 330500 Contact Us For Availability

Handle, Door (Black) WPL 3148228 Contact Us For Availability

Handle, Door (White) WPL 3149354 Contact Us For Availability

Timer, Digital (Includes Illus. 26 & 28) (Bla WPL 3149806 Contact Us For Availability

Timer, Digital (Includes Illus. 26 & 28) (Whi WPL 3149807 Contact Us For Availability

screw (2) WPL 254225 Contact Us For Availability

Shield, Door WPL 3148680 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

Top, Door (Screw (5)) WPL 3149333 Contact Us For Availability

Shield, Timer WPL 314129 Contact Us For Availability

Top, Door (Black) WPL 3148223 Contact Us For Availability

Top, Door (White) WPL 3149355 Contact Us For Availability

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

Bracket, Timer WPL 313864 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

Light, Indicator WPL 3148720 Contact Us For Availability

screw (6) WPL 3148443 Contact Us For Availability

Frame, Inner Glass WPL 3148234 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

17

Thermostat, Oven WPL 3148934 Contact Us For Availability

17

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

18

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

18

Selector Switch WPL 310006 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

19

Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability

19

Frame, Door WPL 3148235 Contact Us For Availability

Screw (2) WPL 313489 Contact Us For Availability

Switch, Lock WPL 3148669 Contact Us For Availability

Switch, Oven Light (Black) WPL 312581 Contact Us For Availability

Switch, Oven Light (Washer) WPL 312796 Contact Us For Availability

Switch, Oven Light (White) WPL 3148465 Contact Us For Availability

Cap, Top (White Model) WPL 3181363 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

Bezel, Switch (Black) WPL 313030 Contact Us For Availability

21

Bezel, Switch (White) WPL 3149170 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

22

screw, 8A x 5/16 WPL 98520 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Escutcheon, The WPL 311066 Contact Us For Availability

Tube, Vent Extension WPL 310836 Contact Us For Availability

WPL 3149172 WPL 3149172 Contact Us For Availability

24

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $26.48

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

25

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.05

25

Plate, Cover WPL 310662 Contact Us For Availability

25

WPL 3150372 WPL 3150372 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

WPL 313958 WPL 313958 Contact Us For Availability

26

WPL 3149177 WPL 3149177 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

27

WPL 313865 WPL 313865 Contact Us For Availability

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

28

WPL 313523 WPL 313523 Contact Us For Availability

28

WPL 3149176 WPL 3149176 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

Latch Assembly WPL 3171148 Contact Us For Availability

34

Safety Switch WPL 308185 Contact Us For Availability

34

Screw (2) WPL 98106 Contact Us For Availability

35

Insulator, Switch WPL 309245 Contact Us For Availability

36

Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability

36

Terminal, Shield WPL 313035 Contact Us For Availability

37

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

37

Latch, Handle WPL 310825 Contact Us For Availability

38

screw, 8 x 5/1 WPL 246135 Contact Us For Availability

38

WPL 311253 WPL 311253 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

40

WPL 314209 WPL 314209 Contact Us For Availability

41

WPL 314215 WPL 314215 Contact Us For Availability

41

WPL 314210 WPL 314210 Contact Us For Availability

43

WPL 3147864 WPL 3147864 Contact Us For Availability

46

WPL 307748 WPL 307748 Contact Us For Availability

46

WPL 310719 WPL 310719 Contact Us For Availability

47

WPL 309029 WPL 309029 Contact Us For Availability

47

WPL 310668 WPL 310668 Contact Us For Availability

47

WPL 3149359 WPL 3149359 Contact Us For Availability

52

WPL 311011 WPL 311011 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

53

WPL 308043 WPL 308043 Contact Us For Availability

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 3149542 WPL 3149542 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability

63

WPL 311982 WPL 311982 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WPL 3149142 WPL 3149142 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 310434 WPL 310434 Contact Us For Availability

WPL 3149328 WPL 3149328 Contact Us For Availability
