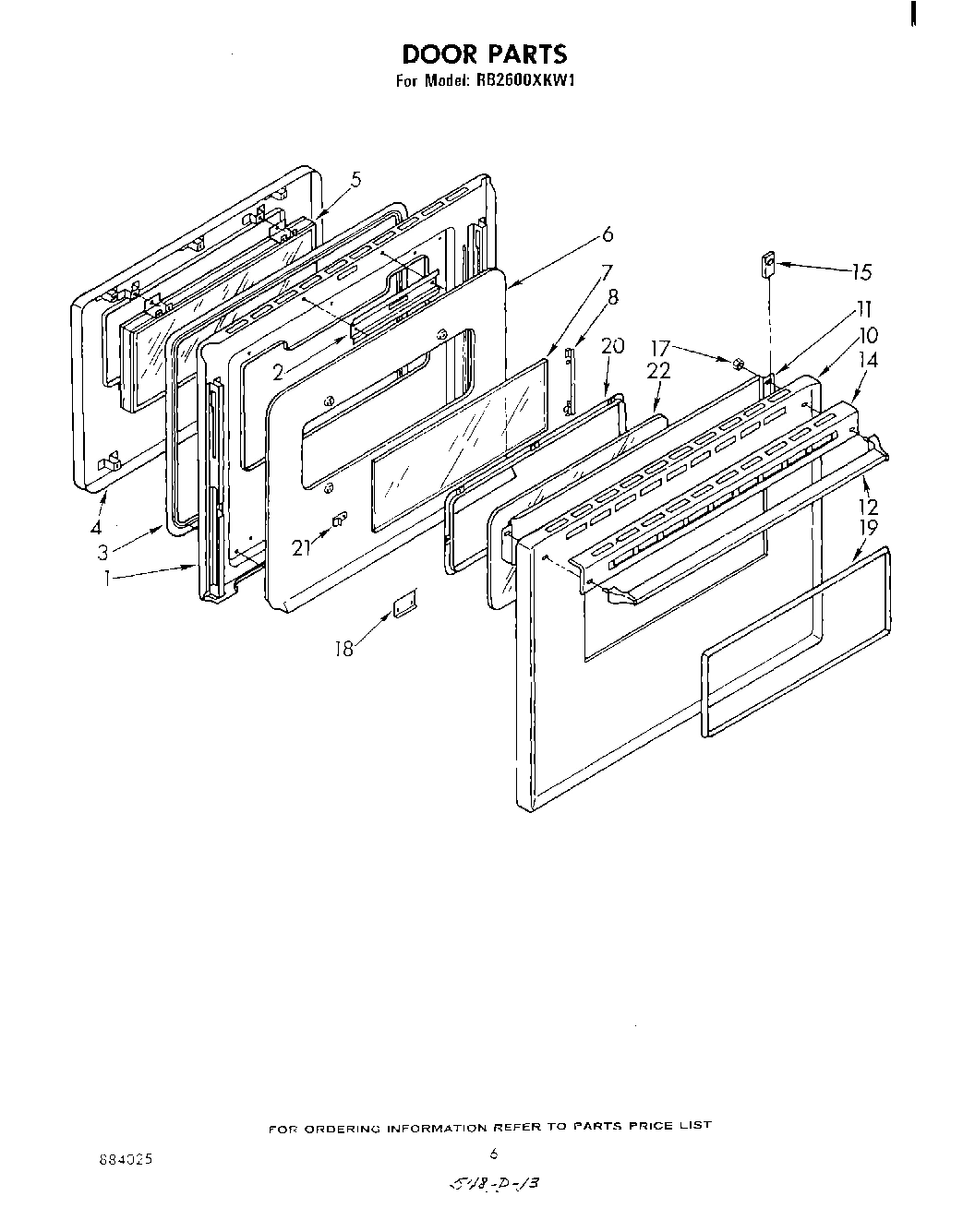

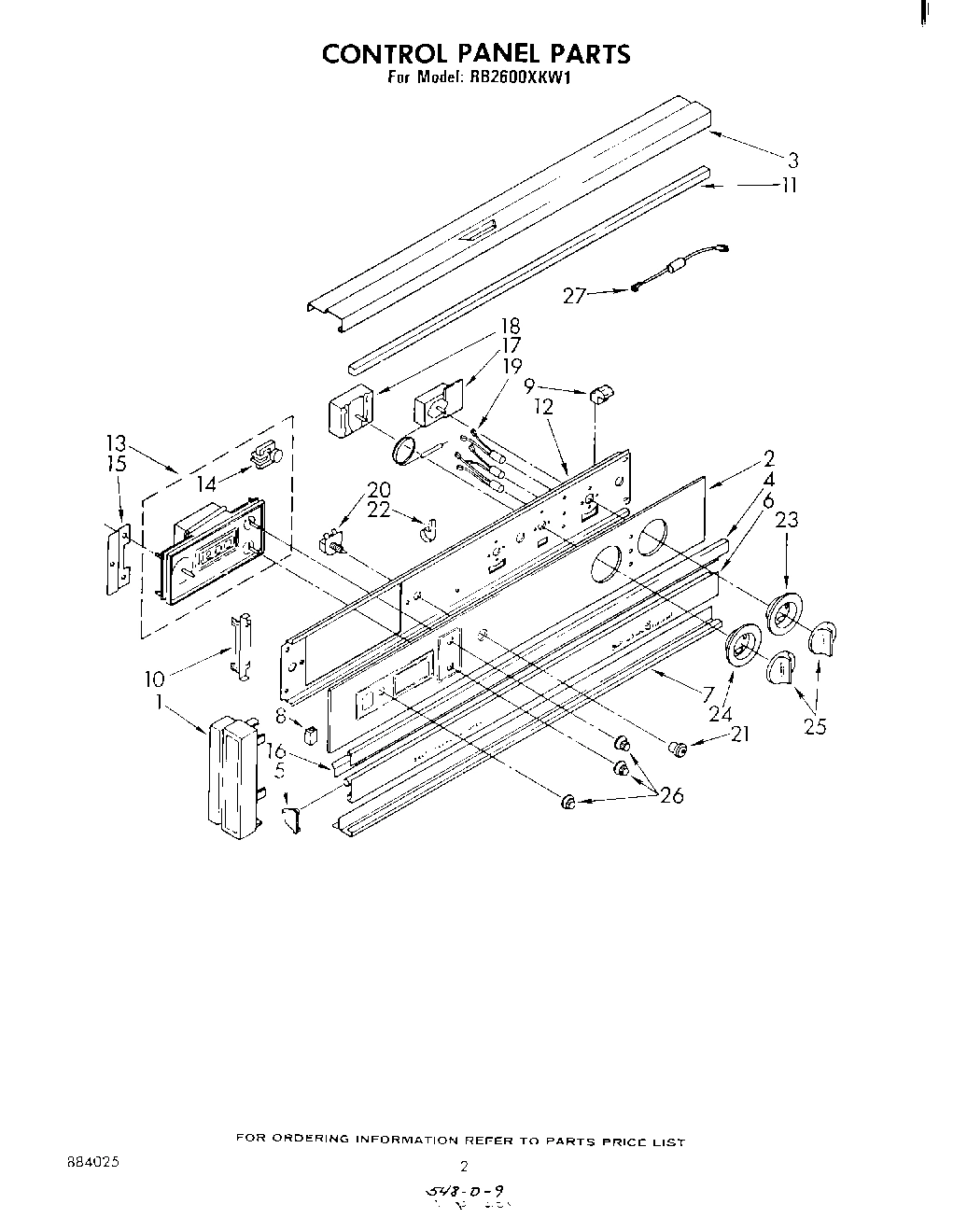

Common parts from model Whirlpool RB2600XKW1
1
Screw (2) WPL 311056 Contact Us For Availability
1
End Cap (L.H.) WPL 310828 Contact Us For Availability
1
End Cap (R.H.) WPL 310829 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
2
Control Panel, Glass WPL 312527 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
3
Rail, Top WPL 310824 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
4
Trim, Center WPL 311188 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
5
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
5
Window Package WPL 309844 Contact Us For Availability
6
Door, Vent WPL 312447 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 311190 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
8
Channel, Rubber (2) WPL 310842 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
10
Panel, Door (Screw, 10A x 1/2 (3)) WPL 307748 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Screw WPL 98520 Contact Us For Availability
10
Panel, Door (White) WPL 307909 Contact Us For Availability
10
Panel, Door (New Avocado) WPL 307911 Contact Us For Availability
10
Panel, Door (Coffee) WPL 307913 Contact Us For Availability
10
Panel, Door (Harvest Gold) WPL 307915 Contact Us For Availability
10
Panel, Door (Almond) WPL 307917 Contact Us For Availability
10
Panel, Door (Screw (2)) WPL 309133 Contact Us For Availability
10
Panel, Door (Screw, 8A x 1/2 (2)) WPL 312006 Contact Us For Availability
10
Panel, Door (Toast) WPL 313179 Contact Us For Availability
10
Panel, Door (Platinum) WPL 313180 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
11
Baffle, Top WPL 308011 Contact Us For Availability
12
Bracket, Control WPL 310727 Contact Us For Availability
12
Handle, Door WPL 311564 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
palnut, timer 10-32 WPL 308846 Contact Us For Availability
13
Timer, Digital (Included No.14) WPL 310325 Contact Us For Availability
14
Motor, Timer WPL 308594 Contact Us For Availability
14
Trim, Panel WPL 311063 Contact Us For Availability
14
Clip, Top Trim WPL 311890 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Bracket, Timer (2) WPL 310721 Contact Us For Availability
15
Spacer, Sheet (2) WPL 309845 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Seal WPL 255893 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Thermostat, Oven WPL 310017 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
18
Shield (2) WPL 311885 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
19
Frame, Window WPL 309173 Contact Us For Availability
20
Retainer, Glass WPL 307792 Contact Us For Availability
20
Nut, Hex 3/8 WPL 255912 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
21
Clip, Frame WPL 307731 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wir WPL 242832 Contact Us For Availability
22
WPL 242985 WPL 242985 Contact Us For Availability
22
WPL 261582 WPL 261582 Contact Us For Availability
22
WPL 261810 WPL 261810 Contact Us For Availability
22
WPL 307732 WPL 307732 Contact Us For Availability
22
WPL 308500 WPL 308500 Contact Us For Availability
22
WPL 311434 WPL 311434 Contact Us For Availability
22
WPL 311948 WPL 311948 Contact Us For Availability
22
WPL 312493 WPL 312493 Contact Us For Availability
22
WPL 313045 WPL 313045 Contact Us For Availability
22
WPL 884025 WPL 884025 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (3) WPL 309553 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability
27
Resistor & Terminal Assembly WPL 328891 Contact Us For Availability
27
Terminal WPL 98655 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Plate, Cover (2) WPL 311982 Contact Us For Availability
33
Latch Assembly WPL 328585 Contact Us For Availability
34
Safety Swi WPL 308185 Contact Us For Availability
34
WPL 98106 WPL 98106 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 310643 WPL 310643 Contact Us For Availability
41
WPL 311585 WPL 311585 Contact Us For Availability
42
WPL 312320 WPL 312320 Contact Us For Availability
46
WPL 310719 WPL 310719 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311011 WPL 311011 Contact Us For Availability
57
WPL 312029 WPL 312029 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
× ![]()
