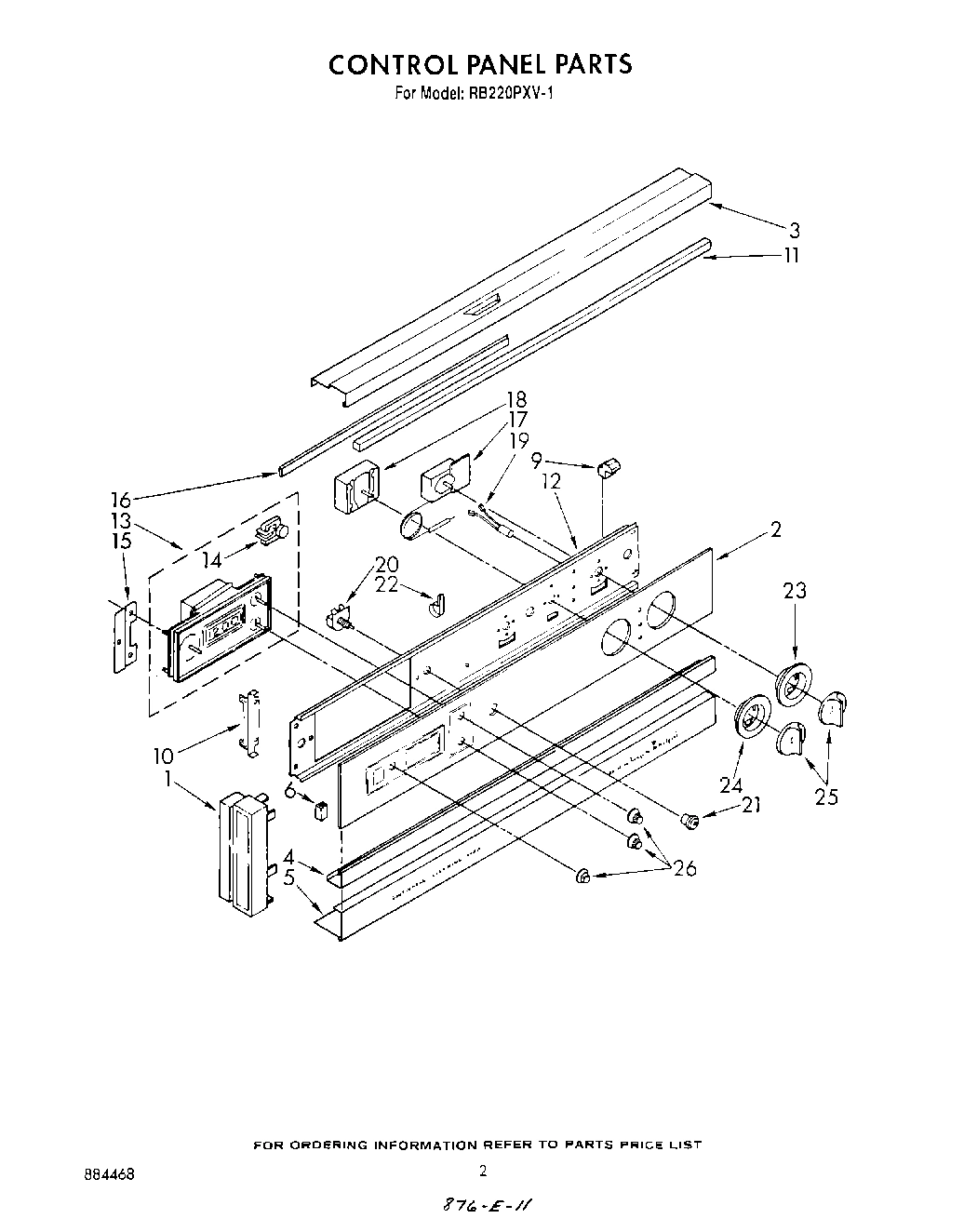

Model Whirlpool RB220PXV1 – Common Parts &amp; Diagrams

WPL 308043 WPL 308043 Contact Us For Availability

WPL 312318 WPL 312318 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

1

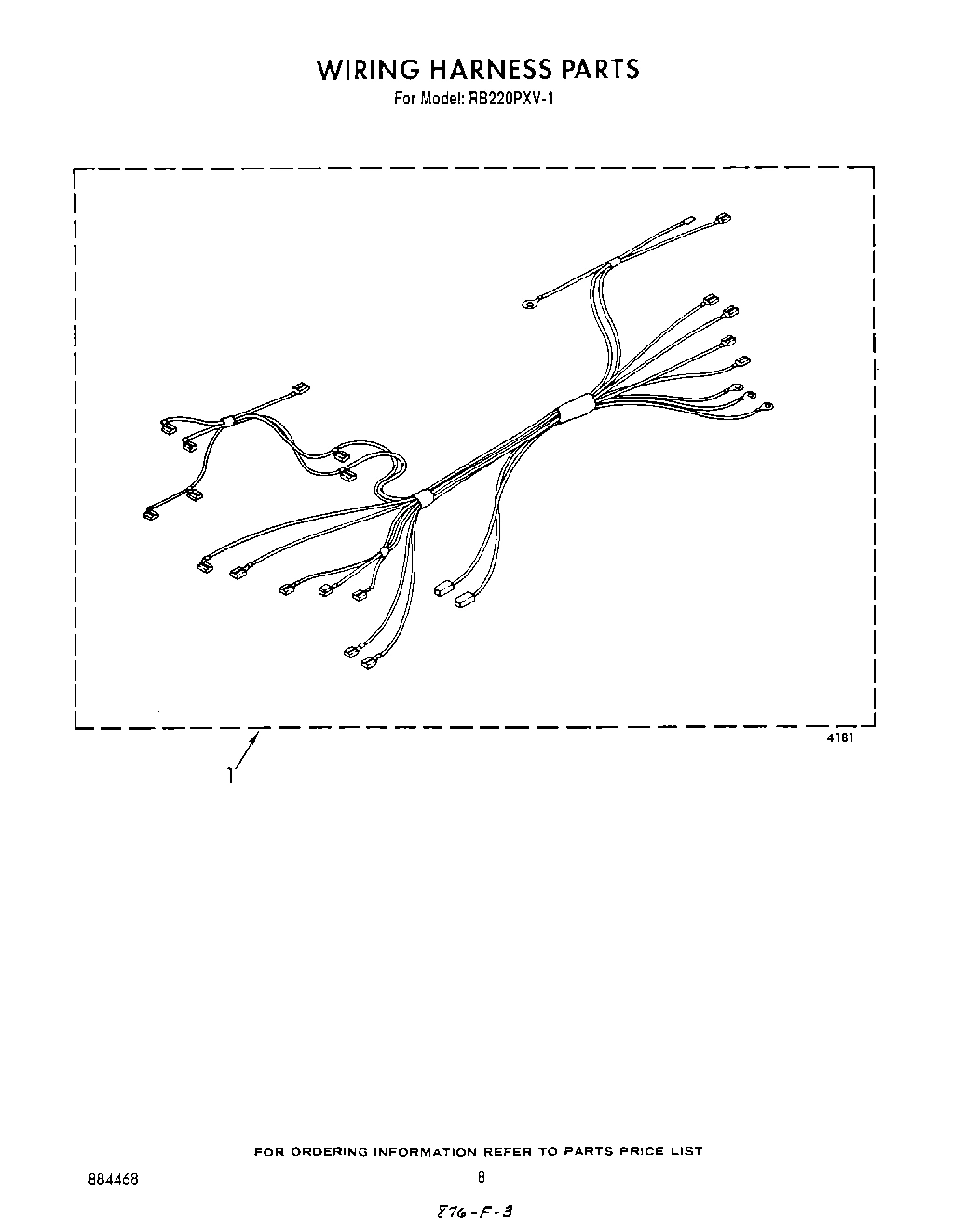

Harness, Wire (Oven) WPL 310909 Contact Us For Availability

1

Frame, Front WPL 3172204 Contact Us For Availability

1

screw, (4) WPL 311056 Contact Us For Availability

1

Liner, Door WPL 3170710 Contact Us For Availability

2

Seal, Pano Glass WPL 3148183 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Glass, Inner 30`` WPL 3148179 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Retainer, Insulation WPL 3148287 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

6

Side Wrapper (R.H.) WPL 311005 Contact Us For Availability

6

Side Wrapper (L.H.) WPL 311008 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

8

Baffle, Top Insulation WPL 310693 Contact Us For Availability

8

Frame, Door 30`` WPL 3148235 Contact Us For Availability

9

Side Trim L.H. WPL 310685 Contact Us For Availability

9

Side Trim (R.H.) WPL 310689 Contact Us For Availability

9

Glass, Outer WPL 3148185 Contact Us For Availability

10

Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability

11

Heat Seal WPL 309107 Contact Us For Availability

11

Screw, 10A x 1/2 Black (2) WPL 307748 Contact Us For Availability

11

Top, Door Frame WPL 3148223 Contact Us For Availability

12

Bracket, Oven Mounting WPL 310713 Contact Us For Availability

13

Plug Button WPL 257314 Contact Us For Availability

14

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

Clip (2) WPL 3148282 Contact Us For Availability

Bracket, Timer (2) WPL 310721 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

16

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

16

Seal, Backguard WPL 313316 Contact Us For Availability

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

(alt.) WPL 310861 Contact Us For Availability

(alt.) WPL 311495 Contact Us For Availability

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

Thermostat, Oven WPL 660564 Contact Us For Availability

Channel Arm (2) WPL 329714 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Handle, Oven Door WPL 3148228 Contact Us For Availability

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

18

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

18

Selector Switch WPL 310866 Contact Us For Availability

19

Light, Indicator Oven WPL 311802 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Switch, Oven Light WPL 312581 Contact Us For Availability

Lockwasher WPL 312796 Contact Us For Availability

Spring, Door Stop (2) WPL 311092 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

Bezel Switch WPL 313030 Contact Us For Availability

22

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

screw, 8a x3/8 WPL 98520 Contact Us For Availability

23

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

23

Escutcheon, Thermostat WPL 311065 Contact Us For Availability

23

Vent Extension WPL 310836 Contact Us For Availability

24

WP311069 Whirlpool Oven Dial Backorder WPL WP311069 $27.80

24

Eliminator, Smoke WPL 310840 Contact Us For Availability

25

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.54

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $67.37

26

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28

26

Spring, Knob WPL 313311 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

28

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

31

Angle, Support (2) WPL 311592 Contact Us For Availability

32

Top & Bottom Cover (2) WPL 310458 Contact Us For Availability

33

Bracket, Control Panel Mou WPL 310719 Contact Us For Availability

33

WPL 342043 WPL 342043 Contact Us For Availability

34

WPL 309029 WPL 309029 Contact Us For Availability

34

WPL 310668 WPL 310668 Contact Us For Availability

36

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

37

WPL 308173 WPL 308173 Contact Us For Availability

38

WPL 308172 WPL 308172 Contact Us For Availability

39

WPL 3149542 WPL 3149542 Contact Us For Availability

40

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

40

WPL 311011 WPL 311011 Contact Us For Availability

41

WPL 310345 WPL 310345 Contact Us For Availability

42

WPL 254225 WPL 254225 Contact Us For Availability

42

WPL 312029 WPL 312029 Contact Us For Availability

24282

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

24282

wire, orange 14 ga. 150oc (wire, red 12 ga. 1 WPL 242829 Contact Us For Availability

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

wire, red 14 ga. 200oc (wire, white 14 ga. 15 WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

wire, red 14 ga. 200oc (wire, yellow 14 ga. 2 WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
