Model Whirlpool RB220PXK1 – Common Parts & Diagrams

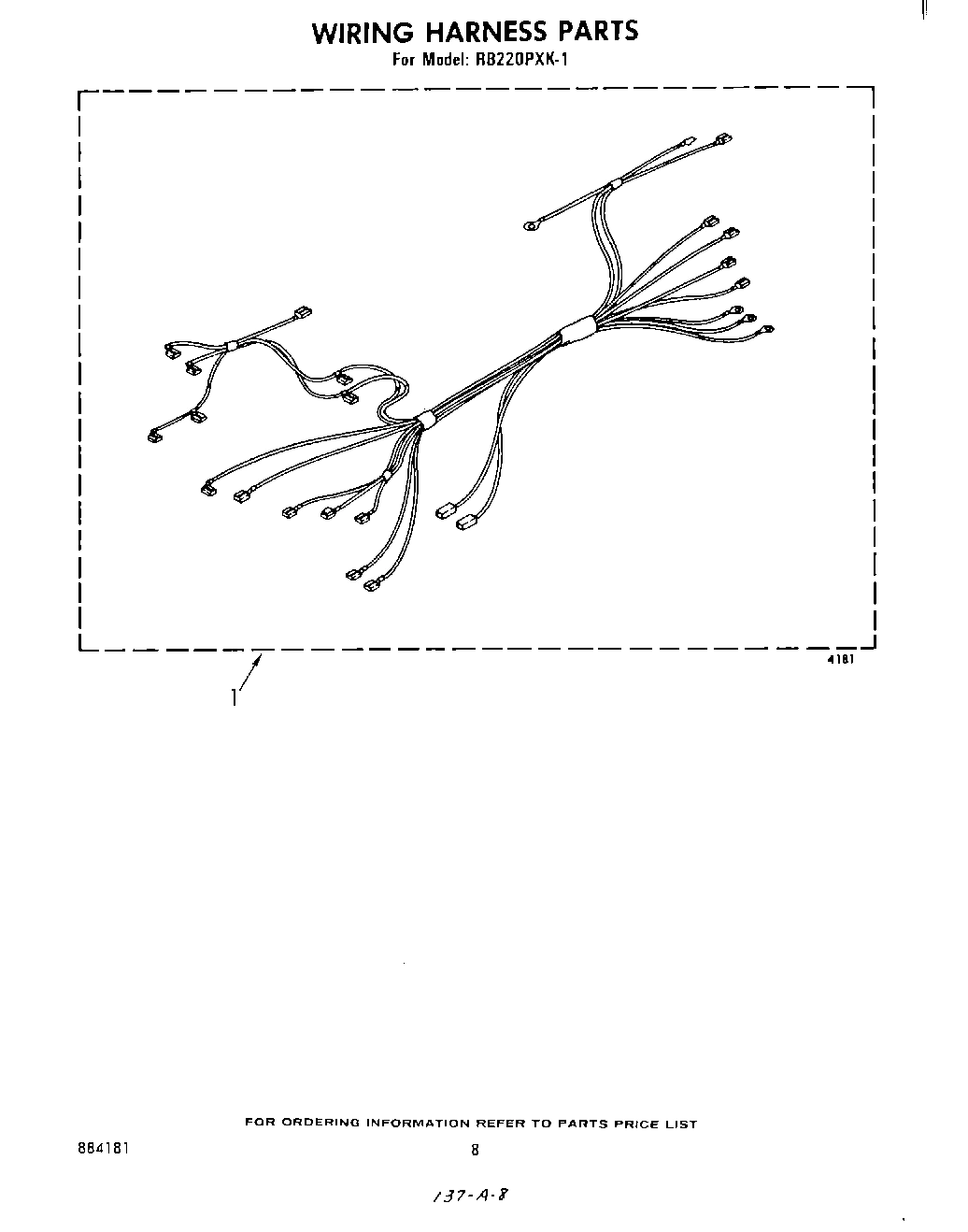

05 - WIRING HARNESS

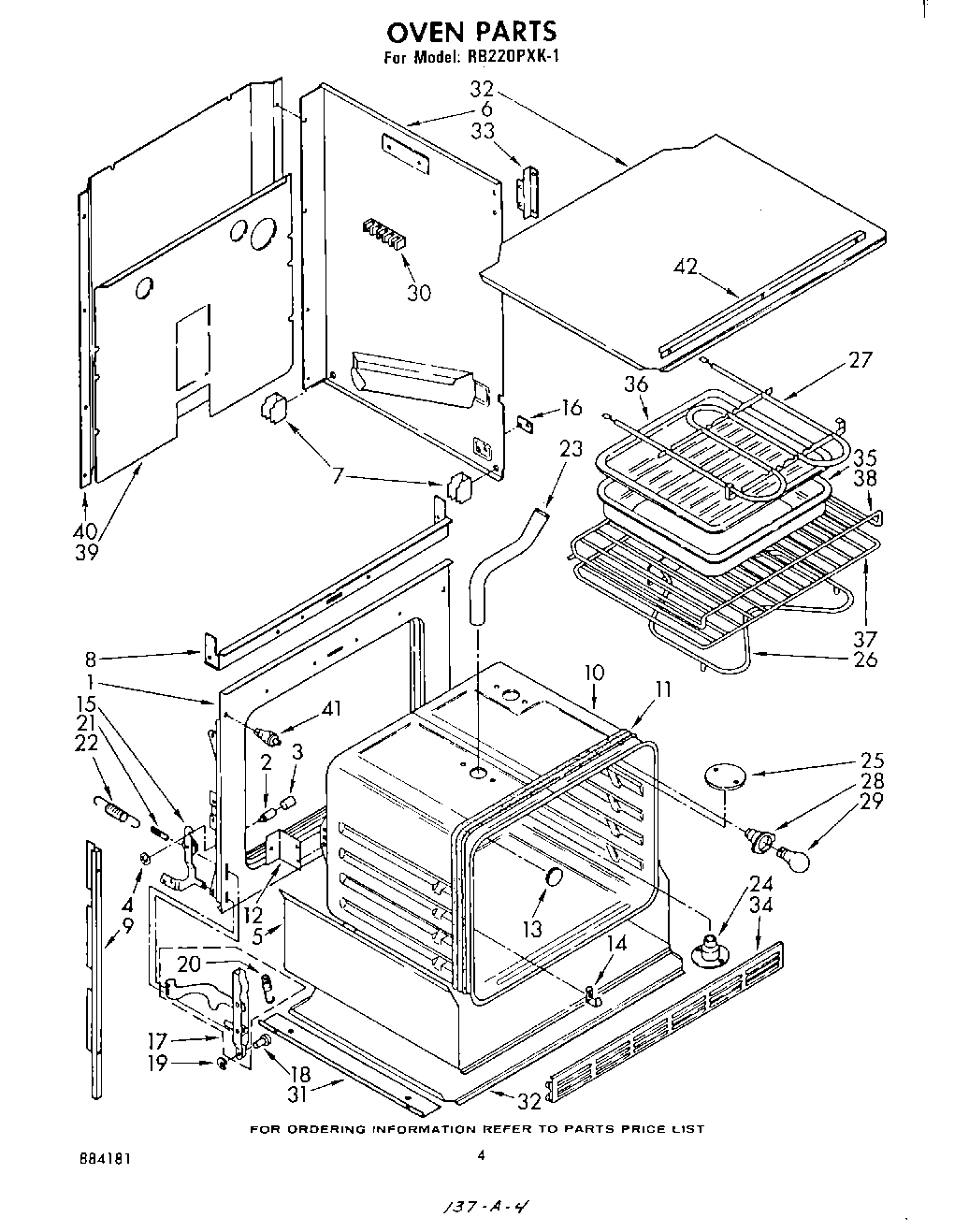

03 - OVEN

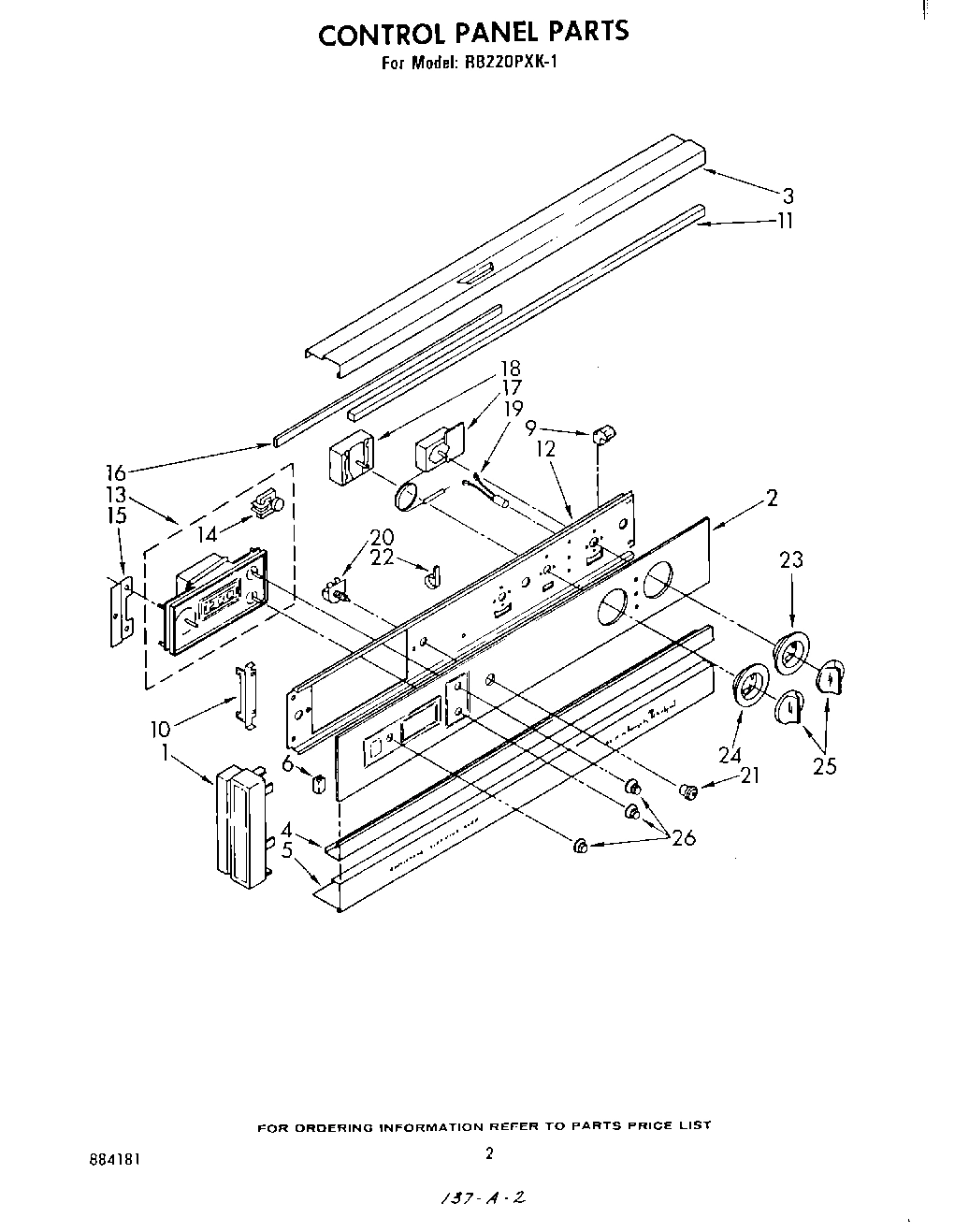

02 - CONTROL PANEL

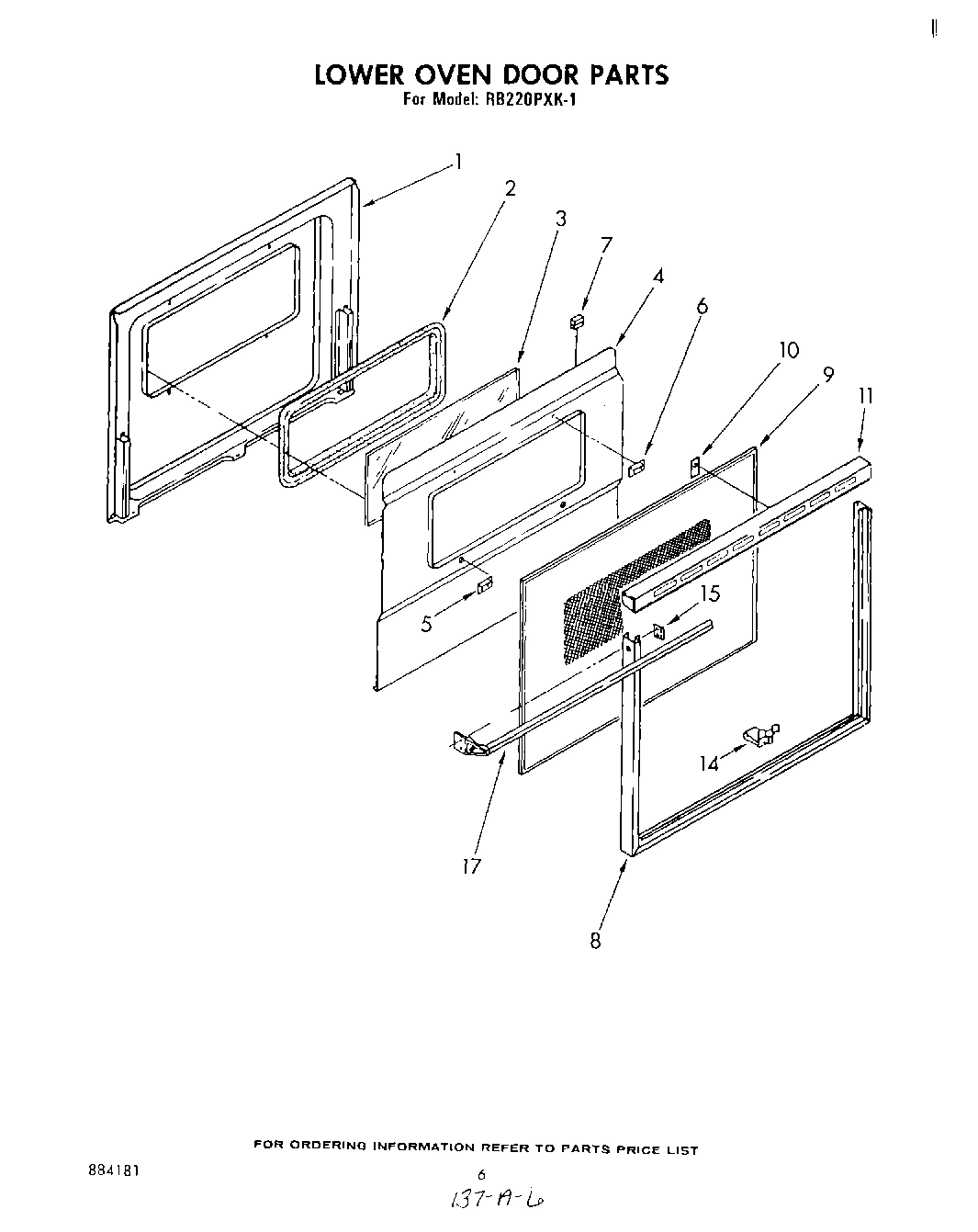

04 - LOWER OVEN DOOR , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RB220PXK1
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
Guide, Use & Care WPL LIT311414 Contact Us For Availability
Instructions, Installation WPL LIT311434 Contact Us For Availability
Book, Cooking WPL LIT313358 Contact Us For Availability
List, Repair Parts WPL LIT884181 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
End Cap (L.H.) WPL 310828 Contact Us For Availability
1
End Cap (R.H.) WPL 310829 Contact Us For Availability
1
pushnut (2) WPL 311896 Contact Us For Availability
1
pin, wedge (2) WPL 312223 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
2
Glass, Control Panel WPL 313883 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
3
Rail, Top WPL 310824 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
4
Trim, Center WPL 311194 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
5
screw (2) WPL 342043 Contact Us For Availability
5
Rail, Bottom WPL 312531 Contact Us For Availability
6
Channel, Rubber (2) WPL 310842 Contact Us For Availability
6
Spacer, Insulation Baffle (2) WPL 258990 Contact Us For Availability
7
Channel, Rubber (4) WPL 312783 Contact Us For Availability
8
frame, door 30`` WPL 310427 Contact Us For Availability
9
Side Trim (R.H.) WPL 310689 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
10
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Screw WPL 98520 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
11
Screw, 10A x 1/2 Black (2) WPL 307748 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
12
Bracket, Oven Mounting WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 313314 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
palnut, timer 10-32 WPL 308846 Contact Us For Availability
13
Timer, Digital (Included No.14) WPL 313520 Contact Us For Availability
14
Motor, Timer WPL 308594 Contact Us For Availability
14
clip, glass (10) WPL 310706 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Bracket, Timer (2) WPL 310721 Contact Us For Availability
15
Clip (2) WPL 311506 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Thermostat, Oven (Alt.) WPL 310861 Contact Us For Availability
17
Thermostat, Oven (Alt.) WPL 311495 Contact Us For Availability
17
Thermostat, Oven WPL 660564 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
17
Handle, Oven Door WPL 312721 Contact Us For Availability
18
Selector Switch WPL 310866 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light, Indicator Oven WPL 308753 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Lockwasher WPL 312796 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
23
Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Spring, Knob WPL 313311 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
31
Angle, Support (2) WPL 311592 Contact Us For Availability
32
Top & Bottom Cover (2) WPL 310458 Contact Us For Availability
33
WPL 310719 WPL 310719 Contact Us For Availability
34
WPL 309029 WPL 309029 Contact Us For Availability
34
WPL 310668 WPL 310668 Contact Us For Availability
37
WPL 308173 WPL 308173 Contact Us For Availability
38
WPL 308172 WPL 308172 Contact Us For Availability
39
WPL 310459 WPL 310459 Contact Us For Availability
40
WPL 311011 WPL 311011 Contact Us For Availability
41
WPL 310345 WPL 310345 Contact Us For Availability
42
WPL 312029 WPL 312029 Contact Us For Availability
× ![]()
