Model Whirlpool RB220PXK0 – Common Parts & Diagrams
02 - SECTION
03 - SECTION
04 - SECTION
01 - SECTION

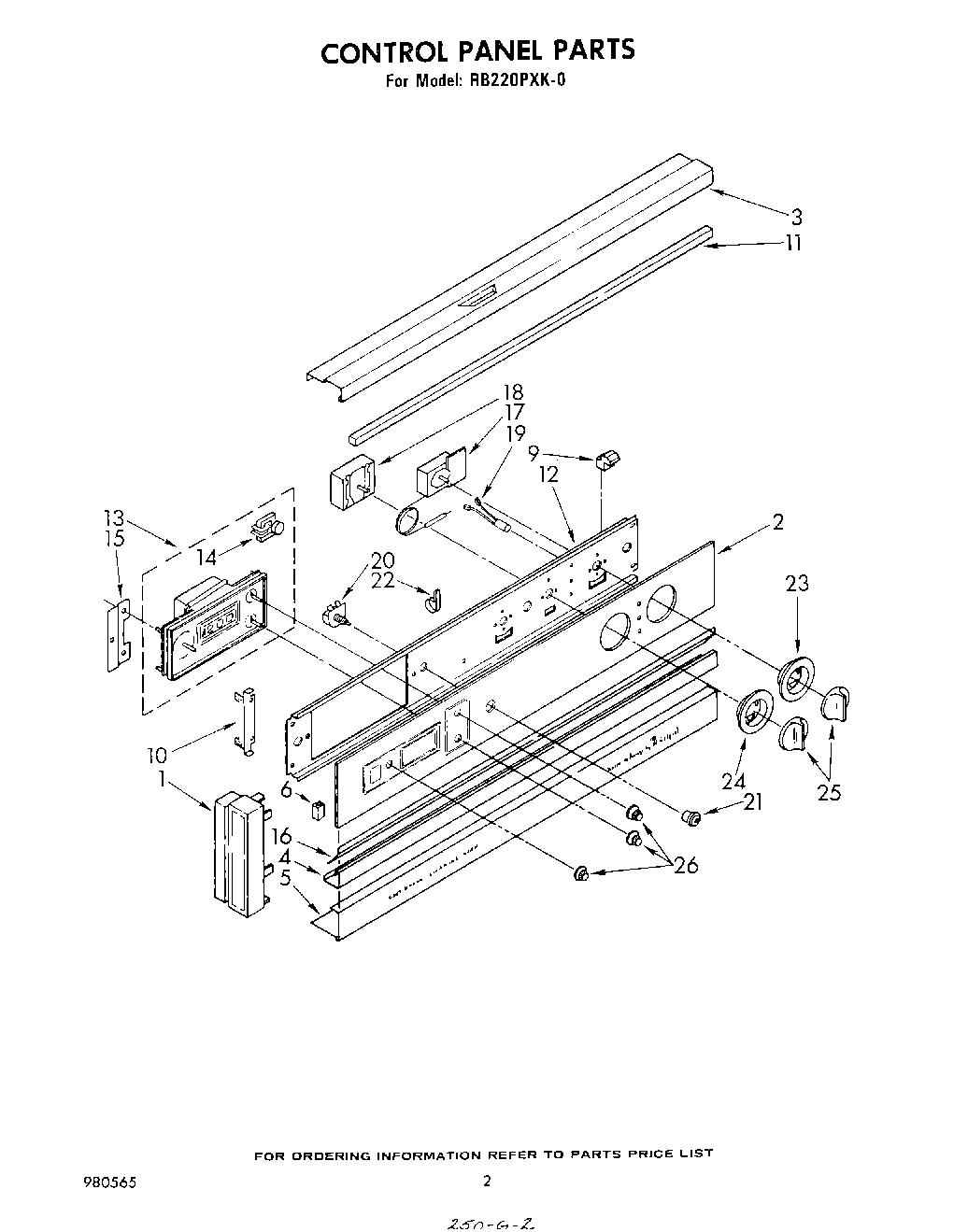

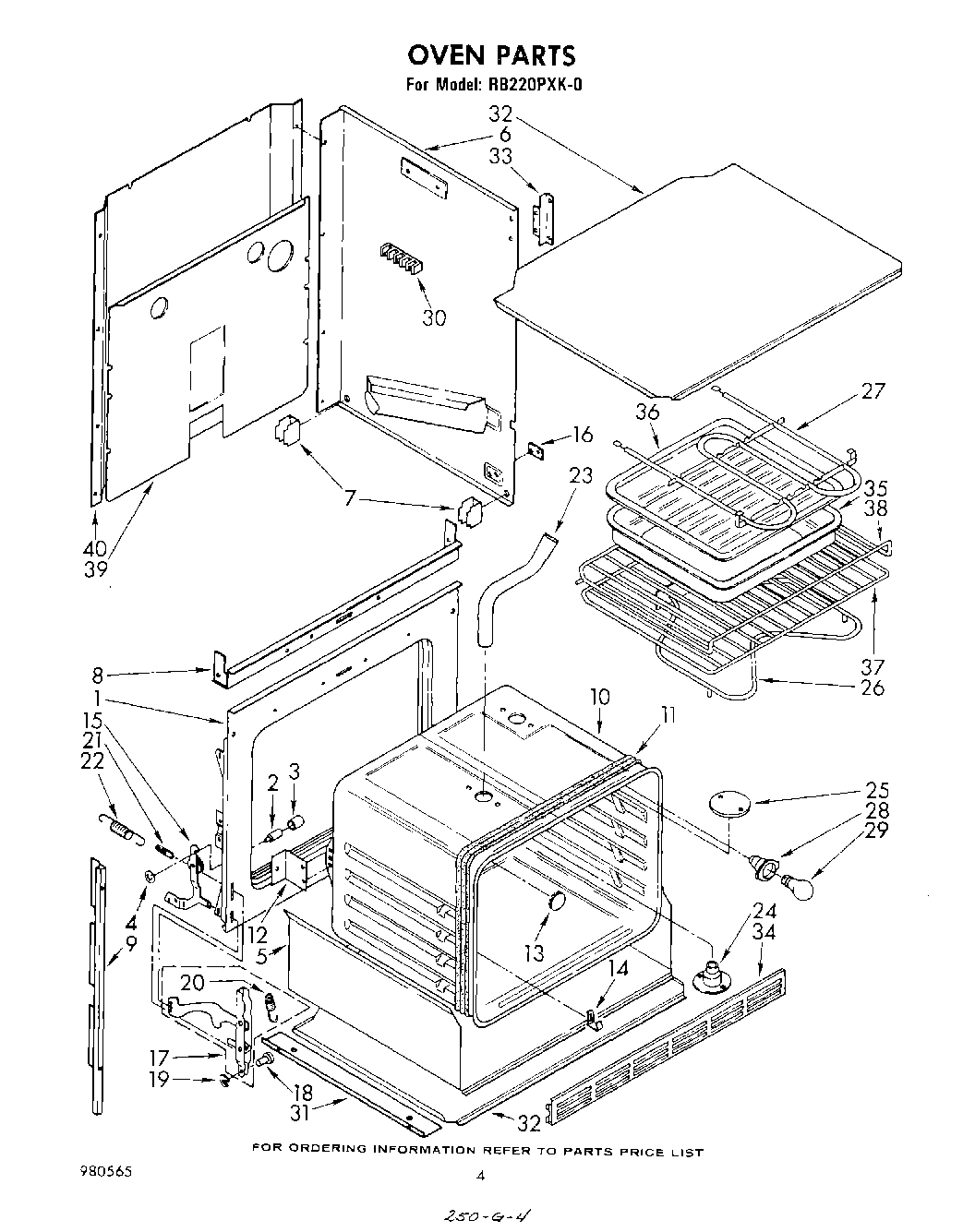

Common parts from model Whirlpool RB220PXK0
1
Frame, Front WPL 328747 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 327858 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
6
Spacer, Insulation Baffle (2) WPL 258990 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
channel, rubber (4) WPL 255859 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
8
frame, door 30`` WPL 310427 Contact Us For Availability
9
Side Trim L.H. WPL 310685 Contact Us For Availability
9
Side Trim (R.H.) WPL 310689 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
10
Screw WPL 98520 Contact Us For Availability
10
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
11
Screw, 10A x 1/2 Black (2) WPL 307748 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
12
Bracket, Control WPL 310727 Contact Us For Availability
12
Bracket, Oven Mounting WPL 310713 Contact Us For Availability
13
palnut, timer 10-32 WPL 308846 Contact Us For Availability
13
Timer, Digital (Included No.14) WPL 310325 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Cushion, Oven Door (3) WPL 309152 Contact Us For Availability
14
Motor, Timer WPL 308594 Contact Us For Availability
14
clip, glass (10) WPL 310706 Contact Us For Availability
15
Bracket, Timer (2) WPL 310721 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Clip (2) WPL 311506 Contact Us For Availability
16
Seal WPL 255893 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
Thermostat, Oven (Alternate) WPL 310861 Contact Us For Availability
17
Thermostat, Oven (Alternate) WPL 311495 Contact Us For Availability
17
Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability
17
Channel, Arm (2) WPL 328804 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
17
Book, Cooking Guide WPL 308500 Contact Us For Availability
17
Guide, Use & Care WPL 311414 Contact Us For Availability
17
Installation Instructions WPL 311434 Contact Us For Availability
17
Handle, Oven Doo WPL 311573 Contact Us For Availability
18
Selector Switch WPL 310866 Contact Us For Availability
19
Light, Indicator Oven WPL 308753 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Nut, Hex 3/8 WPL 255912 Contact Us For Availability
20
Switch, Oven Light WPL 308829 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Bezel, Switch WPL 308784 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
23
Vent Extension WPL 310836 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (3) WPL 309553 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
31
WPL 311592 WPL 311592 Contact Us For Availability
32
WPL 310458 WPL 310458 Contact Us For Availability
33
WPL 310719 WPL 310719 Contact Us For Availability
33
WPL 342043 WPL 342043 Contact Us For Availability
34
WPL 309029 WPL 309029 Contact Us For Availability
34
WPL 310668 WPL 310668 Contact Us For Availability
37
WPL 308173 WPL 308173 Contact Us For Availability
38
WPL 308172 WPL 308172 Contact Us For Availability
39
WPL 310459 WPL 310459 Contact Us For Availability
40
WPL 311011 WPL 311011 Contact Us For Availability
× ![]()
