Model Whirlpool RB2200XKW0 – Common Parts & Diagrams
03 - SECTION
01 - SECTION

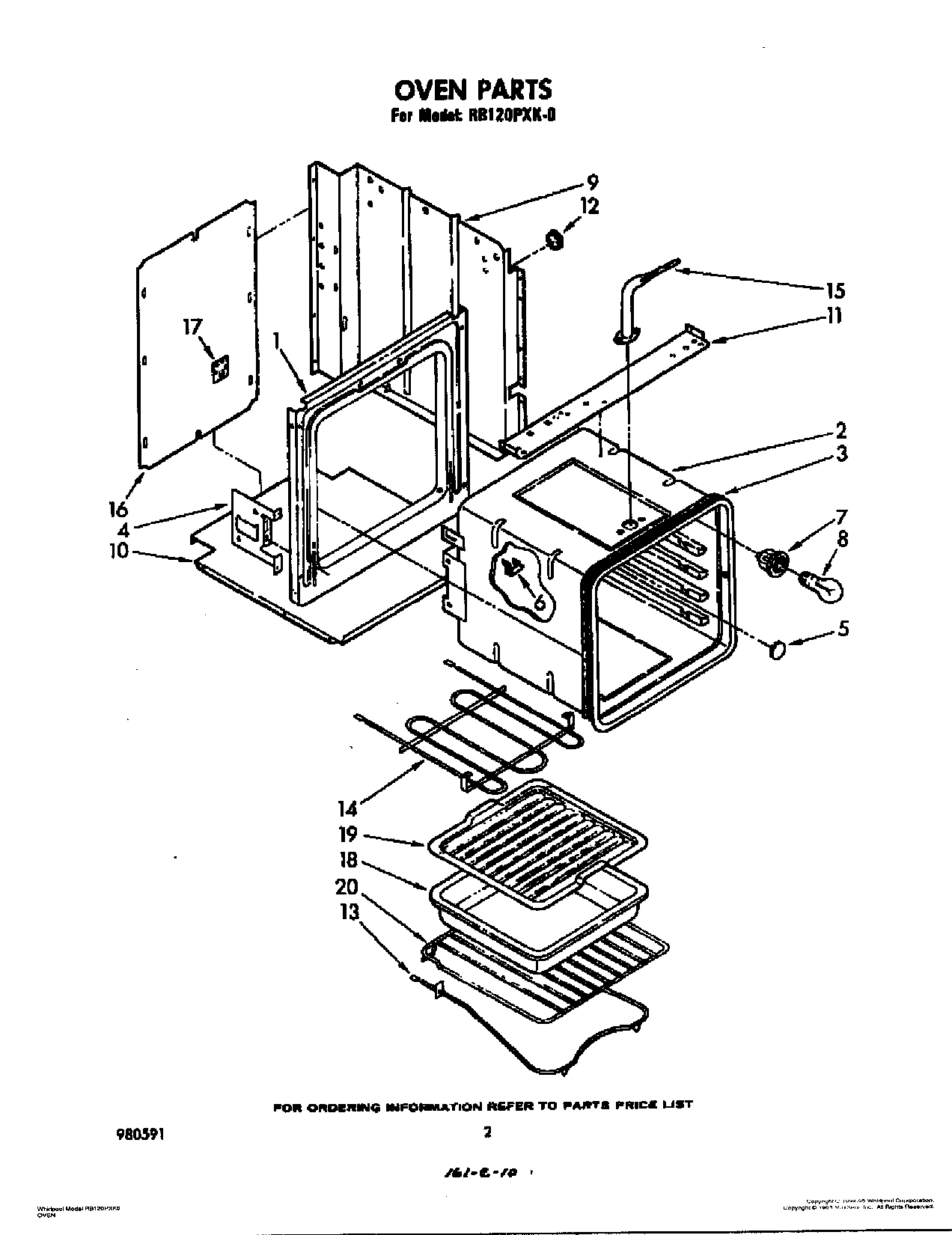

02 - OVEN

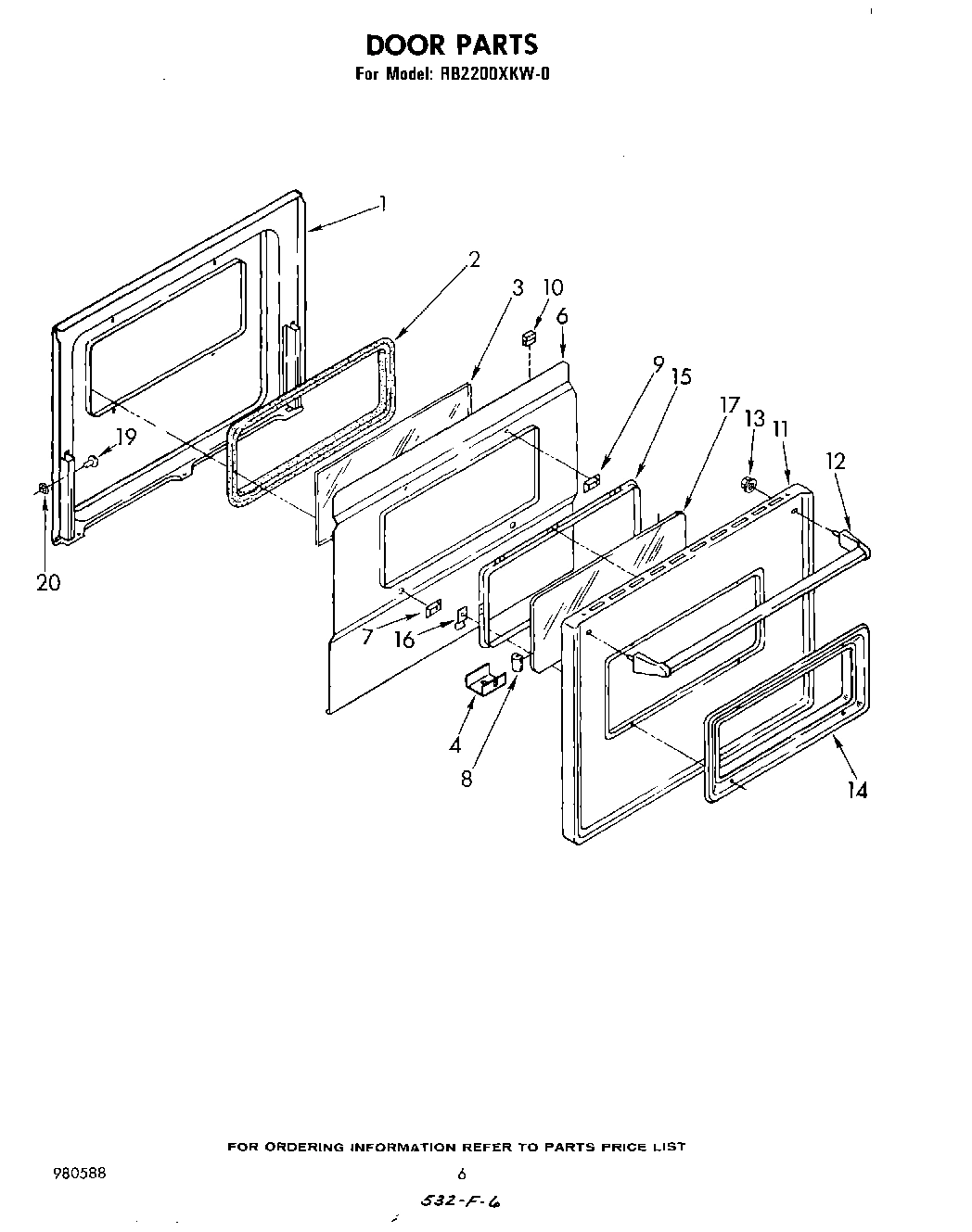

04 - SECTION
Common parts from model Whirlpool RB2200XKW0
1
End Cap (L.H.) WPL 310828 Contact Us For Availability
1
End Cap (R.H.) WPL 310829 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
2
Glass, Control Panel WPL 312523 Contact Us For Availability
2
Seal, Glass WPL 258711 Contact Us For Availability
3
Rail, Top WPL 310824 Contact Us For Availability
3
Glass, Inner WPL 258988 Contact Us For Availability
4
Trim, Center WPL 311194 Contact Us For Availability
4
Spacer, Door (2) WPL 309137 Contact Us For Availability
5
screw (2) WPL 342043 Contact Us For Availability
5
Rail, Bottom WPL 312531 Contact Us For Availability
6
Channel, Rubber (2) WPL 310842 Contact Us For Availability
6
baffle, insulation WPL 307924 Contact Us For Availability
8
Cushion, Door (2) WPL 309152 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
9
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
9
Spacer, Baffle (2) WPL 258990 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Screw (4) WPL 98520 Contact Us For Availability
10
Bumper, Oven Door (4) WPL 312783 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
11
Panel, Oven Door (White) WPL 307888 Contact Us For Availability
11
Panel, Oven Door (New Avocado) WPL 307890 Contact Us For Availability
11
Panel, Oven Door (Coffee) WPL 307892 Contact Us For Availability
11
Panel, Oven Door (Harvest Gold) WPL 307894 Contact Us For Availability
11
Panel, Oven Door (Almond) WPL 307896 Contact Us For Availability
11
Panel, Oven Door (Screw, 8A x 5/8 (2)) WPL 309133 Contact Us For Availability
11
Panel, Oven Door (Toast) WPL 313175 Contact Us For Availability
11
Panel, Oven Door (Platinum) WPL 313176 Contact Us For Availability
12
Bracket, Control WPL 310727 Contact Us For Availability
12
Handle, Oven Door WPL 311564 Contact Us For Availability
13
palnut, timer 10-32 WPL 308846 Contact Us For Availability
13
Timer, Digital (Included No.14) WPL 310325 Contact Us For Availability
14
Motor, Timer WPL 308594 Contact Us For Availability
14
Window, Frame 30`` Small WPL 309173 Contact Us For Availability
15
Glass Retainer WPL 307792 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Bracket, Timer (2) WPL 310721 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Seal WPL 255893 Contact Us For Availability
16
Clip, Frame WPL 307731 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Thermostat, Oven (Alternate) WPL 310861 Contact Us For Availability
17
Thermostat, Oven (Alternate) WPL 311495 Contact Us For Availability
17
Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability
17
Glass, Outer WPL 307732 Contact Us For Availability
17
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
18
Selector Switch WPL 310866 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light, Indicator Oven WPL 308753 Contact Us For Availability
19
pin, wedge (2) WPL 312223 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
WPL 242832 WPL 242832 Contact Us For Availability
20
WPL 242985 WPL 242985 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261810 WPL 261810 Contact Us For Availability
20
WPL 308500 WPL 308500 Contact Us For Availability
20
WPL 311414 WPL 311414 Contact Us For Availability
20
WPL 311434 WPL 311434 Contact Us For Availability
20
WPL 311896 WPL 311896 Contact Us For Availability
20
WPL 980588 WPL 980588 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
23
Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (3) WPL 312808 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
30
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
31
Angle, Suppor WPL 311592 Contact Us For Availability
32
WPL 310458 WPL 310458 Contact Us For Availability
33
WPL 310719 WPL 310719 Contact Us For Availability
34
WPL 309029 WPL 309029 Contact Us For Availability
34
WPL 310668 WPL 310668 Contact Us For Availability
37
WPL 308173 WPL 308173 Contact Us For Availability
38
WPL 308172 WPL 308172 Contact Us For Availability
39
WPL 310459 WPL 310459 Contact Us For Availability
40
WPL 311011 WPL 311011 Contact Us For Availability
42
WPL 310345 WPL 310345 Contact Us For Availability
43
WPL 312029 WPL 312029 Contact Us For Availability
× ![]()
