Model Whirlpool RB170PXXB1 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

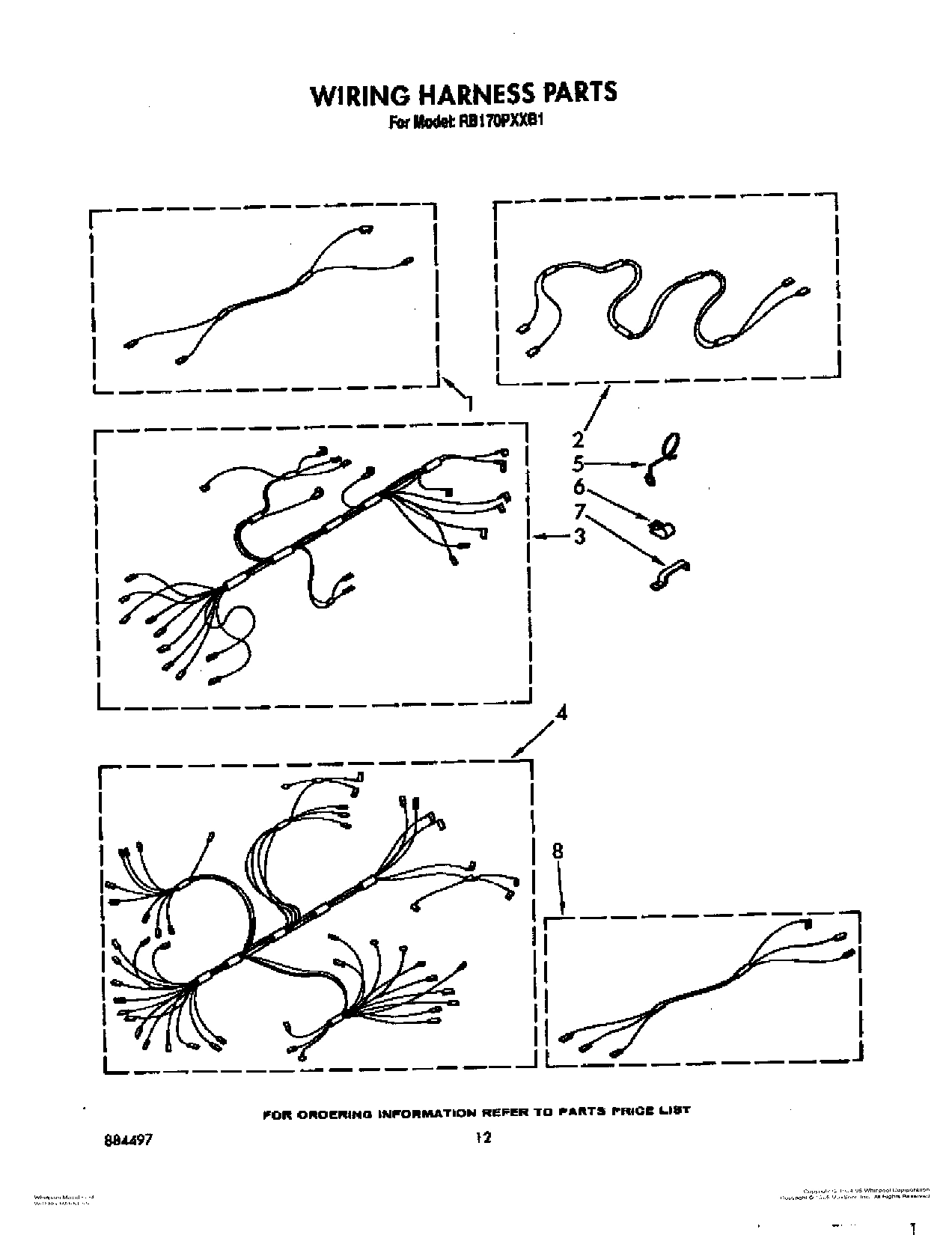

09 - WIRING HARNESS

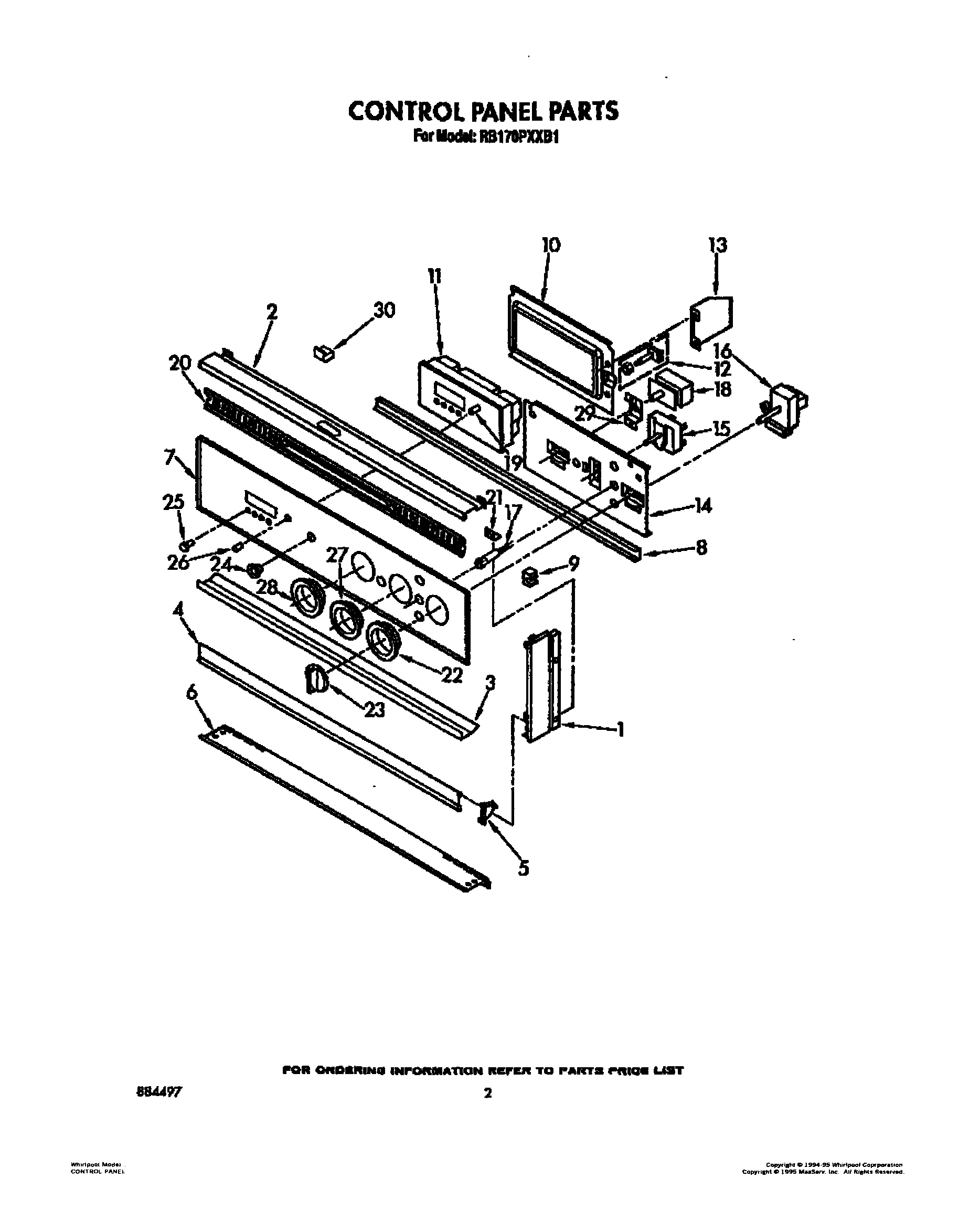

02 - CONTROL PANEL, LIT/OPTIONAL
03 - UPPER OVEN

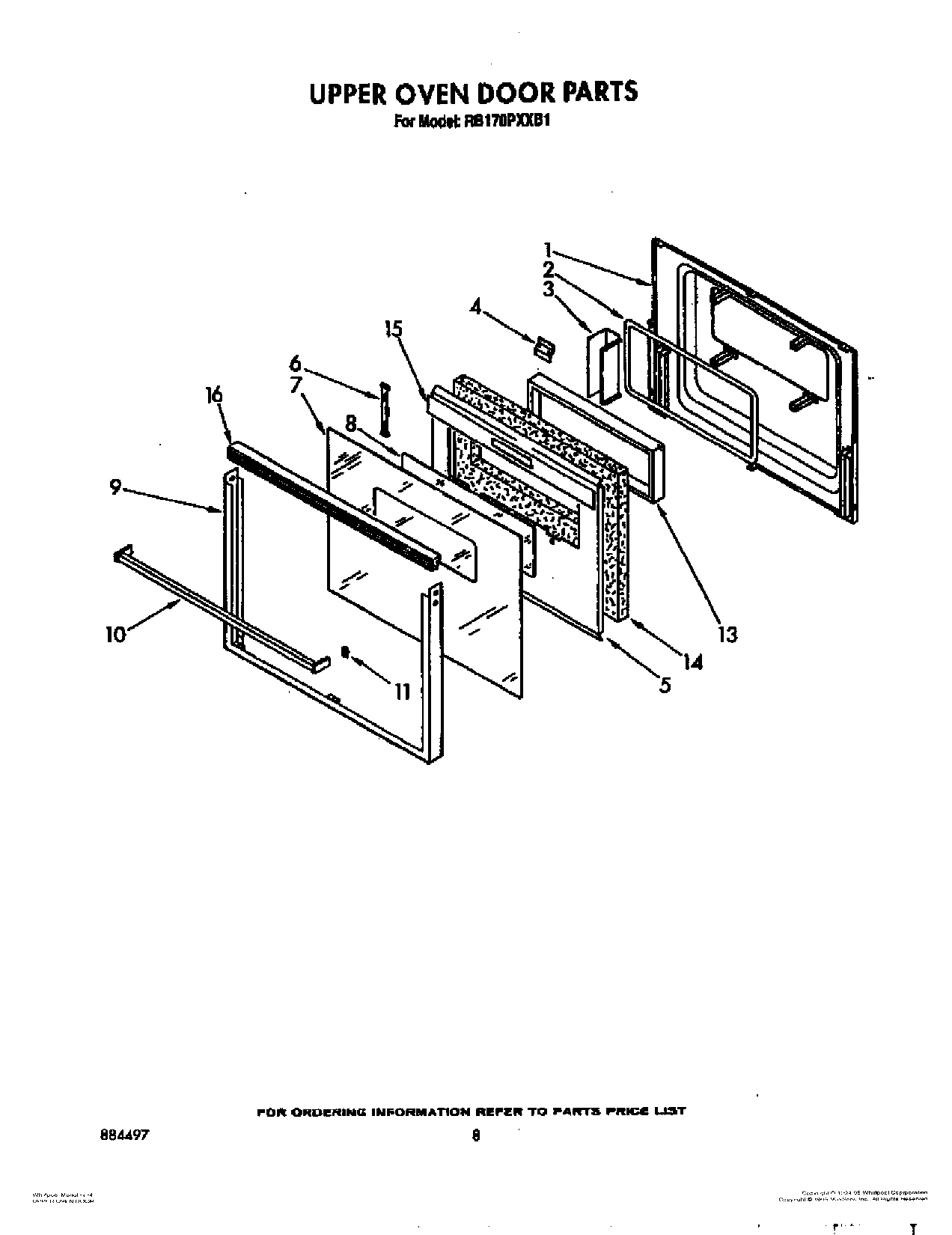

05 - UPPER OVEN DOOR

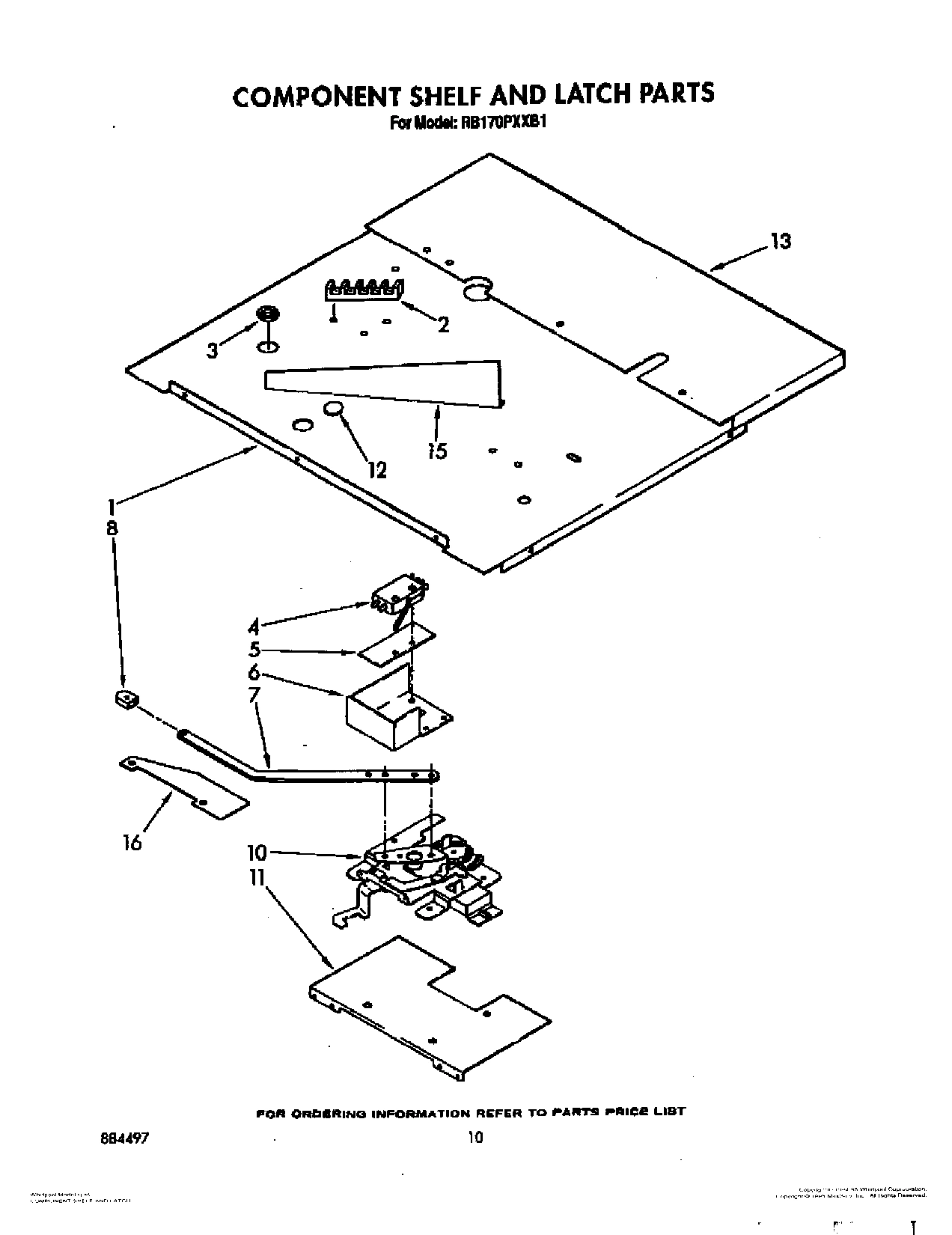

07 - COMPONENT SHELF AND LATCH

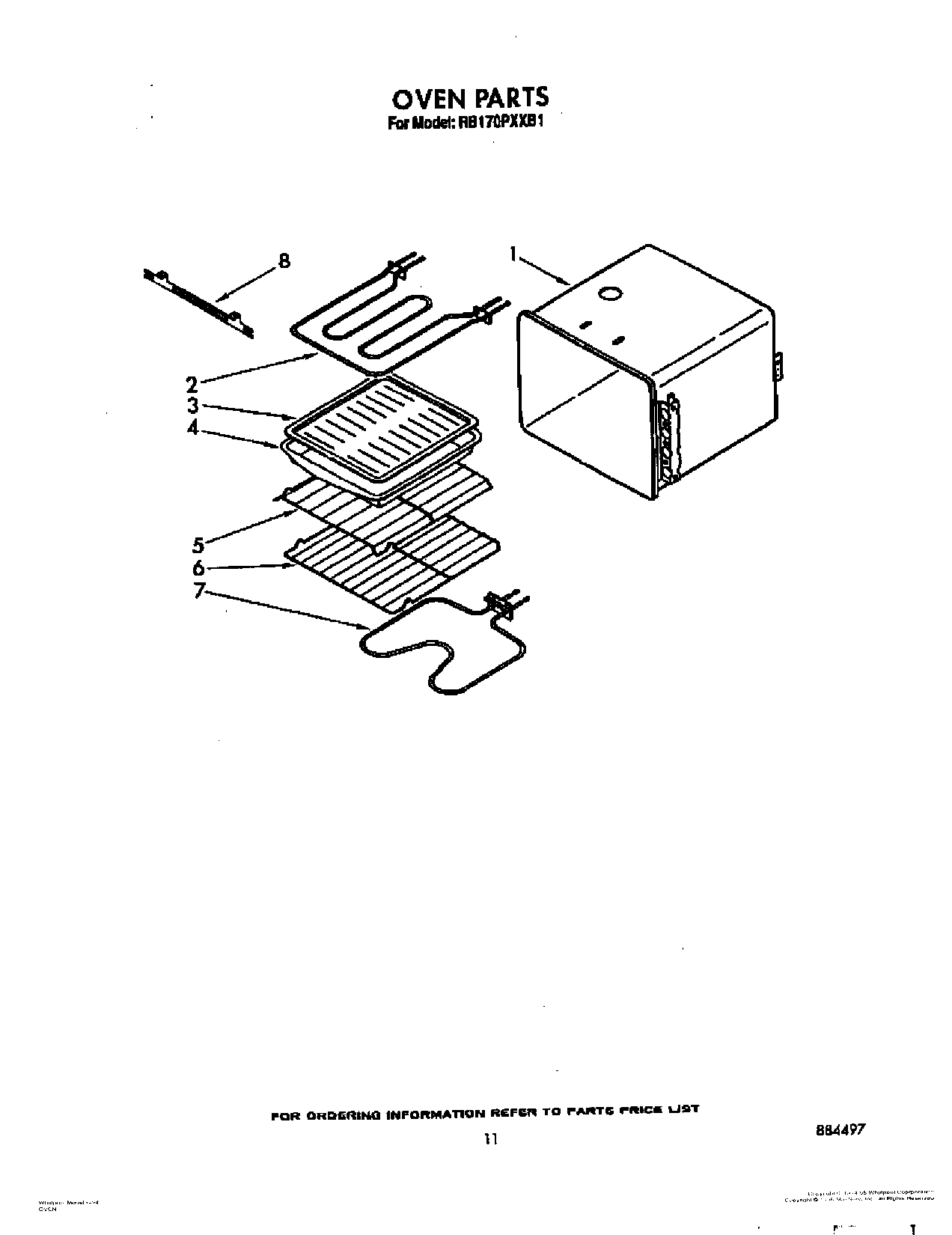

08 - OVEN

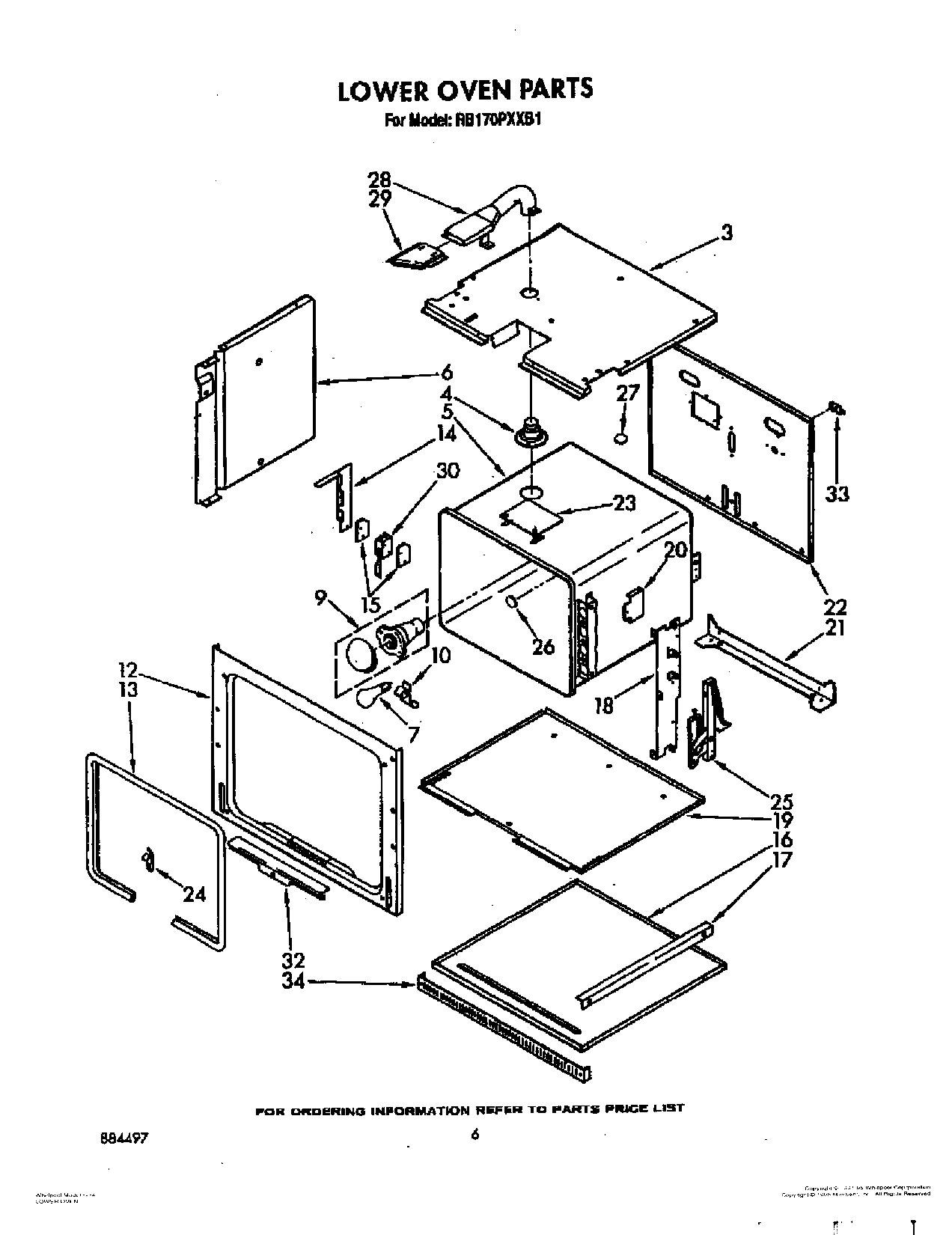

04 - LOWER OVEN

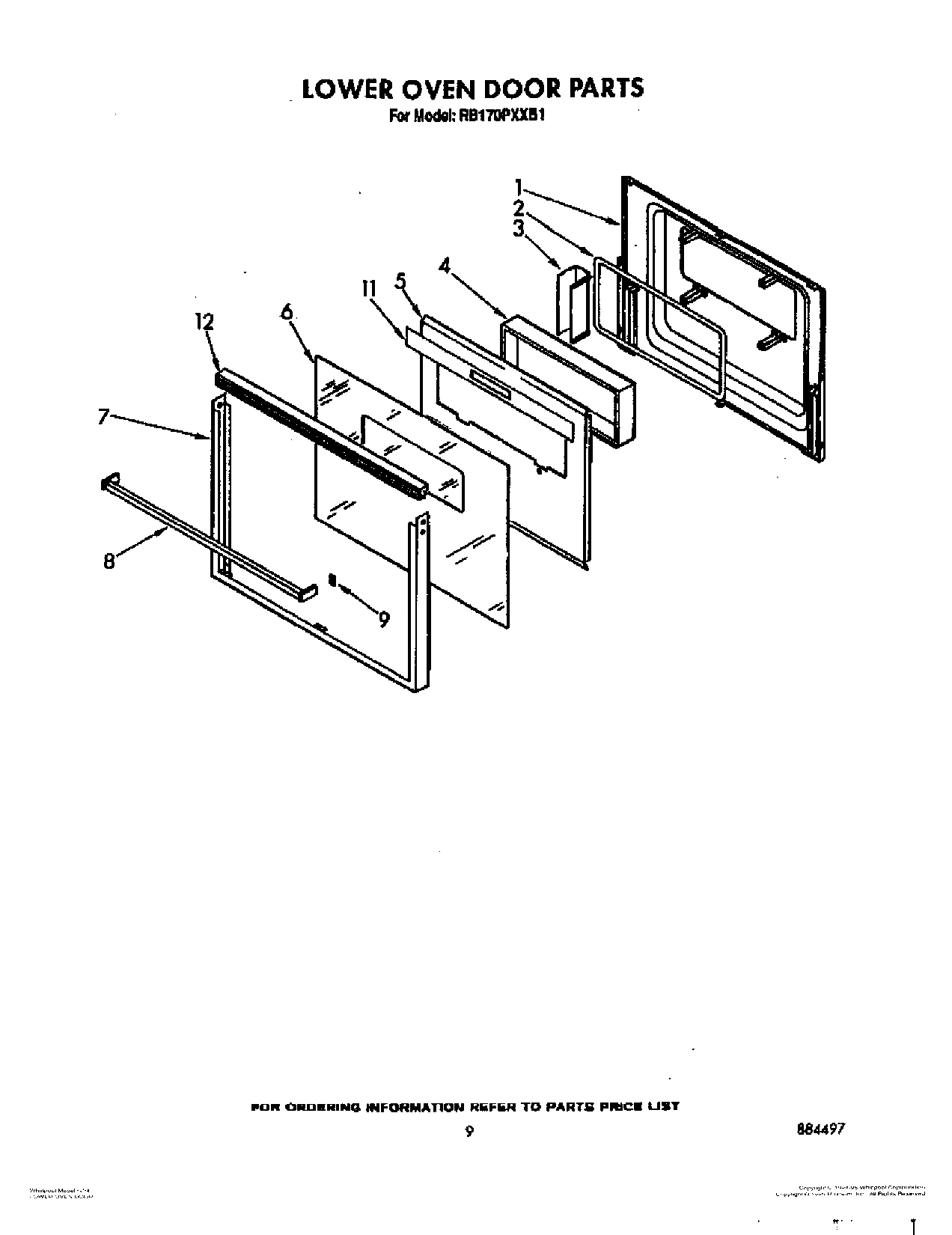

06 - LOWER OVEN DOOR
Common parts from model Whirlpool RB170PXXB1 BUILT-IN ELECTRIC DOUBLE OVEN
Installation Instructions WPL LIT3180568 Contact Us For Availability
Repair Parts List WPL LIT884497 Contact Us For Availability
1
End Cap (Left Hand) WPL 3179458 Contact Us For Availability
1
End Cap (Right Hand) WPL 3179459 Contact Us For Availability
1
Screw (2) WPL 3178001 Contact Us For Availability
1
Screw (6) WPL 4168863 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
1
Shelf, Component WPL 3178090 Contact Us For Availability
1
Liner, Door WPL 3177598 Contact Us For Availability
2
Trim, Top WPL 3179422 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
3
Trim, Center WPL 3180684 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
3
Top, Module WPL 3177437 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
3
Bushing WPL 4173043 Contact Us For Availability
4
Door, Vent WPL 3179453 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Tube, Vent WPL 4168491 Contact Us For Availability
4
Window Pack WPL 4169572 Contact Us For Availability
5
End Trim, Vent Door (Left Hand) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door (Right Hand) WPL 3148698 Contact Us For Availability
5
Liner, Oven WPL 3180803 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset WPL 3180867 Contact Us For Availability
6
Trim, Bottom WPL 3180657 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Cabinet, Top WPL 3178137 Contact Us For Availability
6
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
6
Glass, Door WPL 3179497 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3180866 Contact Us For Availability
7
Glass, Control Panel WPL 3179443 Contact Us For Availability
7
Frame, Door WPL 3180606 Contact Us For Availability
7
Handle, Latch WPL 3180409 Contact Us For Availability
7
Screw (2) WPL 3180567 Contact Us For Availability
8
Rail, Mounting (Components) WPL 3180290 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177440 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Handle, Door WPL 3179482 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
9
Retainer, Glass WPL 3180440 Contact Us For Availability
9
Tube, Vent WPL 4168126 Contact Us For Availability
10
Plate, Mounting (Clock) WPL 3180293 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Clip, Mounting WPL 3148282 Contact Us For Availability
11
Timer WPL 3149806 Contact Us For Availability
11
Shield, Door WPL 3181349 Contact Us For Availability
11
Plate, Mounting (2) WPL 3177496 Contact Us For Availability
12
Switch, Oven Light WPL 312581 Contact Us For Availability
12
Screw WPL 3180967 Contact Us For Availability
12
Trim, Door WPL 3179477 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Frame, Door WPL 3177704 Contact Us For Availability
13
Washer, Lock (2) WPL 312796 Contact Us For Availability
13
Shield, Heat WPL 3180542 Contact Us For Availability
13
Seal, Door WPL 3179814 Contact Us For Availability
13
Extension, Shelf WPL 3178133 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Plate, Mounting (Controls) WPL 3180294 Contact Us For Availability
14
Frame, Front WPL 3177705 Contact Us For Availability
14
Bracket, Switch WPL 3177681 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Switch, Selector WPL 3178237 Contact Us For Availability
15
Insulator, Switch WPL 3177923 Contact Us For Availability
15
Baffle, Air WPL 3180693 Contact Us For Availability
16
Thermostat, Upper Oven WPL 3178275 Contact Us For Availability
16
Support, Latch WPL 3180692 Contact Us For Availability
16
Bottom, Oven WPL 3177552 Contact Us For Availability
17
Light, Indicator (4) WPL 4168598 Contact Us For Availability
17
Rail, Support (2) WPL 3179220 Contact Us For Availability
18
Screw (2) WPL 3178002 Contact Us For Availability
18
Thermostat, Lower Oven WPL 3178283 Contact Us For Availability
18
Bracket, Hinge (2) WPL 3177433 Contact Us For Availability
19
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
Washer (4) WPL 3148905 Contact Us For Availability
20
Insert, Vent WPL 3179915 Contact Us For Availability
20
Shield, Radiation WPL 3178612 Contact Us For Availability
21
Bracket, Mounting WPL 3181279 Contact Us For Availability
21
Support, Oven WPL 3177434 Contact Us For Availability
22
Escutcheon, Oven Thermostat (Upper) WPL 3180524 Contact Us For Availability
22
Back, Module WPL 3177558 Contact Us For Availability
23
Screw (2) WPL 3179117 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
24
Bezel Switch WPL 313030 Contact Us For Availability
24
Clip, Seal (3) WPL 3179848 Contact Us For Availability
25
Button, Set (4) WPL 313958 Contact Us For Availability
25
Screw (4) WPL 3178000 Contact Us For Availability
25
Hinge, Door (2) WPL 3178298 Contact Us For Availability
26
Knob, Bit Generator WPL 313523 Contact Us For Availability
26
Button, Plug WPL 4159122 Contact Us For Availability
27
Escutcheon, Selector Switch WPL 3180525 Contact Us For Availability
27
Button, Plug WPL 4159120 Contact Us For Availability
28
Escutcheon, Oven Thermostat (Lower) WPL 3180523 Contact Us For Availability
28
Tube, Vent WPL 3179945 Contact Us For Availability
29
Bracket, Mounting (Lower Thermostat) WPL 3181764 Contact Us For Availability
29
Tube, Vent WPL 3179944 Contact Us For Availability
30
Screw (4) WPL 309133 Contact Us For Availability
30
Support, Glass WPL 3181831 Contact Us For Availability
30
Screw (2) WPL 313489 Contact Us For Availability
30
Nut (2) WPL 4159117 Contact Us For Availability
30
Switch, Door WPL 4173553 Contact Us For Availability
32
Retainer, Seal WPL 3179587 Contact Us For Availability
32
Screw (8) WPL 3179776 Contact Us For Availability
32
Screw WPL 3180040 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
34
Vent, Middle Trim WPL 3177752 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
34
Trim, Lower Vent WPL 3177784 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent Tube (Upper Male) WPL 3180321 Contact Us For Availability
40
Insulation, Wrap WPL 3177865 Contact Us For Availability
40
Insulation, Back WPL 3177870 Contact Us For Availability
40
Screen, Wire Mesh WPL 3180889 Contact Us For Availability
× ![]()
