Model Whirlpool RB160PXXB1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

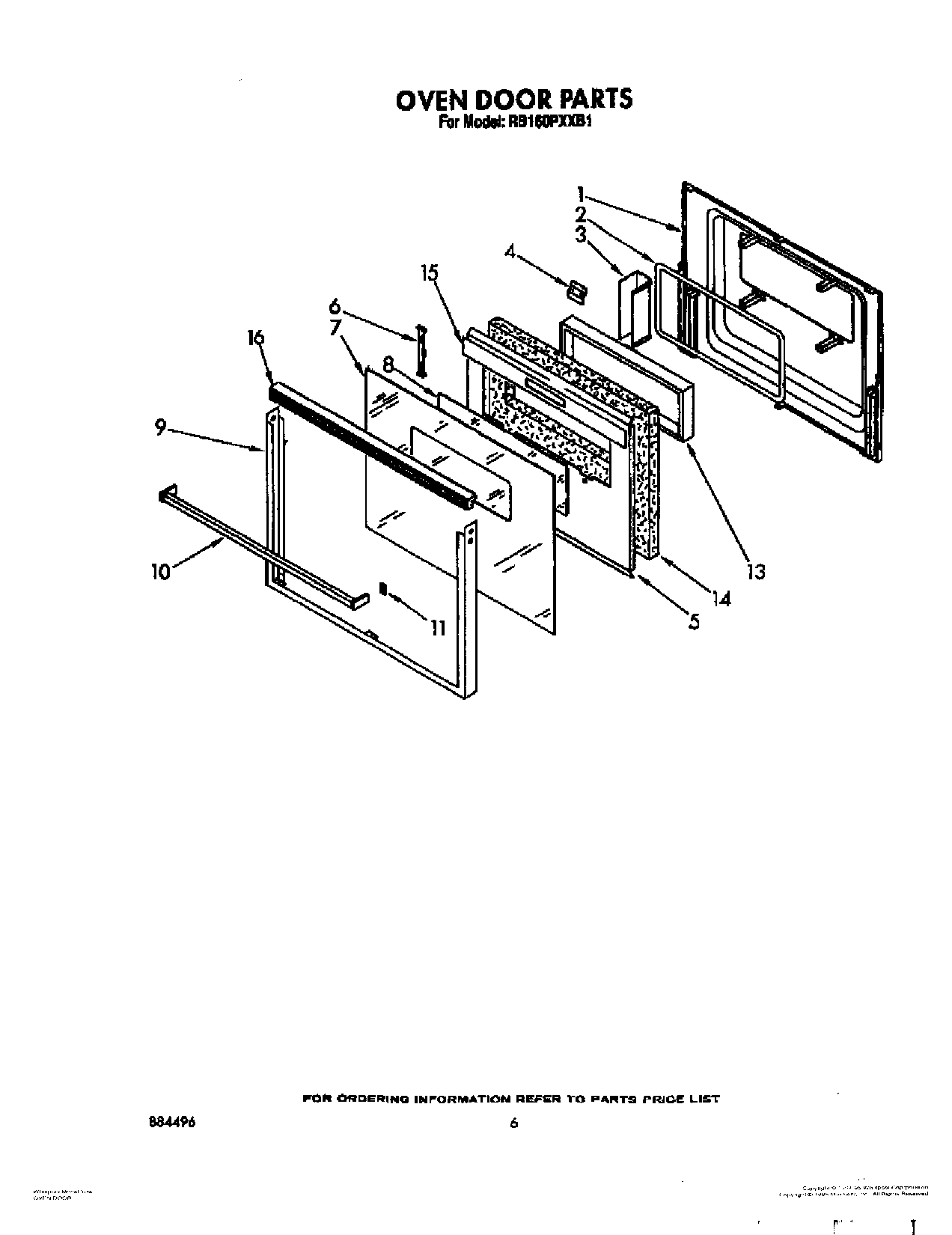

04 - OVEN DOOR

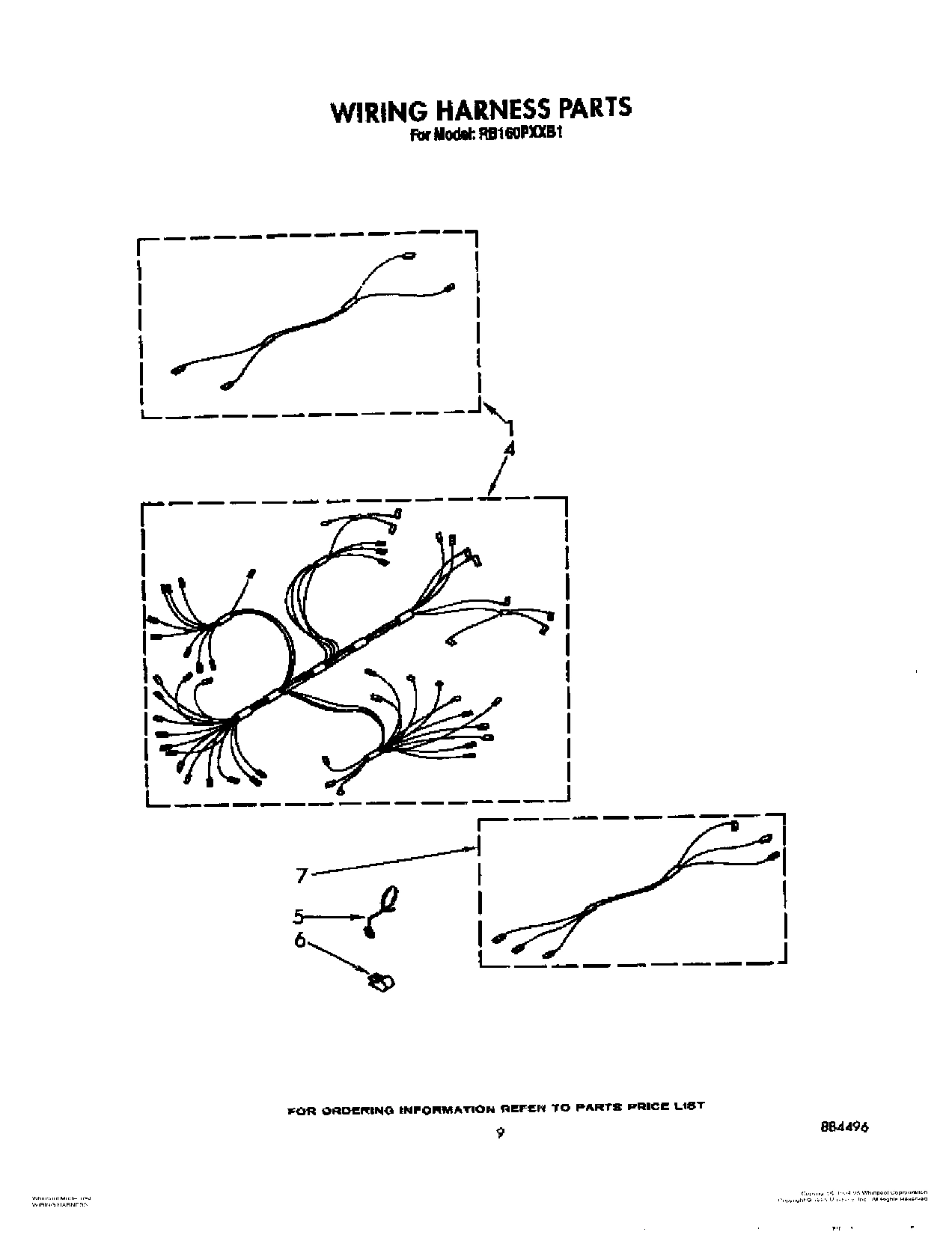

07 - WIRING HARNESS

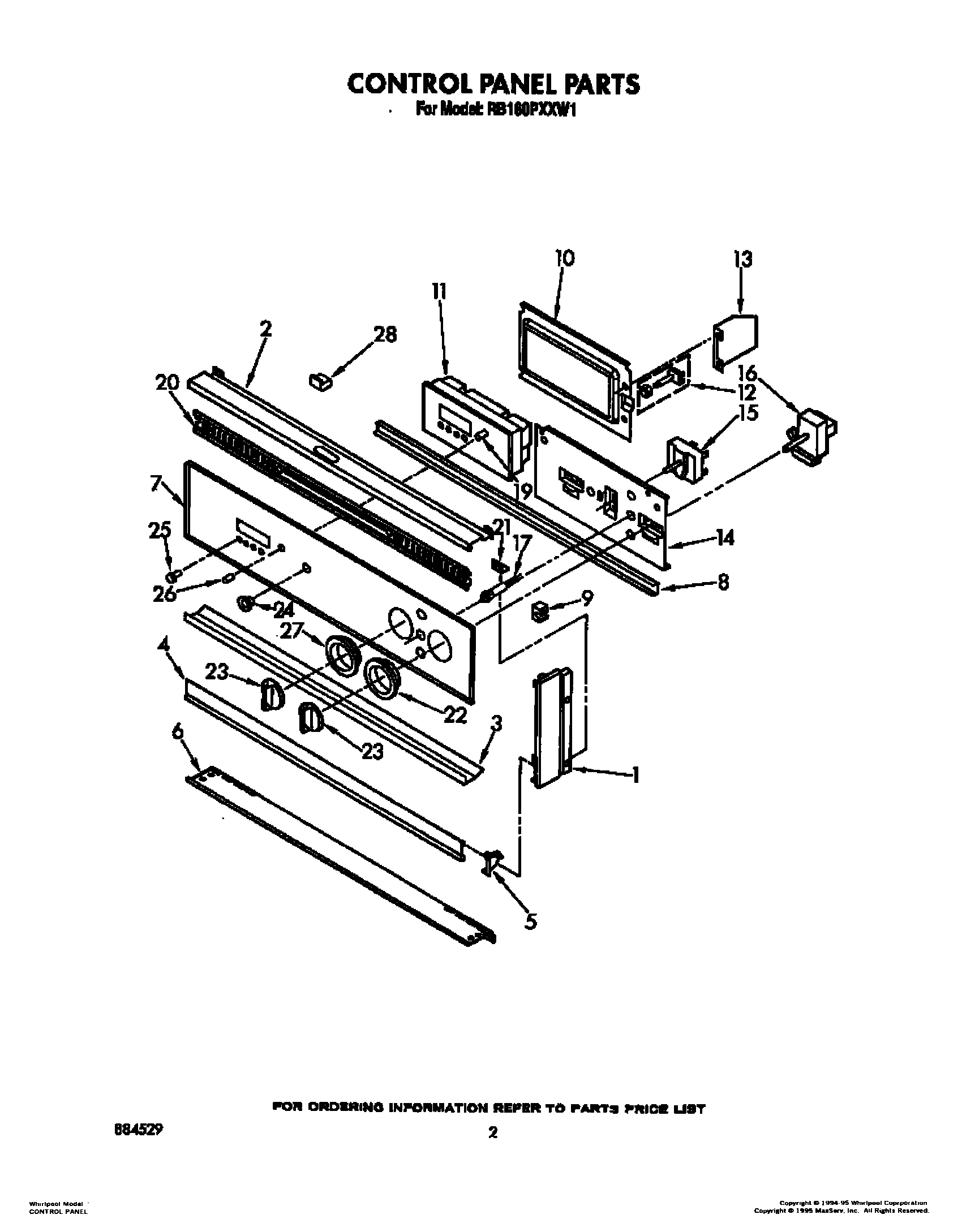

02 - CONTROL PANEL, OPTIONAL

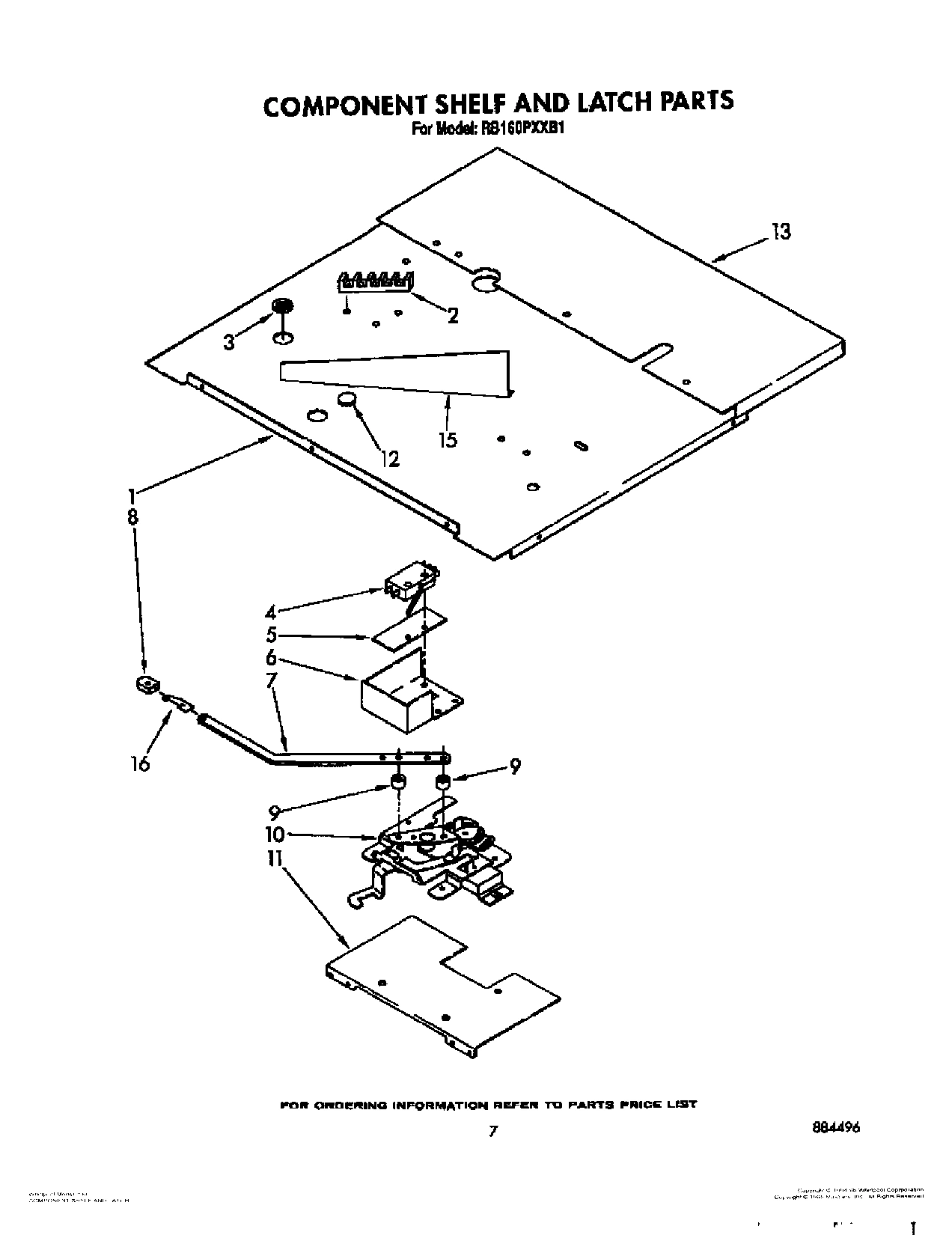

05 - COMPONENT SHELF AND LATCH

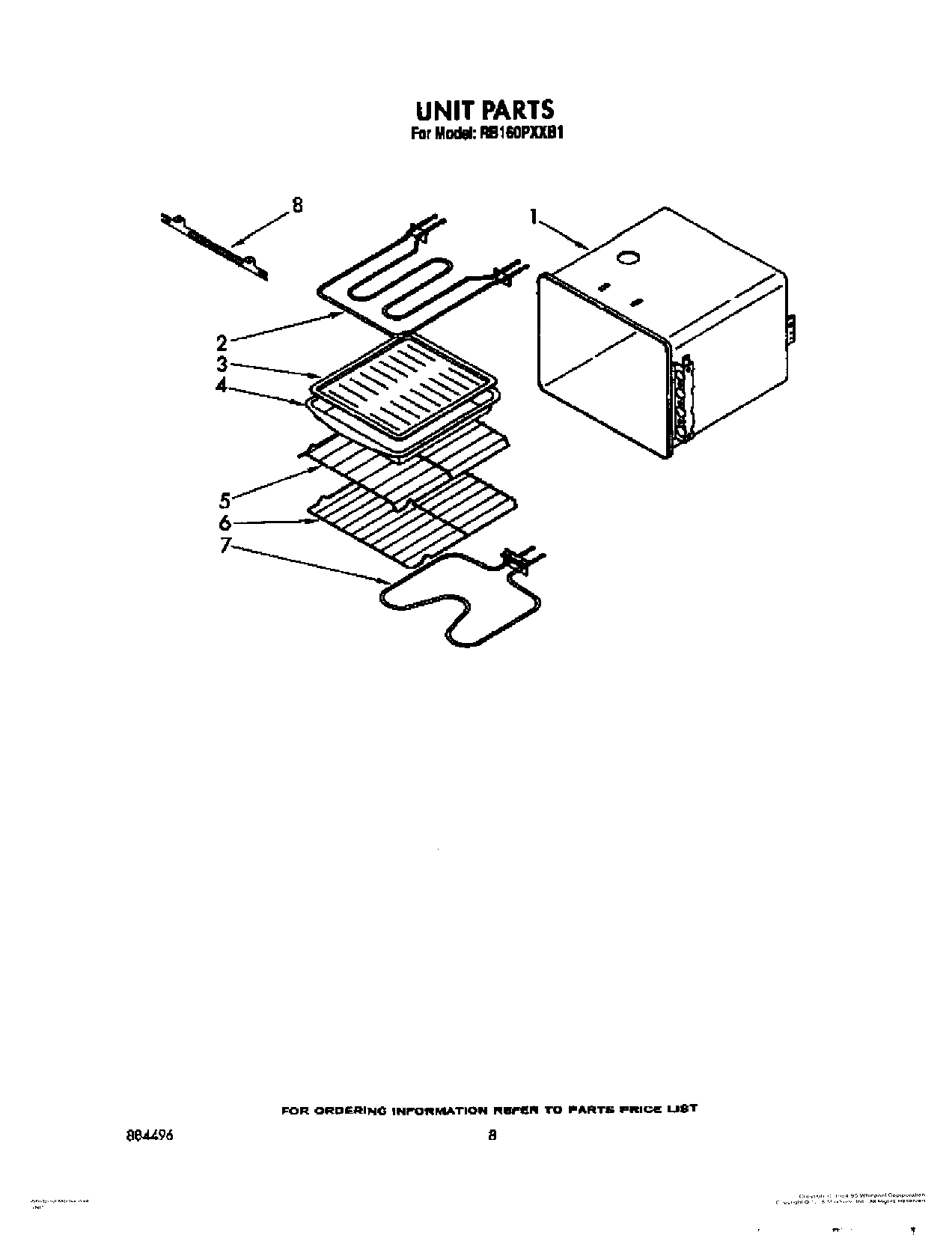

06 - UNIT

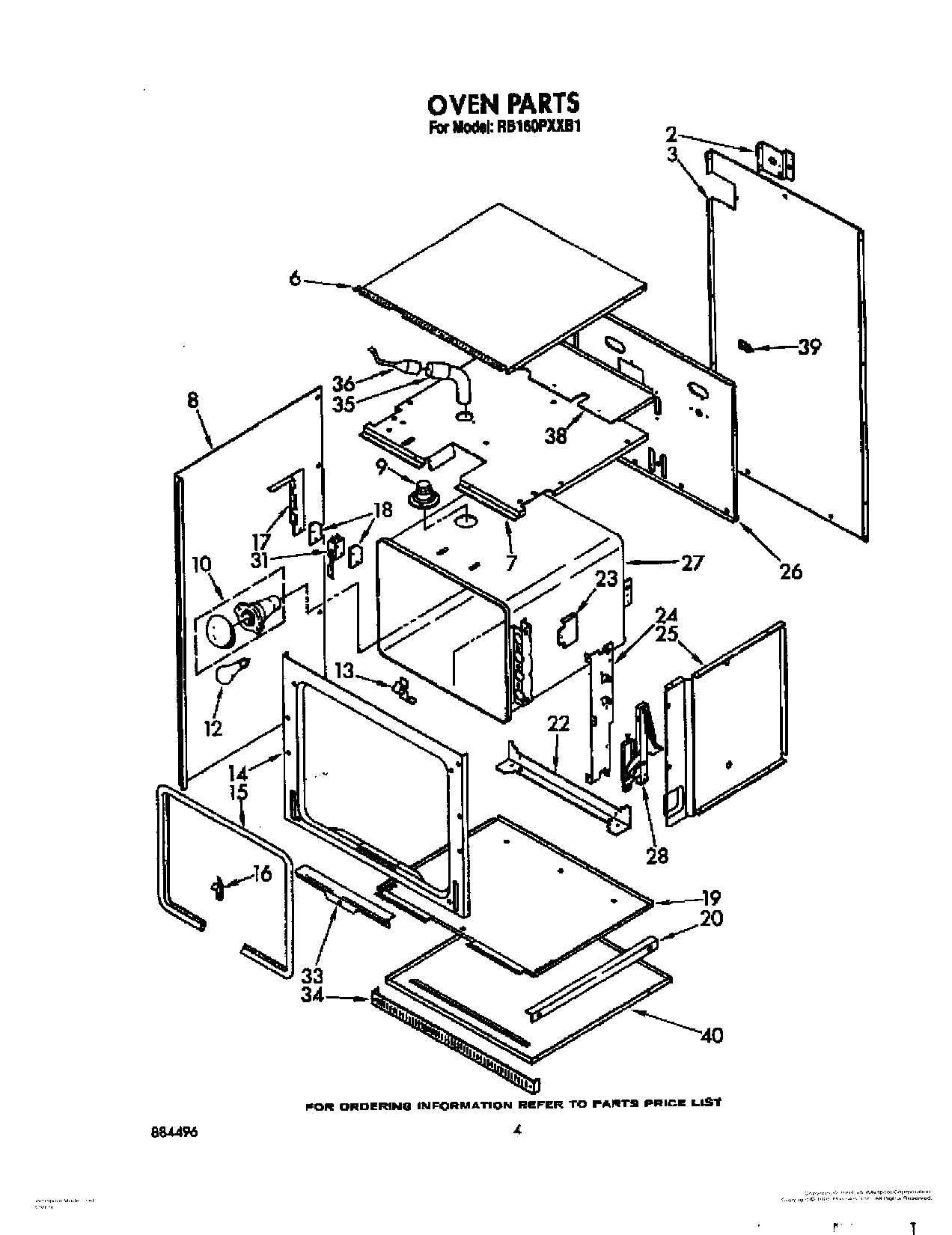

03 - OVEN
Common parts from model Whirlpool RB160PXXB1 BUILT-IN ELECTRIC SINGLE OVEN
Use & Care Guide WPL LIT3180016 Contact Us For Availability
Tech Sheet WPL LIT3180386 Contact Us For Availability
Installation Instructions WPL LIT3180568 Contact Us For Availability
Repair Parts List WPL LIT884496 Contact Us For Availability
1
Wiring Harness Door Switch WPL 3179941 Contact Us For Availability
1
End Cap (Left Hand) WPL 3179458 Contact Us For Availability
1
End Cap (Right Hand) WPL 3179459 Contact Us For Availability
1
Shelf, Component WPL 3178090 Contact Us For Availability
2
Trim, Top WPL 3179422 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
3
Trim, Center WPL 3180684 Contact Us For Availability
3
Bushing WPL 4173043 Contact Us For Availability
3
Cabinet, Back WPL 3177626 Contact Us For Availability
4
Wiring Harness (Oven) WPL 3180384 Contact Us For Availability
4
Door, Vent WPL 3179453 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
End Trim, Vent Door (Left Hand) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door (Right Hand) WPL 3148698 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset WPL 3180867 Contact Us For Availability
6
Screw, Black (4) WPL 3178001 Contact Us For Availability
6
Trim, Bottom WPL 3180657 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3180866 Contact Us For Availability
6
Cabinet, Top WPL 3178139 Contact Us For Availability
7
Wiring Harness (Latch Assembly) WPL 3180731 Contact Us For Availability
7
Glass, Control Panel WPL 3180535 Contact Us For Availability
7
Screw (2) WPL 3179116 Contact Us For Availability
7
Handle, Latch WPL 3180409 Contact Us For Availability
7
Screw (2) WPL 3180567 Contact Us For Availability
7
Top, Module WPL 3177437 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
8
Rail, Mounting (Components) WPL 3180290 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Bracket, Element WPL 3180694 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177442 Contact Us For Availability
9
Frame, Door WPL 3180606 Contact Us For Availability
9
Tube, Vent WPL 4168492 Contact Us For Availability
10
Handle, Door WPL 3179482 Contact Us For Availability
10
Plate, Mounting (Clock) WPL 3180293 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Clip, Mounting WPL 3148282 Contact Us For Availability
11
Screw (3) WPL 3180967 Contact Us For Availability
11
Timer WPL 3149806 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Switch, Oven Light WPL 3179891 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Washer, Lock (2) WPL 312796 Contact Us For Availability
13
Shield, Heat WPL 3180542 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Plate, Mounting (Controls) WPL 3180294 Contact Us For Availability
14
Frame, Front WPL 3177705 Contact Us For Availability
14
Screw (4) WPL 3179776 Contact Us For Availability
15
Shield, Door WPL 3181349 Contact Us For Availability
15
Switch, Selector WPL 3178237 Contact Us For Availability
15
Baffle, Air WPL 3180693 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
16
Trim, Top WPL 3179477 Contact Us For Availability
16
Thermostat, Oven WPL 3178275 Contact Us For Availability
16
Support, Latch WPL 3180692 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Light, Indicator (3) WPL 4168598 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
Washer (4) WPL 3148905 Contact Us For Availability
20
Insert, Vent WPL 3179915 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Bracket, Mounting WPL 3181279 Contact Us For Availability
21
Screw (2) WPL 3179117 Contact Us For Availability
21
Support, Element WPL 4168217 Contact Us For Availability
22
Escutcheon, Oven Thermostat WPL 3180524 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bezel Switch WPL 313030 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Set, Button (4) WPL 313958 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Knob, Bit Generator WPL 313523 Contact Us For Availability
26
Back, Module WPL 3177558 Contact Us For Availability
27
Escutcheon, Selector Switch WPL 3180525 Contact Us For Availability
27
Liner, Oven WPL 3180803 Contact Us For Availability
28
Support, Glass (2) WPL 3181831 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Screw WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim WPL 3177784 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
34
Screw (2) WPL 4168863 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent Tube (Upper Male) WPL 3180321 Contact Us For Availability
38
Extension, Shelf WPL 3178133 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Screw, Shoulder WPL 3180440 Contact Us For Availability
40
Bottom, Oven WPL 3177552 Contact Us For Availability
40
Insulation, Wrap WPL 3177865 Contact Us For Availability
40
Insulation, Back WPL 3177870 Contact Us For Availability
× ![]()
