Model Maytag RB15KA-1AFL REFRIGERATOR – Common Parts & Diagrams
01 - DOORS
02 - FREEZER COMPARTMENT

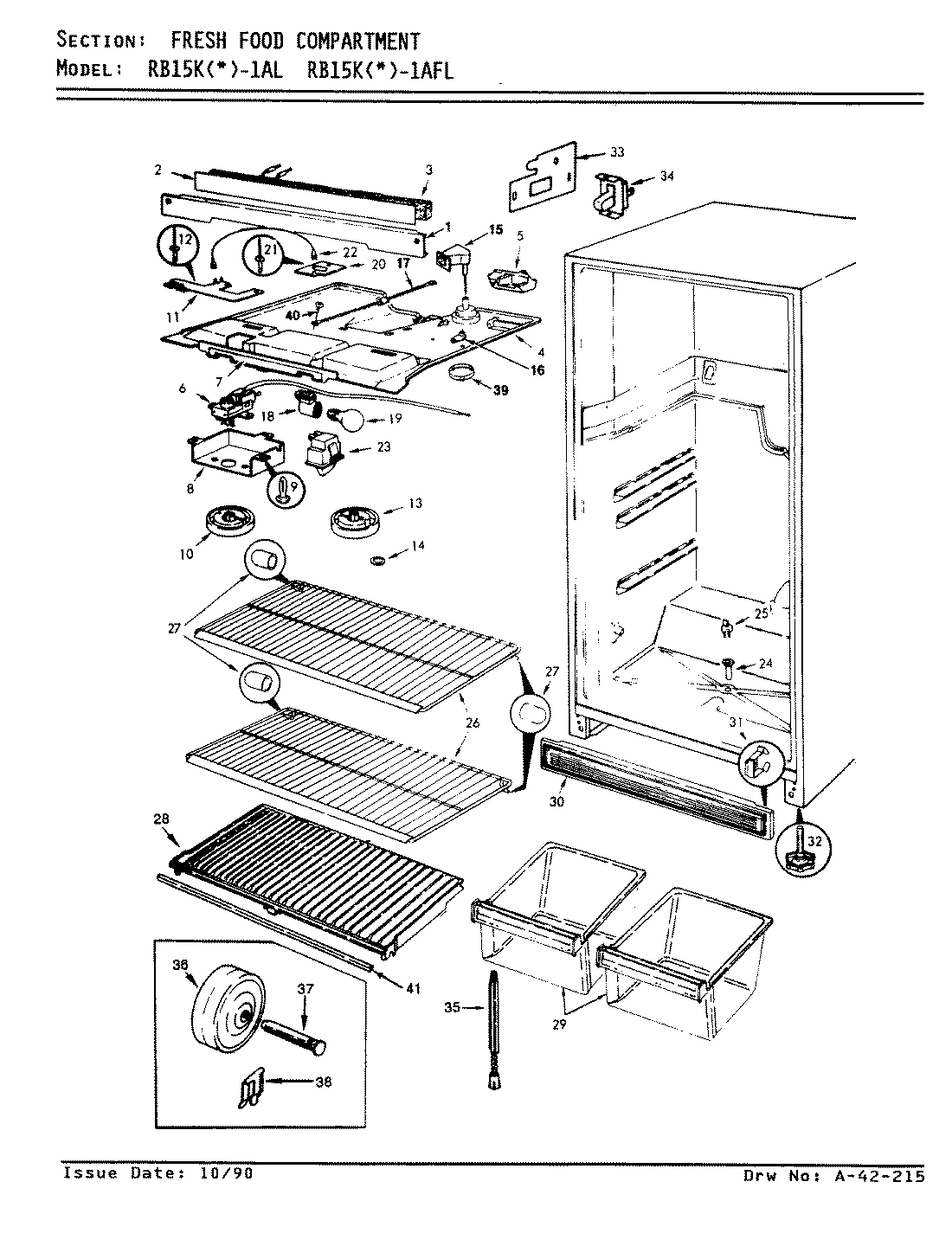

03 - FRESH FOOD COMPARTMENT

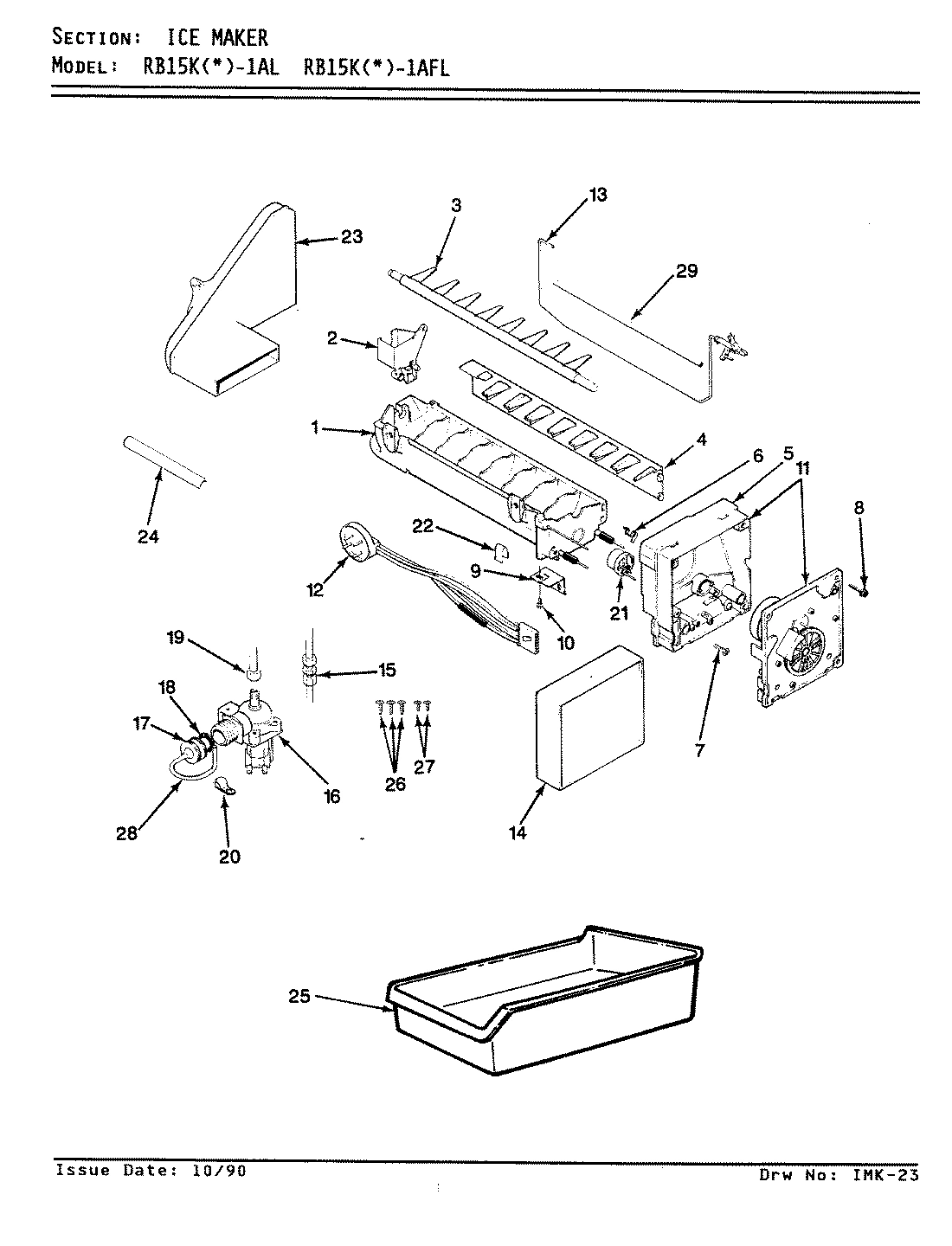

04 - ICE MAKER

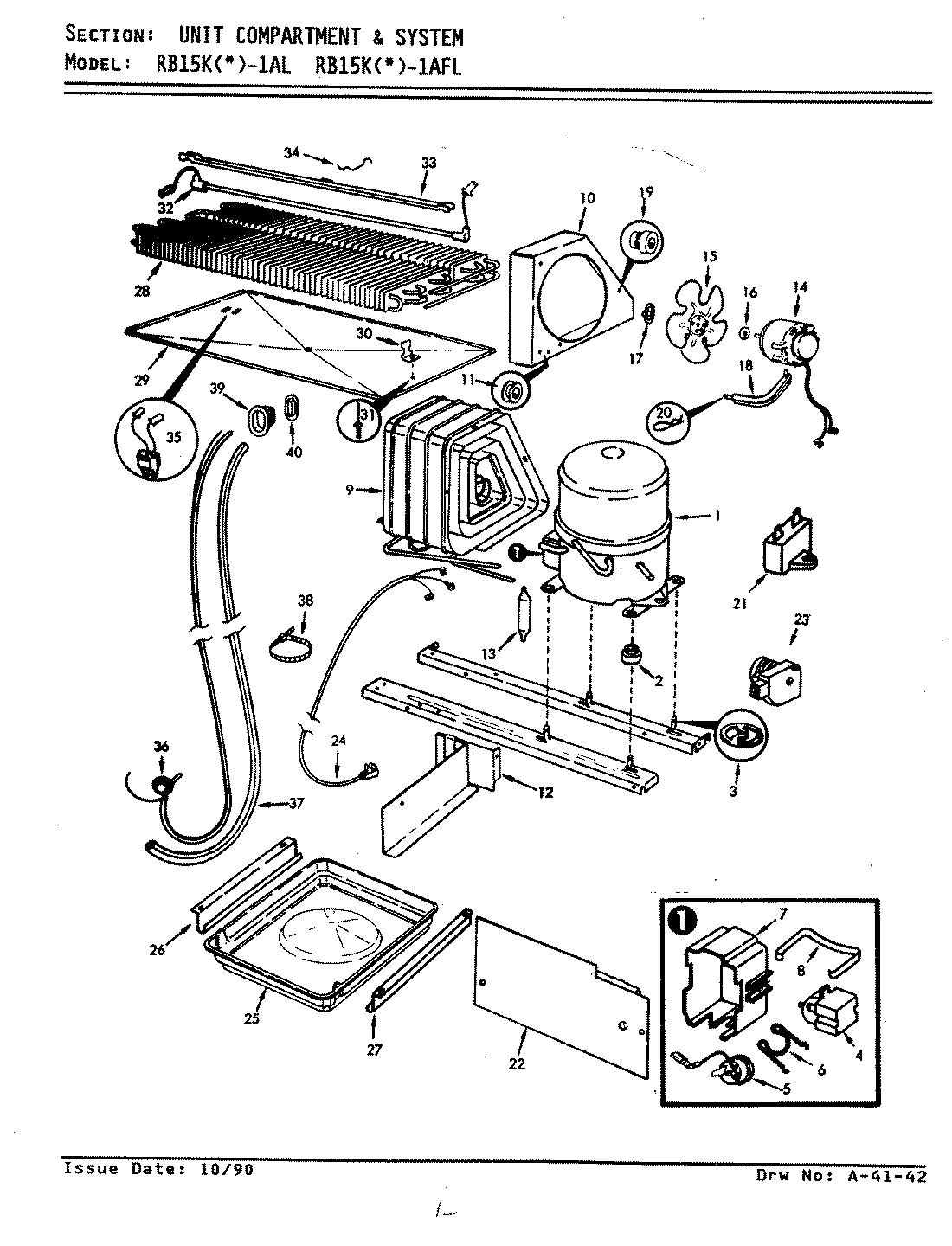

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Maytag RB15KA-1AFL REFRIGERATOR
1
MAY 67518-1 MAY 67518-1 Contact Us For Availability
1
MAY 67730-1 MAY 67730-1 Contact Us For Availability
1
MAY 65275-23 MAY 65275-23 Contact Us For Availability
1
MAY 68434-1-AM MAY 68434-1-AM Contact Us For Availability
1
MAY RA1011 MAY RA1011 Contact Us For Availability
2
MAY 68866-1 MAY 68866-1 Contact Us For Availability
2
MAY 68830-1 MAY 68830-1 Contact Us For Availability
2
MAY 17245-4 MAY 17245-4 Contact Us For Availability
3
MAY 406062-1 MAY 406062-1 Contact Us For Availability
3
MAY 54482-10 MAY 54482-10 Contact Us For Availability
3
MAY 60565-1 MAY 60565-1 Contact Us For Availability
3
MAY 60140-1 MAY 60140-1 Contact Us For Availability
3
MAY 68577-1 MAY 68577-1 Contact Us For Availability
3
MAY 68903-1 MAY 68903-1 Contact Us For Availability
3
MAY 414011-1 MAY 414011-1 Contact Us For Availability
3
MAY 62165-1 MAY 62165-1 Contact Us For Availability
4
MAY 400015-12 MAY 400015-12 Contact Us For Availability
4
MAY 64856-1 MAY 64856-1 Contact Us For Availability
4
MAY 68530-2 MAY 68530-2 Contact Us For Availability
5
MAY 64359-1 MAY 64359-1 Contact Us For Availability
5
MAY 60120-2 MAY 60120-2 Contact Us For Availability
6
MAY 29675-22 MAY 29675-22 Contact Us For Availability
6
MAY 406013-1 MAY 406013-1 Contact Us For Availability
6
MAY 68119-3 MAY 68119-3 Contact Us For Availability
6
MAY 63294-12 MAY 63294-12 Contact Us For Availability
6
MAY 65887-1 MAY 65887-1 Contact Us For Availability
7
MAY 56209-3 MAY 56209-3 Contact Us For Availability
7
MAY 60608-2 MAY 60608-2 Contact Us For Availability
7
MAY 60571-44 MAY 60571-44 Contact Us For Availability
7
MAY 95105-1 MAY 95105-1 Contact Us For Availability
7
MAY 66589-1 MAY 66589-1 Contact Us For Availability
8
MAY 66255-4 MAY 66255-4 Contact Us For Availability
8
MAY 9986-122 MAY 9986-122 Contact Us For Availability
8
MAY 66325-29 MAY 66325-29 Contact Us For Availability
8
MAY 68592-1 MAY 68592-1 Contact Us For Availability
8
MAY 405012-1 MAY 405012-1 Contact Us For Availability
8
MAY 60083-1 MAY 60083-1 Contact Us For Availability
8
SCREW MAY 95106-1 Contact Us For Availability
8
MAY 65886-1 MAY 65886-1 Contact Us For Availability
9
MAY 68016-2 MAY 68016-2 Contact Us For Availability
9
MAY 66045-1 MAY 66045-1 Contact Us For Availability
9
MAY 28013-2 MAY 28013-2 Contact Us For Availability
9
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
9
MAY 60408-2 MAY 60408-2 Contact Us For Availability
9
MAY RA43871-1 MAY RA43871-1 Contact Us For Availability
10
MAY 60445-1 MAY 60445-1 Contact Us For Availability
10
MAY 68017-4 MAY 68017-4 Contact Us For Availability
10
MAY 9986-112 MAY 9986-112 Contact Us For Availability
10
MAY 66403-1 MAY 66403-1 Contact Us For Availability
10
MAY 68600-1 MAY 68600-1 Contact Us For Availability
10
MAY 95108-1 MAY 95108-1 Contact Us For Availability
10
MAY 66228-1 MAY 66228-1 Contact Us For Availability
11
MAY 60603-16 MAY 60603-16 Contact Us For Availability
11
MAY 66325-10 MAY 66325-10 Contact Us For Availability
11
MAY 66460-1 MAY 66460-1 Contact Us For Availability
11
MAY 60147-1 MAY 60147-1 Contact Us For Availability
11
MAY 95109-1 MAY 95109-1 Contact Us For Availability
11
MAY 95110-1 MAY 95110-1 Contact Us For Availability
11
MAY 53351-1 MAY 53351-1 Contact Us For Availability
12
MAY 68776-1 MAY 68776-1 Contact Us For Availability
12
MAY 67672-1 MAY 67672-1 Contact Us For Availability
12
MAY 66493-2 MAY 66493-2 Contact Us For Availability
13
MAY 68259-1 MAY 68259-1 Contact Us For Availability
13
MAY 68600-2 MAY 68600-2 Contact Us For Availability
13
MAY 68112-1 MAY 68112-1 Contact Us For Availability
13
MAY 13900 MAY 13900 Contact Us For Availability
14
MAY 65930-15 MAY 65930-15 Contact Us For Availability
14
MAY 420092-900 MAY 420092-900 Contact Us For Availability
14
MAY 24580-3 MAY 24580-3 Contact Us For Availability
14
MAY 68328-2 MAY 68328-2 Contact Us For Availability
14
MAY 65275-33 MAY 65275-33 Contact Us For Availability
14
MAY 67560-1 MAY 67560-1 Contact Us For Availability
15
MAY 65935-2 MAY 65935-2 Contact Us For Availability
15
MAY 9986-12 MAY 9986-12 Contact Us For Availability
15
MAY 67558-1 MAY 67558-1 Contact Us For Availability
15
MAY 60485-1 MAY 60485-1 Contact Us For Availability
16
MAY 66199-1 MAY 66199-1 Contact Us For Availability
16
MAY 67579-8 MAY 67579-8 Contact Us For Availability
16
MAY 67636-1 MAY 67636-1 Contact Us For Availability
16
MAY 60184-3 MAY 60184-3 Contact Us For Availability
16
MAY 19913-4 MAY 19913-4 Contact Us For Availability
17
MAY 66199-2 MAY 66199-2 Contact Us For Availability
17
MAY 68307-1 MAY 68307-1 Contact Us For Availability
17
MAY 67499-3 MAY 67499-3 Contact Us For Availability
17
MAY 24685-1 MAY 24685-1 Contact Us For Availability
18
MAY 65275-1 MAY 65275-1 Contact Us For Availability
18
MAY 60577-1 MAY 60577-1 Contact Us For Availability
18
MAY 24685-5 MAY 24685-5 Contact Us For Availability
18
MAY 66225-1 MAY 66225-1 Contact Us For Availability
19
MAY 65151-111 MAY 65151-111 Contact Us For Availability
19
MAY 68187-1 MAY 68187-1 Contact Us For Availability
19
MAY 55419-1 MAY 55419-1 Contact Us For Availability
19
MAY 56933-1 MAY 56933-1 Contact Us For Availability
20
MAY 65151-93 MAY 65151-93 Contact Us For Availability
20
MAY 68387-1 MAY 68387-1 Contact Us For Availability
20
MAY 60147-2 MAY 60147-2 Contact Us For Availability
20
MAY 57051-1 MAY 57051-1 Contact Us For Availability
21
MAY 65151-24 MAY 65151-24 Contact Us For Availability
21
MAY 67557-1 MAY 67557-1 Contact Us For Availability
21
MAY 26397-2 MAY 26397-2 Contact Us For Availability
21
MAY 95093-1 MAY 95093-1 Contact Us For Availability
22
MAY 66480-4 MAY 66480-4 Contact Us For Availability
22
MAY 29675-28 MAY 29675-28 Contact Us For Availability
22
MAY 68118-1 MAY 68118-1 Contact Us For Availability
22
MAY 66338-1 MAY 66338-1 Contact Us For Availability
23
MAY 60621-6 MAY 60621-6 Contact Us For Availability
23
MAY 54653-28 MAY 54653-28 Contact Us For Availability
23
MAY 55732-1 MAY 55732-1 Contact Us For Availability
23
MAY 400018-103 MAY 400018-103 Contact Us For Availability
23
MAY 68412-1 MAY 68412-1 Contact Us For Availability
23
MAY 405007-1 MAY 405007-1 Contact Us For Availability
23
MAY 65702-1 MAY 65702-1 Contact Us For Availability
24
MAY 60123-2 MAY 60123-2 Contact Us For Availability
24
MAY 54531-8 MAY 54531-8 Contact Us For Availability
24
MAY 67666-5 MAY 67666-5 Contact Us For Availability
24
MAY 52890-2 MAY 52890-2 Contact Us For Availability
25
MAY 68236-1 MAY 68236-1 Contact Us For Availability
25
MAY 60406-29 MAY 60406-29 Contact Us For Availability
25
MAY 65039-1 MAY 65039-1 Contact Us For Availability
25
MAY 68327-1 MAY 68327-1 Contact Us For Availability
26
MAY 28272-6 MAY 28272-6 Contact Us For Availability
26
MAY 60220-9 MAY 60220-9 Contact Us For Availability
26
MAY 400021-1 MAY 400021-1 Contact Us For Availability
26
MAY 60555-1 MAY 60555-1 Contact Us For Availability
27
MAY 53709-20 MAY 53709-20 Contact Us For Availability
27
MAY 24850-3 MAY 24850-3 Contact Us For Availability
27
MAY 401017-1 MAY 401017-1 Contact Us For Availability
27
MAY 60555-2 MAY 60555-2 Contact Us For Availability
28
MAY 65031-1 MAY 65031-1 Contact Us For Availability
28
MAY 66834-1 MAY 66834-1 Contact Us For Availability
28
MAY 60219-1 MAY 60219-1 Contact Us For Availability
28
MAY RA43620-10 MAY RA43620-10 Contact Us For Availability
29
MAY 56144-9 MAY 56144-9 Contact Us For Availability
29
MAY 68221-105 MAY 68221-105 Contact Us For Availability
29
MAY 67556-1 MAY 67556-1 Contact Us For Availability
29
MAY 60101-7 MAY 60101-7 Contact Us For Availability
30
MAY 68544-1 MAY 68544-1 Contact Us For Availability
30
MAY 60138-6 MAY 60138-6 Contact Us For Availability
30
MAY 60108-1 MAY 60108-1 Contact Us For Availability
31
MAY 60100-1 MAY 60100-1 Contact Us For Availability
31
MAY 54233-1 MAY 54233-1 Contact Us For Availability
31
MAY 54233-2 MAY 54233-2 Contact Us For Availability
31
MAY 67483-1 MAY 67483-1 Contact Us For Availability
31
MAY 9986-87 MAY 9986-87 Contact Us For Availability
31
MAY 26397-9 MAY 26397-9 Contact Us For Availability
32
MAY 68811-2 MAY 68811-2 Contact Us For Availability
32
MAY 6012-8 MAY 6012-8 Contact Us For Availability
33
MAY 68812-1 MAY 68812-1 Contact Us For Availability
33
MAY 60583-1 MAY 60583-1 Contact Us For Availability
33
MAY 60109-4 MAY 60109-4 Contact Us For Availability
34
MAY 65275-24 MAY 65275-24 Contact Us For Availability
34
MAY 68377-1 MAY 68377-1 Contact Us For Availability
34
MAY 60585-1 MAY 60585-1 Contact Us For Availability
34
MAY 60263-1 MAY 60263-1 Contact Us For Availability
35
MAY 67322-1 MAY 67322-1 Contact Us For Availability
35
MAY 66105-1 MAY 66105-1 Contact Us For Availability
36
MAY 67634-3 MAY 67634-3 Contact Us For Availability
36
MAY 29834-2 MAY 29834-2 Contact Us For Availability
36
MAY RA43645-13 MAY RA43645-13 Contact Us For Availability
37
MAY 403100-1 MAY 403100-1 Contact Us For Availability
37
MAY 67714-6 MAY 67714-6 Contact Us For Availability
37
MAY 29835-2 MAY 29835-2 Contact Us For Availability
37
MAY 65398-1 MAY 65398-1 Contact Us For Availability
38
MAY 60626-1 MAY 60626-1 Contact Us For Availability
38
MAY 60216-1 MAY 60216-1 Contact Us For Availability
38
MAY 66223-1 MAY 66223-1 Contact Us For Availability
39
MAY 68788-1 MAY 68788-1 Contact Us For Availability
39
MAY 67493-1 MAY 67493-1 Contact Us For Availability
39
MAY 60068-1 MAY 60068-1 Contact Us For Availability
40
MAY 52447-4 MAY 52447-4 Contact Us For Availability
40
MAY 420005-1 MAY 420005-1 Contact Us For Availability
40
MAY 65275-13 MAY 65275-13 Contact Us For Availability
40
MAY 60067-1 MAY 60067-1 Contact Us For Availability
40
MAY 60069-1 MAY 60069-1 Contact Us For Availability
40
MAY 60177-2 MAY 60177-2 Contact Us For Availability
40
MAY 68839-1 MAY 68839-1 Contact Us For Availability
41
MAY 60454-1 MAY 60454-1 Contact Us For Availability
41
MAY 107099-3 MAY 107099-3 Contact Us For Availability
42
MAY 29936-2 MAY 29936-2 Contact Us For Availability
43
MAY 65790-3 MAY 65790-3 Contact Us For Availability
× ![]()
