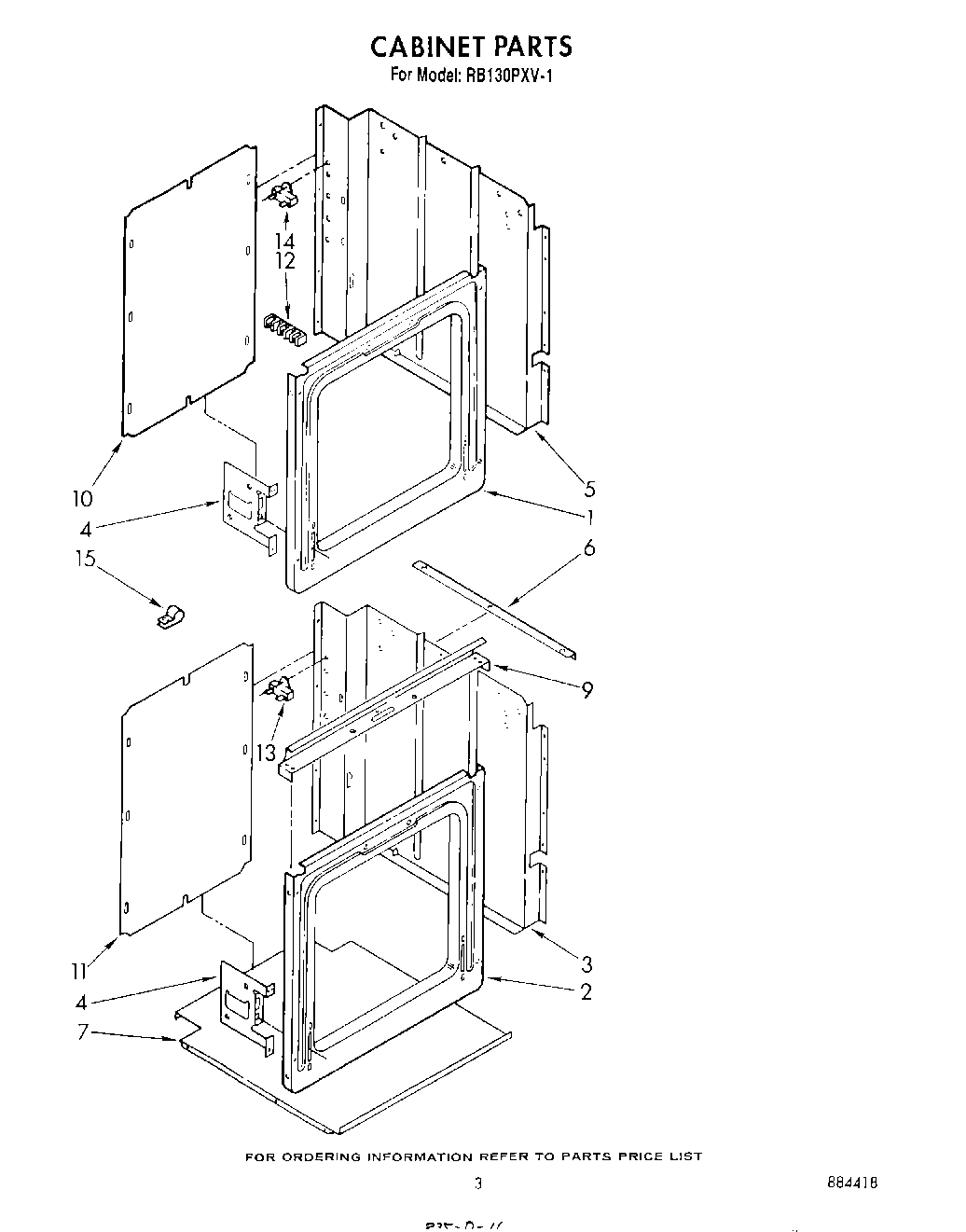

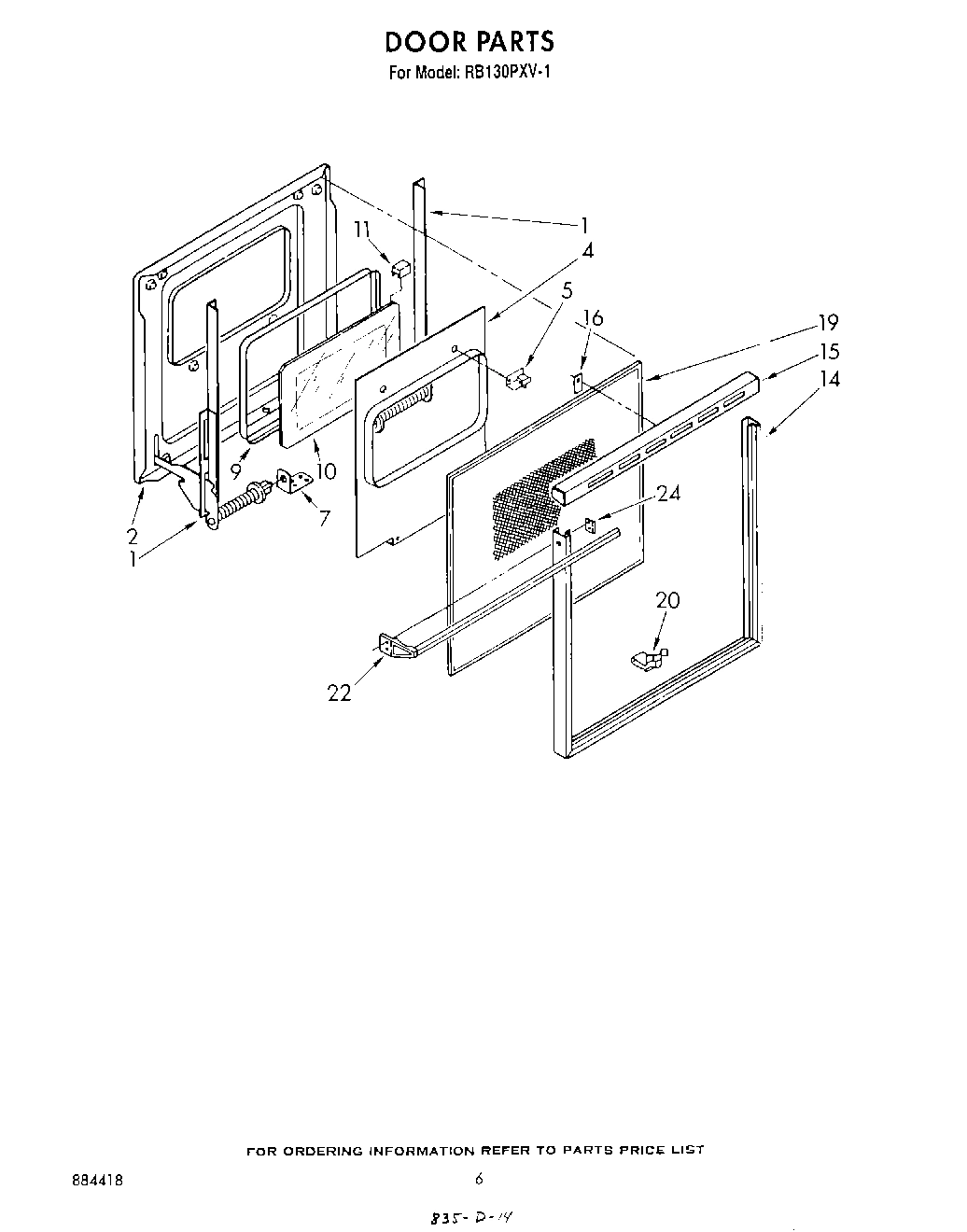

Model Whirlpool RB130PXV1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

Instructions, Installation WPL LIT311510 Contact Us For Availability

Book, Cooking Guide WPL LIT313358 Contact Us For Availability

Guide, Use & Care WPL LIT3148576 Contact Us For Availability

List, Parts WPL LIT884418 Contact Us For Availability

WPL ARI119637A WPL ARI119637A Contact Us For Availability

1

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

1

Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability

1

Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability

1

Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability

1

Screw (8) WPL 311056 Contact Us For Availability

1

Oven (2) (24`` Continuous Clean) WPL 328083 Contact Us For Availability

1

End Cap (Right Side) WPL 311375 Contact Us For Availability

1

End Cap (Left Side) WPL 311376 Contact Us For Availability

1

End Cap (Screw, 8-18 x 5/8 (2)) WPL 312604 Contact Us For Availability

2

Nut, Snap-In (2) WPL 258093 Contact Us For Availability

2

Liner, Door 24`` cc WPL 328116 Contact Us For Availability

2

Trim, Center WPL 3148703 Contact Us For Availability

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Seal, Oven (2) WPL 252412 Contact Us For Availability

3

Trim, Bottom WPL 312529 Contact Us For Availability

4

Baffle WPL 258991 Contact Us For Availability

4

Trim, Upper WPL 312002 Contact Us For Availability

5

Screw, 10A x 1/2 (4) WPL 307748 Contact Us For Availability

5

Spacer (4) WPL 3170094 Contact Us For Availability

5

Plug, Button (2) WPL 257314 Contact Us For Availability

5

Channel, Rubber WPL 310842 Contact Us For Availability

6

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

6

Glass, Control Panel WPL 3148658 Contact Us For Availability

7

Support, Torsion Bar (2) WPL 258921 Contact Us For Availability

7

Screw, 10-12 x 7/8 (4) WPL 308043 Contact Us For Availability

7

Socket, Oven Light (2) WPL 660556 Contact Us For Availability

7

Retainer, Glass (4) WPL 310823 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

8

Bracket, Control Panel (2) WPL 311372 Contact Us For Availability

9

Screw, 10-32 x 5/8 (4) WPL 254217 Contact Us For Availability

9

Seal, Window WPL 307852 Contact Us For Availability

9

Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability

9

Control Bracket WPL 313317 Contact Us For Availability

10

Glass, Inner WPL 258989 Contact Us For Availability

10

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

10

Thermostat WPL 660565 Contact Us For Availability

11

Channel, Rubber (4) WPL 312783 Contact Us For Availability

11

Baffle, Top Insulation WPL 255575 Contact Us For Availability

11

Indicator Light (250V) WPL 311802 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

Selector Switch (4 Position) WPL 310866 Contact Us For Availability

13

326791 Whirlpool Range Oven Bake Element In Stock WPL 326791 $22.23

13

Fuse, Thermal WPL 3147621 Contact Us For Availability

13

Thermostat, Oven (Lower) WPL 311480 Contact Us For Availability

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability

Fuse, Thermal WPL 3147622 Contact Us For Availability

Frame, Door WPL 311459 Contact Us For Availability

Screw, 10-32 x 5/8 (4) WPL 246127 Contact Us For Availability

Screw (2) WPL 311491 Contact Us For Availability

Bracket, Thermostat WPL 311492 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Harness, Wire (Oven) WPL 3147844 Contact Us For Availability

Harness, Wiring (Supply) WPL 328307 Contact Us For Availability

Top, Door Frame WPL 311460 Contact Us For Availability

Tube Clip (2) WPL 313570 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

Lockwasher WPL 312796 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Hold-Down, Glass WPL 310705 Contact Us For Availability

Vent Tube (Lower Oven) WPL 258743 Contact Us For Availability

Vent Tube (Upper Oven) WPL 311382 Contact Us For Availability

Timer, Automatic (Includes Illus. 17) WPL 3148053 Contact Us For Availability

17

Motor, Timer WPL 309822 Contact Us For Availability

18

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

18

Seal, Backguard WPL 313316 Contact Us For Availability

19

Glass, Outer WPL 311589 Contact Us For Availability

20

Clip, Glass (7) WPL 310706 Contact Us For Availability

20

Rack, Oven (3) WPL 254426 Contact Us For Availability

20

Escutcheon, Thermostat WPL 311071 Contact Us For Availability

WP311069 Whirlpool Oven Dial Backorder WPL WP311069 $27.80

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

Handle, Door WPL 312725 Contact Us For Availability

Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability

24

Clip (2) WPL 311506 Contact Us For Availability

24

Escutcheon Thermostat (Lower) WPL 311072 Contact Us For Availability

25

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.54

26

Bezel Switch WPL 313030 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire WPL 242827 Contact Us For Availability

WPL 242828 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 313311 WPL 313311 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
