Model Whirlpool RB120PXV3 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

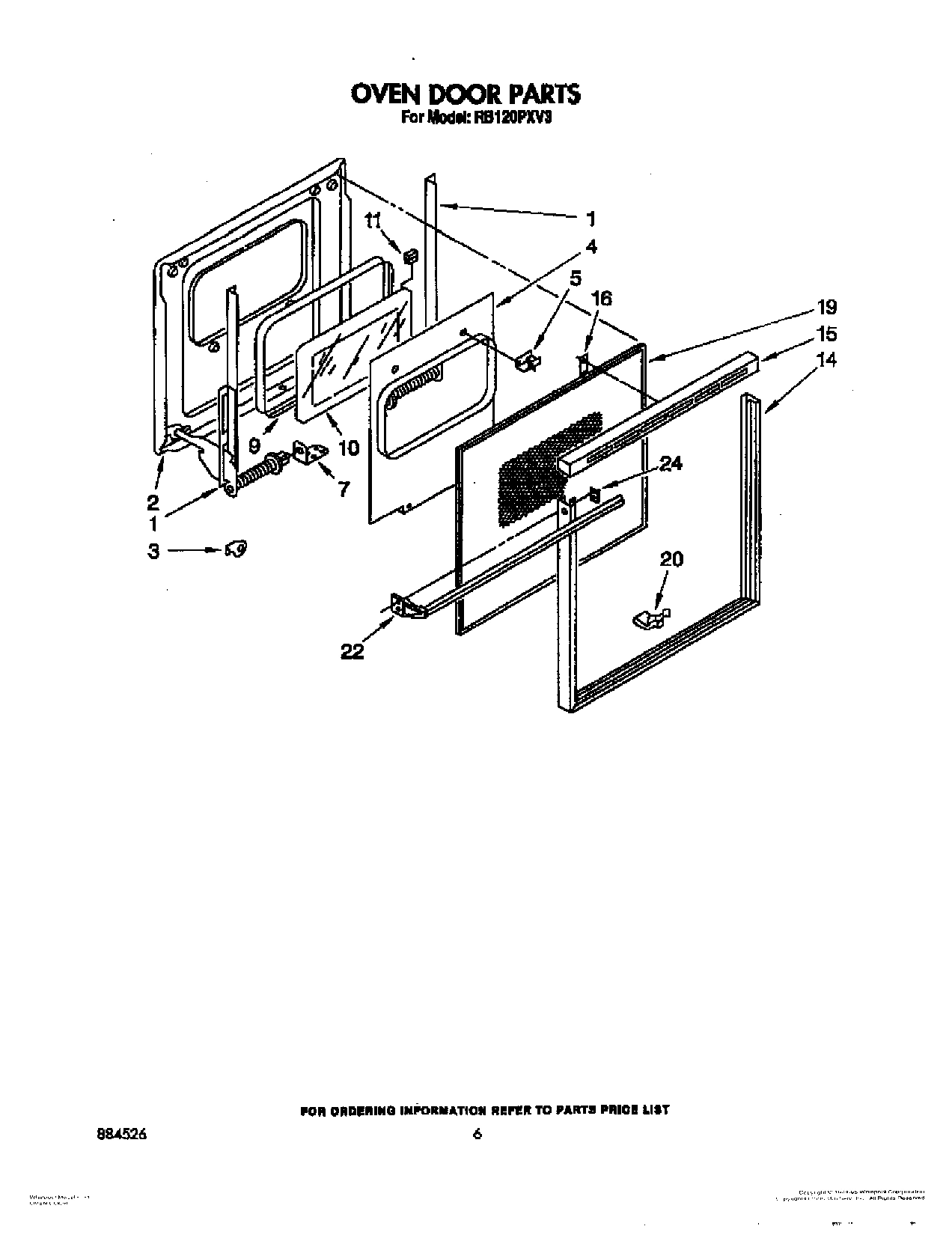

04 - OVEN DOOR

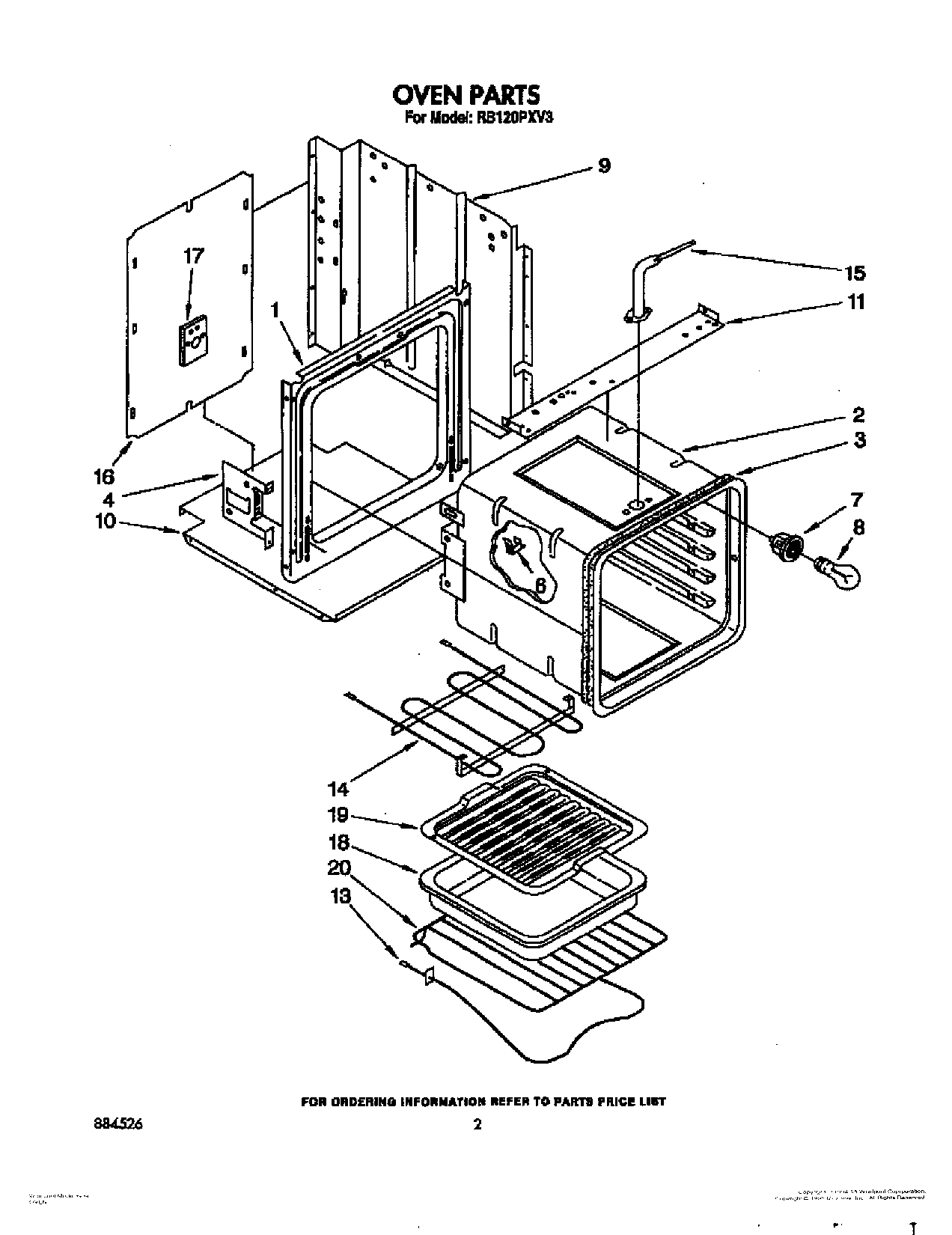

02 - OVEN

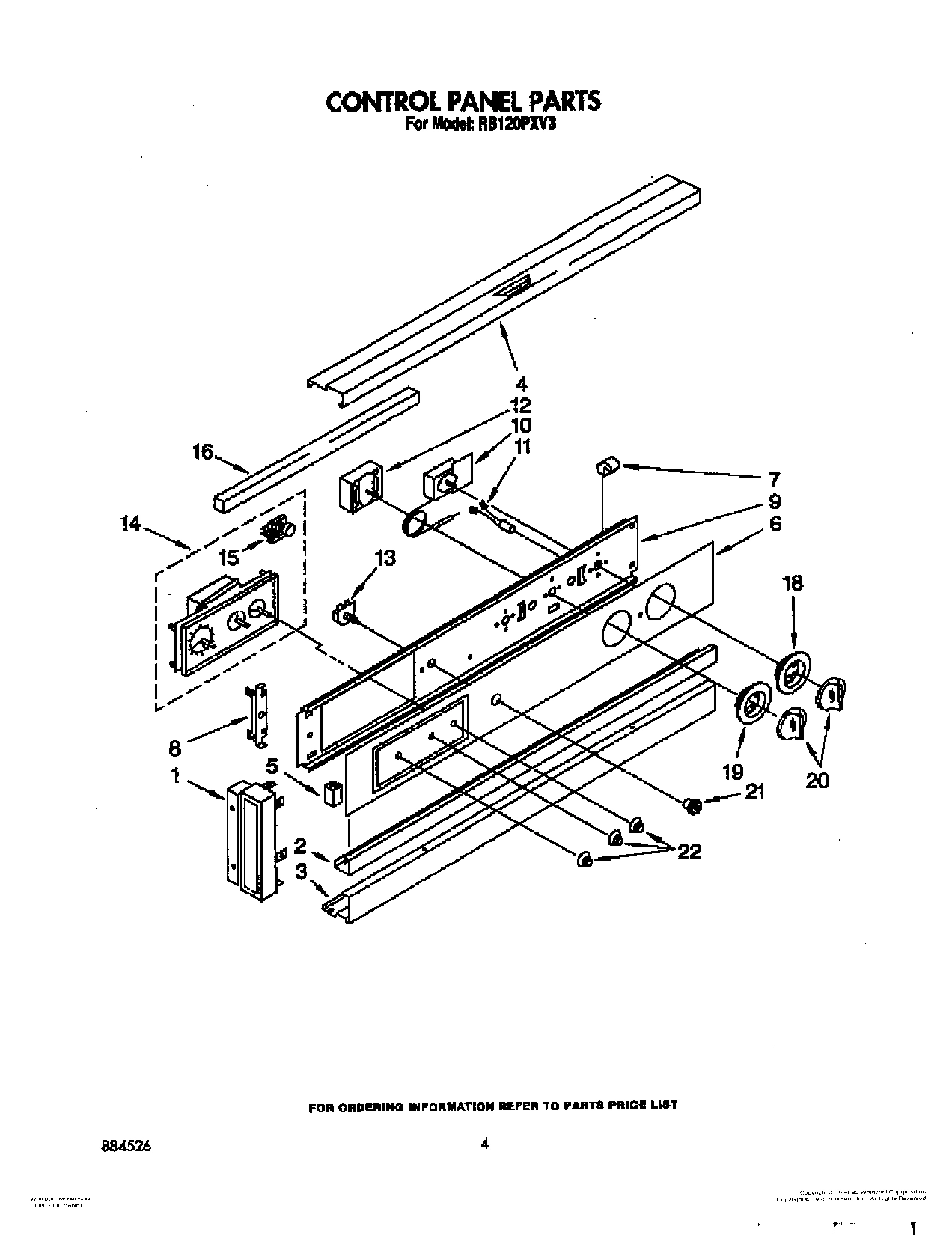

03 - CONTROL PANEL, LIT/OPTIONAL

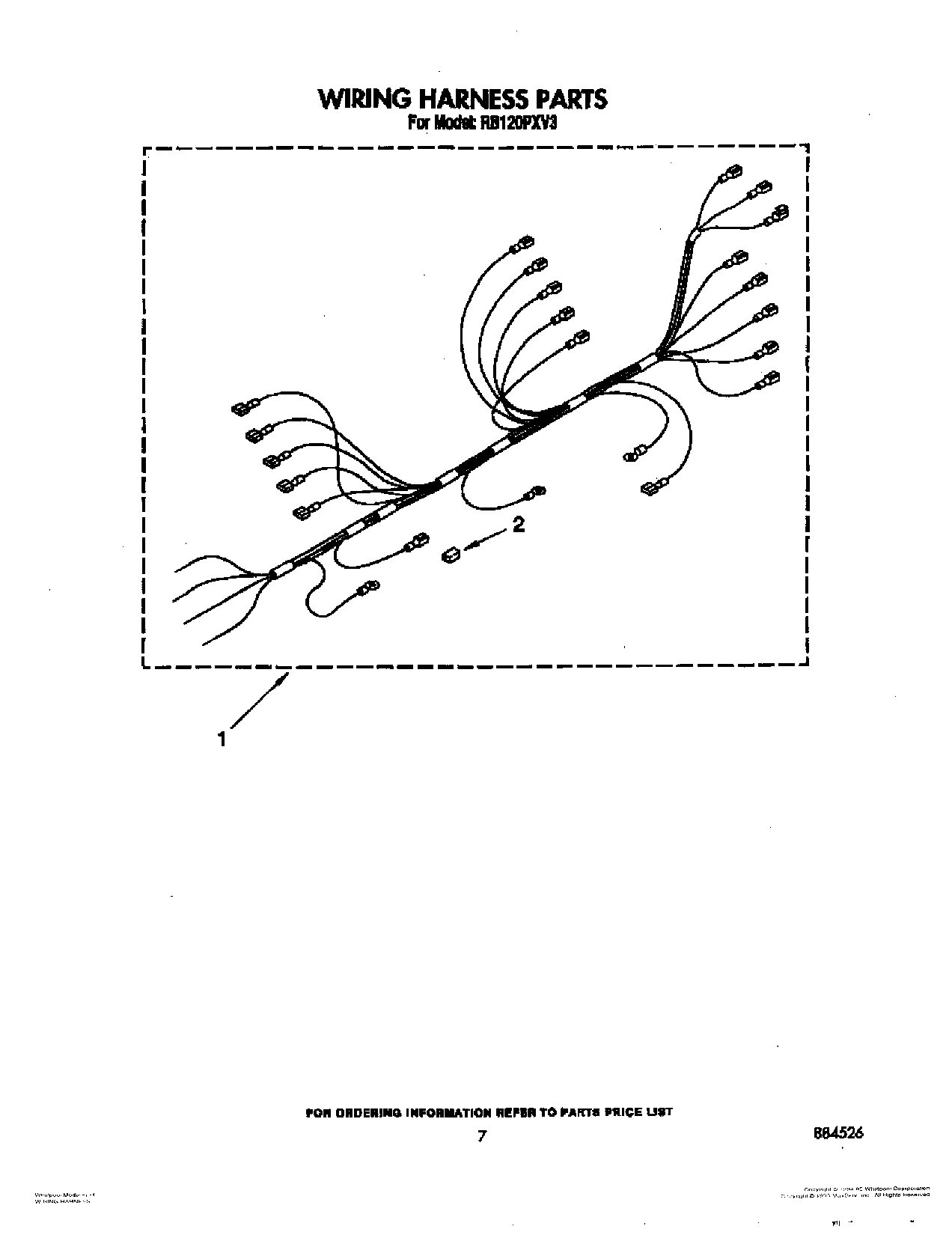

05 - WIRING HARNESS
Common parts from model Whirlpool RB120PXV3 BUILT-IN ELECTRIC SINGLE OVEN
WPL LIT311435 WPL LIT311435 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148575 WPL LIT3148575 Contact Us For Availability
WPL LIT884526 WPL LIT884526 Contact Us For Availability
1
Frame, Front WPL 329045 Contact Us For Availability
1
End Cap (Screw, 8A x 5/8 (4)) WPL 309133 Contact Us For Availability
1
End Cap (Right Side) WPL 311375 Contact Us For Availability
1
End Cap (Left Side) WPL 311376 Contact Us For Availability
1
End Cap (Screw, 8-18 x 5/8 (2)) WPL 312604 Contact Us For Availability
1
Harness, Wire (Main) WPL 3185190 Contact Us For Availability
2
Screw (8) WPL 311056 Contact Us For Availability
2
Oven (24`` Continuous Clean) WPL 328083 Contact Us For Availability
2
Trim, Center WPL 3148703 Contact Us For Availability
2
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
2
Receptacle, Housing WPL 307772 Contact Us For Availability
3
Seal, Oven WPL 309107 Contact Us For Availability
3
Trim, Bottom WPL 312529 Contact Us For Availability
4
Hinge Plate (2) WPL 257807 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 342043 Contact Us For Availability
4
Trim, Upper WPL 312002 Contact Us For Availability
5
Channel, Rubber WPL 310842 Contact Us For Availability
6
Glass, Control Panel WPL 3148657 Contact Us For Availability
7
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
7
Socket, Oven Light WPL 660556 Contact Us For Availability
7
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
8
screw, 10a X 3/8 (4) WPL 254217 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 311372 Contact Us For Availability
9
Side Wrapper (2) WPL 3149820 Contact Us For Availability
9
Control Bracket WPL 313317 Contact Us For Availability
10
Cover (Bottom) WPL 252687 Contact Us For Availability
10
Cover (Top) WPL 312004 Contact Us For Availability
10
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
10
Thermostat WPL 660565 Contact Us For Availability
11
Bumper (4) WPL 312783 Contact Us For Availability
11
Baffle, Top Insulation WPL 255575 Contact Us For Availability
11
Indicator Light (250V) WPL 311802 Contact Us For Availability
12
Selector Switch (4 Position) WPL 310866 Contact Us For Availability
13
Switch, Oven Light WPL 312581 Contact Us For Availability
13
Lockwasher WPL 312796 Contact Us For Availability
14
Frame, Door WPL 311459 Contact Us For Availability
14
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
14
Timer, Automatic (Includes Illus. 15) WPL 3148053 Contact Us For Availability
15
Top, Door Frame WPL 311460 Contact Us For Availability
15
Vent, Built-In Oven WPL 311382 Contact Us For Availability
15
Motor, Timer WPL 309822 Contact Us For Availability
16
Hold-Down, Glass WPL 310705 Contact Us For Availability
16
Cover, Rear WPL 257975 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
17
Plate, Service WPL 252978 Contact Us For Availability
18
Escutcheon, Thermostat WPL 311071 Contact Us For Availability
19
Glass, Outer WPL 311589 Contact Us For Availability
19
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
20
Clip, Glass (7) WPL 310706 Contact Us For Availability
20
Rack, Oven (2) WPL 254426 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
Handle, Door WPL 312725 Contact Us For Availability
22
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
WPL 242832 WPL 242832 Contact Us For Availability
22
WPL 261582 WPL 261582 Contact Us For Availability
22
WPL 261810 WPL 261810 Contact Us For Availability
22
WPL 261886 WPL 261886 Contact Us For Availability
22
WPL 261887 WPL 261887 Contact Us For Availability
22
WPL 261888 WPL 261888 Contact Us For Availability
22
WPL 261889 WPL 261889 Contact Us For Availability
22
WPL 261890 WPL 261890 Contact Us For Availability
22
WPL 261891 WPL 261891 Contact Us For Availability
22
WPL 313311 WPL 313311 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
24
Clip (2) WPL 311506 Contact Us For Availability
× ![]()
