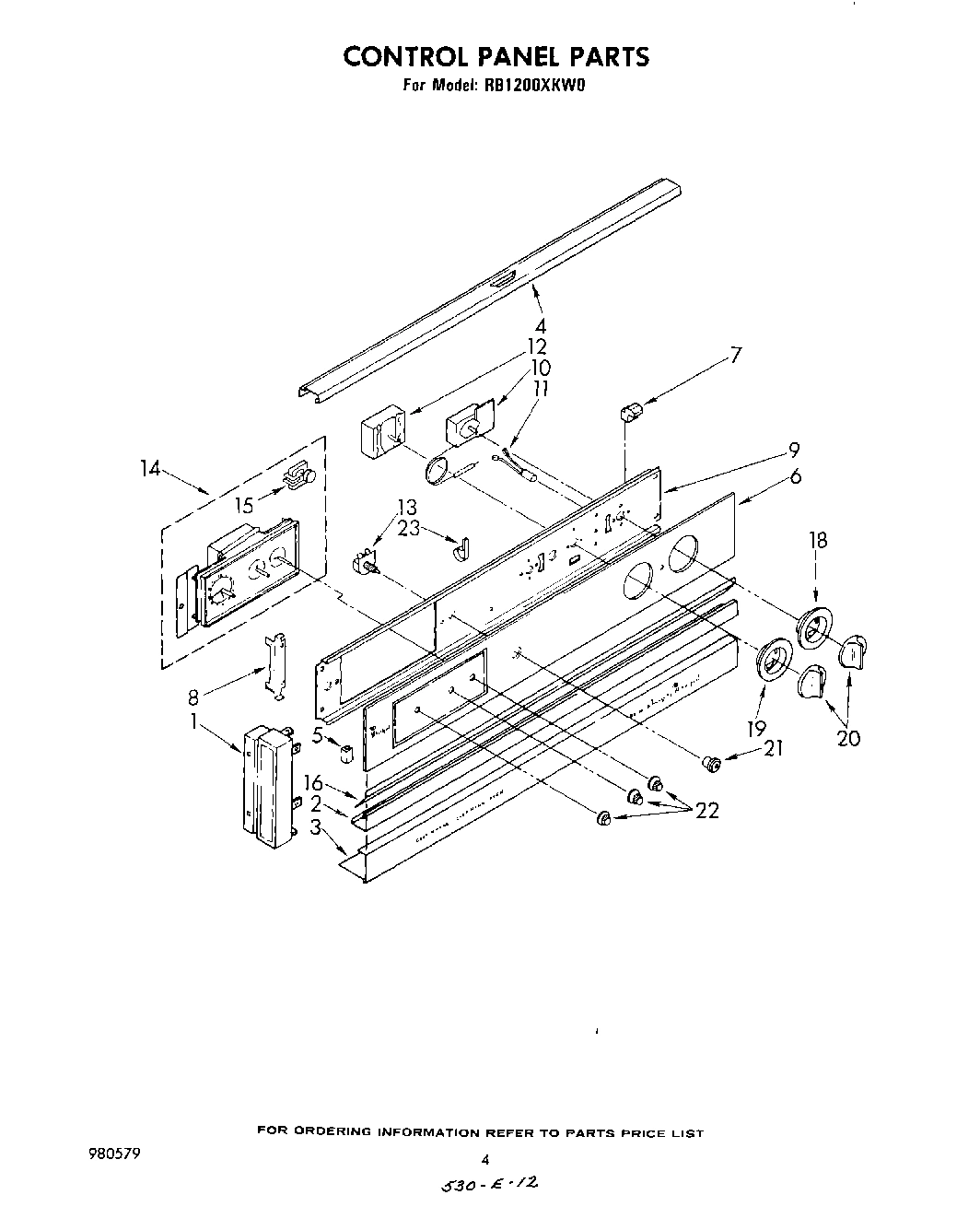

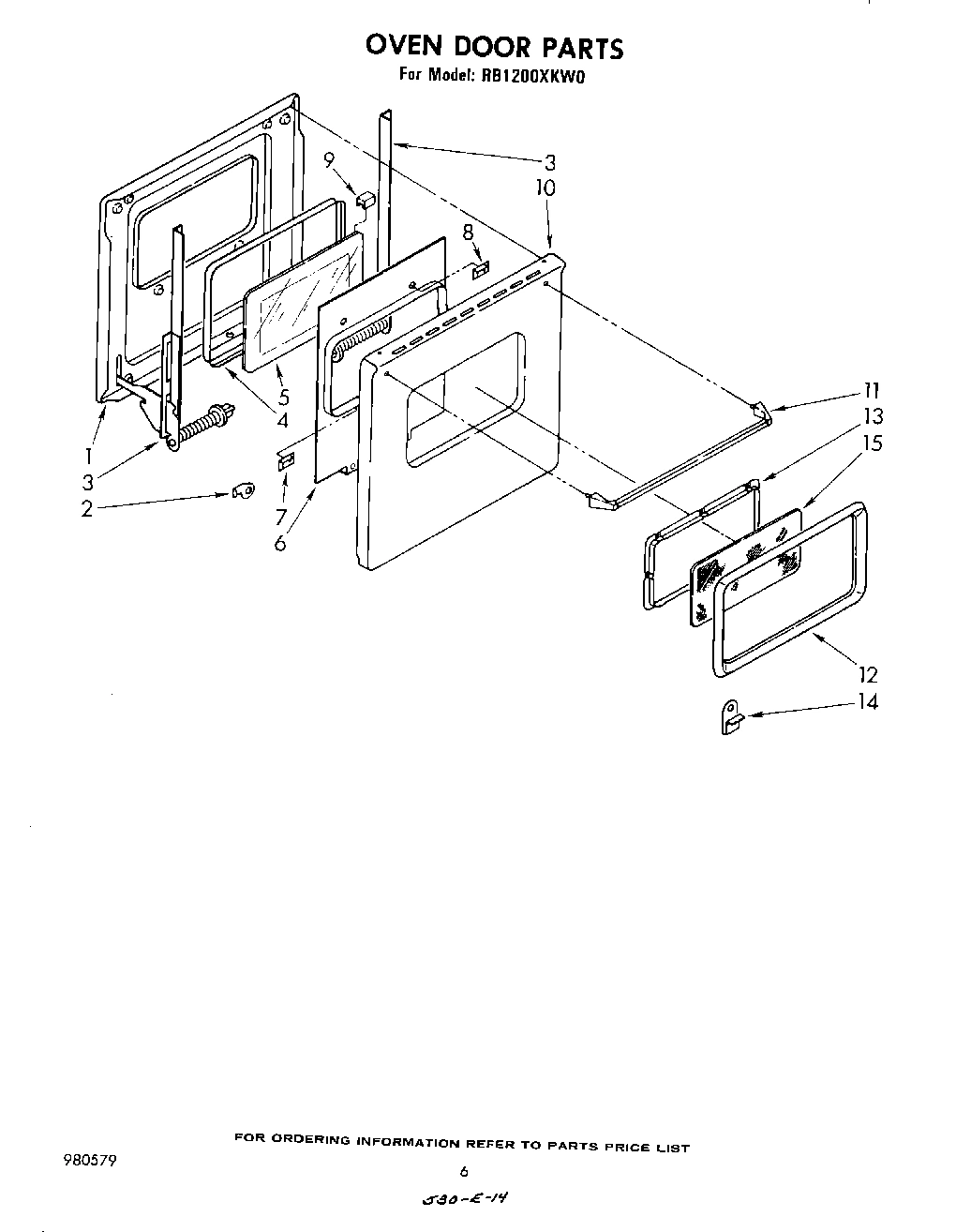

Model Whirlpool RB1200XKW0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

WPL 799344 WPL 799344 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

Washer, Fiber WPL 229364 Contact Us For Availability

1

Screw (8) WPL 311056 Contact Us For Availability

1

Liner, Door WPL 328116 Contact Us For Availability

1

End Cap (Right Side) WPL 311375 Contact Us For Availability

1

End Cap (Left Side) WPL 311376 Contact Us For Availability

2

Door Stop Replacement Kit WPL 270974 Contact Us For Availability

2

Trim, Center WPL 311193 Contact Us For Availability

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability

3

Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability

3

Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability

3

Screw (2) WPL 258856 Contact Us For Availability

3

Trim, Bottom WPL 312529 Contact Us For Availability

4

Seal, Window WPL 307852 Contact Us For Availability

4

Trim, Upper WPL 312002 Contact Us For Availability

5

Glass, Inner 24`` WPL 258989 Contact Us For Availability

5

Channel, Rubber WPL 310842 Contact Us For Availability

6

Baffle, Insulation WPL 307721 Contact Us For Availability

6

Panel, Control Glass WPL 312521 Contact Us For Availability

7

Retainer, Glass (4) WPL 310823 Contact Us For Availability

8

Spacer, Baffle (2) WPL 258990 Contact Us For Availability

8

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

8

screw, 10a X 3/8 (4) WPL 254217 Contact Us For Availability

8

Bracket, Control Panel (2) WPL 311372 Contact Us For Availability

9

Bumper, Oven Door WPL 312783 Contact Us For Availability

9

Control Bracket WPL 311377 Contact Us For Availability

Cover (Bottom) WPL 252687 Contact Us For Availability

Cover (Top) WPL 312004 Contact Us For Availability

Panel, Oven Door (Almond) WPL 311658 Contact Us For Availability

Panel, Oven Door (Coffee) WPL 311659 Contact Us For Availability

Panel, Oven Door (New Avocado) WPL 311660 Contact Us For Availability

Panel, Oven Door (Harvest Gold) WPL 311661 Contact Us For Availability

Panel, Oven Door (White) WPL 311662 Contact Us For Availability

Panel, Oven Door (Toast) WPL 313173 Contact Us For Availability

Panel, Oven Door (Platinum) WPL 313174 Contact Us For Availability

Thermostat (Alternate) WPL 310862 Contact Us For Availability

Thermostat (Alternate) WPL 311496 Contact Us For Availability

Thermostat (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

Nut, Snap-In (2) WPL 258093 Contact Us For Availability

Handle, Oven Door WPL 311565 Contact Us For Availability

Indicator Light (250V) WPL 308753 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Baffle, Top Insulation WPL 255575 Contact Us For Availability

Frame, Window WPL 311663 Contact Us For Availability

Selector Switch (4 Position) WPL 310866 Contact Us For Availability

Plug, Button WPL 258112 Contact Us For Availability

Retainer, Glass WPL 307793 Contact Us For Availability

Nut, 3/8 x 27 (1) WPL 255912 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

326791 Whirlpool Range Oven Bake Element In Stock WPL 326791 $22.23

Clip, Frame (2) WPL 307731 Contact Us For Availability

Screw, 8A x 3/8 (4) WPL 246123 Contact Us For Availability

Timer, Automatic (Includes Illus. 15) WPL 312802 Contact Us For Availability

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.99

Glass, Outer 24`` WPL 307733 Contact Us For Availability

Screw, 8-A x 5/8 (2) WPL 309133 Contact Us For Availability

Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability

Motor, Timer WPL 309822 Contact Us For Availability

16

Vent, Oven WPL 311382 Contact Us For Availability

16

Seal, Backguard WPL 255893 Contact Us For Availability

18

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

18

Cover, Rear WPL 257975 Contact Us For Availability

18

Escutcheon, Thermostat WPL 311071 Contact Us For Availability

19

WP311069 Whirlpool Oven Dial Backorder WPL WP311069 $27.80

19

Plate, Service WPL 252978 Contact Us For Availability

19

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

20

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

20

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $11.36

21

Bezel Switch WPL 313030 Contact Us For Availability

22

Knob, Timer (3) WPL 312808 Contact Us For Availability

22

Rack, Oven (2) WPL 254426 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 246127 WPL 246127 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 242985 WPL 242985 Contact Us For Availability

WPL 246076 WPL 246076 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261810 WPL 261810 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 308500 WPL 308500 Contact Us For Availability

WPL 311418 WPL 311418 Contact Us For Availability

WPL 311435 WPL 311435 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 980579 WPL 980579 Contact Us For Availability
