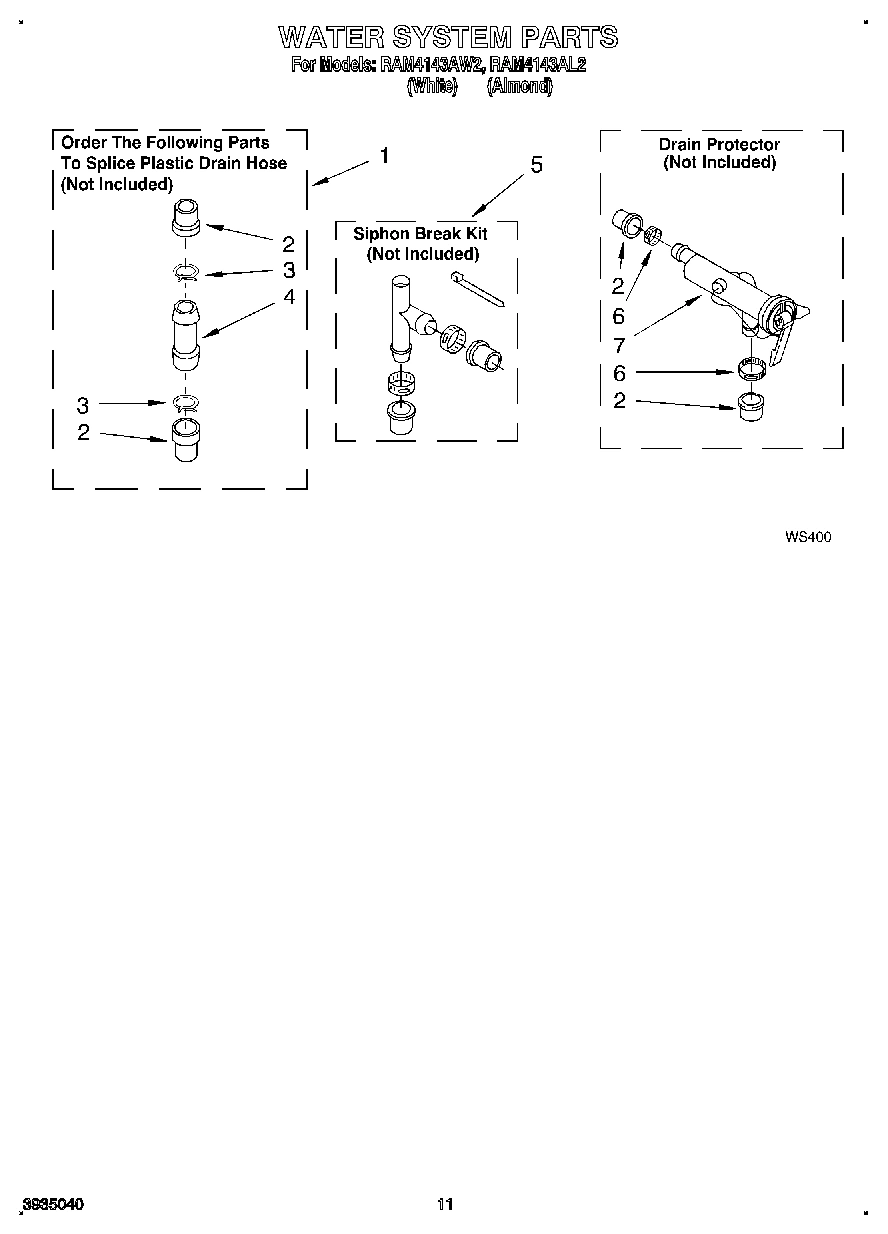

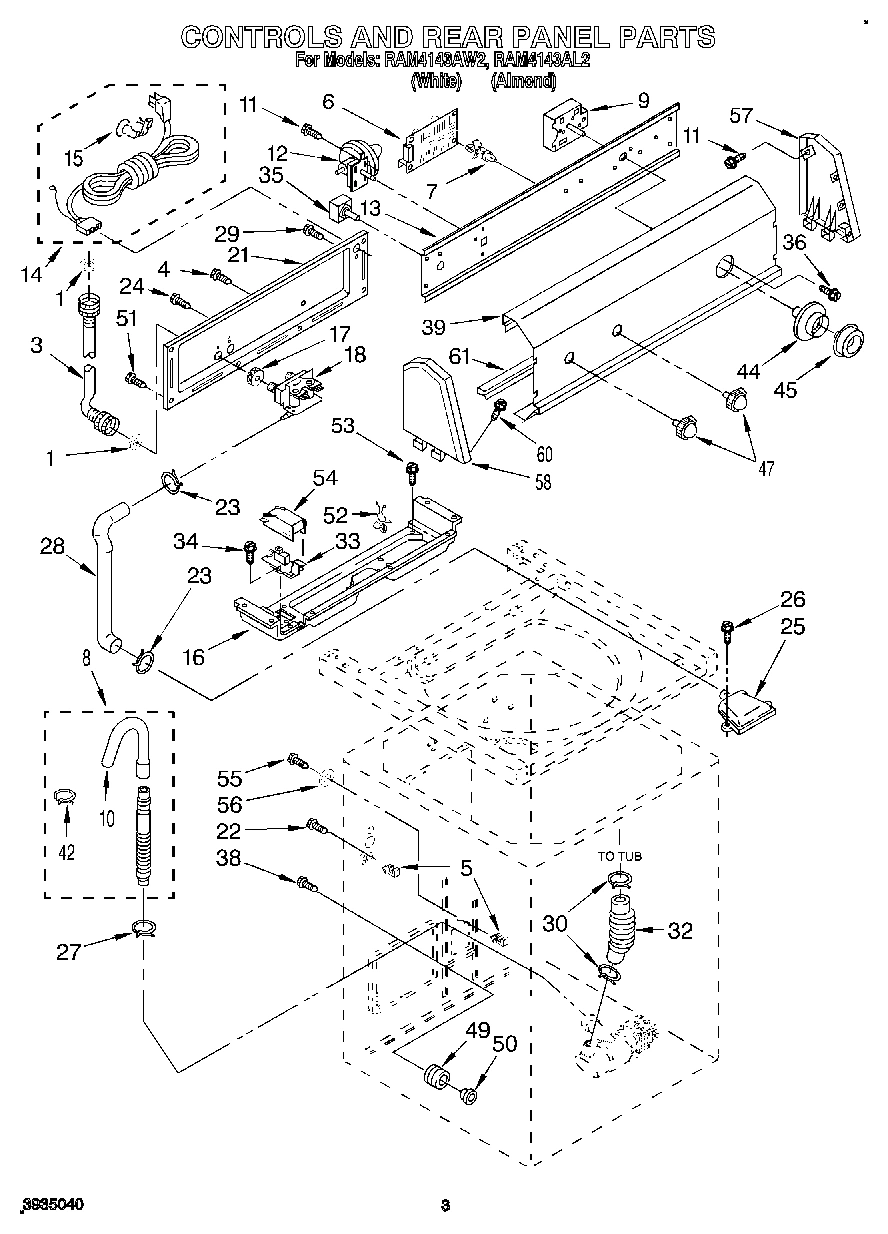

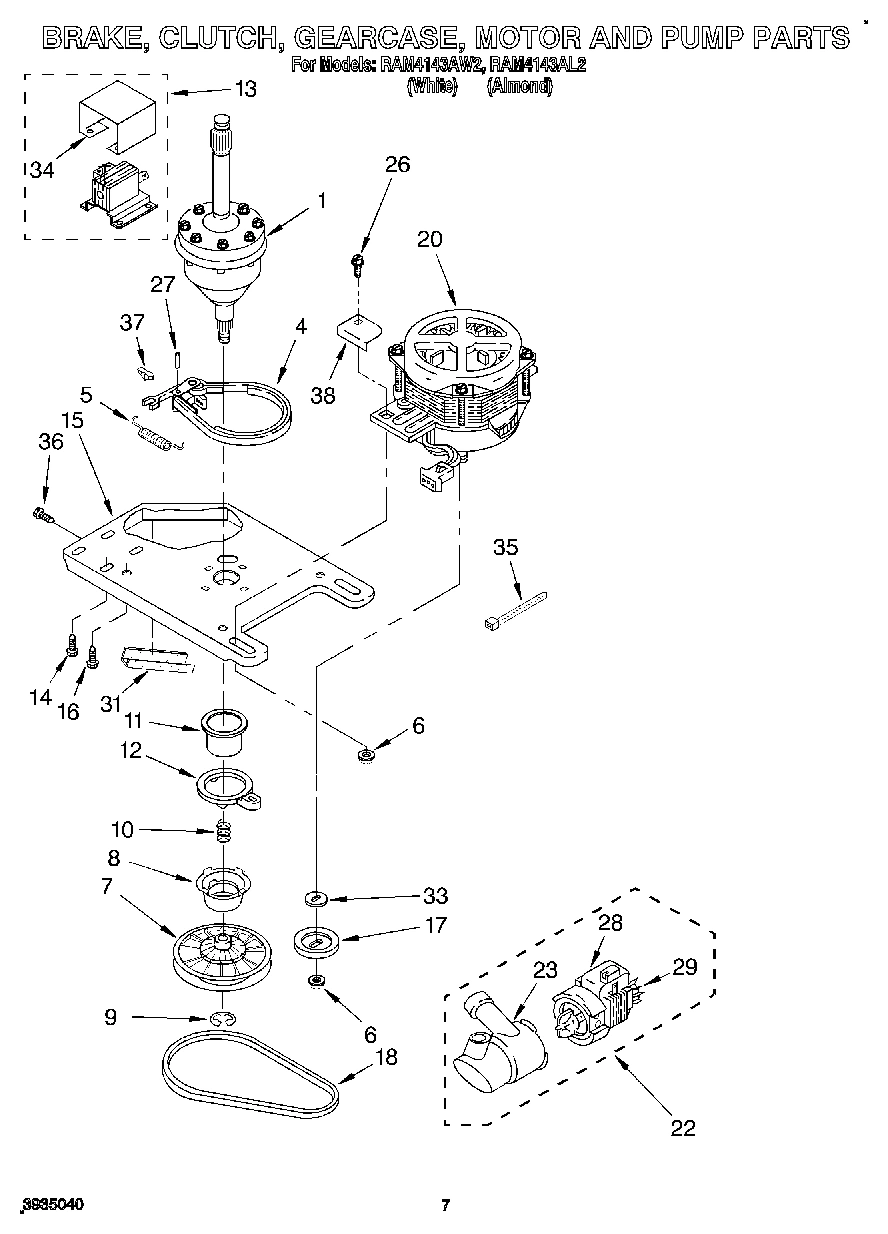

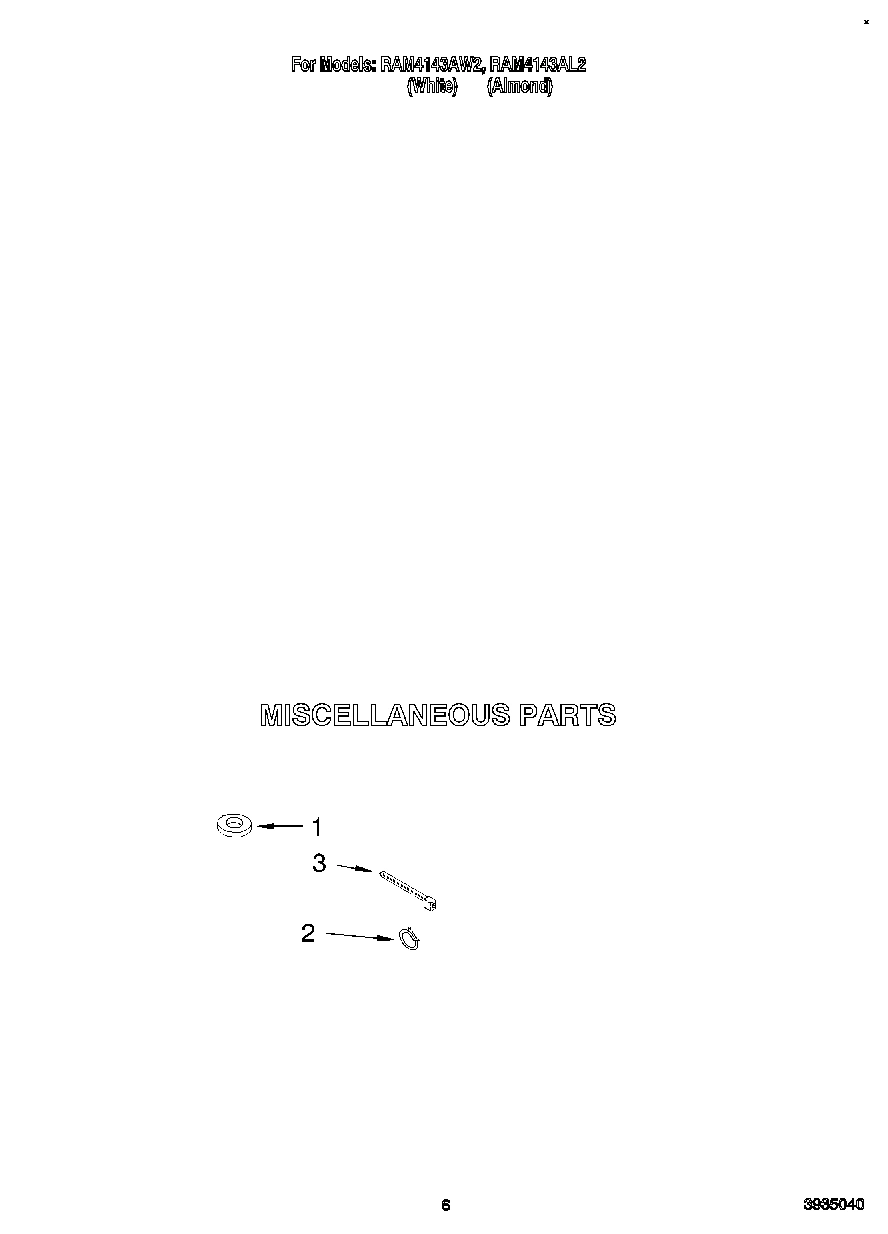

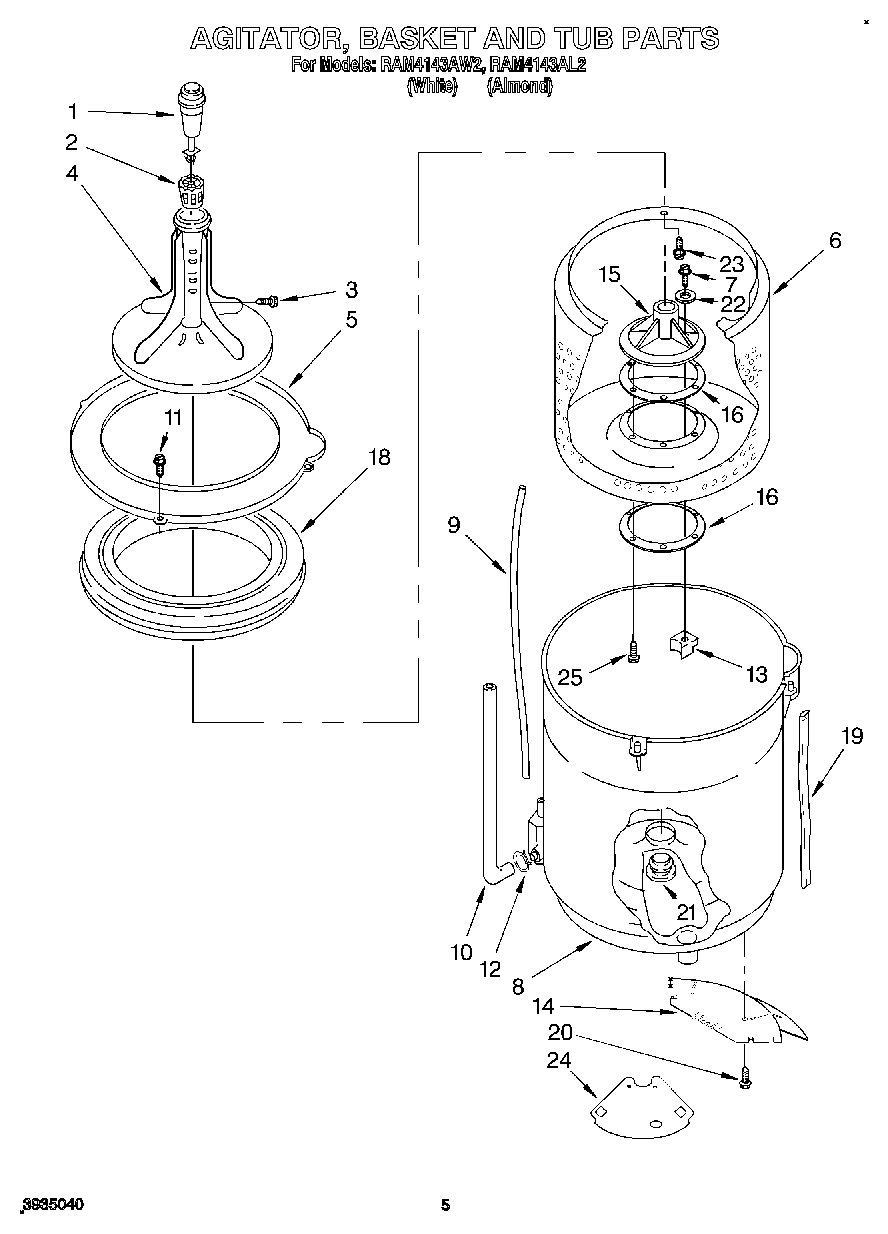

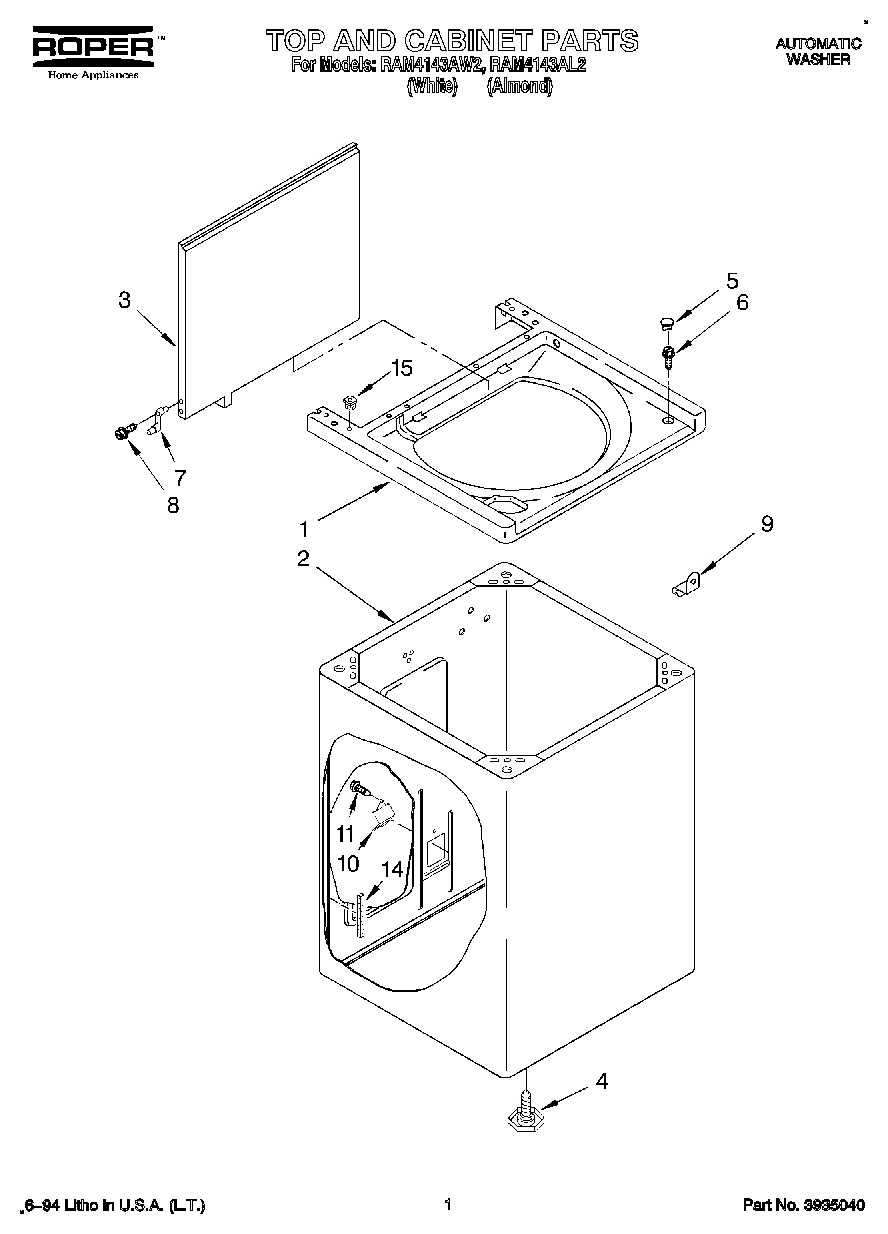

Model Whirlpool RAM4143AW2 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Label, Wiring Diagram WPL LIT3428944 Contact Us For Availability

Sheet, Installation Instructions WPL LIT3429275 Contact Us For Availability

Guide, Use and Care WPL LIT3430142 Contact Us For Availability

Energy Guide WPL LIT3935096 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP326018423 Whirlpool Dispenser Assembly Backorder WPL WP326018423 $62.10

1

Top (White) WPL 3430084 Contact Us For Availability

1

Top (Almond) WPL 3430085 Contact Us For Availability

1

Gearcase Assembly WPL 3934672 Contact Us For Availability

2

Cabinet (White) WPL 3934267 Contact Us For Availability

2

Cabinet (Almond) WPL 3934268 Contact Us For Availability

2

Filter WPL 3428391 Contact Us For Availability

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

3

Lid (White) WPL 3430198 Contact Us For Availability

3

Lid (Almond) WPL 3430199 Contact Us For Availability

4

Foot (4) WPL 3429895 Contact Us For Availability

4

Agitator WPL 3428392 Contact Us For Availability

4

Brake Band WPL 3428323 Contact Us For Availability

4

Screw, Console Cover (4) WPL 3429189 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Capacitor WPL 3429938 Contact Us For Availability

5

Bumper, Lid (White) WPL 3428720 Contact Us For Availability

5

Bumper, Lid (Almond) WPL 3429565 Contact Us For Availability

5

Tub Ring WPL 3429902 Contact Us For Availability

5

Spring, Brake WPL 3428342 Contact Us For Availability

5

Clip, Harness WPL 3428879 Contact Us For Availability

6

90984 Whirlpool Nut Backorder WPL 90984 $9.13

6

Basket WPL 3428186 Contact Us For Availability

6

Board, Control WPL 3934669 Contact Us For Availability

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Hinge, Lid (2) WPL 3428543 Contact Us For Availability

7

Screw WPL 3428430 Contact Us For Availability

7

Stand Off WPL 3429401 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

Screw, Lid Hinge Mounting (2) WPL 3430073 Contact Us For Availability

8

Tub WPL 3428517 Contact Us For Availability

8

Cam, Splutch WPL 3428378 Contact Us For Availability

9

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

9

Clip, Cabinet To Top WPL 3428732 Contact Us For Availability

9

Timer, Control (60 Hz.) WPL 3430177 Contact Us For Availability

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

Cover, Pump WPL 3428525 Contact Us For Availability

Hose, Bleach WPL 3430339 Contact Us For Availability

Spring, Splutch WPL 3934212 Contact Us For Availability

11

Slider, Splutch WPL 3428380 Contact Us For Availability

12

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

12

Cam Ring, Splutch WPL 3428379 Contact Us For Availability

12

Switch, Water Level WPL 3934913 Contact Us For Availability

13

Saddle Block WPL 3428429 Contact Us For Availability

13

Solenoid WPL 3934709 Contact Us For Availability

13

Bracket, Control WPL 3934382 Contact Us For Availability

14

Shield, Tub/Motor WPL 3428814 Contact Us For Availability

14

Cord, Power WPL 3429816 Contact Us For Availability

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

Hub, Drive WPL 3934735 Contact Us For Availability

Plate, Motor Mount WPL 3430205 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

16

Gasket, Hub (2) WPL 3428179 Contact Us For Availability

16

Bolt, Motor Plate (4) WPL 3429405 Contact Us For Availability

16

Pan, Console WPL 3428435 Contact Us For Availability

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

17

Pulley, Motor WPL 3428683 Contact Us For Availability

18

Balance Ring WPL 3934565 Contact Us For Availability

18

Drive Belt WPL 3428097 Contact Us For Availability

18

Valve, Water Mixing WPL 3934904 Contact Us For Availability

19

Hose, Tub Overflow WPL 3430093 Contact Us For Availability

20

Motor, Main Drive (Includes Items 33, 17, & 6 WPL 3934201 Contact Us For Availability

21

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.22

21

Panel, Rear WPL 3430103 Contact Us For Availability

22

Washer WPL 3429750 Contact Us For Availability

22

Pump (Complete) WPL 3430119 Contact Us For Availability

23

Housing, Pump WPL 3430120 Contact Us For Availability

24

Shield, Tub/Solenoid WPL 3430303 Contact Us For Availability

25

Screw, 1/4 (6) WPL 3934714 Contact Us For Availability

25

Water Inlet (Upper) WPL 3429917 Contact Us For Availability

25

Water Inlet (Lower) WPL 3429918 Contact Us For Availability

26

Screw, Water Inlet Mtg. (2) WPL 3934040 Contact Us For Availability

26

Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Pin, Brake Band WPL 3934183 Contact Us For Availability

28

Pump WPL 3430089 Contact Us For Availability

28

Hose, Valve To Water Inlet WPL 3428574 Contact Us For Availability

29

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

29

Blade, Fan WPL 3429939 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

Protector, Edge WPL 3429705 Contact Us For Availability

32

Hose, Pump To Tub WPL 3430217 Contact Us For Availability

33

Washer, Pulley WPL 3428377 Contact Us For Availability

33

Switch, Lid WPL 3934248 Contact Us For Availability

34

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.51

34

Solenoid Shield, Top WPL 3934824 Contact Us For Availability

35

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.51

35

Switch, Water Temperature WPL 3429541 Contact Us For Availability

36

WP3428970 Whirlpool Refrigerator Screw Backorder WPL WP3428970 $4.56

37

Lock, Solenoid WPL 3429416 Contact Us For Availability

38

Shield, Motor Connector WPL 3430197 Contact Us For Availability

38

Screw, Pump Mtg. (2) WPL 3428934 Contact Us For Availability

39

Panel, Console WPL 3430276 Contact Us For Availability

42

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

44

Dial, Timer WPL 3388184 Contact Us For Availability

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $34.97

47

Knob, Control WPL 3352167 Contact Us For Availability

49

Grommet, Pump (3) WPL 3428526 Contact Us For Availability

50

Spacer, Pump (3) WPL 3428933 Contact Us For Availability

51

Screw WPL 3429942 Contact Us For Availability

52

Clip, Coil (2) WPL 3429534 Contact Us For Availability

53

Screw WPL 3429941 Contact Us For Availability

54

Shield, Lid Switch WPL 3429706 Contact Us For Availability

55

Screw WPL 3428014 Contact Us For Availability

56

Washer WPL 3429923 Contact Us For Availability

57

Cap, End (R.H.) WPL 3357995 Contact Us For Availability

58

Cap, End (L.H.) WPL 3358013 Contact Us For Availability

60

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

61

Extrusion, Console To Top WPL 3430105 Contact Us For Availability
