Model Electrolux RA30EH1 RANGE – Common Parts & Diagrams

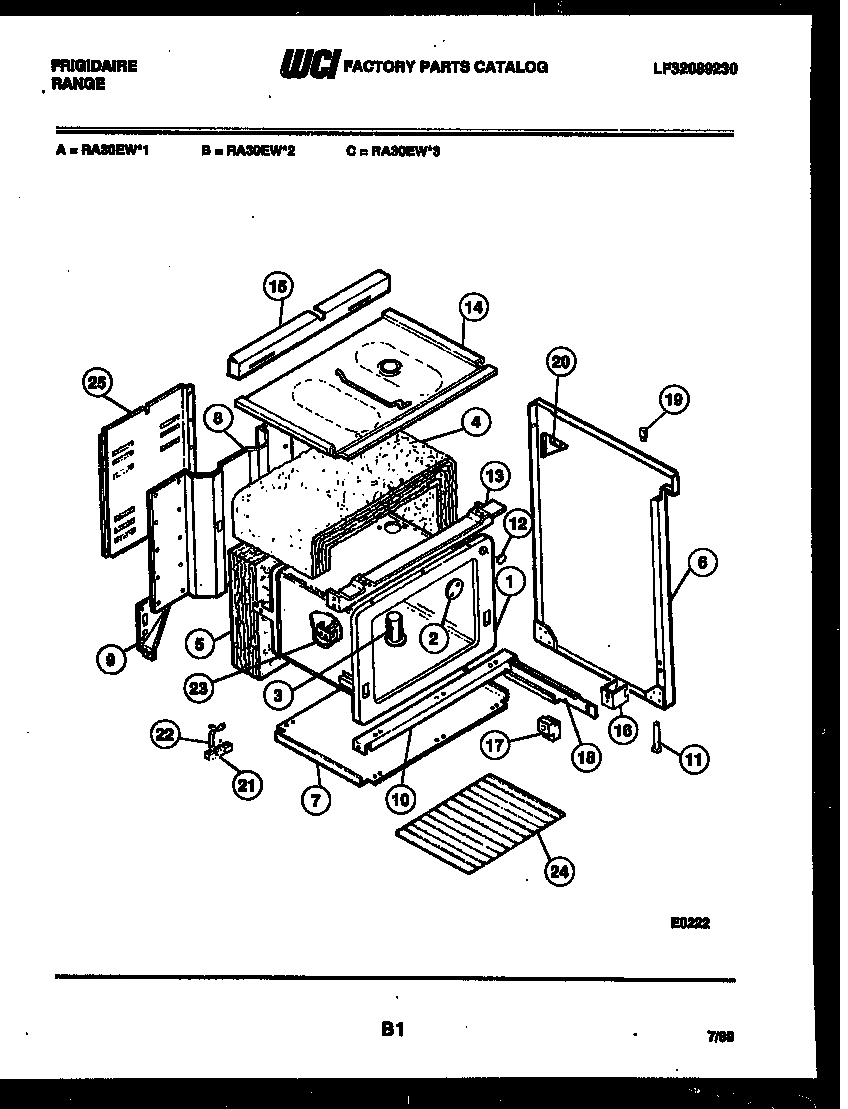

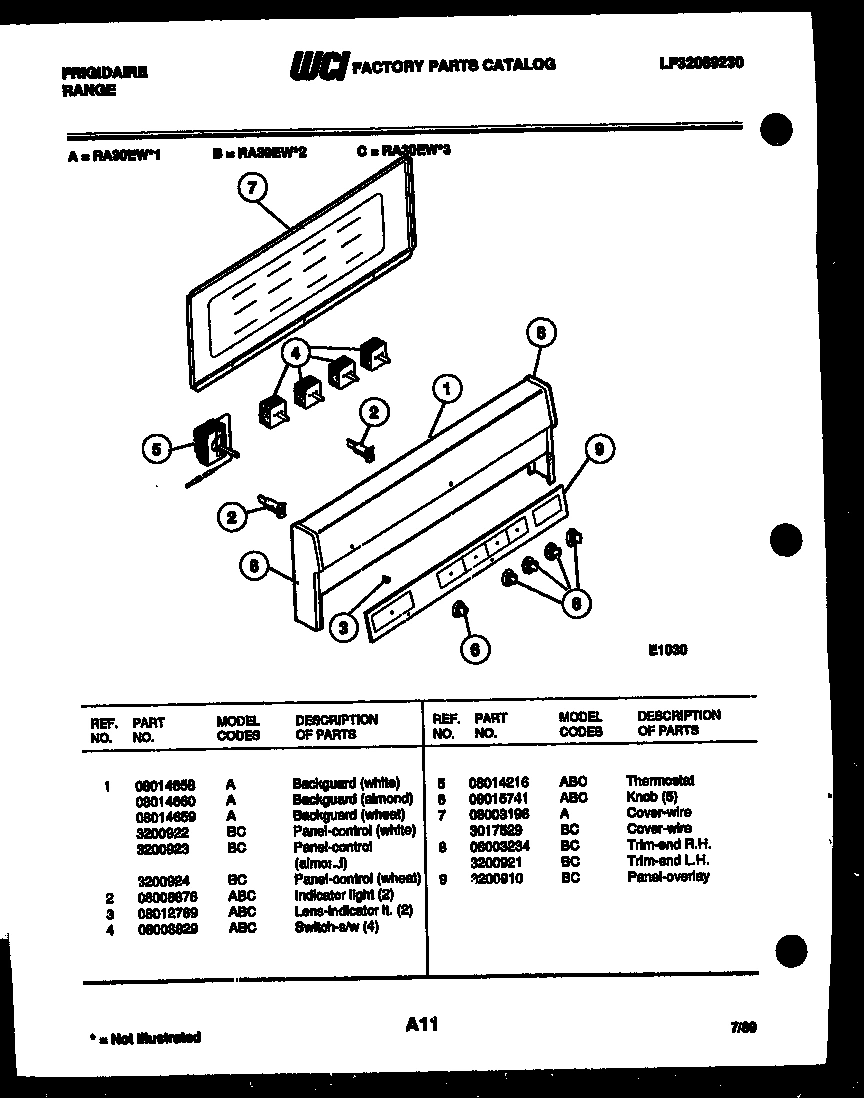

02 - BACKGUARD

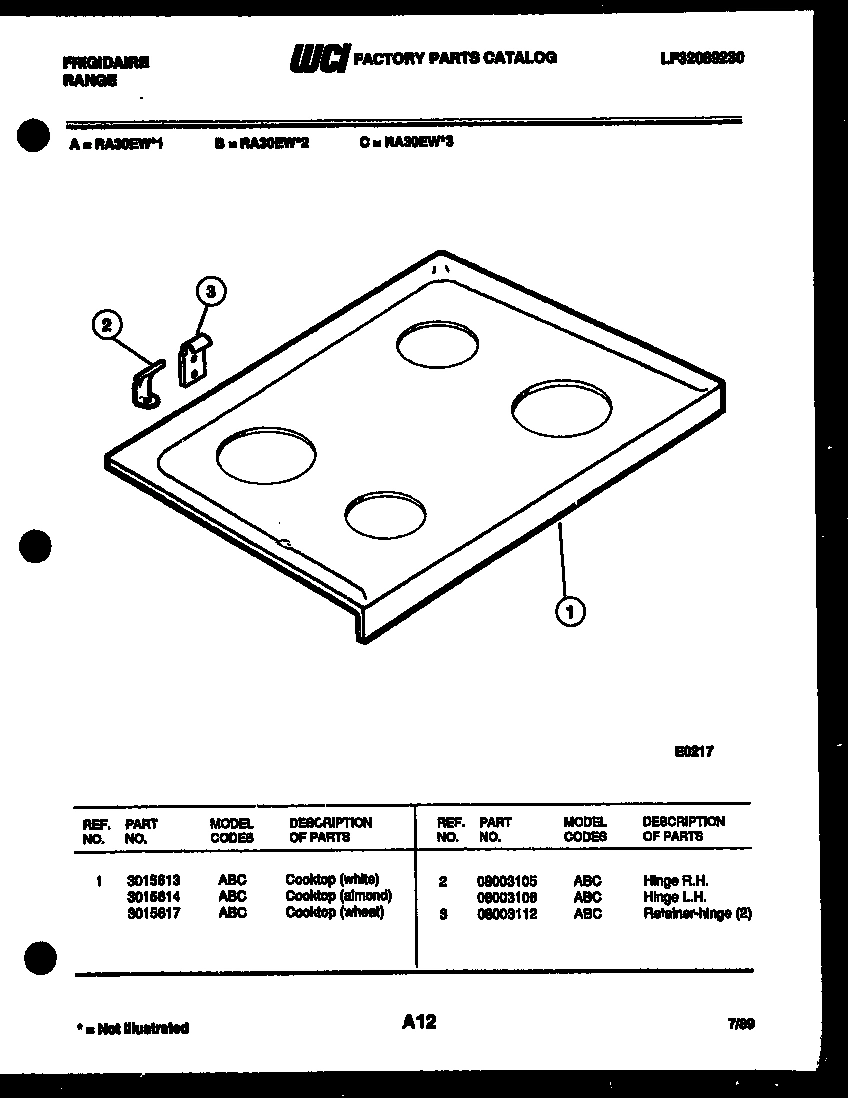

03 - COOKTOP PARTS

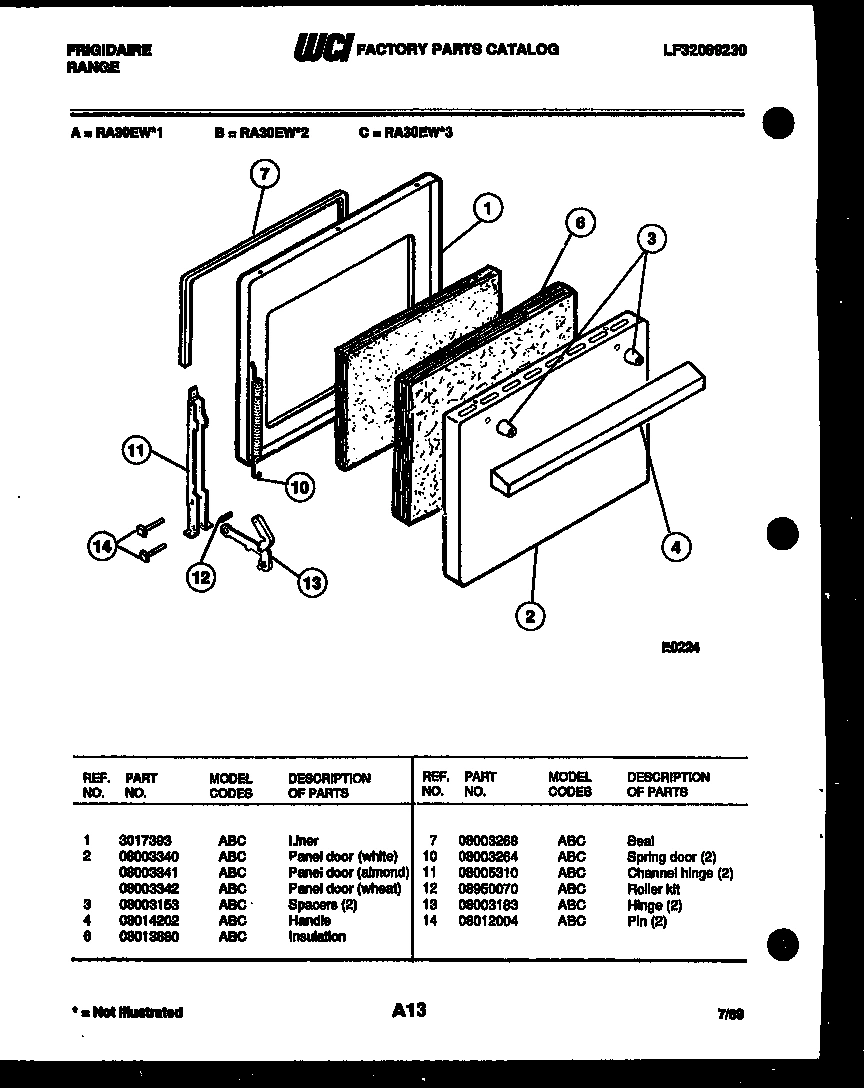

04 - DOOR PARTS

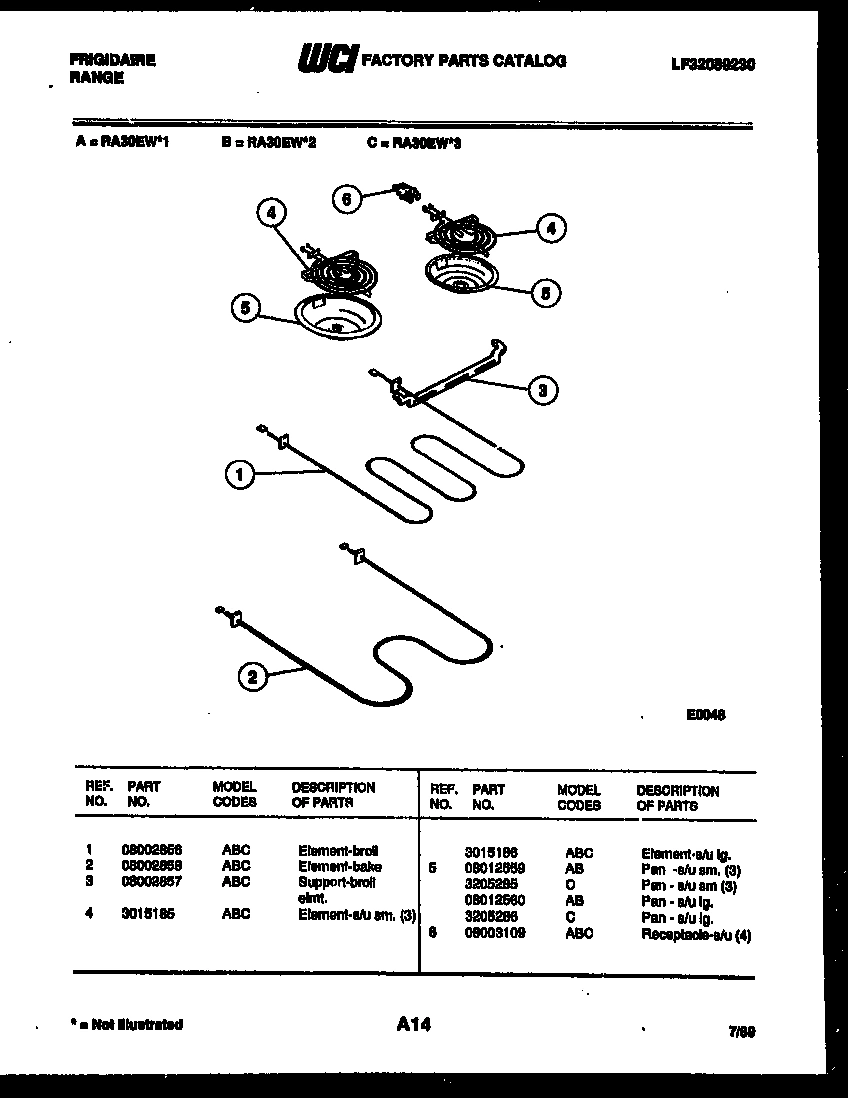

05 - BROILER PARTS
06 - BODY PARTS

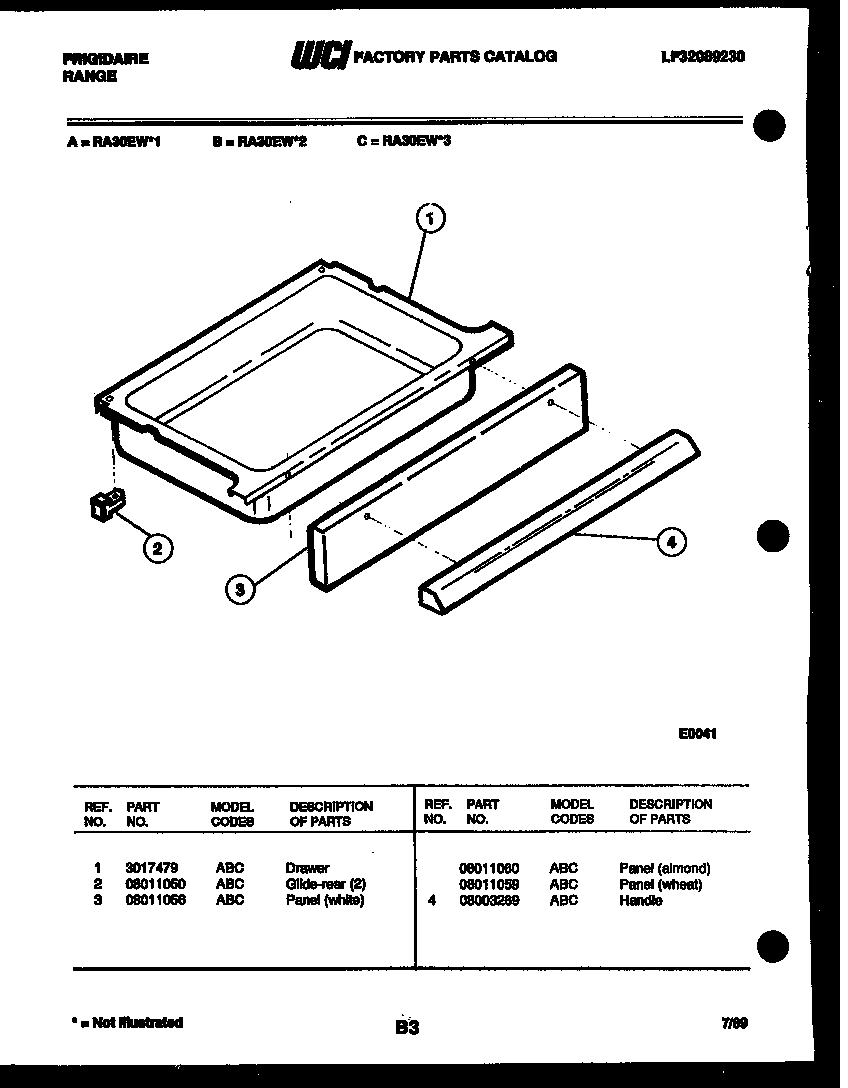

07 - DRAWER PARTS
Common parts from model Electrolux RA30EH1 RANGE
*22421
CLIP-THERMOSTAT BULB (2) WCI 08014181 Contact Us For Availability
1
BACKGUARD (WHEAT) WCI 08014659 Contact Us For Availability
1
COOKTOP (WHEAT) WCI 3015617 Contact Us For Availability
1
LINER WCI 3017393 Contact Us For Availability
1
BODY-OVEN WCI 08012237 Contact Us For Availability
1
DRAWER WCI 3017479 Contact Us For Availability
2
WCI 08008876 WCI 08008876 Contact Us For Availability
2
WCI 08003105 WCI 08003105 Contact Us For Availability
2
PANEL DOOR (WHEAT) WCI 08003342 Contact Us For Availability
2
COVER-LIGHT WCI 08012236 Contact Us For Availability
2
GLIDE-REAR (2) WCI 08011050 Contact Us For Availability
2A
WCI 08003106 WCI 08003106 Contact Us For Availability
3
LENS-INDICATOR LT. (2) WCI 08012769 Contact Us For Availability
3
RETAINER-HINGE (2) WCI 08003112 Contact Us For Availability
3
SPACERS (2) WCI 08003153 Contact Us For Availability
3
WCI 08002857 WCI 08002857 Contact Us For Availability
3
WCI 08012541 WCI 08012541 Contact Us For Availability
3
PANEL, WHEAT WCI 08011059 Contact Us For Availability
4
WCI 08008829 WCI 08008829 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
4
INSULATION-OVEN WRAP WCI 3008109 Contact Us For Availability
4
WCI 08003269 WCI 08003269 Contact Us For Availability
5
WCI 08014216 WCI 08014216 Contact Us For Availability
5
WCI 3008960 WCI 3008960 Contact Us For Availability
6
KNOB (5) WCI 08015741 Contact Us For Availability
6
INSULATION WCI 08013680 Contact Us For Availability
6
WCI 08012536 WCI 08012536 Contact Us For Availability
6A
PANEL, END, RH (WHEAT) WCI 08012535 Contact Us For Availability
7
WCI 08003196 WCI 08003196 Contact Us For Availability
7
SEAL WCI 08003268 Contact Us For Availability
7
WCI 3017394 WCI 3017394 Contact Us For Availability
8
PANEL-BACK WCI 08015749 Contact Us For Availability
8
PANEL-BACK WCI 3017535 Contact Us For Availability
9
WCI 08015976 WCI 08015976 Contact Us For Availability
9A
WCI 08015977 WCI 08015977 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
CHANNEL-OVEN SPRT. BOT. WCI 08002872 Contact Us For Availability
11
WCI 08005310 WCI 08005310 Contact Us For Availability
11
WCI 08003583 WCI 08003583 Contact Us For Availability
12
WCI 08950070 WCI 08950070 Contact Us For Availability
12
WCI 3051784 WCI 3051784 Contact Us For Availability
13
WCI 08003183 WCI 08003183 Contact Us For Availability
13
CHANNEL-OVEN SPRT. TOP WCI 08011092 Contact Us For Availability
14
PIN (2) WCI 08012004 Contact Us For Availability
14
WCI 08014247 WCI 08014247 Contact Us For Availability
15
WCI 3009190 WCI 3009190 Contact Us For Availability
16
SPACER-DRAWER GLIDE (2) WCI 08011055 Contact Us For Availability
17
WCI 08003103 WCI 08003103 Contact Us For Availability
18
WCI 08015746 WCI 08015746 Contact Us For Availability
18A
WCI 08015747 WCI 08015747 Contact Us For Availability
19
BUMPER (4) WCI 08003107 Contact Us For Availability
20
WCI 08003104 WCI 08003104 Contact Us For Availability
22
STRAP-GROUNDING WCI 08003146 Contact Us For Availability
23
BRACKET-THERMOSTAT BULB WCI 08002854 Contact Us For Availability
25
COVER - WIRE WCI 3051856 Contact Us For Availability
× ![]()
