Model Electrolux RA30BEW2 RANGE – Common Parts & Diagrams

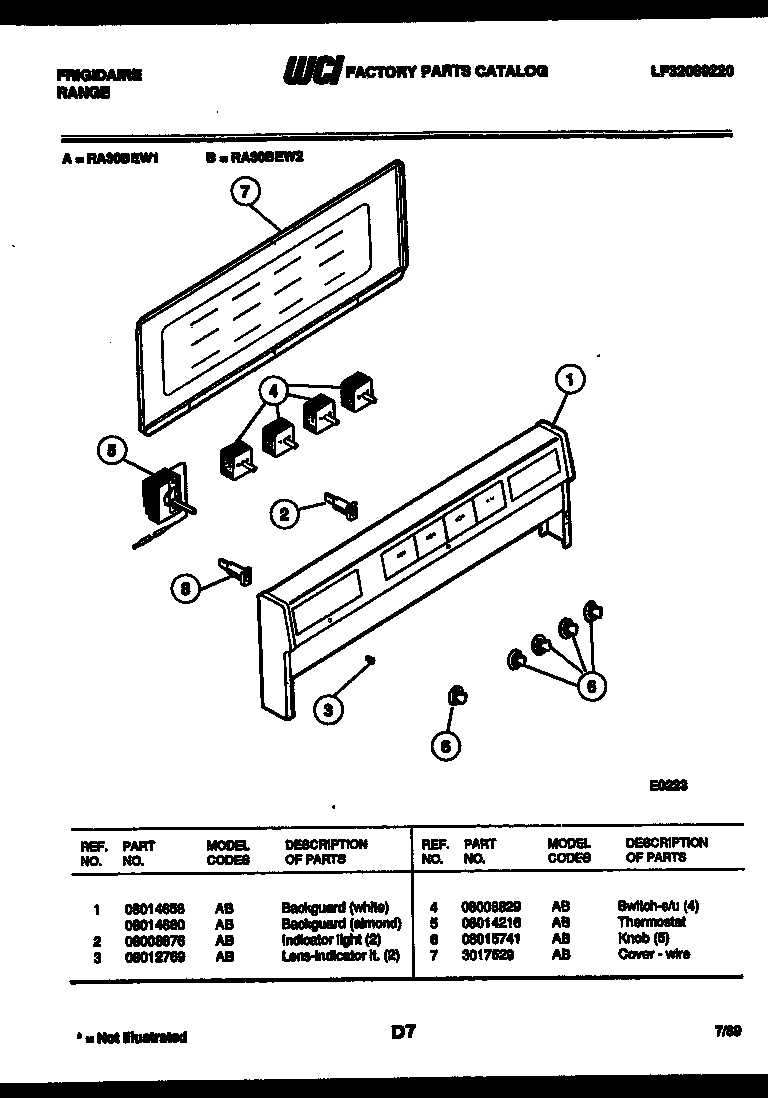

02 - BACKGUARD

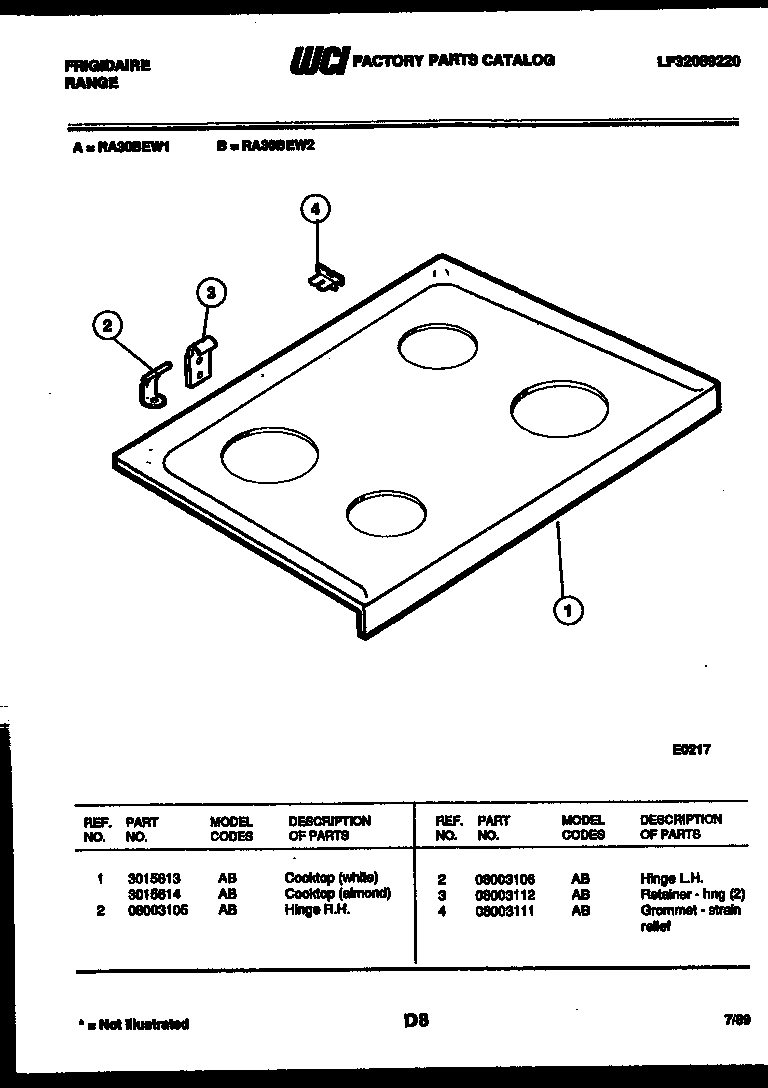

03 - COOKTOP PARTS

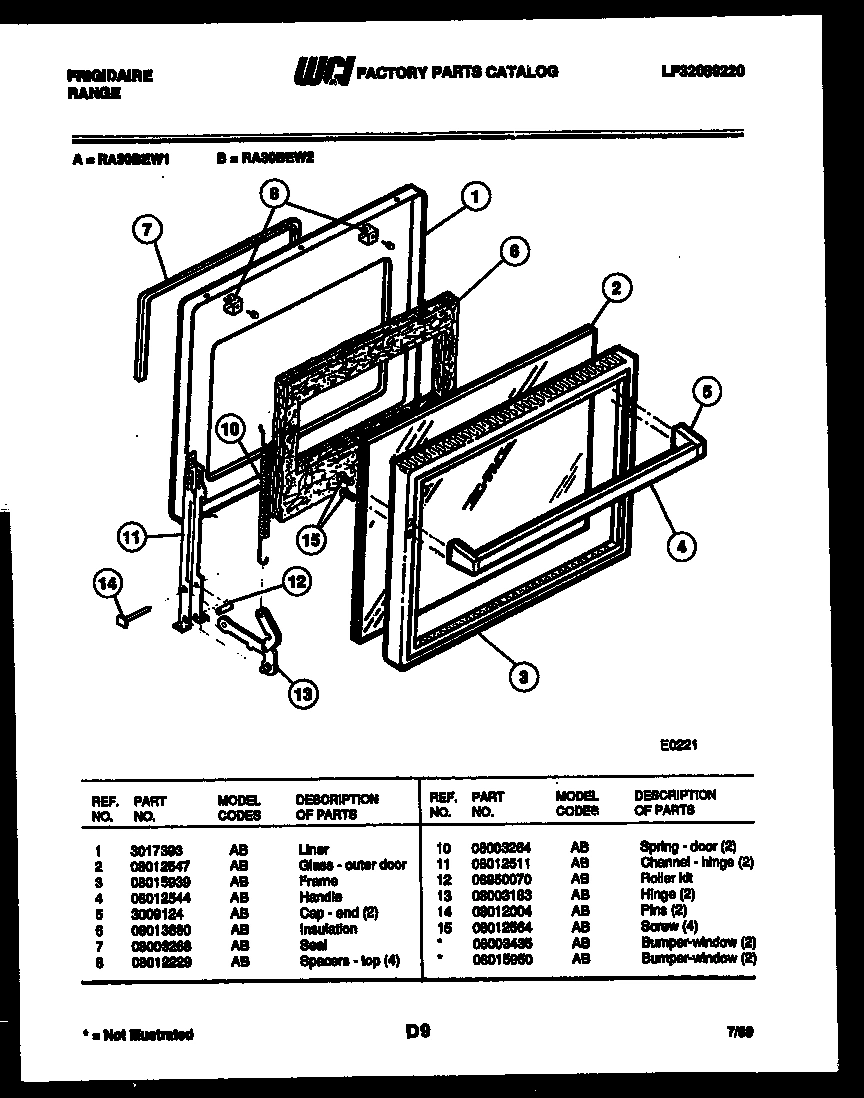

04 - DOOR PARTS

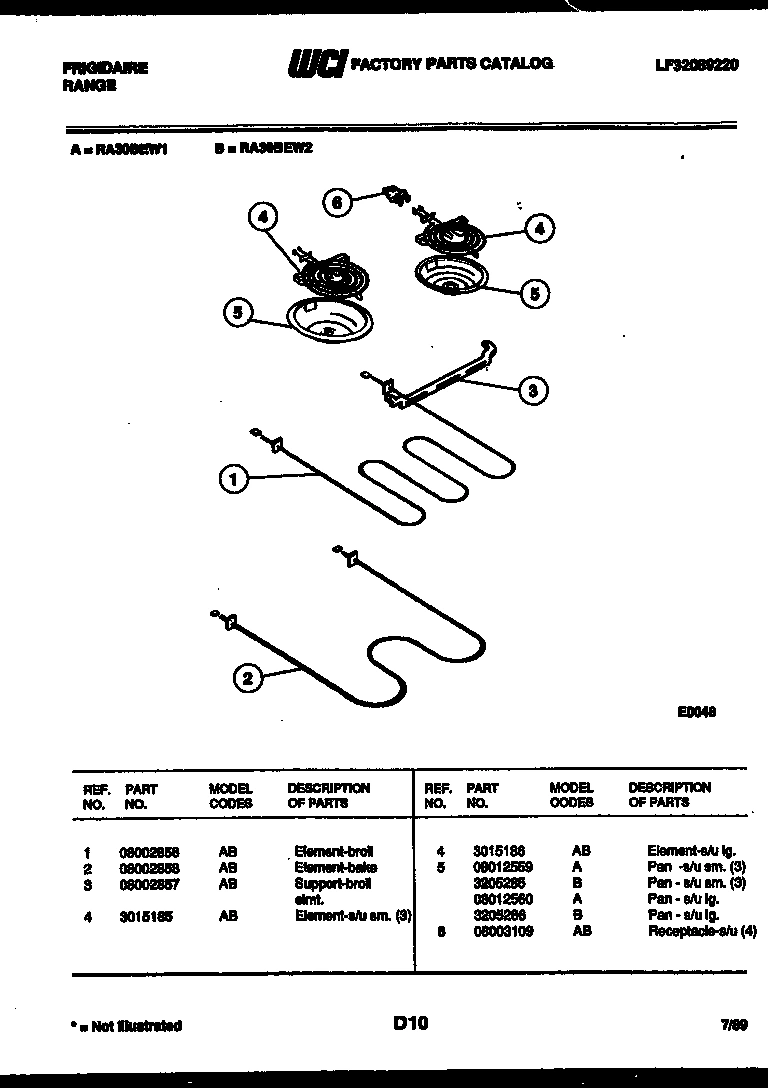

05 - BROILER PARTS

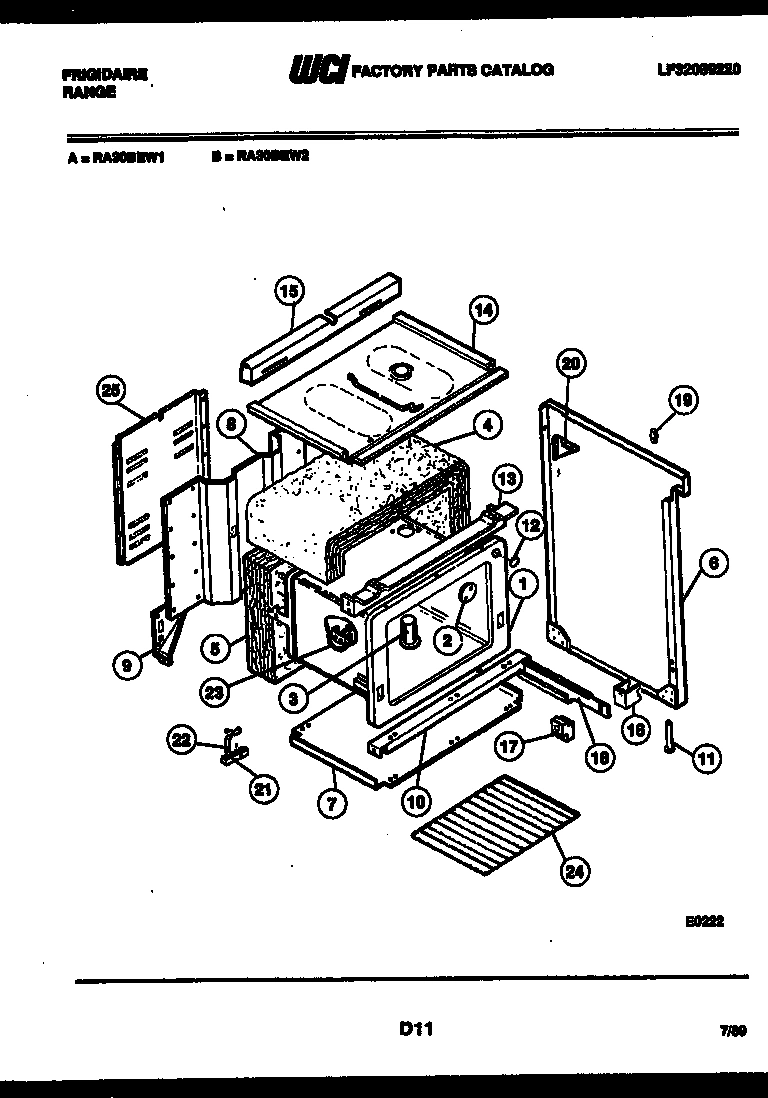

06 - BODY PARTS

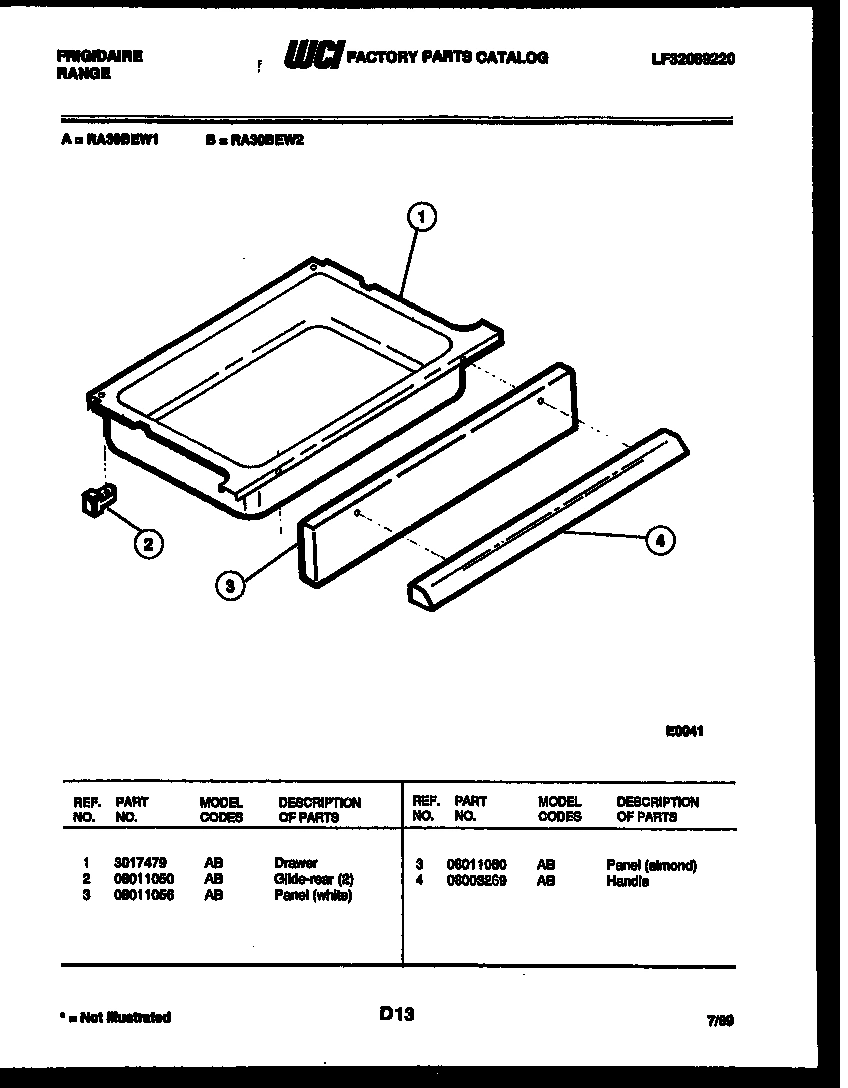

07 - DRAWER PARTS
Common parts from model Electrolux RA30BEW2 RANGE
*22690
WCI 08003435 WCI 08003435 Contact Us For Availability
*22690
BUMPER-WINDOW (2) WCI 08015950 Contact Us For Availability
*22692
CLIP-THERMOSTAT BULB (2) WCI AP00091011 Contact Us For Availability
*22693
WCI 3934063 WCI 3934063 Contact Us For Availability
1
BACKGUARD (WHITE) WCI 08014658 Contact Us For Availability
1
WCI 3015613 WCI 3015613 Contact Us For Availability
1
LINER WCI 3017393 Contact Us For Availability
1
BODY-OVEN WCI 3204603 Contact Us For Availability
1
DRAWER WCI 3017479 Contact Us For Availability
2
WCI 08008876 WCI 08008876 Contact Us For Availability
2
WCI 08003105 WCI 08003105 Contact Us For Availability
2
WCI 08003106 WCI 08003106 Contact Us For Availability
2
GLASS - OUTER DOOR WCI 08012547 Contact Us For Availability
2
WCI 3017576 WCI 3017576 Contact Us For Availability
2
GLIDE-REAR (2) WCI 08011050 Contact Us For Availability
3
LENS-INDICATOR LT. (2) WCI 08012769 Contact Us For Availability
3
RETAINER - HNG (2) WCI 08003112 Contact Us For Availability
3
FRAME WCI 08015939 Contact Us For Availability
3
WCI 08002857 WCI 08002857 Contact Us For Availability
3
WCI 08012541 WCI 08012541 Contact Us For Availability
3
PANEL - WHITE WCI 08011056 Contact Us For Availability
4
WCI 08008829 WCI 08008829 Contact Us For Availability
4
GROMMET STRAIN RELIEF WCI 08003111 Contact Us For Availability
4
WCI 08012544 WCI 08012544 Contact Us For Availability
4
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
4
WCI 08003269 WCI 08003269 Contact Us For Availability
5
WCI 08014216 WCI 08014216 Contact Us For Availability
5
WCI 3009124 WCI 3009124 Contact Us For Availability
5
INSULATION - OVEN BACK WCI 3051522 Contact Us For Availability
6
KNOB (5) WCI 08015741 Contact Us For Availability
6
INSULATION WCI 08013680 Contact Us For Availability
6
PANEL-END LH (WHITE) WCI 08012528 Contact Us For Availability
6A
PANEL-END RH (WHITE) WCI 08012527 Contact Us For Availability
7
WCI 3017529 WCI 3017529 Contact Us For Availability
7
SEAL WCI 08003268 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
8
SPACERS - TOP (4) WCI 08012229 Contact Us For Availability
8
PANEL-BACK WCI 3017535 Contact Us For Availability
9
WCI 3017481 WCI 3017481 Contact Us For Availability
9A
WCI 3017482 WCI 3017482 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
CHANNEL-OVEN SPRT. WCI 3017484 Contact Us For Availability
11
CHANNEL - HINGE (2) WCI 08012511 Contact Us For Availability
11
WCI 3205294 WCI 3205294 Contact Us For Availability
12
WCI 08950070 WCI 08950070 Contact Us For Availability
12
WCI 3051784 WCI 3051784 Contact Us For Availability
13
WCI 08003183 WCI 08003183 Contact Us For Availability
13
CHANNEL-OVEN SPRT. WCI 3200926 Contact Us For Availability
14
PINS (2) WCI 08012004 Contact Us For Availability
14
WCI 08014247 WCI 08014247 Contact Us For Availability
15
SCREW (4) WCI 08012564 Contact Us For Availability
15
WCI 3017633 WCI 3017633 Contact Us For Availability
16
SPACER-DRAWER GLIDE (2) WCI 08011055 Contact Us For Availability
17
WCI 08003103 WCI 08003103 Contact Us For Availability
18
WCI 08015746 WCI 08015746 Contact Us For Availability
18A
WCI 08015747 WCI 08015747 Contact Us For Availability
19
BUMPER (4) WCI 08003107 Contact Us For Availability
20
WCI 08003104 WCI 08003104 Contact Us For Availability
22
STRAP-GROUNDING WCI 08003146 Contact Us For Availability
23
BRACKET-THERMOSTAT BULB WCI 08002854 Contact Us For Availability
25
COVER - WIRE WCI 3051856 Contact Us For Availability
× ![]()
