Model Electrolux R433MEM3 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

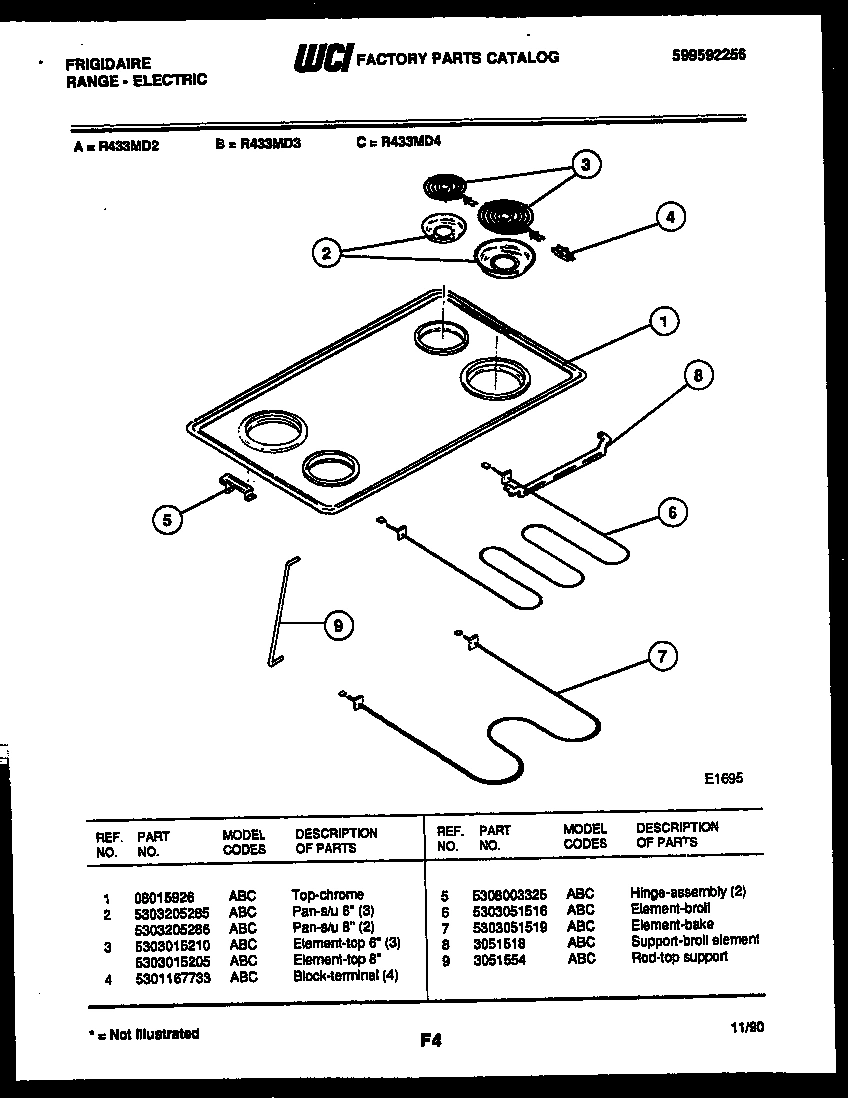

04 - COOKTOP AND BROILER PARTS

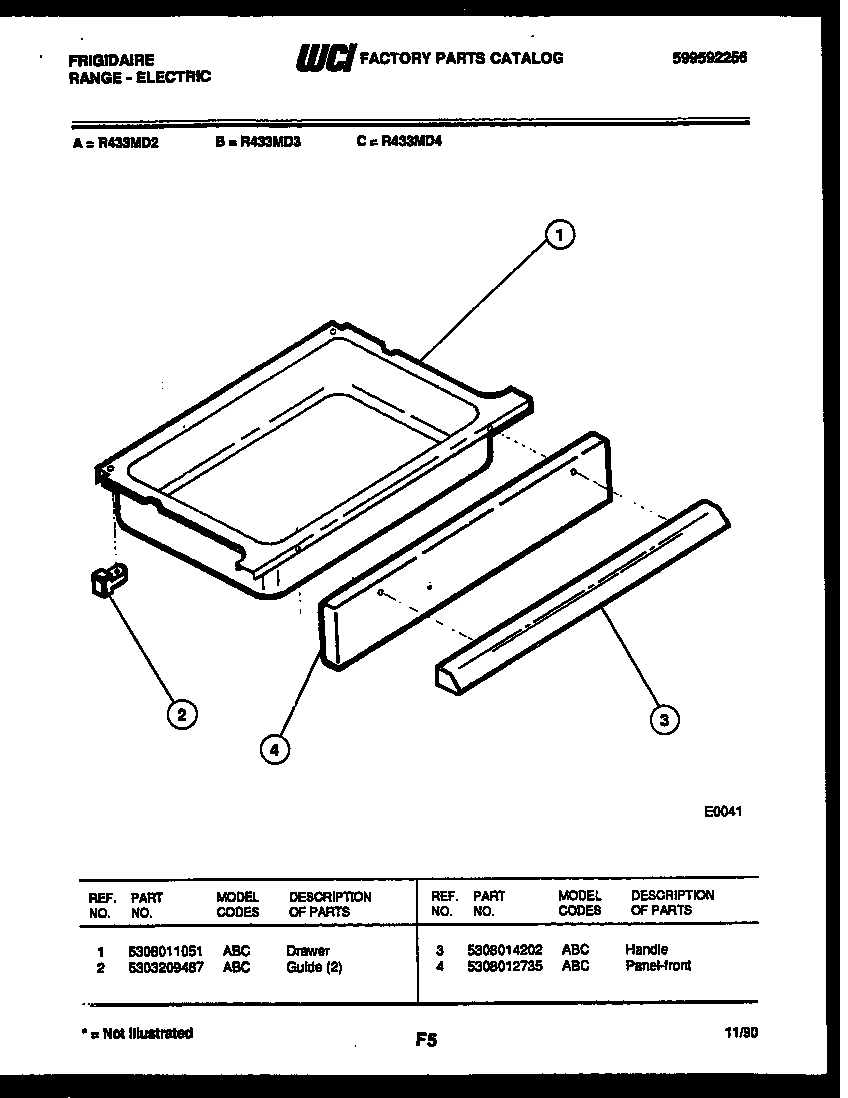

05 - DRAWER PARTS

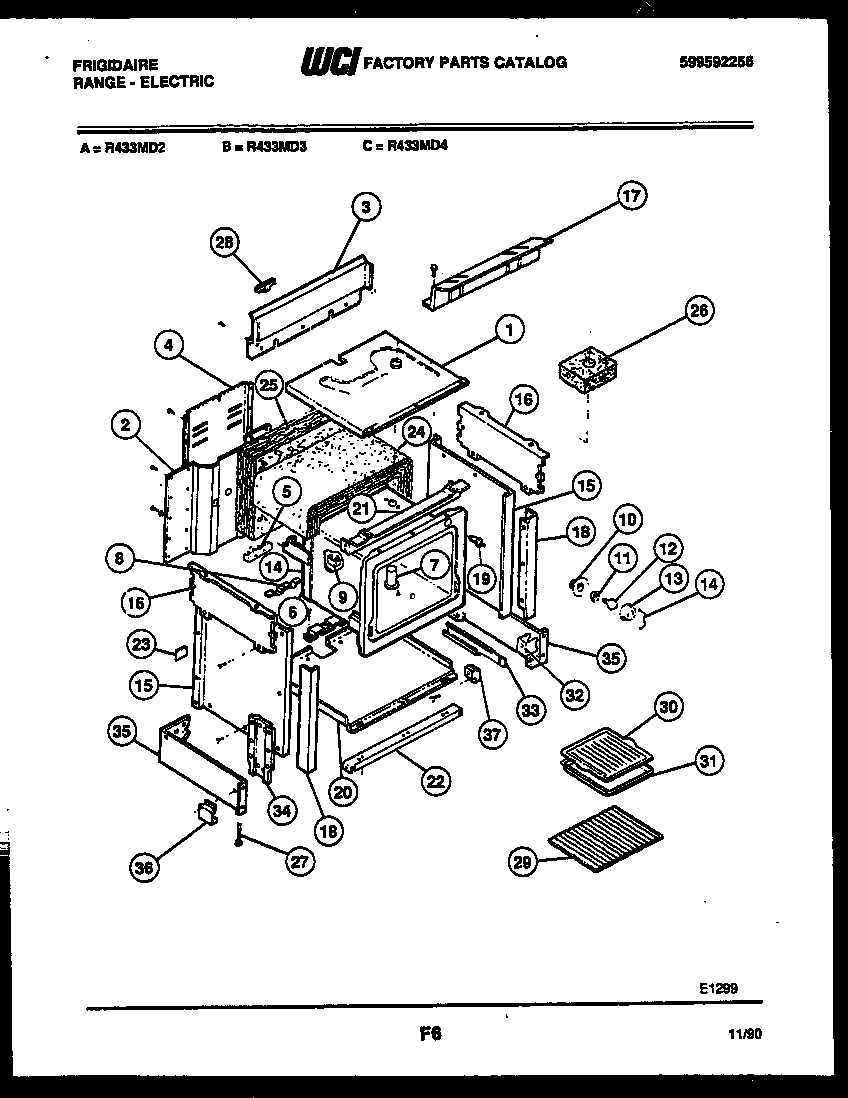

06 - BODY PARTS
Common parts from model Electrolux R433MEM3 RANGE
*29161
SCREW-HANDLE MTG. (4) WCI 5303051860 Contact Us For Availability
*29166
ANTI-TIP KIT WCI 3931015 Contact Us For Availability
1
GLASS-OUTER BLACK WCI 5308012547 Contact Us For Availability
1
WCI 08015926 WCI 08015926 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
WCI 5303051553 WCI 5303051553 Contact Us For Availability
2
GUIDE (2) WCI 5303209487 Contact Us For Availability
2
WCI 3204649 WCI 3204649 Contact Us For Availability
3
LINER, DOOR WCI 5303017393 Contact Us For Availability
3
WCI 5308014202 WCI 5308014202 Contact Us For Availability
3
WCI 5308008689 WCI 5308008689 Contact Us For Availability
4
WCI 5308003268 WCI 5308003268 Contact Us For Availability
4
PANEL, FRONT WCI 5308012735 Contact Us For Availability
4
WCI 3204650 WCI 3204650 Contact Us For Availability
5
WCI 5303207187 WCI 5303207187 Contact Us For Availability
5
HINGE ASSEMBLY (2) WCI 5308003325 Contact Us For Availability
6
SPACER-DOOR (4) WCI 5301324812 Contact Us For Availability
6
LINER, OVEN WCI 3205131 Contact Us For Availability
7
SWITCH, SEL WCI 08015934 Contact Us For Availability
7
BUMPER-TOP (2) WCI 5305297101 Contact Us For Availability
7
WCI 08003333 WCI 08003333 Contact Us For Availability
8
BUMPER-BOTTOM (2) WCI 5303131771 Contact Us For Availability
8
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
8
WCI 3203574 WCI 3203574 Contact Us For Availability
9
CHANNEL, DOOR HINGE (2) WCI 5303051822 Contact Us For Availability
9
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
9
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
10
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
11
WCI 08015955 WCI 08015955 Contact Us For Availability
11
ROLLER-KIT WCI 5303931006 Contact Us For Availability
11A
WCI 08015959 WCI 08015959 Contact Us For Availability
11B
WCI 08015957 WCI 08015957 Contact Us For Availability
12
HINGE, ARM (2) WCI 5308003183 Contact Us For Availability
12
WCI 08015945 WCI 08015945 Contact Us For Availability
13
KNOB, CLOCK (3) WCI 08004148 Contact Us For Availability
13
AXLE WCI 08012004 Contact Us For Availability
14
WCI 5308004154 WCI 5308004154 Contact Us For Availability
14
WCI 5303207209 WCI 5303207209 Contact Us For Availability
14
RETAINER-LENS WCI 5303205904 Contact Us For Availability
15
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
15
WCI 08012226 WCI 08012226 Contact Us For Availability
16
WCI 5308015935 WCI 5308015935 Contact Us For Availability
17
WCI 5305113502 WCI 5305113502 Contact Us For Availability
18
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
19
WCI 5301314211 WCI 5301314211 Contact Us For Availability
20
RETAINER, INSULATION, BOTTOM WCI 3205124 Contact Us For Availability
21
WCI 3206425 WCI 3206425 Contact Us For Availability
22
WCI 08012722 WCI 08012722 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
INSULATION WRAP WCI 3051521 Contact Us For Availability
25
WCI 5303051630 WCI 5303051630 Contact Us For Availability
26
WCI 3051523 WCI 3051523 Contact Us For Availability
27
LEG-LEVELLING (4) WCI 5303205540 Contact Us For Availability
28
WCI 3051800 WCI 3051800 Contact Us For Availability
30
GRILL-BROILER WCI 3131356 Contact Us For Availability
31
WCI 5303207208 WCI 5303207208 Contact Us For Availability
32
SPACER (2) WCI 3051653 Contact Us For Availability
33
RAIL-DRAWER LH WCI 3204819 Contact Us For Availability
33A
RAIL-DRAWER RH WCI 3204818 Contact Us For Availability
34
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
35
PANEL-LOWER SIDE-LH WCI 5301324083 Contact Us For Availability
35A
PANEL-LOWER SIDE-RH WCI 5301324082 Contact Us For Availability
36
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
37
GLIDE, FRONT (2) WCI 3051654 Contact Us For Availability
× ![]()
